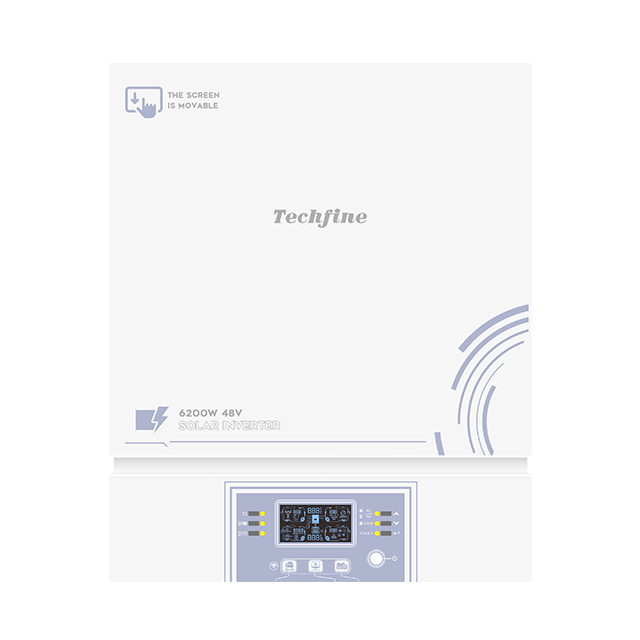

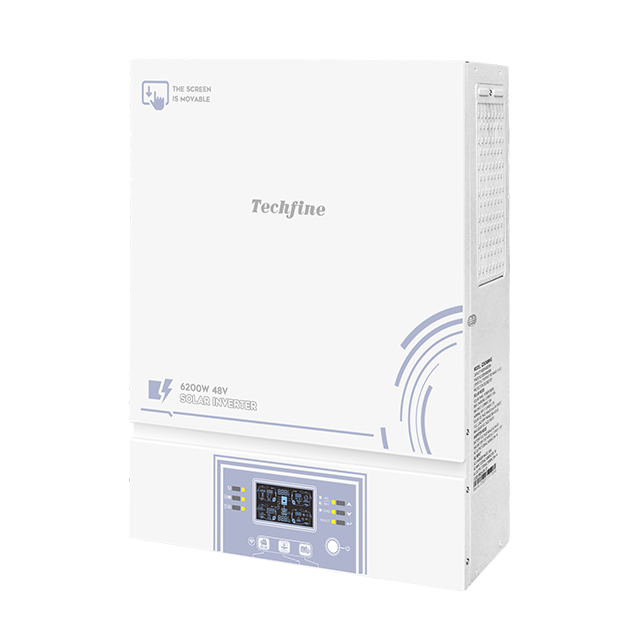

YA Series
|
| |
Data Sheet
| Parameter | YA6248MH |
|---|---|
| AC input | |
| Input formation | L+N+PE |
| Rated input voltage | 220/230/240 VAC |
| Input voltage range | 90-280 VAC ±3 V (normal mode); 170-280 VAC ±3 V (UPS mode) |
| Input frequency | 50/60 Hz ±5% |
| Output | |
| Rated power (battery inverter) | 6200 W |
| PV inverter output power | 6200 W |
| Output voltage | 220/230/240 VAC ±5% |
| Output frequency | 50/60 Hz ±0.1% |
| Output waveform | Pure sine wave |
| Transfer time | ≤10 ms (UPS mode); ≤20 ms (INV mode) |
| Peak power | 12400 VA |
| Overload capability | Battery mode: 11 s @105-150% load; 2 s @150-200% load; 400 ms @>200% load |
| Grid-tie operation | |
| Output voltage | 220/230/240 VAC |
| Grid feed-in voltage range | 100-280 VAC |
| Grid feed-in frequency range | 47-53 Hz ±1 Hz / 57-62 Hz ±1 Hz |
| Rated output current | 26.9 A |
| Power factor range | >0.99 |
| Battery | |
| Peak efficiency (DC/AC) | 98% |
| Rated voltage | 48 Vdc |
| Constant charge voltage (adjustable) | 56.4 Vdc |
| Float charge voltage (adjustable) | 54 Vdc |
| Charger | |
| PV charging mode | MPPT |
| Max. PV input power | 8500 W |
| MPPT input voltage range | 60-500 Vdc |
| Optimal Vmp range | 360-430 Vdc |
| Max. PV input voltage | 500 Vdc |
| Max. PV input current | 27 A |
| Max. PV charging current | 120 A |
| Max. AC charging current | 100 A |
| Max. charging current | 120 A |
| Interface | |
| RS232 | Baud rate 2400 |
| Expansion slot communication port | Li-battery BMS communication card, WiFi card, dry-contact card, etc. |
| Parallel operation | Not supported |
| Environment | |
| Operating temperature | -10 to 50 °C |
| Storage temperature | -15 to 60 °C |
| Operating humidity | 20-90% (non-condensing) |
| Noise level | ≤50 dB |
