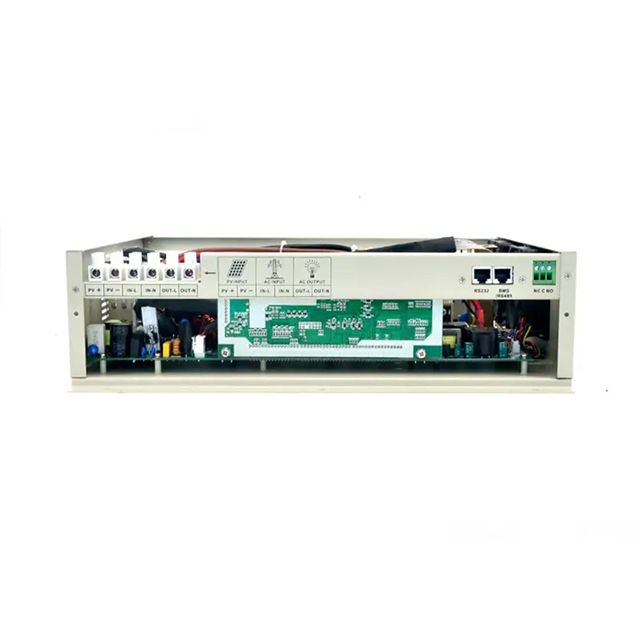

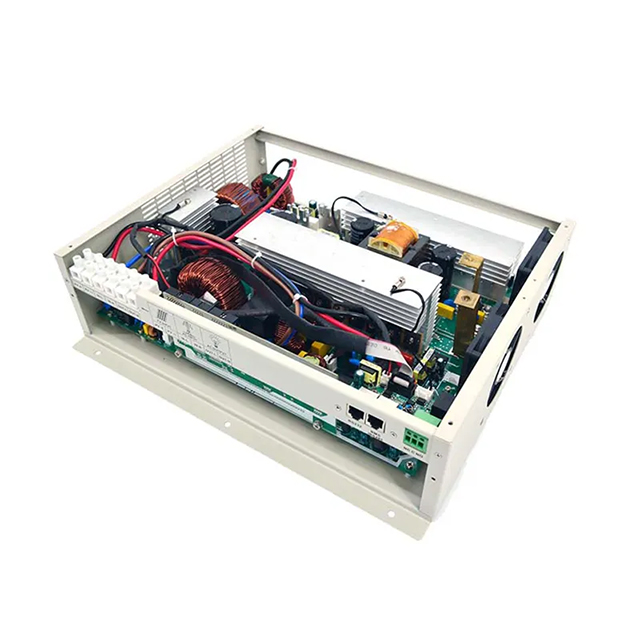

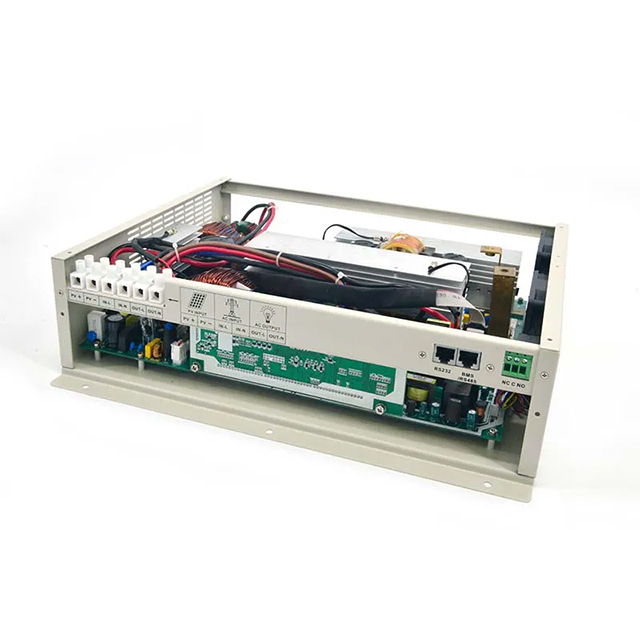

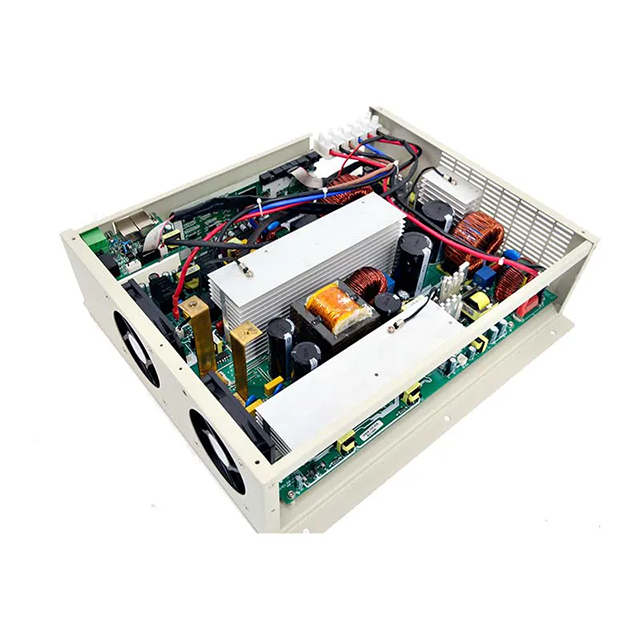

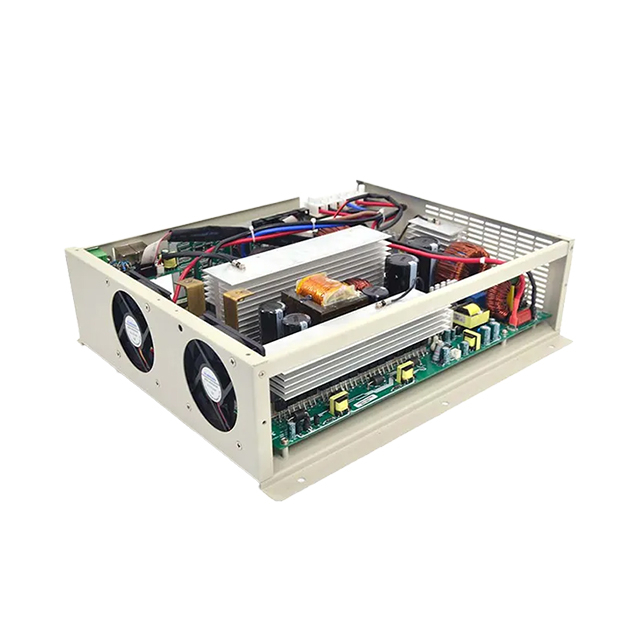

Name: 3kW-11kW hybrid solar inverter circuit board SKD
Brand: Techfine
SKU: 586855596
Rating: 5.0 (73 reviews)

Compact Design, Compatible with Various Lithium Battery Packs

Small and space-efficient design that fits easily into tower-mounted, floor-standing, wall-mounted, and rack-mounted battery cabinets.

Strong Load Capacity for Inductive Appliances

Easily powers inductive loads such as electric drills, water pumps, air conditioners, and washing machines.

Smart APP Monitoring for Remote Management

Supports WiFi or remote data transmission. The mobile APP allows real-time monitoring of inverter and battery system parameters anytime, anywhere.

Built-in Lithium Battery Activation Function

Automatically activates lithium batteries under low-voltage conditions, saving time and improving ease of use.

Model	GP3024SMH	GP4024SMH	GP5548SMH	GP6248SMH	GP8648SMH	GP11048SMH
AC Input
Input Formation	L+N+PE
AC Input	220/230/240VAC
Input Voltage Range	90-280VAC±3V(Normal Mode) 170-280VAC±3V (UPS Mode)
Frequency	50/60Hz(Adaptive)
Inverter Output
Rated Power	3000W	4000W	5500W	6200W	8600W	11000W
Dual Output Power	3600W	4500W	6500W	6500W	11000W	12000W
Output Voltage	220/230/240VAC±5%
Output Frequency	50/60Hz±0.1%
Output Wave	Pure Sine Wave
Transfer Time(Adjustable)	10ms for Computer Equipment,20ms for Household Equipment
Peak Power	6000VA	8000VA	11000VA	12400VA	17200VA	22000VA
Overload Ability	Battery Mode: 21s@105%~150% Load; 11s@150%~200% Load; 400ms@>200% Load
Grid connected Operation
Output Voltage	220/230/240VAC
Grid Voltage Range	170-265VAC
Grid Frequency Range	49-51±1Hz/59-61±1Hz
Output Current	13A	15.7A	21.7A	23.9A	26.9A	47.8A
Power Factor Range	>0.99
Max efficiency (DC/AC)	0.98
Battery Charging
Rated Voltage	24VDC	24VDC	48VDC	48VDC	48VDC	48VDC
Constant Charging Voltage	28.2VDC	28.2VDC	56.4VDC	56.4VDC	56.4VDC	56.4VDC
Float Charging Voltage	27VDC	27VDC	54VDC	54VDC	54VDC	54VDC
PV Charging Method	MPPT	MPPT	MPPT	MPPT	2*MPPT	2*MPPT
PV Input & Charging
Max PV Input	5000W	6500W	8500W	8500W	2*6500W	2*7500W
MPPT Tracking Range	60~500VDC				90~500VDC
MAX PV Input Voltage	500VDC
Maximum pulse PV input current	27A	36A	36A	36A	36A/36A	36A/36A
Maximum rated PV input current	18A	27A	27A	27A	27A/27A	27A/27A
MAX PV Charge Current	100A	120A	100A	120A	150A	150A
MAX AC Charge Current	60A	100A	100A	100A	150A	150A
MAX Charge Current	100A	120A	100A	120A	150A	150A
Communication & Display
LCD	Can display operating mode/load/input/output
RS232	Baud Rate 2400
Expansion Slot Communication Interface	Lithium Battery BMS Communication Card,WIFI 2×5PIN/Pitch2.54mm
Parallel Interface	Not Support Parallel		Support Parallel
Environmental
Operating Temperature	-10°C~50°C
Storage Temperature	-15°C~60°C
Ork Altitude	No more than 1000m, If 1000m<,Rate power will lower, MAX 4000m, Refer IEC62040
Operating Environment Humidity	Non Condensing
Noise	≤50dB
Weight(KG)	6.58	6.6	7.78	7.78	7.78	15.3

Output Voltage:	220/230/240VAC±5%
Rated Power :	3000W 24V 4000W 24V 6200W 48V 8600W 48V 11000W 48V
