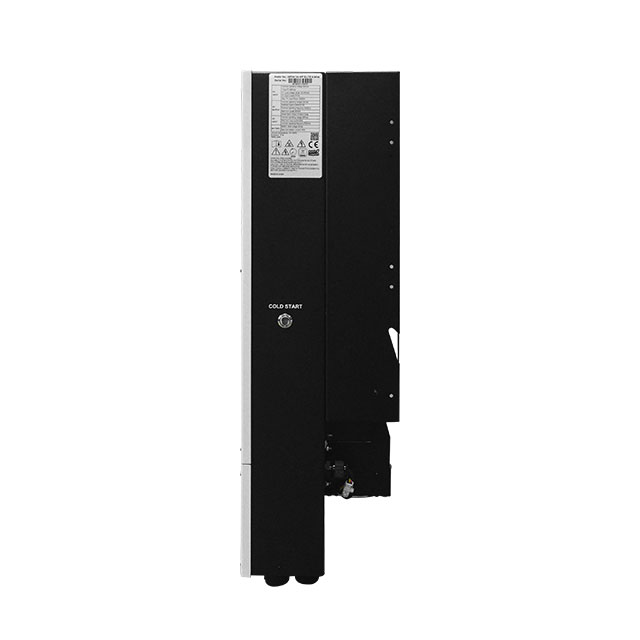

XA Series
|
| |
Download Brochure
Data Sheet
| Parameter | XA6648 | XA8648 | XA10648 |
|---|---|---|---|
| General | |||
| Phase | Single-phase input / single-phase output | ||
| Max. PV input power | 12000W | 16000W | 18000W |
| Rated output power | 6600VA/6600W | 8600VA/8600W | 10600VA/10600W |
| Max. charging power | 6600W | 8000W | 10600W |
| AC output | |||
| Rated input voltage | 220/230/240 VAC | ||
| Output voltage range | 184-264.5 / 195.5-253 / 182-260 VAC (selectable) | ||
| Rated output current | 28.7A | 37.4A | 46.1A |
| Power factor | >0.99 | ||
| Efficiency | |||
| Max. conversion efficiency (DC/AC) | 0.95 | 0.96 | |
| Grid-tie AC input | |||
| AC start-up / auto-restart voltage | 60 - 80 VAC / 180 VAC | ||
| Grid feed-in voltage range | 90 - 280 VAC or 170 - 280 VAC | ||
| Grid feed-in frequency range | 50 / 60 Hz (auto-sensing) | ||
| Max. grid feed-in current | 40A | 60A | |
| PV input (DC) | |||
| Max. PV input voltage | 500 VDC | ||
| MPPT operating range | 120 VDC ~ 450 VDC | ||
| MPPT tracker count / max. PV input current | 2 / 21A | 2 / 27A | |
| Battery-mode output | |||
| Rated output voltage | 220/230/240 VAC | ||
| Output waveform | Pure sine wave | ||
| Conversion efficiency (DC to AC) | 0.93 | ||
| Battery & charging | |||
| Battery type | Lead-acid or lithium-ion | ||
| Battery voltage range (V) | 40-60VDC | ||
| Rated DC voltage | 48 VDC | ||
| Max. PV charging current | 135A | 190A | 210A |
| Max. utility charging current | 135A | 190A | 210A |
| Max. total charging current | 135A | 190A | 210A |
| Physical | |||
| Dimensions D×W×H (mm) | 192×418×633 | ||
| Weight (ref., kg) | 23.5 | 28 | 29 |
| Communication | |||
| Parallel interface | Up to 9 units in parallel | ||
| Expansion slot | RS-232 / RS485, Wi-Fi | ||
| Environment | |||
| Operating humidity | 0-100% RH (non-condensing) | ||
| Operating temperature | -10°C to 50°C | ||
| Standards & certification | |||
| Safety / EMC standards | IEC/EN 62109-1 ,IEC/EN 62109-2,IEC/EN 61000-6-2/4,IEC 61683,IEC62116,IEC61727 | ||
Product Details

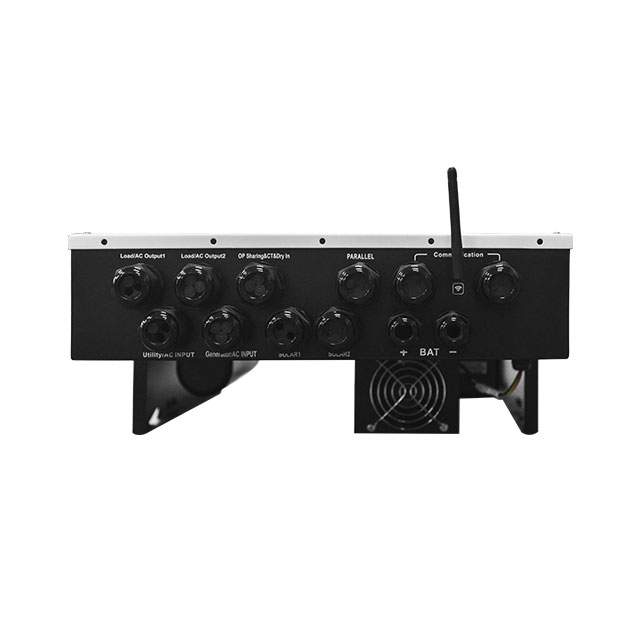

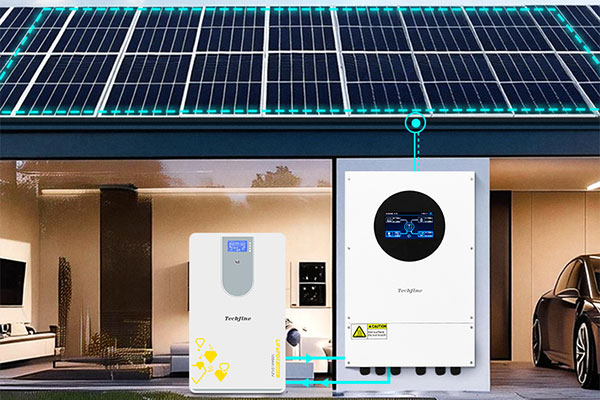

Dual on/off-grid modes support battery-free operation. Enables energy storage and grid feed-in under SUE/PEC modes, with dual AC inputs and automatic switching.
CT-based reverse current detection intelligently controls power flow, prioritizes self-use, prevents grid backfeed, and complies with energy regulations.

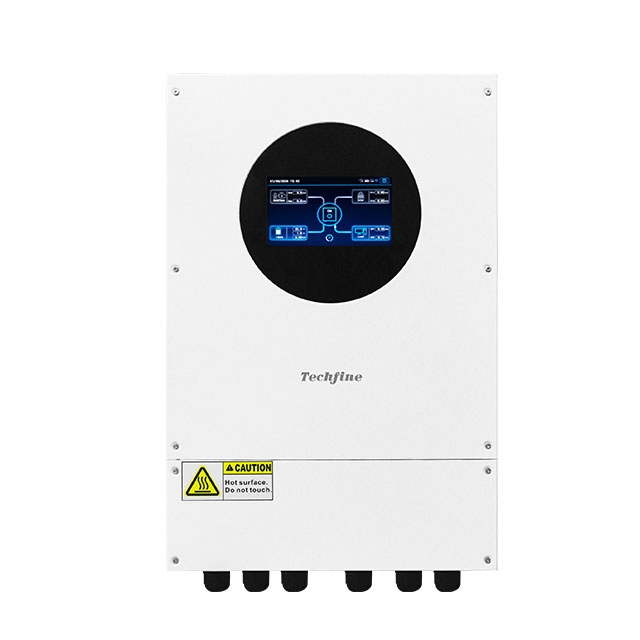

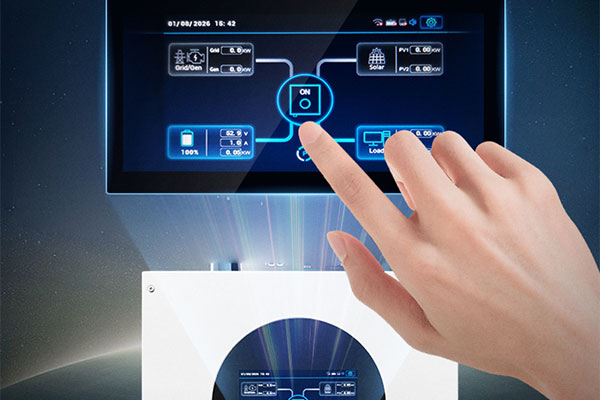

Clear and intuitive interface with real-time display of current, voltage, power, energy data, and fault alarms for easy operation.

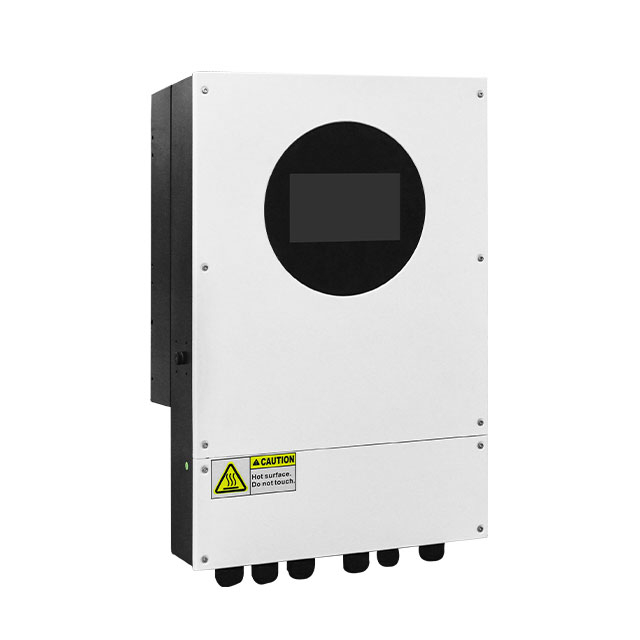

Dustproof and waterproof design protects against rain, wind, salt spray, humidity, and industrial cleaning, ensuring long-term stable operation.

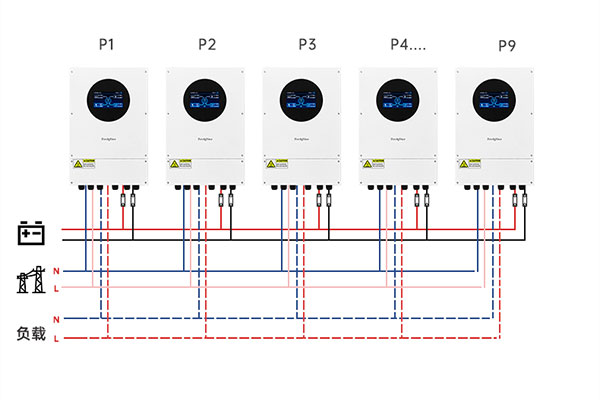

Supports single-phase and three-phase parallel operation. Up to 9 units in single phase and up to 4 units per phase in three-phase systems.
Compatible with up to 99% of conventional electrical equipment. Flexible and practical for residential, commercial, and backup power applications.
