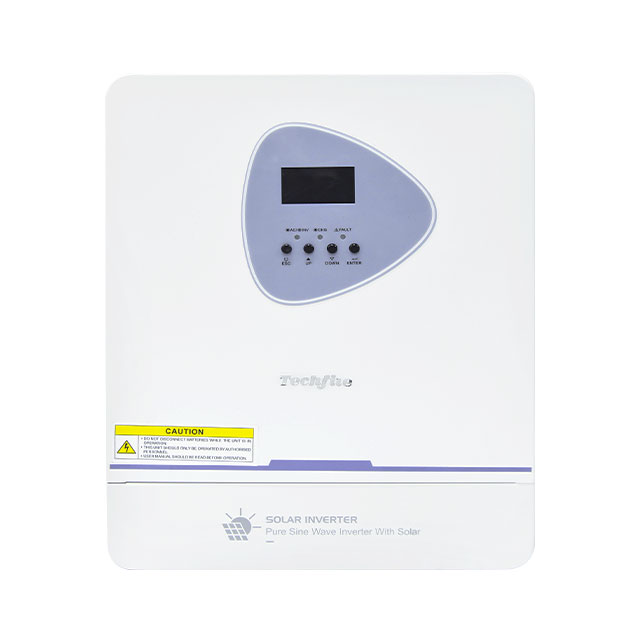

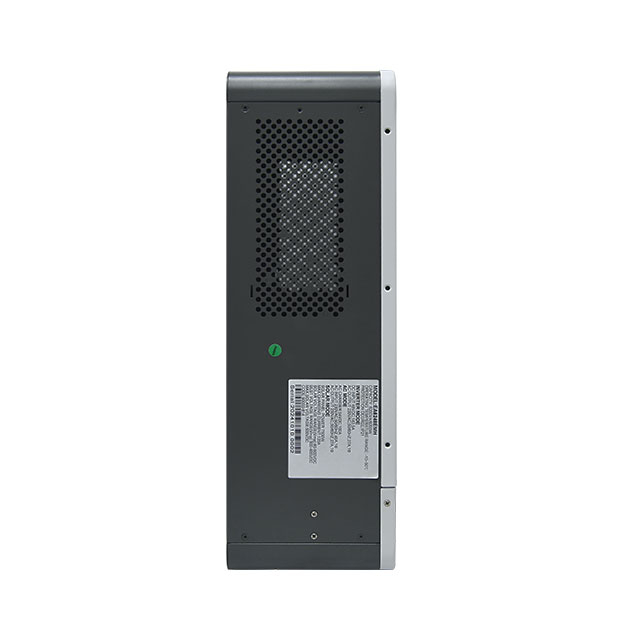

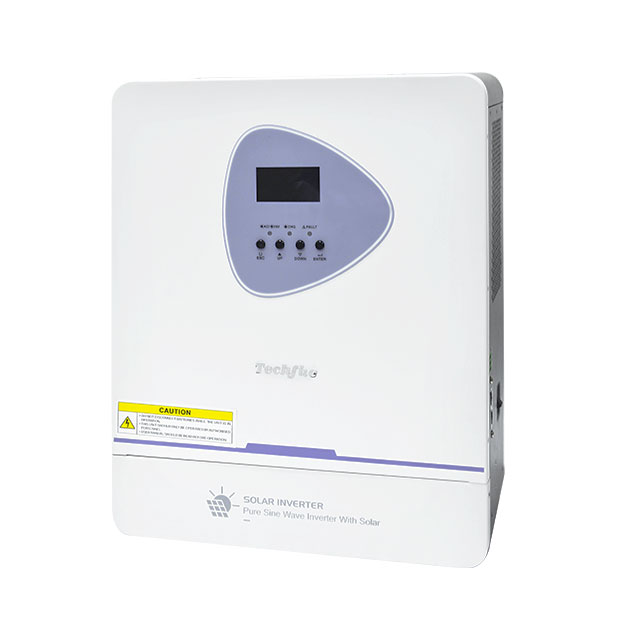

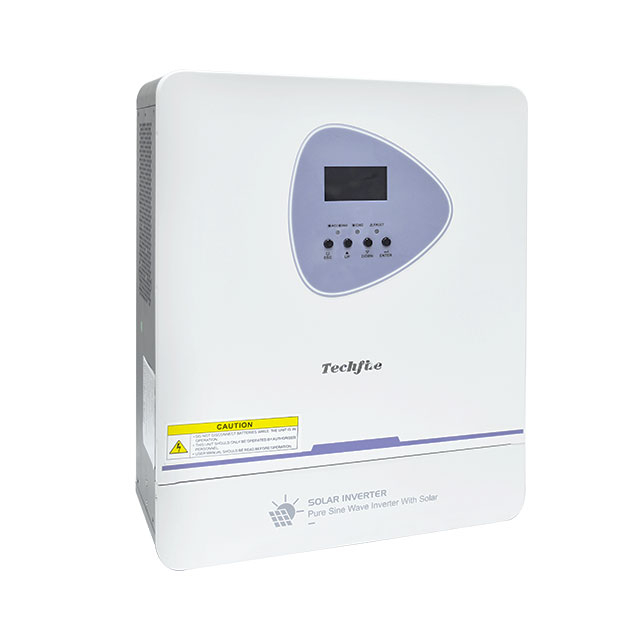

Data Sheet

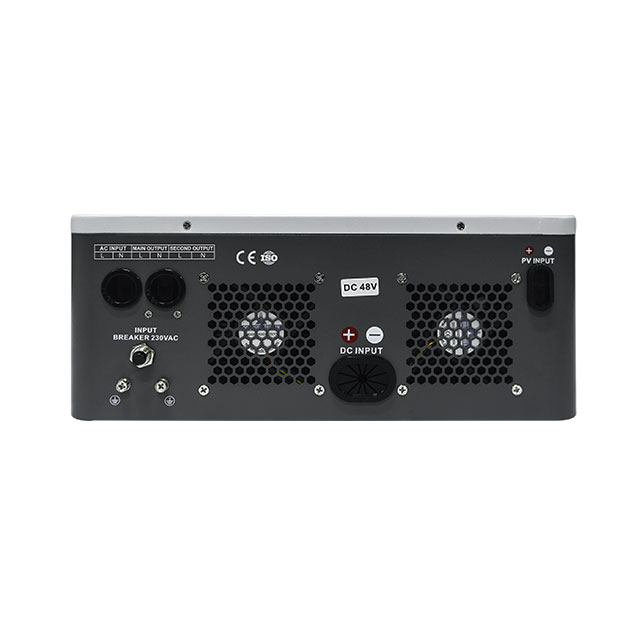

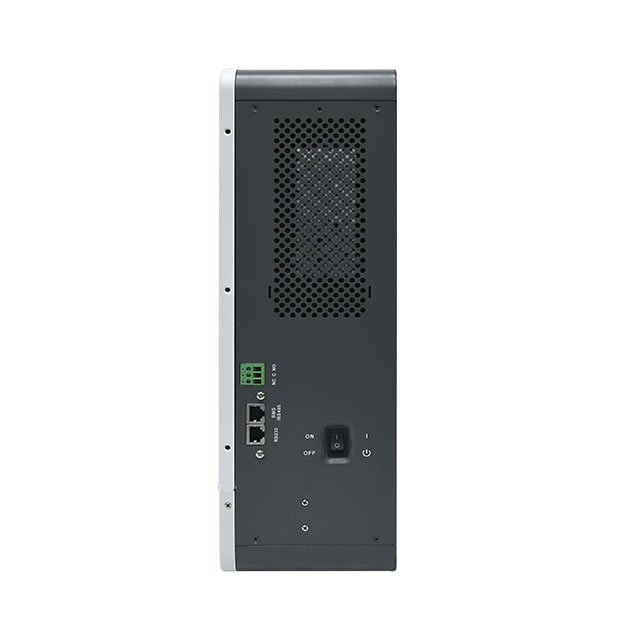

| Parameter | EA2012 | EA3024 | EA3624 (custom) | EA4024 | EA5548 (custom) | EA6248 | EA8048 | EA8648 (custom) | EA11048 |
|---|---|---|---|---|---|---|---|---|---|
| Input | |||||||||
| Input wiring | L+N+PE | ||||||||
| Rated input voltage | 220/230/240VAC | ||||||||
| Input voltage range | 90-280 VAC ±3 V (normal mode); 170-280 VAC ±3 V (UPS mode) | ||||||||
| Input frequency range | 50 / 60 Hz (auto-sensing) | ||||||||
| Output | |||||||||
| Rated power (battery mode) | 1600W | 3000W | 3600W | 4000W | 5500W | 6200W | 7500W | 8600W | 11000W |
| Rated power (PV mode) | — | 4500W | 6500W | 8000W | 11000W | 12000W | |||
| Output voltage | 220/230/240VAC±5% | ||||||||
| Output frequency | 50/60Hz±0.1% | ||||||||
| Waveform | Pure sine wave | ||||||||
| Transfer time (selectable) | 10 ms (computer loads) / 20 ms (home appliances) | ||||||||
| Peak power | 3200VA | 6000VA | 7200VA | 8000VA | 11000VA | 12400VA | 15000VA | 17200VA | 22000VA |
| Overload capability | Battery mode: 11 s @ 105-150% load; 2 s @ 150-200% load; 400 ms @ >200% load | ||||||||
| Grid-tie operation | |||||||||
| Output voltage | Self-consumption only (no grid feed-in) | 220/230/240VAC | |||||||
| Grid feed-in voltage range | — | 100-280VAC | |||||||
| Grid feed-in frequency range | — | 47~53±1Hz/57~62±1Hz | |||||||
| Rated output current | — | 15.7A | 17.4A | 23.9A | 26.9A | 32.6A | 37.4A | 47.8A | |
| Power factor range | — | >0.99 | |||||||
| Max. conversion efficiency (DC/AC) | — | 0.98 | |||||||
| Battery | |||||||||
| Rated voltage | 12Vdc | 24Vdc | 48Vdc | ||||||
| Constant charge voltage (adjustable) | 14.1Vdc | 28.2Vdc | 56.4Vdc | ||||||
| Float charge voltage (adjustable) | 13.5Vdc | 27Vdc | 54Vdc | ||||||
| Solar charger | |||||||||
| PV charging type | MPPT | Single MPPT channel with dual MC4 connectors | Dual-channel MPPT | ||||||
| Max. PV input power | 2000W | 3000W | 5000W | 6200W | 9000W | 2×5500W | |||
| MPPT input voltage range | 30~500Vdc | 60-500Vdc | 90~500Vdc | ||||||
| Optimal Vmp range | 300~400Vdc | 360~430Vdc | 300~400Vdc | ||||||
| Max. PV input voltage | 500Vdc | ||||||||
| Max. PV input current (pulse) | 18A | 27A | 36A | 27A/27A | |||||
| Max. rated PV input current | 13A | 18A | 27A | 18A/18A | |||||
| Max. PV charging current | 100A | 120A | 100A | 120A | 150A | ||||
| Max. utility charging current | 60A | 100A | 120A | 150A | |||||
| Max. total charging current | 100A | 120A | 100A | 120A | 150A | ||||
| Display | |||||||||
| LCD display | Shows operating mode / load / input / output, etc. | ||||||||
| Communication | |||||||||
| RS232 | Baud rate 2400 | ||||||||
| Expansion slot | Li-battery BMS card, Wi-Fi card, dry-contact card, etc. | ||||||||
| Parallel interface | Not available | Parallel / networking capable | |||||||
| Environment | |||||||||
| Operating temperature | -10 to 50 °C | ||||||||
| Operating humidity | 20-95% (non-condensing) | ||||||||
| Storage temperature | -15 to 60 °C | ||||||||
| Altitude | <=1000 m without derating; derated above 1000 m, max. 4000 m (ref. IEC 62040) | ||||||||
| Noise level | ≤50 dB | ||||||||
| Physical | |||||||||
| Dimensions D×W×H (mm) | 404×304×114 mm (EA/ED) | 436×330×138 mm (EA/ED) | 440×355×138 mm (EA/ED) | 601×360×163 mm (EA/ED) | |||||
| Weight (ref., kg) | 5.5 | 6 | 7.5 | 8.5 | 10.3 | 19.3 | |||
| Standards & certification | |||||||||
| Standards & certification | EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1 | ||||||||
