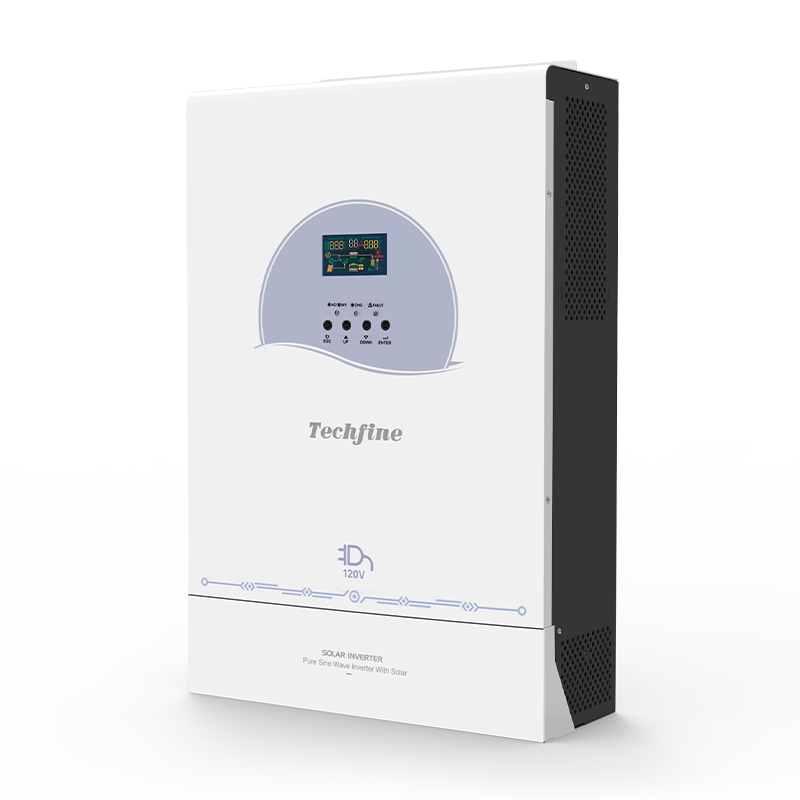

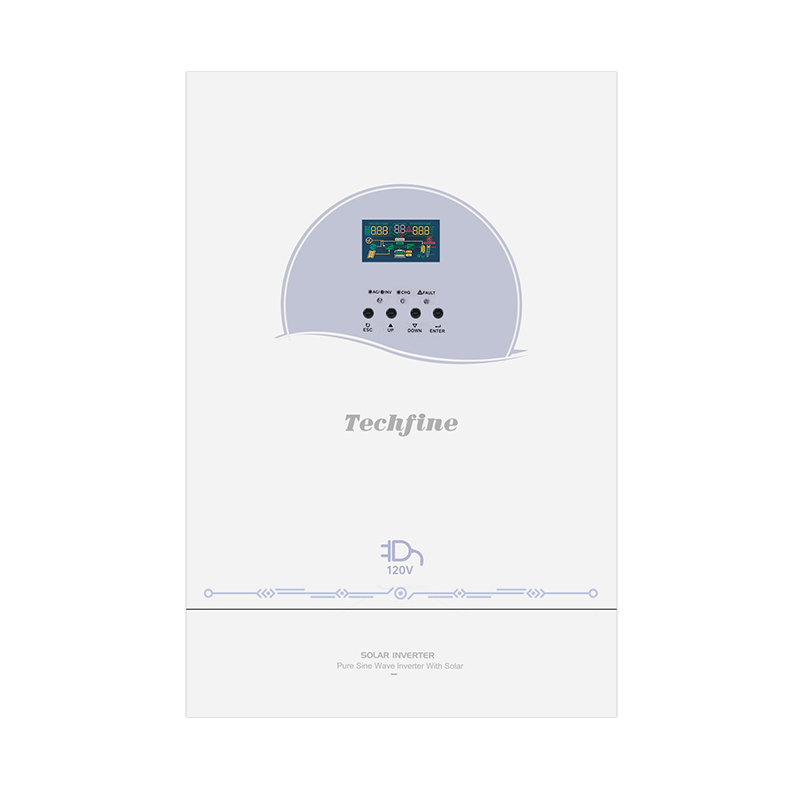

GA PRO S Series
|
| |
Data Sheet
| Parameter | GA PRO S 4024 | GA PRO S 5548 |
|---|---|---|
| Input | ||
| Input wiring | L+N+PE | |
| Rated input voltage | 110/120VAC | |
| Input voltage range | 65-145VAC±3V | |
| Input frequency range | 60Hz±0.1% | |
| Output | ||
| Rated power (battery mode) | 4000W | 5500W |
| Rated power (PV mode) | 4000W | 5500W |
| Output voltage | 110/120VAC±5% | |
| Output frequency | 60Hz±0.1% | |
| Waveform | Pure sine wave | |
| Transfer time (selectable) | 10 ms (computer loads) / 20 ms (home appliances) | |
| Peak power | 8000VA | 11000VA |
| Overload capability | Battery mode: 11 s @ 105-150% load; 2 s @ 150-200% load; 400 ms @ >200% load | |
| Grid-tie operation | ||
| Output voltage | 110/120VAC | |
| Grid feed-in voltage range | 90-140VAC | |
| Grid feed-in frequency range | 47-53 Hz ±1 / 57-62 Hz ±1 | |
| Rated output current | 40A | 50A |
| Power factor range | >0.99 | |
| Max. conversion efficiency (DC/AC) | 0.98 | |
| Battery | ||
| Rated voltage | 24Vdc | 48Vdc |
| Constant charge voltage (adjustable) | 28.2Vdc | 56.4Vdc |
| Float charge voltage (adjustable) | 27Vdc | 54Vdc |
| Solar charger | ||
| PV charging type | MPPT | |
| Max. PV input power | 6500W | 8500W |
| MPPT input voltage range | 60-500Vdc | |
| Optimal Vmp range | 360~430Vdc | |
| Max. PV input voltage | 500Vdc | |
| Max. PV input current (pulse) | 36A | |
| Max. rated PV input current | 27A | |
| Max. PV charging current | 120A | 100A |
| Max. utility charging current | 80A | 40A |
| Max. total charging current | 120A | 100A |
| Display | ||
| LCD display | Shows operating mode / load / input / output, etc. | |
| Communication | ||
| RS232 | Baud rate 2400 | |
| Expansion slot | Li-battery BMS card, Wi-Fi card, dry-contact card, etc. | |
| Parallel interface | Parallel / networking capable | |
| Environment | ||
| Operating temperature | -10 to 50 °C | |
| Operating humidity | 20-95% (non-condensing) | |
| Storage temperature | -15 to 60 °C | |
| Altitude | <=1000 m without derating; derated above 1000 m, max. 4000 m (ref. IEC 62040) | |
| Noise level | ≤50 dB | |
| Physical | ||
| Dimensions D×W×H (mm) | GA: 495×312×125 mm; GL: 495×312×146 mm | |
| Weight (ref., kg) | 9.5 | |
