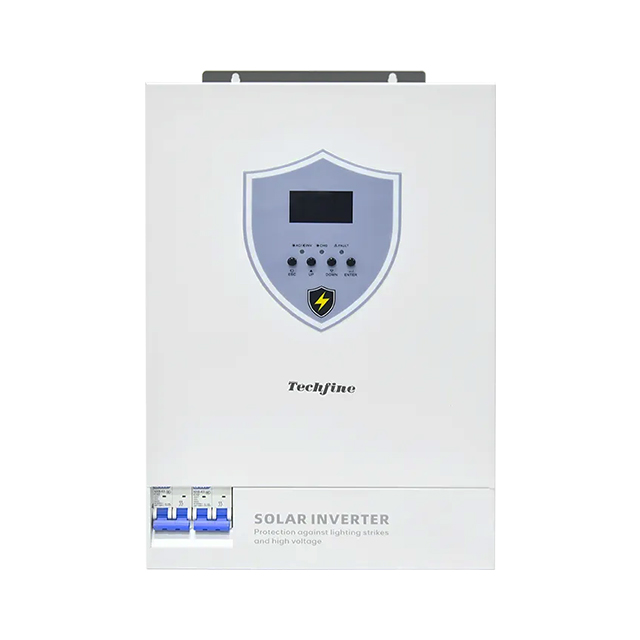

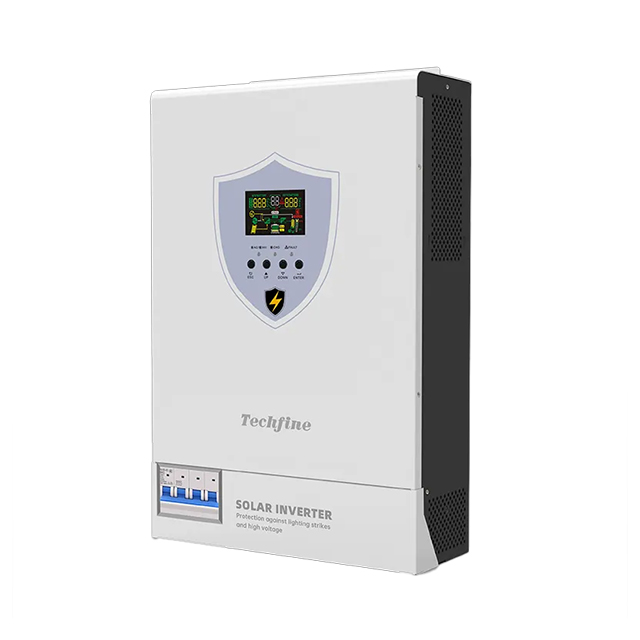

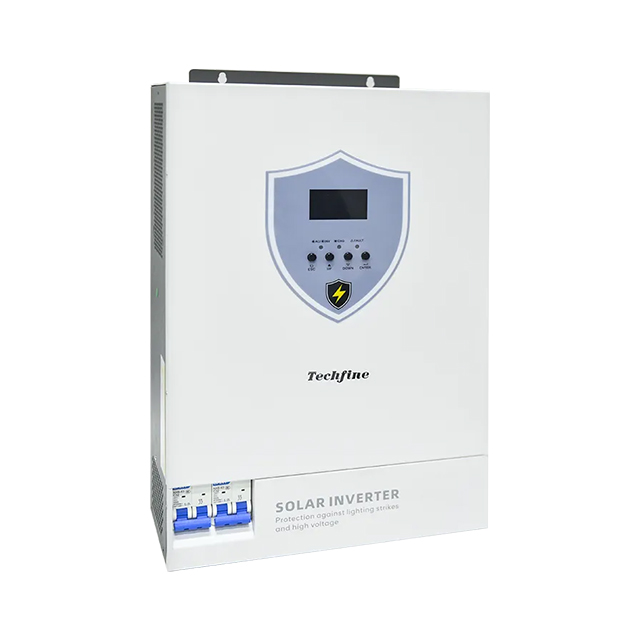

IV-Series
|
| |
Download Brochure
Data Sheet
| Parameter | IV3024 | IV3624 | IV5548 | IV6248 |
|---|---|---|---|---|
| Input | ||||
| Input wiring | L+N+PE | |||
| Rated input voltage | 220/230/240VAC | |||
| Input voltage range | 90-280 VAC ±3 V (normal mode); 170-280 VAC ±3 V (UPS mode) | |||
| Input frequency range | 50 / 60 Hz (auto-sensing) | |||
| Output | ||||
| Rated power (battery mode) | 3000W | 3600W | 5500W | 6200W |
| Rated power (PV mode) | 3600W | 4500W | 6500W | |
| Output voltage | 220/230/240VAC±5% | |||
| Output frequency | 50/60Hz±0.1% | |||
| Waveform | Pure sine wave | |||
| Transfer time (selectable) | 10 ms (computer loads) / 20 ms (home appliances) | |||
| Peak power | 6000VA | 7200VA | 11000VA | 12400VA |
| Overload capability | Battery mode: 11 s @ 105-150% load; 2 s @ 150-200% load; 400 ms @ >200% load | |||
| Grid-tie operation | ||||
| Output voltage | 220/230/240VAC | |||
| Grid feed-in voltage range | 100-280VAC | |||
| Grid feed-in frequency range | 47~53±1Hz/57~62±1Hz | |||
| Rated output current | 13A | 15.7A | 23.9A | 26.9A |
| Power factor range | >0.99 | |||
| Max. conversion efficiency (DC/AC) | 0.98 | |||
| Battery | ||||
| Rated voltage | 24Vdc | 48Vdc | ||
| Constant charge voltage (adjustable) | 28.2Vdc | 56.4Vdc | ||
| Float charge voltage (adjustable) | 27Vdc | 54Vdc | ||

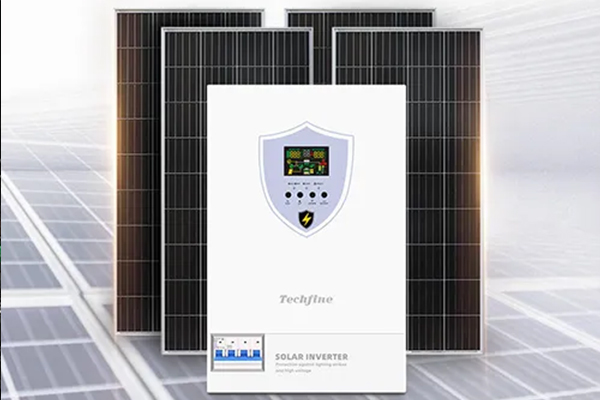

| Solar charger | ||||
| PV charging type | MPPT | |||
| Max. PV input power | 5000W | 6500W | 8500W | |
| MPPT input voltage range | 60-500Vdc | |||
| Optimal Vmp range | 300~400Vdc | 360~430Vdc | ||
| Max. PV input voltage | 500Vdc | |||
| Max. PV input current (pulse) | 27A | 36A | ||
| Max. rated PV input current | 18A | 27A | ||
| Max. PV charging current | 100A | 120A | 100A | 120A |
| Max. utility charging current | 60A | 100A | ||
| Max. total charging current | 100A | 120A | 100A | 120A |
| Display | ||||
| LCD display | Shows operating mode / load / input / output, etc. | |||
| Communication | ||||
| RS232 | Baud rate 2400 | |||
| Expansion slot | Li-battery BMS card, Wi-Fi card, dry-contact card, etc. | |||
| Parallel interface | Not available | Parallel / networking capable | ||
| Environment | ||||
| Operating temperature | -10 to 50 °C | |||
| Operating humidity | 20-95% (non-condensing) | |||
| Storage temperature | -15 to 60 °C | |||
| Altitude | <=1000 m without derating; derated above 1000 m, max. 4000 m (ref. IEC 62040) | |||
| Noise level | ≤50 dB | |||
| Physical | ||||
| Dimensions D×W×H (mm) | 495×312×135 | |||
| Weight (ref., kg) | 7.5 | 8.5 | ||
| Standards & certification | ||||
| Standards & certification | EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1 | |||
