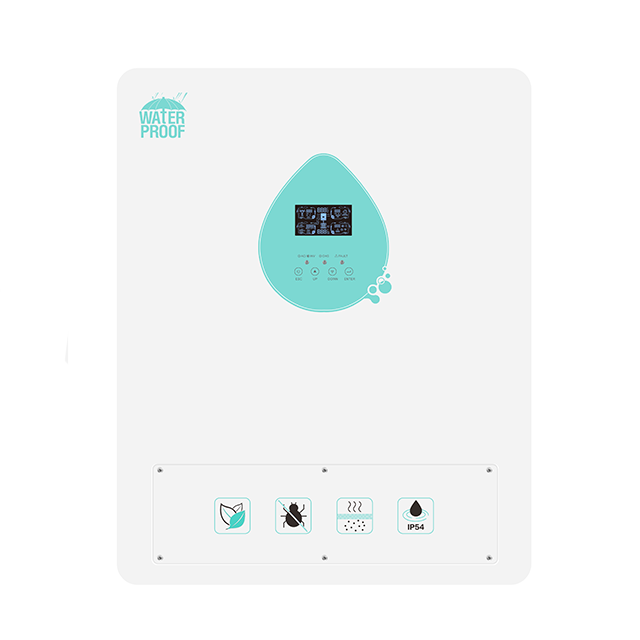

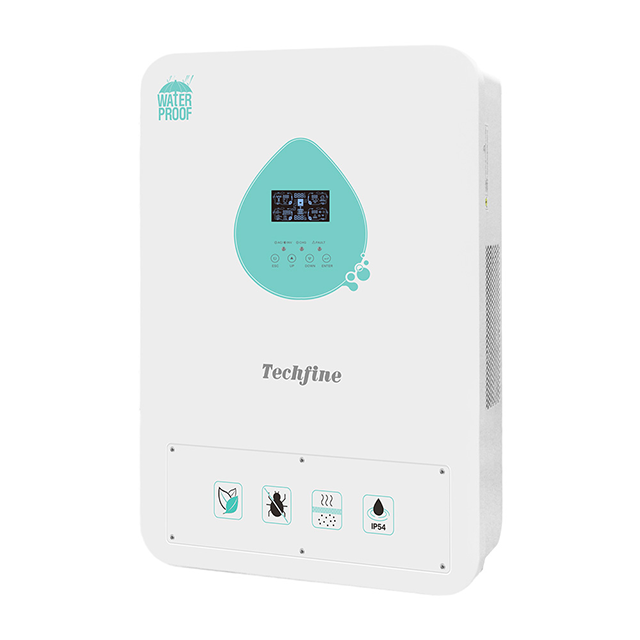

TQ Series
|
| |
Product Description
| Parameter | TQ2012 | TQ3624 | TQ6248 | TQ12048 |
|---|---|---|---|---|
| Input | ||||
| Input wiring | L+N+PE | |||
| Rated input voltage | 220/230/240VAC | |||
| Input voltage range | 90-280 VAC ±3 V (normal mode); 170-280 VAC ±3 V (UPS mode) | |||
| Input frequency range | 50 / 60 Hz (auto-sensing) | |||
| Output | ||||
| Rated power (battery mode) | 1600W | 3600W | 6200W | 11000W |
| Rated power (PV mode) | 2000W | 3600W | 6200W | 12000W |
| Output voltage | 220/230/240VAC±5% | |||
| Output frequency | 50/60Hz±0.1% | |||
| Waveform | Pure sine wave | |||
| Transfer time (selectable) | 10 ms (computer loads) / 20 ms (home appliances) | |||
| Peak power | 3200VA | 7200VA | 12400VA | 22000VA |
| Overload capability | Battery mode: 11 s @ 105-150% load; 2 s @ 150-200% load; 400 ms @ >200% load | |||
| Grid-tie operation | ||||
| Output voltage | 220/230/240VAC | |||
| Grid feed-in voltage range | 100-280VAC | |||
| Grid feed-in frequency range | 47~53±1Hz/57~62±1Hz | |||
| Rated output current | 8.7A | 15.7A | 26.9A | 52.2A |
| Power factor range | >0.99 | |||
| Max. conversion efficiency (DC/AC) | 0.98 | |||
| Battery | ||||
| Rated voltage | 12Vdc | 24Vdc | 48Vdc | |
| Constant charge voltage (adjustable) | 14.1Vdc | 28.2Vdc | 56.4Vdc | |
| Float charge voltage (adjustable) | 13.5Vdc | 27Vdc | 54Vdc | |
| Solar charger | ||||
| PV charging type | MPPT | Dual-channel MPPT | ||
| Max. PV input power | 3000W | 5000W | 8500W | 2×8500W |
| MPPT input voltage range | 60-500Vdc | 90~500Vdc | ||
| Optimal Vmp range | 300~400Vdc | 360~430Vdc | ||
| Max. PV input voltage | 500Vdc | |||
| Max. PV input current (pulse) | 21A | 36A | 36A/36A | |
| Max. rated PV input current | 15A | 27A | 27A/27A | |
| Max. PV charging current | 100A | 120A | 150A | |
| Max. utility charging current | 80A | 100A | 150A | |
| Max. total charging current | 100A | 120A | 150A | |
| Display | ||||
| LCD display | Shows operating mode / load / input / output, etc. | |||
| Communication | ||||
| RS232 | Baud rate 2400 | |||
| Expansion slot | Li-battery BMS card, Wi-Fi card, CT port | |||
| Parallel interface | Not available | Parallel / networking capable | ||
| Environment | ||||
| Operating temperature | -10 to 50 °C | |||
| Operating humidity | 20-95% (non-condensing) | |||
| Storage temperature | -15 to 60 °C | |||
| Altitude | <=1000 m without derating; derated above 1000 m, max. 4000 m (ref. IEC 62040) | |||
| Noise level | ≤50 dB | |||
| Physical | ||||
| Dimensions D×W×H (mm) | 352.5×348.5×135 mm | 433.5×362.5×135 mm | 519.4×416.4×154.8 mm | |
| Weight (ref., kg) | 7 | 7.6 | 11 | 18.5 |
| Standards & certification | ||||
| Standards & certification | EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1 | |||
