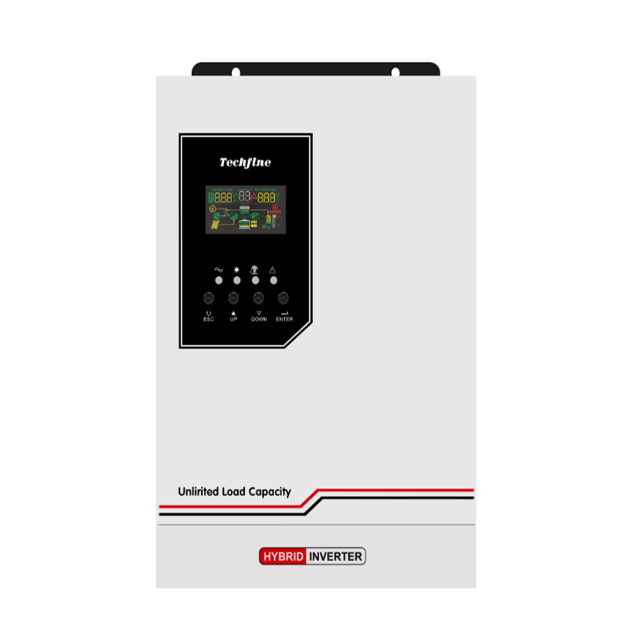

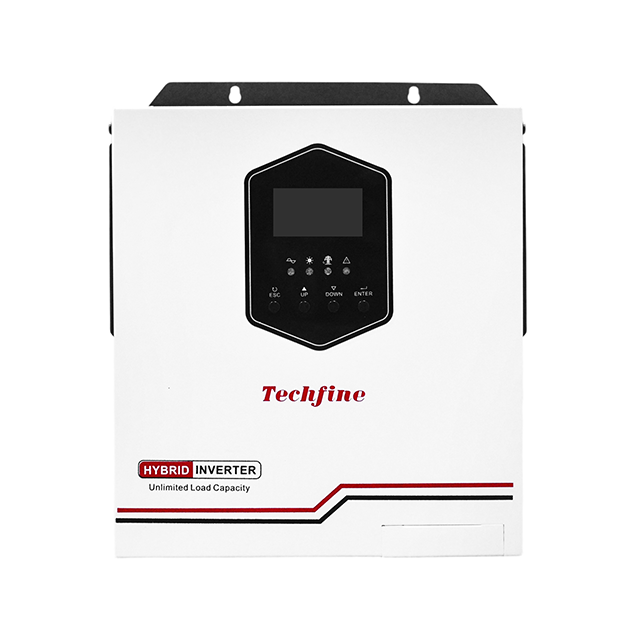

HG-B Series
|
| |
Data Sheet
| Parameter | HG6500 | HG11000 |
|---|---|---|
| Input | ||
| Input wiring | L+N+PE | |
| Rated input voltage | 220/230/240VAC | |
| Input voltage range | 90-280 VAC ±3 V (normal mode); 170-280 VAC ±3 V (UPS mode) | |
| Input frequency range | 50 / 60 Hz (auto-sensing) | |
| Output | ||
| Rated power | 6500W | 11000W |
| Output voltage | 220/230/240VAC±5% | |
| Output frequency | 50/60Hz±0.1% | |
| Waveform | Pure sine wave | |
| Transfer time (selectable) | 10 ms (computer loads) / 20 ms (home appliances) | |
| Peak power | 13000VA | 22000VA |
| Overload capability | 11 s @ 105-150% load; 2 s @ 150-200% load; 400 ms @ >200% load | |
| Grid-tie operation | ||
| Output voltage | 220/230/240VAC | |
| Grid feed-in voltage range | 90-280VAC | |
| Grid feed-in frequency range | 49-51±1Hz/59-61±1Hz | |
| Rated output current | 35A | 50A |
| Power factor range | >0.99 | |
| Max. conversion efficiency (DC/AC) | 0.98 | |
| PV input | ||
| PV operating range | 70~500Vdc | |
| Max. PV input power | 9000W | 18000W |
| Optimal Vmp range | 300~400Vdc | |
| Max. PV input voltage | 500Vdc | |
| Max. PV input current | 15A+15A | 18A+18A |
| Display | ||
| LCD display | Shows operating mode / load / input / output, etc. | |
| Communication | ||
| RS232 | Baud rate 2400 | |
| Expansion slot | Wi-Fi card, CT monitoring, etc. | |
| Environment | ||
| Operating temperature | -10 to 50 °C | |
| Operating humidity | 20-95% (non-condensing) | |
| Storage temperature | -15 to 60 °C | |
| Altitude | <=1000 m without derating; derated above 1000 m, max. 4000 m (ref. IEC 62040) | |
| Noise level | ≤50 dB | |
| Physical | ||
| Dimensions L×W×H (mm) | 324×223×105 | |
