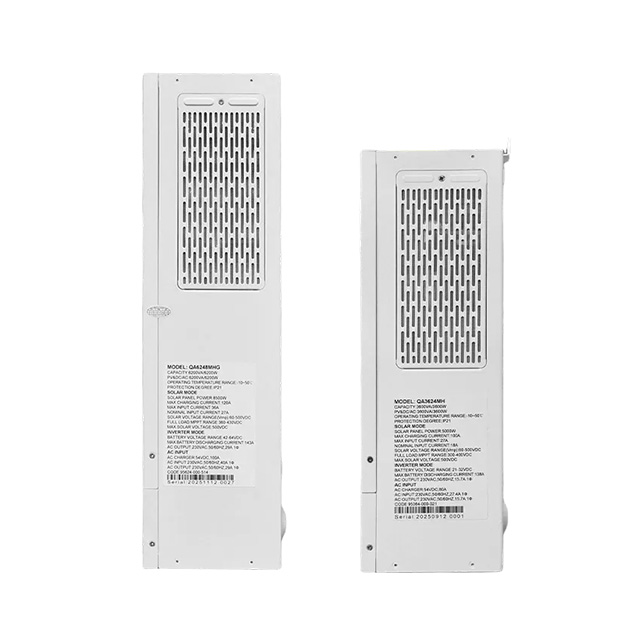

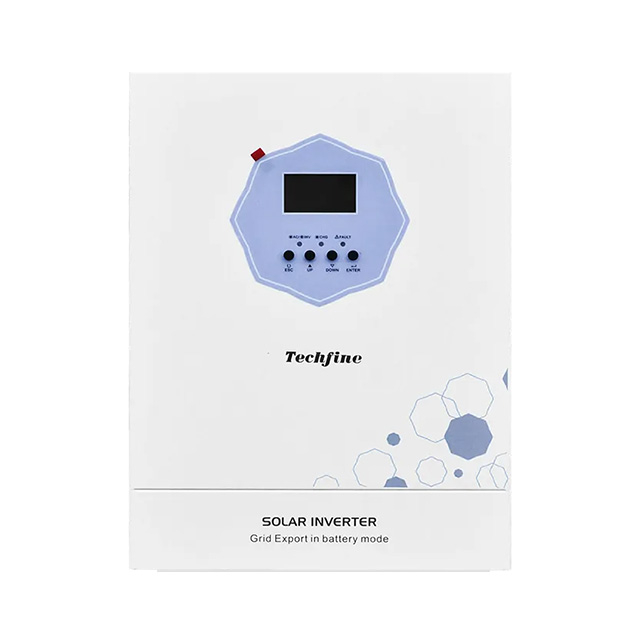

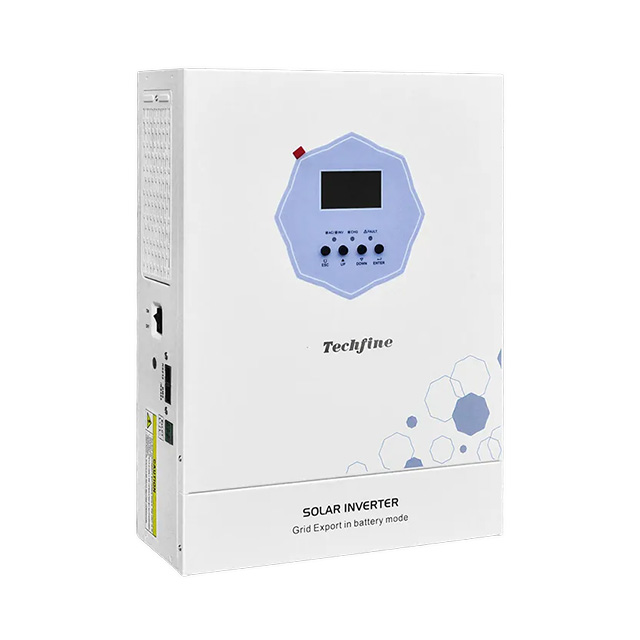

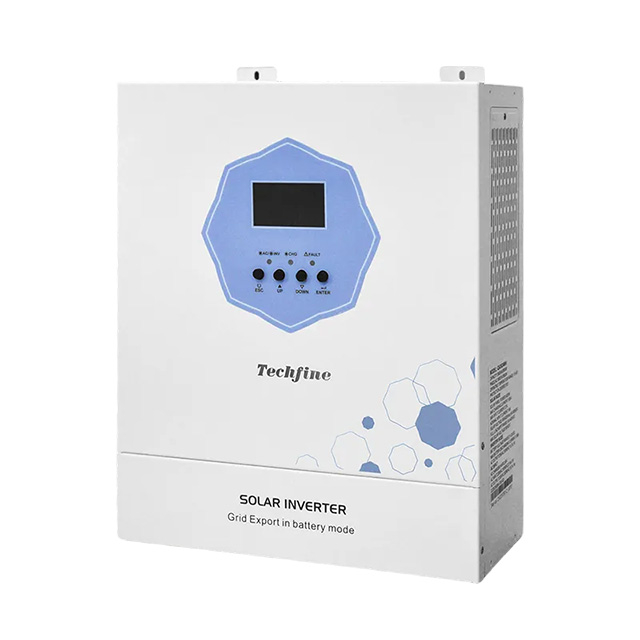

Data Sheet
| Parameter | QA1212 | QA2012 | QA3624 | QA6248 | QA12048 |
|---|---|---|---|---|---|
| Input | |||||
| Input wiring | L+N+PE | ||||
| Rated input voltage | 208/220/230/240VAC | 220/230/240VAC | |||
| Input voltage range | 90-280 VAC ±3 V (normal mode); 170-264 VAC ±3 V (UPS mode) | 90-280 VAC ±3 V (normal mode); 170-280 VAC ±3 V (UPS mode) | |||
| Input frequency range | 50 / 60 Hz (auto-sensing) | ||||
| Output | |||||
| Rated power (battery mode) | 1200W | 1600W | 3600W | 6200W | 11000W |
| Rated power (PV mode) | — | 2000W | 3600W | 6200W | 12000W |
| Output voltage | 208/220/230/240VAC | 220/230/240VAC±5% | |||
| Output frequency | 50/60Hz±0.1% | ||||
| Waveform | Pure sine wave | ||||
| Transfer time (selectable) | 10 ms (computer loads) / 20 ms (home appliances) | ||||
| Peak power | 2400VA | 3200VA | 7200VA | 12400VA | 22000VA |
| Overload capability | Battery mode: 60 s @ 102-110% load; 10 s @ 120-200% load | Battery mode: 11 s @ 105-150% load; 2 s @ 150-200% load; 400 ms @ >200% load | |||
| Grid-tie operation | |||||
| Output voltage | Self-consumption only (no grid feed-in) | 220/230/240VAC | |||
| Grid feed-in voltage range | — | 100-280VAC | |||
| Grid feed-in frequency range | — | 47~53±1Hz/57~62±1Hz | |||
| Rated output current | — | 8.7A | 15.7A | 26.9A | 52.2A |
| Power factor range | — | >0.99 | |||
| Max. conversion efficiency (DC/AC) | — | 0.98 | |||
| Battery | |||||
| Rated voltage | 12Vdc | 24Vdc | 48Vdc | ||
| Constant charge voltage (adjustable) | 14.1Vdc | 28.2Vdc | 56.4Vdc | ||
| Float charge voltage (adjustable) | 13.5Vdc | 27Vdc | 54Vdc | ||
| Solar charger | |||||
| PV charging type | MPPT | Dual-channel MPPT | |||
| Max. PV input power | 800W | 3000W | 5000W | 8500W | 2×8500W |
| MPPT input voltage range | 17-115Vdc | 60-500Vdc | 90~500Vdc | ||
| Optimal Vmp range | 42~63Vdc | 300~400Vdc | 360~430Vdc | ||
| Max. PV input voltage | 115Vdc | 500Vdc | |||
| Max. PV input current (pulse) | — | 21A | 36A | 36A/36A | |
| Max. rated PV input current | 15A | 27A | 27A/27A | ||
| Max. PV charging current | 50A | 100A | 120A | 150A | |
| Max. utility charging current | 50A | 80A | 100A | 150A | |
| Max. total charging current | 100A | 120A | 150A | ||
| Display | |||||
| LCD display | Shows operating mode / load / input / output, etc. | ||||
| Communication | |||||
| RS232 | None | Baud rate 2400 | |||
| Expansion slot | None | Li-battery BMS card, Wi-Fi card, CT port | |||
| Parallel interface | Not available | Parallel / networking capable | |||
| Output connection | 1 universal socket + terminal block | Terminal block | |||
| Environment | |||||
| Operating temperature | -10 to 60 °C | -10 to 50 °C | |||
| Operating humidity | 5-95% (non-condensing) | 20-95% (non-condensing) | |||
| Storage temperature | -15 to 60 °C | ||||
| Altitude | <=1000 m without derating; derated above 1000 m, max. 4000 m (ref. IEC 62040) | ||||
| Noise level | ≤50 dB | ||||
| Physical | |||||
| Dimensions D×W×H (mm) | 300×217×91 | 355×294×118 | 440.3×309×125.5 | 514×360×161 | |
| Weight (ref., kg) | 3.4 | 5.5 | 6 | 8 | 19 |
| Standards & certification | |||||
| Standards & certification | EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1 | ||||
Product Details
Supports on-grid, off-grid, and hybrid modes. Enables battery-free operation and flexible adaptation to different scenarios. Battery power selling modes (SUF & PEC) support both energy storage and grid feed-in.

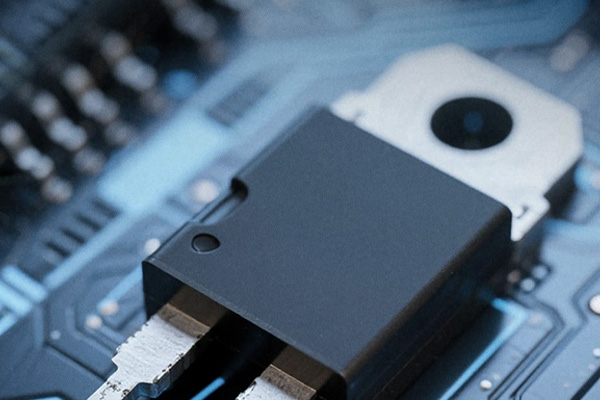

Adopts silicon carbide (SiC) devices for higher efficiency, lower thermal loss, and reduced self-consumption. Ensures stable long-term operation with minimal overheating, noise, and failure rates.

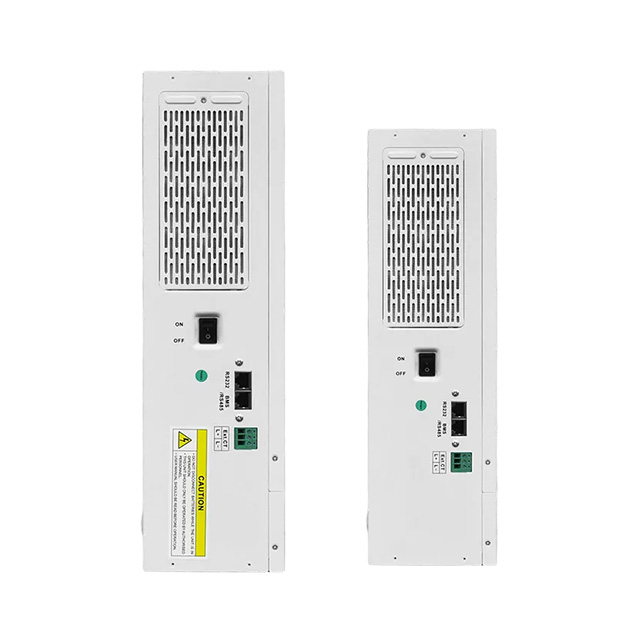

Optional WiFi module enables real-time power generation monitoring, fault diagnostics, and error alerts. High-performance DSP improves system responsiveness and overall control accuracy.

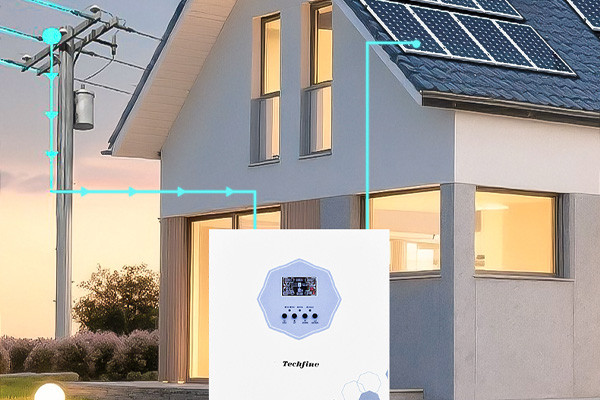

Built-in CT anti-backflow function intelligently controls power flow, prioritizes self-use, prevents reverse current, and complies with energy regulations. Fast response time of 20 ms ensures precise control.
Compatible with multiple lithium battery brands. Supports intelligent battery activation and automatic restart after over-discharge using both PV and utility power.
Supports unlimited load capacity through proper system wiring. Grid and PV power work together to supply excess demand without being limited by inverter rated output.
