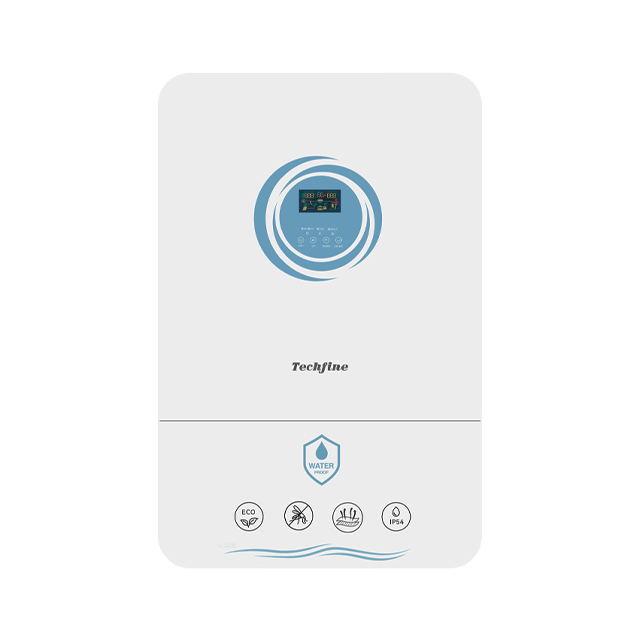

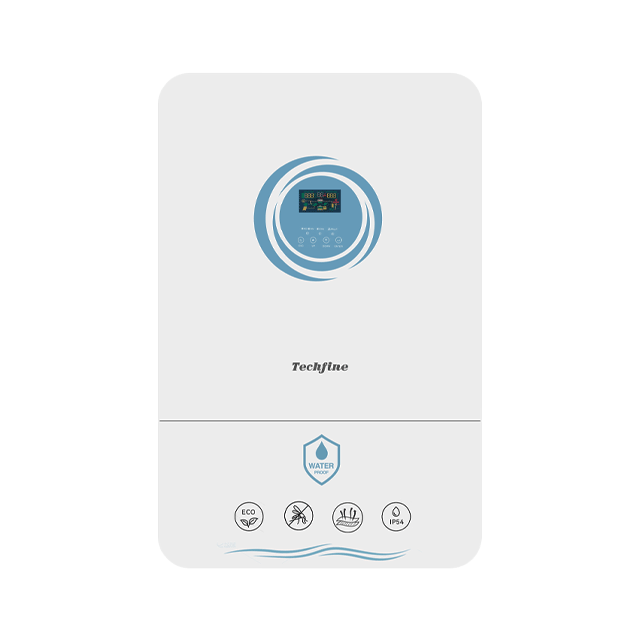

TD Series
|
| |
Download Brochure
Data Sheet
| Parameter | TD3024 | TD3624 (custom) | TD4024 | TD5548 (custom) | TD6248 | TD8648 (custom) | TD11048 |
|---|---|---|---|---|---|---|---|
| Input | |||||||
| Input wiring | L+N+PE | ||||||
| Rated input voltage | 220/230/240VAC | ||||||
| Input voltage range | 90-280 VAC ±3 V (normal mode); 170-280 VAC ±3 V (UPS mode) | ||||||
| Input frequency range | 50 / 60 Hz (auto-sensing) | ||||||
| Output | |||||||
| Rated power (battery mode) | 3000W | 3600W | 4000W | 5500W | 6200W | 8600W | 11000W |
| Rated power (PV mode) | 3600W | 4500W | 6500W | 11000W | 12000W | ||
| Output voltage | 220/230/240VAC±5% | ||||||
| Output frequency | 50/60Hz±0.1% | ||||||
| Waveform | Pure sine wave | ||||||
| Transfer time (selectable) | 10 ms (computer loads) / 20 ms (home appliances) | ||||||
| Peak power | 6000VA | 7200VA | 8000VA | 11000VA | 12400VA | 17200VA | 22000VA |
| Overload capability | Battery mode: 11 s @ 105-150% load; 2 s @ 150-200% load; 400 ms @ >200% load | ||||||
| Grid-tie operation | |||||||
| Output voltage | 220/230/240VAC | ||||||
| Grid feed-in voltage range | 100-280VAC | ||||||
| Grid feed-in frequency range | 47~53±1Hz/57~62±1Hz | ||||||
| Rated output current | 13A | 15.7A | 17.4A | 23.9A | 26.9A | 37.4A | 47.8A |
| Power factor range | >0.99 | ||||||
| Max. conversion efficiency (DC/AC) | 0.98 | ||||||
| Battery | |||||||
| Rated voltage | 24Vdc | 48Vdc | |||||
| Constant charge voltage (adjustable) | 28.2Vdc | 56.4Vdc | |||||
| Float charge voltage (adjustable) | 27Vdc | 54Vdc | |||||
| Solar charger | |||||||
| PV charging type | MPPT | Dual-channel MPPT | |||||
| Max. PV input power | 5000W | 6500W | 8500W | 2×6500W | 2×7500W | ||
| MPPT input voltage range | 60-500Vdc | 90~500Vdc | |||||
| Optimal Vmp range | 300~400Vdc | 360~430Vdc | |||||
| Max. PV input voltage | 500Vdc | ||||||
| Max. PV input current (pulse) | 27A | 36A | 36A/36A | ||||
| Max. rated PV input current | 18A | 27A | 27A/27A | ||||
| Max. PV charging current | 100A | 120A | 100A | 120A | 150A | ||
| Max. utility charging current | 60A | 100A | 150A | ||||
| Max. total charging current | 100A | 120A | 100A | 120A | 150A | ||
| Display | |||||||
| LCD display | Shows operating mode / load / input / output, etc. | ||||||
| Communication | |||||||
| RS232 | Baud rate 2400 | ||||||
| Expansion slot | Li-battery BMS card, Wi-Fi card, dry-contact card, etc. | ||||||
| Parallel interface | Not available | Parallel / networking capable | |||||
| Environment | |||||||
| Operating temperature | -10 to 50 °C | ||||||
| Operating humidity | 20-95% (non-condensing) | ||||||
| Storage temperature | -15 to 60 °C | ||||||
| Altitude | <=1000 m without derating; derated above 1000 m, max. 4000 m (ref. IEC 62040) | ||||||
| Noise level | ≤50 dB | ||||||
| Physical | |||||||
| Dimensions D×W×H (mm) | TC3624: 529.7×412.5×139.5 mm | TC11048: 664.7×434.4×159.4 mm | |||||
| Weight (ref., kg) | 16 | 17.17 | 27.01 | ||||
| Standards & certification | |||||||
| Standards & certification | EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1 | ||||||
Product Description
Crafted with Ingenious R&D, Precision Manufacturing, and Professional Services.
IP54-rated for dustproof, waterproof, insect-proof, Prevent salt sprayand corrosion-resistant performance, adapting to various harsh environments.
Maximum 11 Units Support For Parallel Capable of Meeting Demands From Households to Factories
External Wi-Fi support is available, allowing you to check daily, monthly, and annual power generation via the APP; the LCD screen displays 6 key parameters in real time, including PV input, load power, and conversion efficiency.
CE Certification + 3-Year Warranty "Worry-Free Selection" for Cross-Border Export
In battery-free scenarios, you can use PV power directly even if there's a power outage on sunny days; with a battery connected, the dual PV inputs enable a fast charging current of up to 150A to quickly fully charge the battery- -no more worries about power use at night.
