Availability: | |
---|---|
GB
Techfine

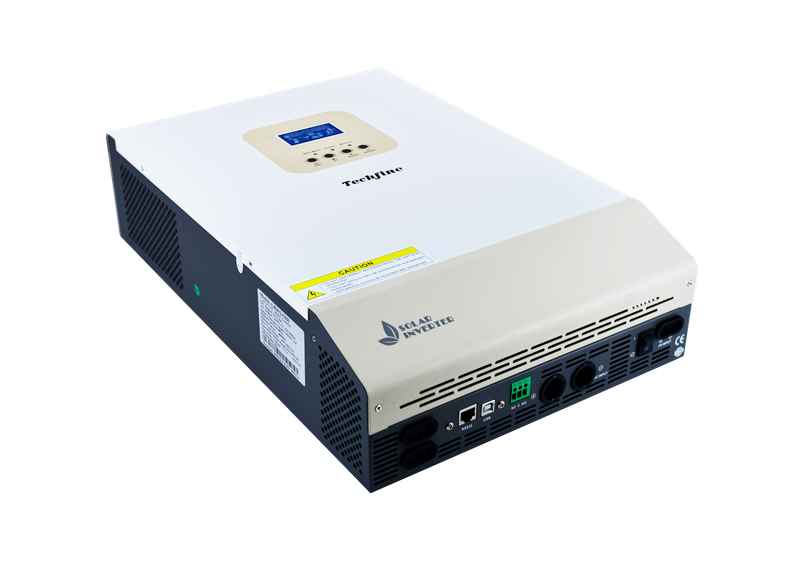

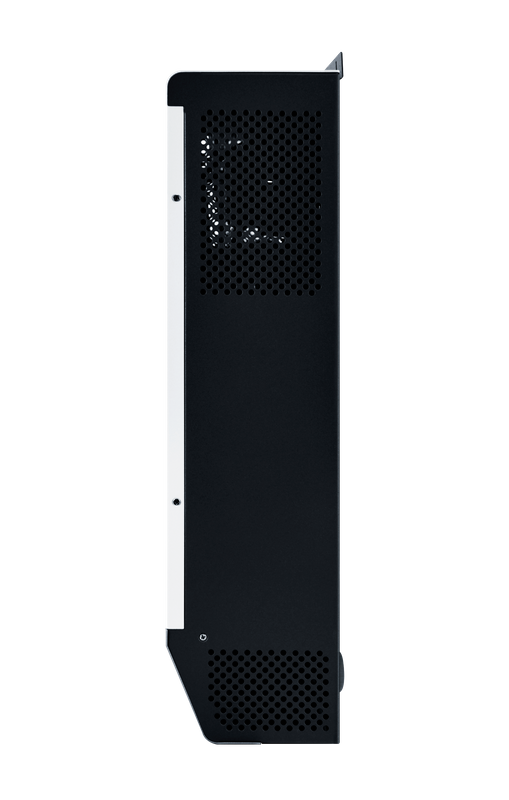

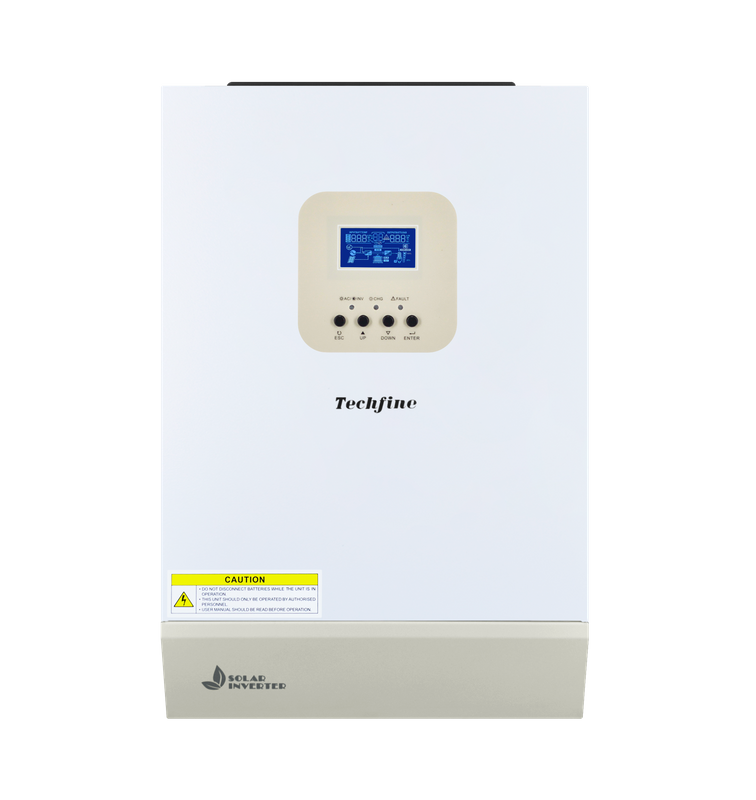

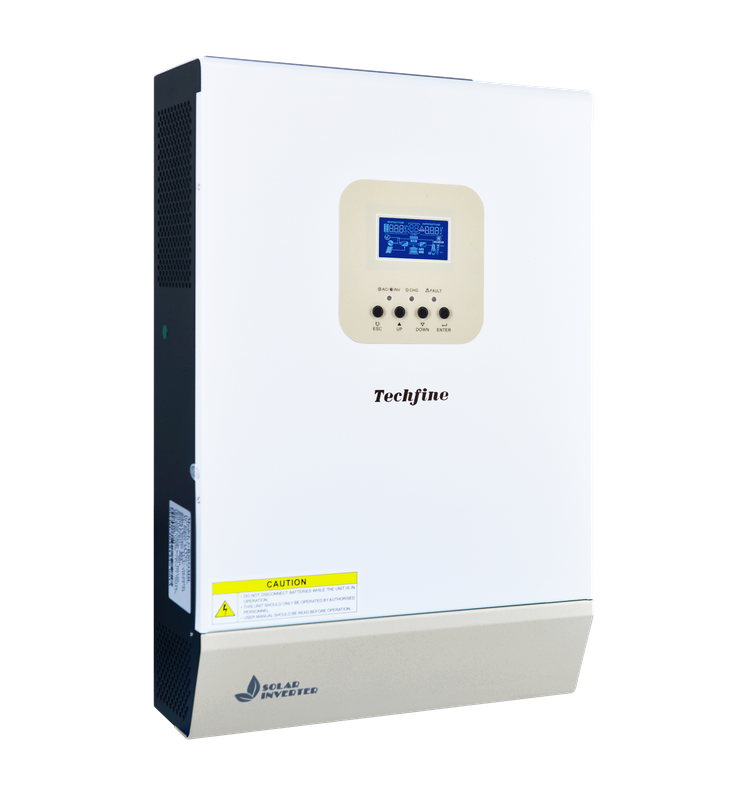

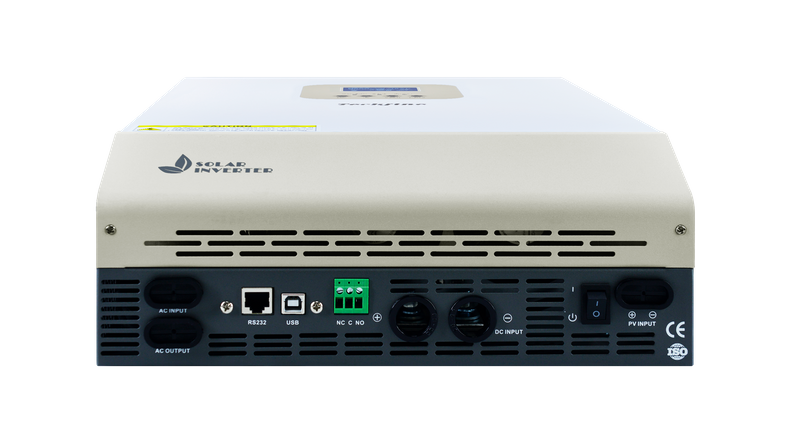

GB3024MH
1. Lithium battery auto-restart function
2. Utility charging voltage/PV charging voltage adjustable
3. Battery reverse connection protection with fuse switch
4. Support working without battery
5. High precision of output voltage, ±5%
6. Intelligent power supply mode
7. Slim body, convenient installation and transportation
8. PF1.0, high efficiency, low consumption
9. Parallel function up to maximum 9 units
10. Can be connected to external WIFI
1. Lithium battery auto-restart function
2. Utility charging voltage/PV charging voltage adjustable
3. Battery reverse connection protection with fuse switch
4. Support working without battery
5. High precision of output voltage, ±5%
6. Intelligent power supply mode
7. Slim body, convenient installation and transportation
8. PF1.0, high efficiency, low consumption
9. Parallel function up to maximum 9 units
10. Can be connected to external WIFI
Model | GB3024MH | GB3524MH | GB5048MH | GB5548MH | GB10048MH | |||||||
Input | Input Sources | L+N+PE | ||||||||||
Rated Input Voltage | 220/230/240VAC | |||||||||||
Voltage Range | 90-280VAC+3V(APL Mode)170-280VAC+3V(UPS Mode) | |||||||||||
Freqency | 50Hz/60Hz(Auto Ad aptive) | |||||||||||
Output | Rated Capacity | 3000W | 3500W | 5000W | 5500W | 10000W | ||||||
Output Voltage | 220/230/240VAC+5% | |||||||||||
Output Frequency | 50/60Hz+0.1% | |||||||||||
Waveform | Pure Sine Wave | |||||||||||
Transfer Time(adjustable) | Computers(U PS Mode)1 Oms, Appliance(APL Mode )20ms | |||||||||||
Peak Power | 6000VA | 7000VA | 10000VA | 11000VA | 20000VA | |||||||
Over Load Ability | Battery Mode: 10.5s@11 0% 150%Load;5.5s@150% 200% Load;200ms @>200%Load | |||||||||||
Peak Efficiency (Battery Mode) | >94% | >94% | >94% | >94 % | >94% | |||||||
Battery | Battery Votage | 24Vdc | 24Vdc | 48Vdc | 48Vdc | 48Vdc | ||||||
Constant Charging Voltage (Adjustable) | 28.2Vdc | 28.2Vdc | 56.4Vdc | 56.4Vdc | 56.4Vdc | |||||||
Flotage Charging Voltage (Adjustable) | 27Vdc | 27Vdc | 54Vdc | 54Vdc | 54Vdc | |||||||
Chargers | PV Charging Mode | MPPT | MPPT | MPPT | MPPT | MPPT Dual MPPT | ||||||
MAX.PV Input Power | 4000W | 4000W | 5500W | 5500W | 2* 5500W | |||||||
MPPT Tracking Range | 120-500Vdc | 120-500Vdc | 120-500Vdc | 120-500Vdc | 120-500Vdc | |||||||
Best Voltage | 300-400V | 300-400V | 300-400V | 300-400V | 300-400V | |||||||
MAX.PV Input Vlotage | 500Vdc | 500Vdc | 500Vdc | 500Vdc | 500Vdc | |||||||
MAX.PV Charging Current | 100A | 100A | 100A | 100A | 160A | |||||||
MAX.AC Charging Current | 60A | 60A | 60A | 60A | 120A | |||||||
MAX.Charging Current | 100A | 100A | 100A | 100A | 160A | |||||||
Dispaly | LCD Display | Display Running Mode/Loads/Input/Output etc. | ||||||||||
Interface | RS232 | 5PIN/Pitch2.0mm. Baud Rate2400 | ||||||||||
Communication Port | 2x 5PIN/Pitch2.54mm,Lithium Lattery BMS Communication Card, WifiCard ,DryContact | |||||||||||
Parallel Connect Interface | With Parallel | |||||||||||
Environments | Operating Temperature | 0-40°C | ||||||||||
Humidity | 20%-95%(Non-condensing) | |||||||||||
Storage Temperature | -15~60℃ | |||||||||||
Altitude | Altiude Not Over 1000m,Derating over 1000m,Max 4000m. Refer to IEC62040 | |||||||||||
Noise | ≤50db |
