The MB Series is a compact external MPPT charge controller for small solar systems, rated 20 or 30 A at 12-48 V.
It supports sealed, gel, flooded and lithium batteries, tracks at 99.5% efficiency and converts at 97.5%, with RS485 communication, DC load control and full reverse-polarity protection in a small fan-cooled casing.
The PA Series is an MPPT solar charge controller rated 30 or 60 A for 12/24/36/48 V auto-sensed systems. Advanced dual-peak tracking keeps harvest high even with partial shading, with tracking efficiency up to 99.9% and conversion up to 98%.
An LCD display with history logging, USB output and complete protections round out a capable controller for telecom, street-light and off-grid applications.

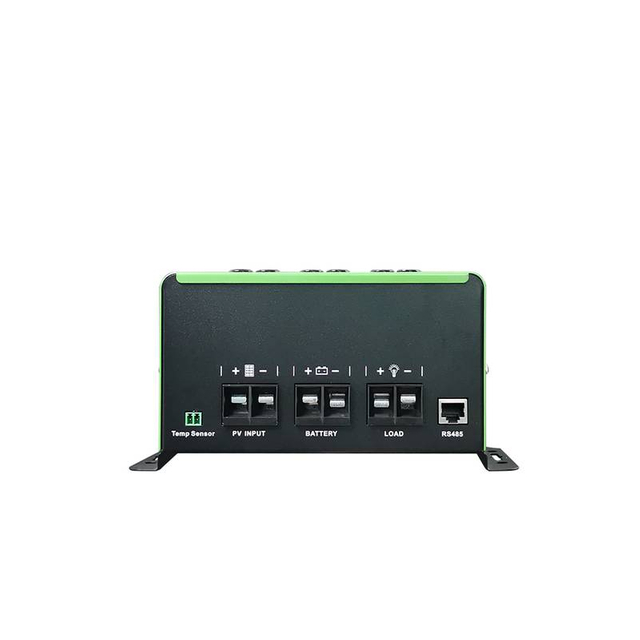

The M Series is a full-range MPPT solar charge controller family covering 40 to 120 A at 12-96 V system voltages, with 150/200/250 V PV input options.
Tracking efficiency reaches 99.5% with conversion up to 97%, and three-stage charging with automatic battery-voltage recognition protects lead-acid and lithium banks alike.
A large backlit LCD, RS485 communication and complete input/output protections make it a dependable core for off-grid solar systems.
