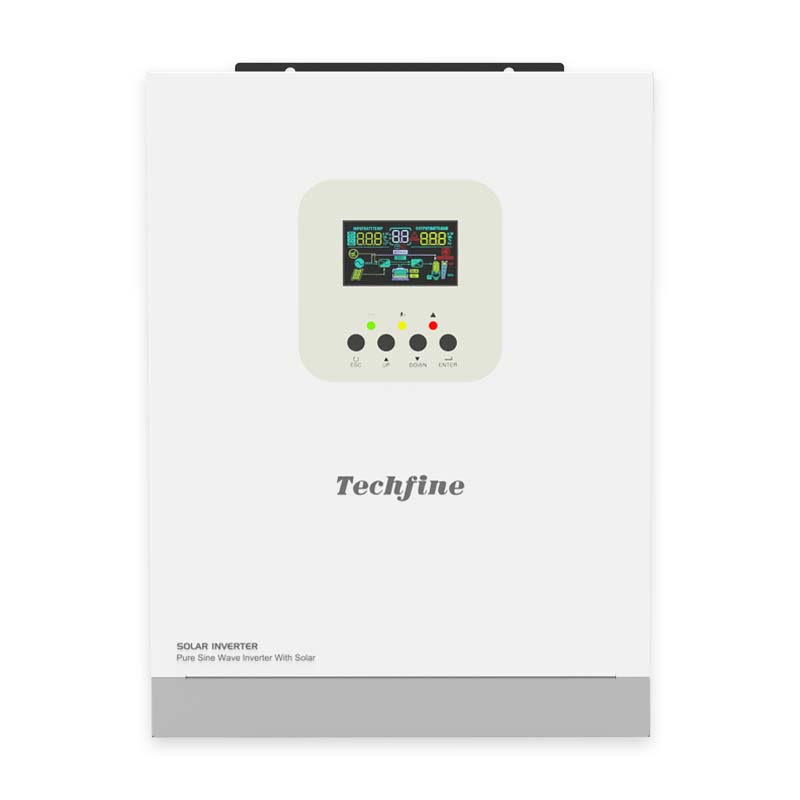

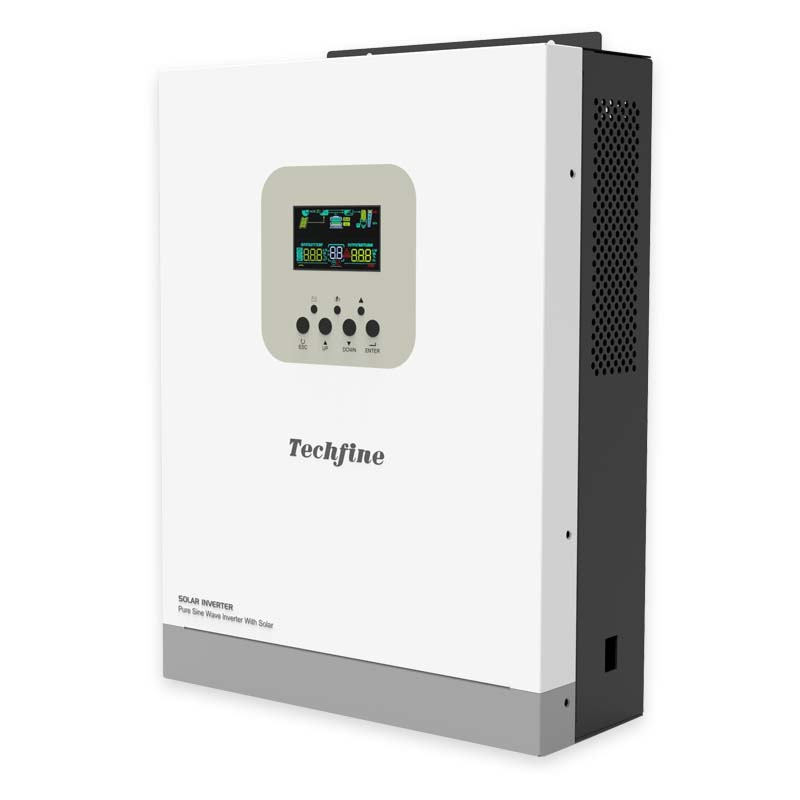

Off Grid Hybrid High Frequency Solar Inverter with Mppt Charge Controller

Tips:
Samples can be sent for testing;
Minimum order quantity (MOQ) ≥5 Pieces;
Feature:
High conversion
High compatibilty
Pure sine wave output

Availability:
  • GA3024EMH

  • Techfine

Feature:

98% output rate

Eco energy saving

Lightweight design

Lithium communication

Output short circuit protection

Lithium battery self-starting power

techfinepv inverter detail-GA3024EMH






ModelGA3024EMH
Output rated power3000W
Input
Input system typeL+N+PE
Rated input voltage220/230/240VAC
Voltage range90-280VAC+3V (Normal mode )170-280VAC+3V(UPS   mode)50Hz/60Hz(Self-adaption)
Frequency range50Hz/60Hz(Self-adaption)
Output
Output voltage220/230/240VAC+5%
Output frequency50/60Hz+0.1%
WaveformPure sine wave
Switching time (can be set)Computer equipment10ms,Domestic appliance 20ms
Peak power6000VA
Overload capacityBattery mode:10.5s@110%~150% Load
Peak efficiency (battery mode)>94%
Battery
Rated   voltage24VDC
Constant   voltage charging
    voltage (can be set)
28.2VDC
Floating   charging
    voltage (can be set)
27VDC
Charge
PV   charging methodMPPT
PV   maximum input power3000W
MPPT   input voltage range30-400VDC
Maximum   PV input voltage400VDC
Maximum   PV charging current80A
Maximum charging current80A
Show
LCD interfaceOperation mode / load / input / output, etc
InterfaceBaud rate2400
RS232Lithium battery BMS communication card, WiFl card,
Extended slot communication   interfaceNo parallel function
Parallel interface
Environmental   parameters
Operating environment humidity0~40℃
Operating environment humidity20%~95%(No condensation
Storage temperature-15~60C
ElevationThe altitude shall not exceed 1000m, and over 1000m dropthe   highest 4000m,refer to 1EC62040
Noise≤50db
Physical parameters
Depth x width x height (mm)399x285x118
Weight (for reference) KG6
