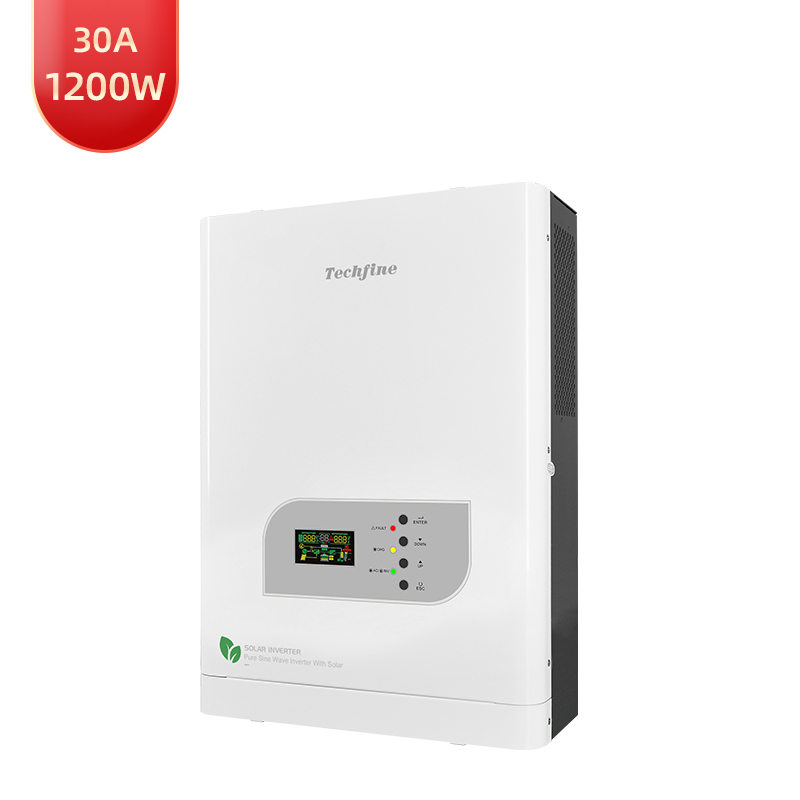

Low Frequency off grid 1.5KVA 1.2KW 12VDC 220VAC 1.5KVA 1500VA built in PWM Solar inverter

Samples can be sent for testing;
Minimum order quantity (MOQ) ≥5 Pieces;
Pure sine wave output
Can support WIFI/ GPRS
MPPT efficiency max 98%
  • VS1512

  • Techfine

  • VS1512


  • Pure sine wave output


  • MPPT Efficiency max 98%

  • Optional MPPT/PWM solar charge controller 30A-120A

  • DC start & automatic self-diagnostic fuction

  • Automatically send signal to start generator

  • High efficiency design for optimized battery performance

  • Selectable charging current based on applications

  • AC Start-up Voltage Auto Restart Voltage

  • Lead acid battery /Lithium battery

off grid solar inverter——VS eries 500va-2000va

AC input   voltage220VAC(standard)
Input voltage   range154-275VAC±5V(Nor   Model
Input   frequency50/60Hz±5%
Out   put power1500VA
AC model   output voltage220V±10%
Battery model   output frequencyThe output frequency under the mains is the   same a the input frequency
Battery model   output voltage220V±3%
Battery model   output frequency50/60Hz±1%
Battery model   output wavePure Sine Wave
Battery typeExternal lead-acid   battery,Gel battery,water battery or Lithium battery
Battery   voltage12/24VDC
Battery   charging voltage13.75/27VDC
Maximum PV   array power24V: 1600W
Solar input   voltage range12V:PWM15V-50VDC
Maximum Pv   Display Open Circuit Voltage12V: PWM 50VDC  24V: PWM105VDC
Maximum solar   charging current60A
Maximum Ac   charge Current29A
Battery   charging voltage range154-275VAC±5V
Transfer time≤10ms
Load peak   ratio(MAX)3:1
Protective   functionUnder   the mains : input overcurrent fuseUnder inverter: overload protection,short   circuit protection, low voltage protection.with battery anti-reverse   connection,board)
Status DisplayYou   can view parameters such as AC voltage, AC frequency, PVvoltage, PV current,   output voltage. output frequency,    battery voltage, load current and other parameters by turning the page   keys
Voice promptLow battery protection buzzer long beep
    Low battery buzzer beeps every second
    Machine fault buzzer beeps
    Overload buzzer beeps
    When the overload is less than 130%, the buzzer will sound every   secondandthe output will be turned off after 30S. When the overload is   greater than150%the output will be turned off after 300mS.
Operating   temperature0℃-40℃
Storage   temperature-15℃~45℃
Relative   temperature-10°C-90°Cno   condensation
