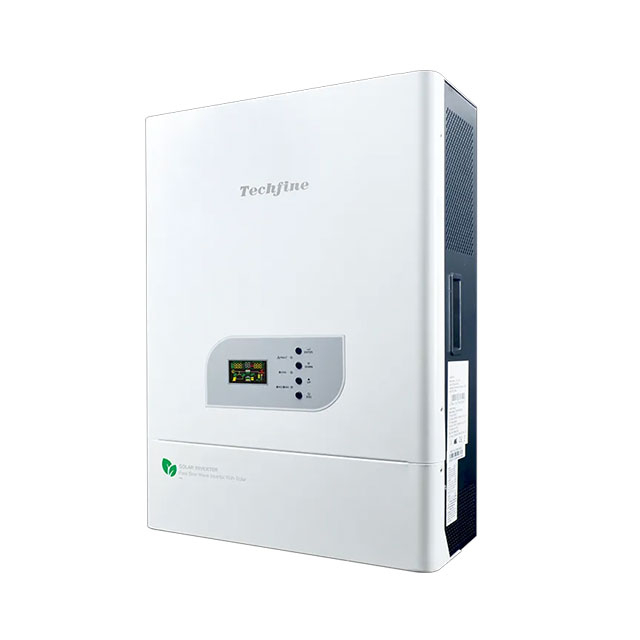

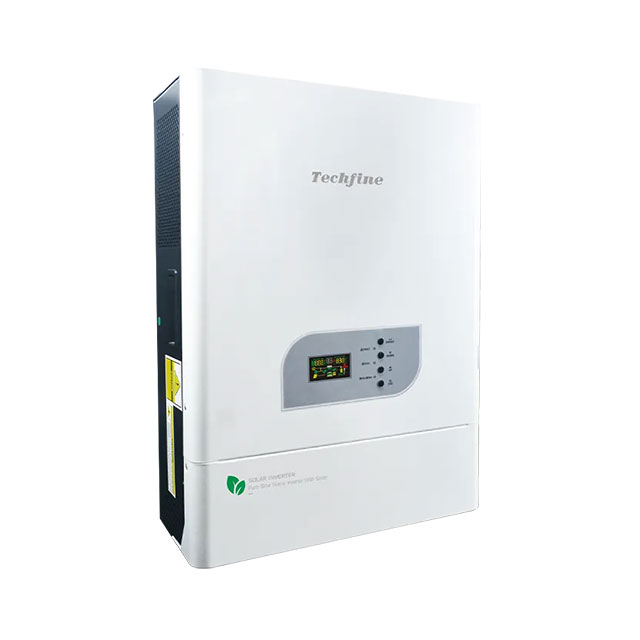

VS-Parallel Series
|
| |
Download Brochure
Data Sheet

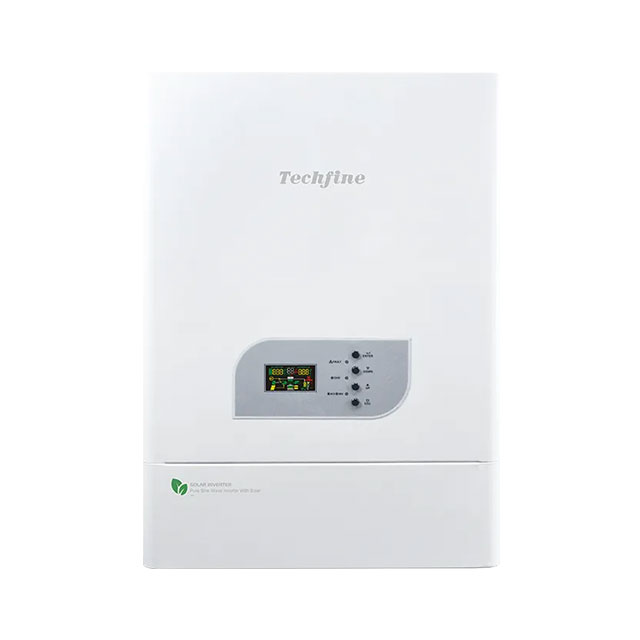

| Parameter | VS-Parallel 6348 | VS-Parallel 12548 |
|---|---|---|
| Power input | 230 VAC (standard) | |
| Input voltage range | 90-275 VAC ±3 V (APL mode, default); 170-275 VAC ±3 V (UPS mode) | |
| Input frequency | 50/60Hz±5% | |
| Rated output power | 5000W | 10000W |
| Output voltage (utility mode) | Same as input voltage (bypass) | |
| Output frequency (utility mode) | Same as input frequency (bypass) | |
| Output voltage (inverter mode) | 230VAC±10% | |
| Output frequency (inverter mode) | 50 or 60 Hz ±1% | |
| Output waveform (inverter mode) | Sine wave | |
| Battery type | External lead-acid, flooded or lithium battery | |
| Battery voltage | 48VDC | |
| Constant charge voltage (adjustable) | 56.4 VDC (adjustable 48-61 V) | |
| Float charge voltage (adjustable) | 54 VDC (adjustable 48-61 V) | |
| Max. PV array power | 3200W | 5400W |
| PV input voltage range (MPPT) | 60-150VDC | 60-245VDC |
| Max. PV array open-circuit voltage | 150VDC | 245VDC |
| Optimal Vmp range | 60-105VDC | 60-170VDC |
| Max. solar charging current | 60A | 100A |
| Max. AC charging current | 50 A (default 40 A) | 100 A (default 80 A) |
| Transfer time | <=10 ms (UPS mode) / <=20 ms (APL mode) | |
| Peak load ratio | 3:1 (max.) | |
| Transformer | Toroidal transformer (epoxy-potted) | |
| Standby power (W) | 32W | 48W |
| Protection (utility mode) | Utility mode: input overcurrent protection via no-fuse breaker (MCB) | Utility mode: input overcurrent protection via air circuit breaker |
| Protection (inverter mode) | Inverter mode: overload, short-circuit, low-voltage and battery reverse-polarity protection (fuse) | |
| Display | Color segment LCD with LED indicators | |
| Display pages | Paging key scrolls AC voltage / frequency, PV voltage / current, output voltage / frequency, battery voltage, load current, etc. | |
| LED indicators | LEDs indicate utility, charging, inverting and fault status | |
| Audible alarm | Buzzer distinguishes fault codes by long/short beep patterns | |

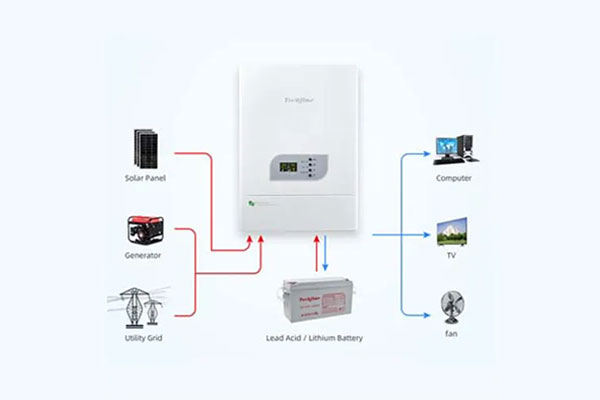

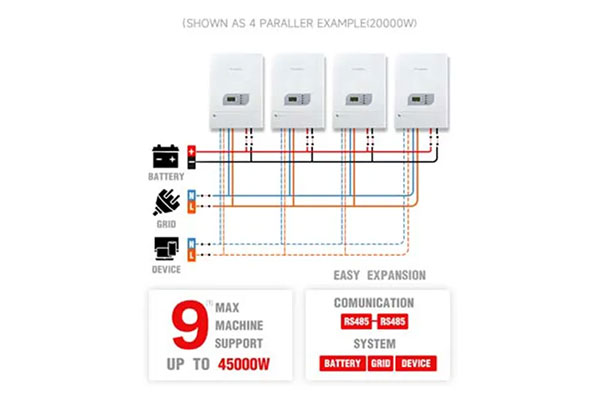

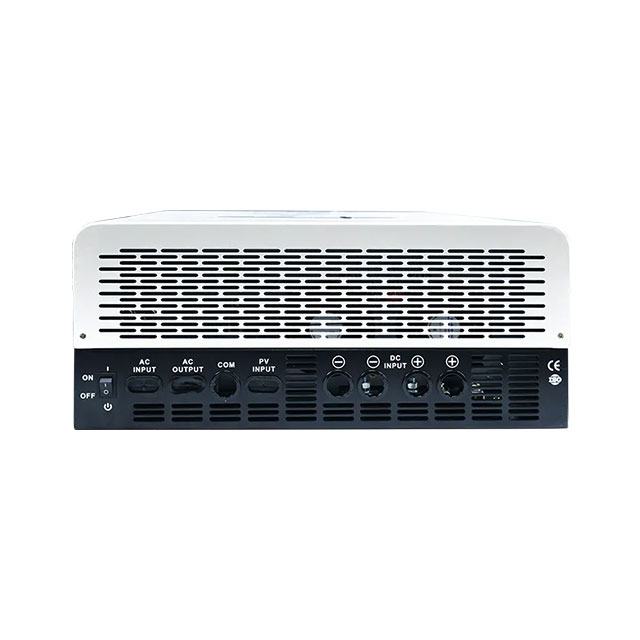

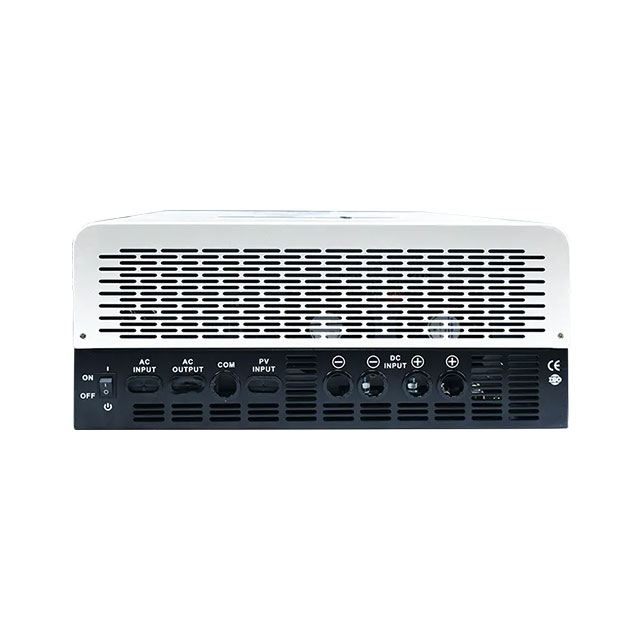

| Communication | RS232, lithium BMS comms, parallel port, dry-contact card | |
| Operating temperature | -10 to 50 °C | |
| Storage temperature | -15 to 45 °C | |
| Relative humidity | 20-95% (non-condensing) | |
| Noise level | <45 dB | |
| Dimensions L×W×H (mm) | DA series: 527×330×129 mm; VS series: 527×330×149 mm | 545×405×175 mm |
