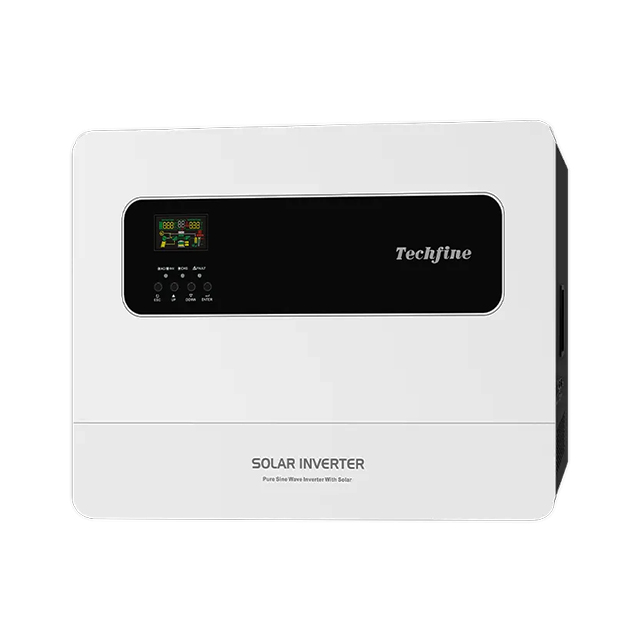

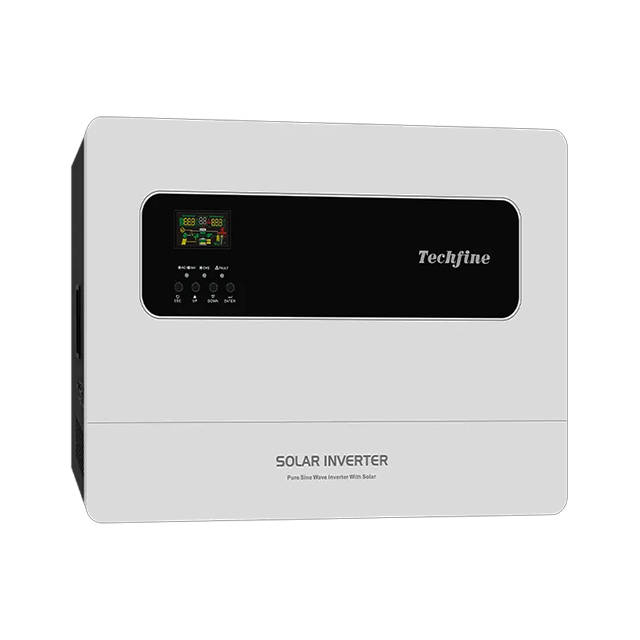

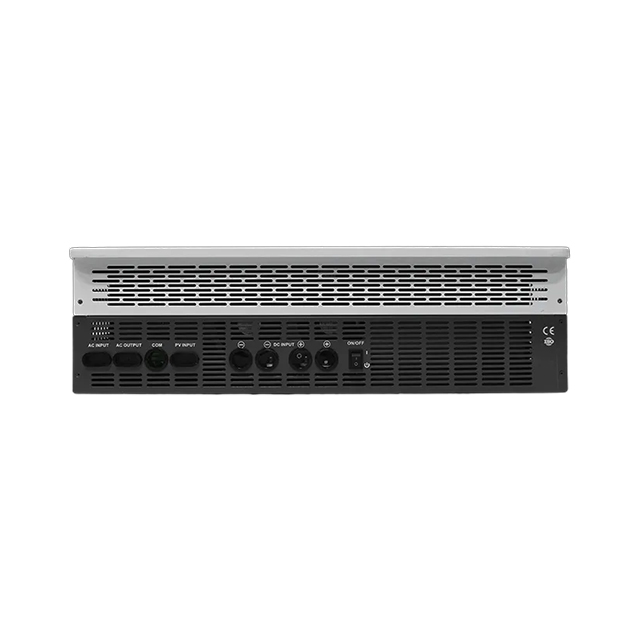

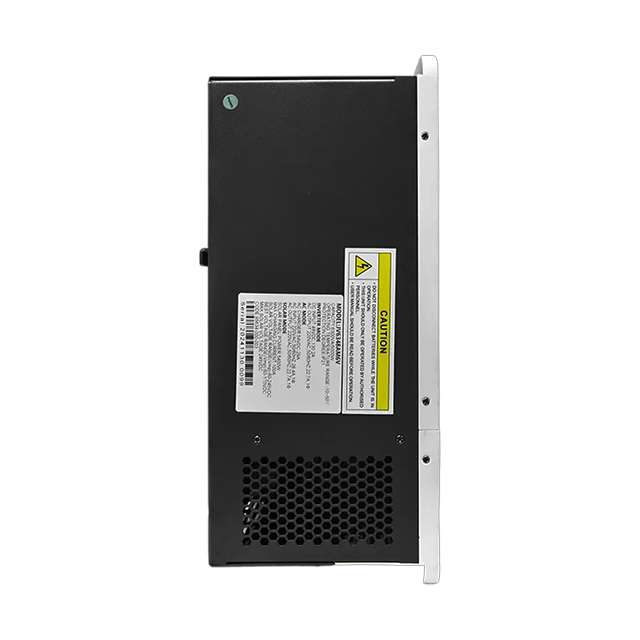

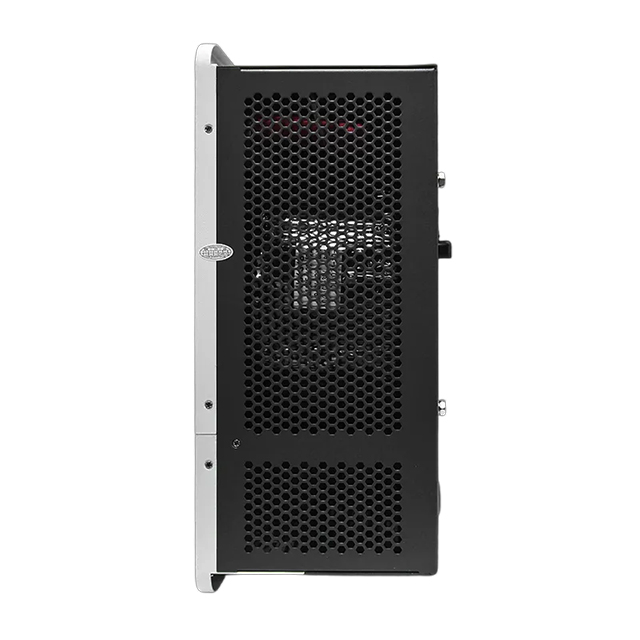

JV Series
|
| |
Download Brochure
Data Sheet
| Parameter | JV3824/3848 | JV5024/5048 | JV6324/6348 |
|---|---|---|---|
| Power input | 220 VAC (standard) / 110 VAC (custom) | ||
| Input voltage range | 220 V model: 154-264 VAC ±3 V (normal) / 185-264 VAC ±3 V (UPS); 110 V model: 77-132 VAC ±3 V (normal) / 92-132 VAC ±3 V (UPS) | ||
| Input frequency | 50/60Hz±5% | ||
| Rated output power | 3000W | 4000W | 5000W |
| Output voltage (utility mode) | Same as input voltage (bypass) | ||
| Output frequency (utility mode) | Same as input frequency (bypass) | ||
| Output voltage (inverter mode) | 220VAC±10% (110VAC±10%) | ||
| Output frequency (inverter mode) | 50 or 60 Hz ±1% | ||
| Output waveform (inverter mode) | Sine wave | ||
| Battery type | External lead-acid, flooded or lithium battery | ||
| Battery voltage | 24VDC / 48VDC | ||
| Battery charge voltage | 27.4VDC / 54.8VDC | ||
| Max. PV array power | Factory standard is high-PV MPPT; high-current option must be specified at order. High-current (150 V/120 A): 24 V 3200 W / 48 V 6400 W; high-PV (245 V/100 A): 24 V 2700 W / 48 V 5400 W | ||
| PV input voltage range (MPPT) | High-current: 24 V 30-150 / 48 V 60-150 VDC; high-PV: 24 V 30-245 / 48 V 60-245 VDC (no PWM option) | ||
| Max. PV array open-circuit voltage | High-current option: 150 VDC; high-PV option: 245 VDC | ||
| Optimal Vmp range | High-current: 24 V 30-105 / 48 V 60-105 VDC; high-PV: 24 V 30-170 / 48 V 60-170 VDC | ||
| Max. solar charging current | High-current option: 120 A; high-PV option: 100 A | ||
| Max. AC charging current | 63 A (default 50 A) / 31 A (default 25 A) | 83 A (default 66 A) / 41 A (default 33 A) | 104 A (default 83 A) / 52 A (default 42 A) |
| Transfer time | <=10 ms (UPS mode) / <=20 ms (normal mode) | ||
| Peak load ratio | 3:1 (max.) | ||
| Transformer | Toroidal transformer (epoxy-potted) | ||
| Standby power (W) | 24 V: 16 W; 48 V: 32 W | ||
| Protection (utility mode) | Utility mode: input overcurrent protection via air circuit breaker | ||
| Protection (inverter mode) | Inverter mode: overload, short-circuit, low-voltage and battery reverse-polarity protection (fuse) | ||

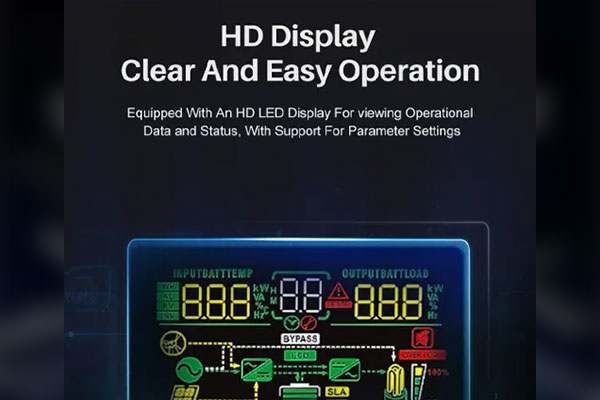

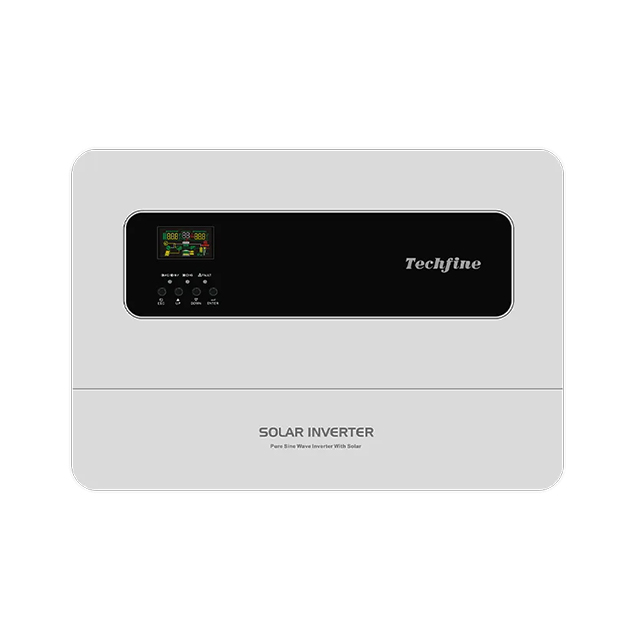

| Display | Color segment LCD with LED indicators | ||
| Display pages | Paging key scrolls AC voltage / frequency, PV voltage / current, output voltage / frequency, battery voltage, load current, etc. | ||
| LED indicators | LEDs indicate utility, charging, inverting and fault status | ||
| Audible alarm | Buzzer distinguishes fault codes by long/short beep patterns | ||
| Operating temperature | -10 to 50 °C | ||
| Storage temperature | -15 to 45 °C | ||
| Relative humidity | 5-95% non-condensing | ||
| Noise level | <45 dB | ||
| Dimensions L×W×H (mm) | 535×335×170 mm | ||
