| Model | VS1512AM | VS2024AM | VS3024/48AM6 | VS5024/48AM6 | VS6348AM8 | VS8048AM8 | VS10048AM8 | VS12548AM8 |
| AC Input |
| AC Input voltage | 220VAC(standard) |
| Input voltage range | 154-264VAC±3V(Nor Mode)185-264VAC±3V(UPS mode)
175-285VAC±3V(AVR Type) |
| Input frequency | 50/60Hz±5% |
| AC Mode Output |
| Out put power | 1500VA
1200W | 2000VA
1600W | 3000VA
2400W | 5000VA
4000W | 6300VA
5000W | 8000VA
6400W | 10000VA
8000W | 12500VA
10000W |
| AC model output Voltage | The output voltage under the mains is the same as the input voltage(with AVR function 220V±10%) |
| Battery Mode Output |
| Battery model output voltage | 220VAC±10% |
| Battery model output frequency | 50HZ or 60HZ±1% |
| Battery model output wave | Pure sine wave |
| load peak ratio | (MAX)3:1 |
| Battery |
| Battery type | External lead-acid battery,Gel battery, water battery or Lithium battery |
| Battery voltage | 12VDC/24VDC/48VDC | 48VDC |
| Battery charging voltage | 13.7VDC/27.4VDC/54.8VDC | 54.8VDC |
| PV Input |
| Maximum PV array power | 12V: 800W 24V:1600W 48V:3200W | 6400W |
| Solar input voltage range | 12V: MPPT 15V-50VDC
24V: MPPT 30V-150VDC
48V: MPPT 60V-150VDC | 48V: MPPT 60V-150VDC |
| Maximum PV Display Open Circuit Voltage | 50VDC | 150VDC |
| Maximum solar charging current | 60A | 120A |
| Maximum AC Charge Current | 40A | 33A | 50A/25A | 80A/40A | 50A | 65A | 80A | 100A |
| Transfer & Protection |
| Transfer time | ≤10ms(UPS Mode) / ≤20ms(INV Mode) |

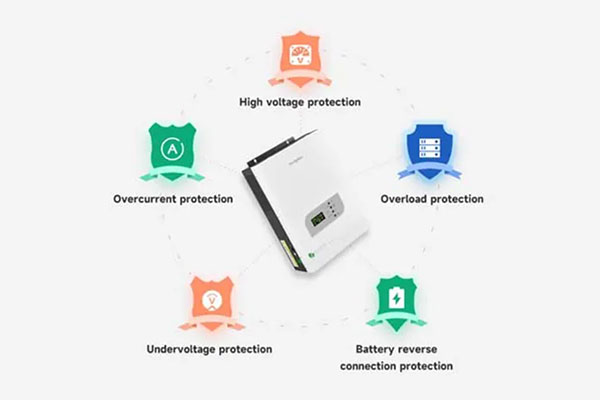

| Protective function | Under the mains: input over current fuse
Under inverter: overload protection, short circuit protection, Iow voltage protection. (with battery anti-reverse connection board) |
| Display & Notification |
| Status Display | You can view parameters such as AC voltage, AC frequency, PV voltage, PV current, output voltage, output frequency, battery voltage, load current and other parameters by turning the page keys. |
| Voice prompt | Low battery protection buzzer long beep Low battery buzzer beeps every second Machine fault buzzer beeps
Overload buzzer beeps
When the overload is less than 130%, the buzzer will sound every second, and the output will be turned off after 30S. When the overload is greater than 150%,the output will be turned off after 300mS. |
| Environmental |
| Operating temperature | -10℃~50℃ |
| Storage temperature | -15℃~45℃ |
| Relative temperature | -10℃~90℃ no condensation |
| Noise | ＜45dB |
