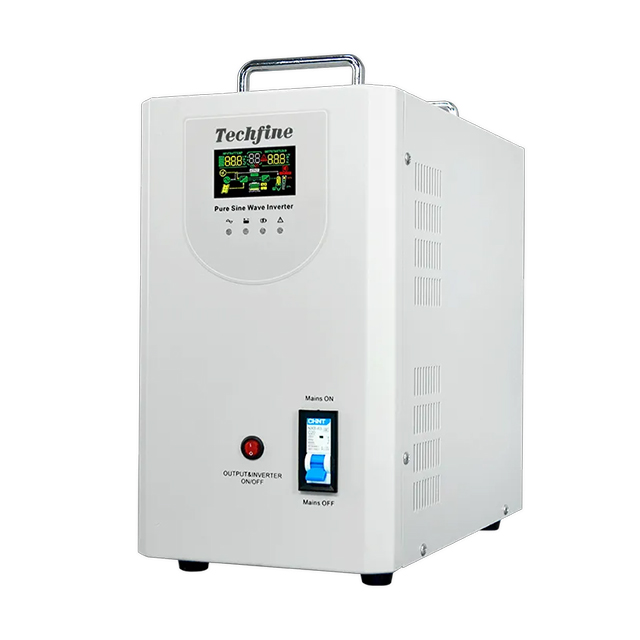

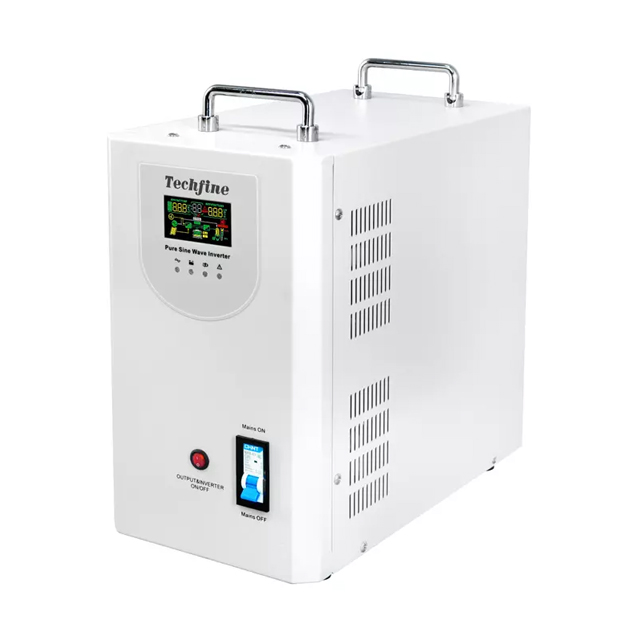

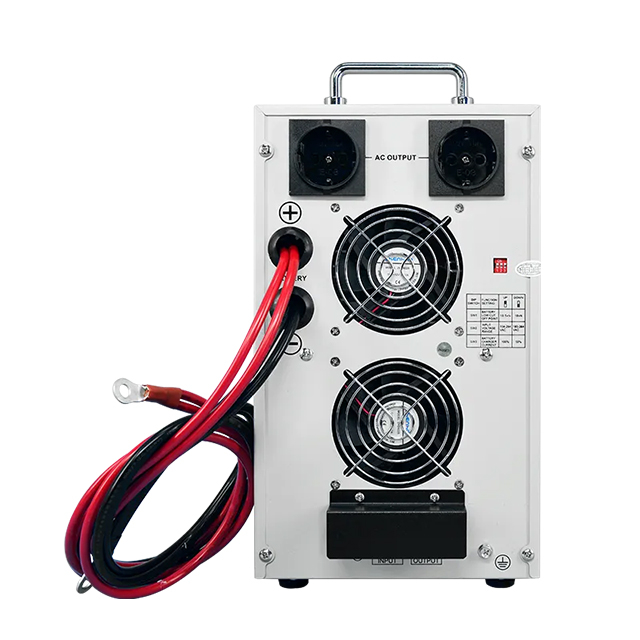

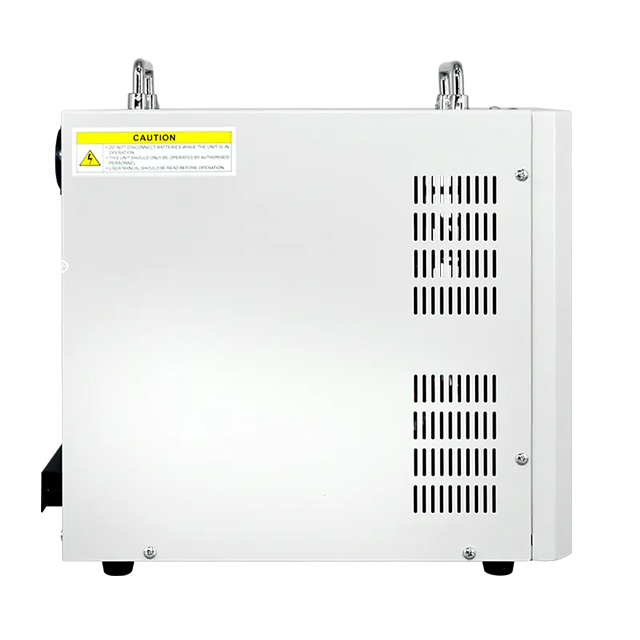

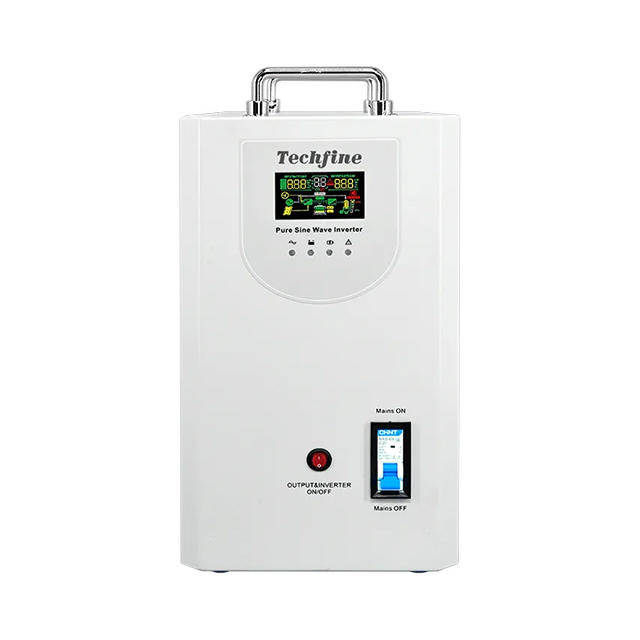

HB Series
|
| |
Download Brochure
Product Datasheet
| Parameter | HB0512 | HB0812 | HB1012 | HB1512 | HB1524 | HB2024 | HB2524 | HB3024 | HB3048 | HB5024 | HB5048 | HB6048 | HB8048 | HB10048 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Power input | 220 VAC (standard) / 110 VAC (custom) | |||||||||||||
| Input voltage range | 220 V model: 145-275 VAC ±3 V; 110 V model: 73-137 VAC ±3 V | 220 V model: 154-264 VAC ±3 V (normal) / 185-264 VAC ±3 V (UPS); 110 V model: 77-132 VAC ±3 V (normal) / 92-132 VAC ±3 V (UPS). UPS mode is set via the DIP switch on the rear panel | ||||||||||||
| Input frequency | 50/60Hz±5% | |||||||||||||
| Rated output power | 400W | 640W | 800W | 1200W | 1600W | 2400W | 4000W | 4800W | 6400W | 8000W | ||||
| Output voltage (utility mode) | AVR stabilized: 220 V model 220 VAC ±10%; 110 V model 110 VAC ±10% | Same as input voltage (bypass) | ||||||||||||
| Output frequency (utility mode) | Same as input frequency (bypass) | |||||||||||||
| Output voltage (inverter mode) | 220VAC±10%(110VAC±10%) | |||||||||||||
| Output frequency (inverter mode) | 50 or 60 Hz ±1% | |||||||||||||
| Output waveform (inverter mode) | Sine wave | |||||||||||||
| Battery type | External lead-acid, flooded or lithium battery | |||||||||||||
| Battery voltage | 12VDC | 24VDC | 48VDC | 24VDC | 48VDC | |||||||||
| Battery charge voltage | 13.75DC | 13.75VDC | 27VDC | 54VDC | 27VDC | 54VDC | ||||||||
| Max. AC charging current | 8A | 13A | 18A | 30 | 15A | 20A | 30A | 15A | 43A | 22A | 28A | 46A | 56A | |
| Transfer time | ≤10ms | |||||||||||||
| Peak load ratio | 3:1 (max.) | |||||||||||||
| Transformer | Toroidal transformer | 1 toroidal transformer | 2 toroidal transformers | |||||||||||
| Standby power (W) | 6W | 8W | 9W | 11W | 12W | 15W | 16W | 20W | 23W | 24W | 26W | 32 W (2.5 W energy-saving mode) | ||
| Protection (utility mode) | Utility mode: input over-current protection via circuit breaker | Utility mode: input over-current protection via air circuit breaker | ||||||||||||
| Protection (inverter mode) | Inverter mode: overload, short-circuit, low-voltage protection (battery reverse-polarity fuse) | Inverter mode: overload, short-circuit, low-voltage and battery reverse-polarity protection | ||||||||||||
| Display | — | Dot-matrix LCD with LED indicators | ||||||||||||
| Display mode | Standard version has no keys (specify keys at order). Paging key scrolls AC voltage/frequency, output voltage/frequency, battery voltage, load current, etc. | |||||||||||||
| Audible alarm | Continuous beep at battery low-voltage protection | |||||||||||||
| Audible alarm | One beep per second at battery low voltage | |||||||||||||
| Audible alarm | Continuous beep at overload | |||||||||||||
| Audible alarm | Overload <130%: beep 1/s, output off after 30 s; >150%: output off after 300 ms | |||||||||||||
| Audible alarm | Continuous beep at machine fault | |||||||||||||
| Operating temperature | 0 to 40 °C | |||||||||||||
| Storage temperature | -15 to 45 °C | |||||||||||||
| Relative humidity | -10 to 90 °C, non-condensing | |||||||||||||
| Noise level | <45 dB | |||||||||||||
| Dimensions L×W×H (mm) | 300×144×213 | 385×190×382 | 552×190×382 | |||||||||||
| Carton dimensions L×W×H (mm) | 390×225×318 | 470×260×420 | 625×265×382 | |||||||||||
| Net weight / gross weight | 7.5 kg (gross 8.5 kg) | 7.9 kg (gross 9.0 kg) | 7.8 kg (gross 8.3 kg) | 9.1 kg (gross 9.7 kg) | 15.4 kg (gross 16.4 kg) | 15.6 kg (gross 16.6 kg) | 17.9 kg (gross 18.9 kg) | 21.3 kg (gross 23.6 kg) | 22 kg (gross 25 kg) | 24 kg (gross 27 kg) | 32.5 kg (gross 35.1 kg) | 36.1 kg (gross 39.5 kg) | ||
