8kw 48v Solar Inverter Single Phase Support Parallel

Share to:

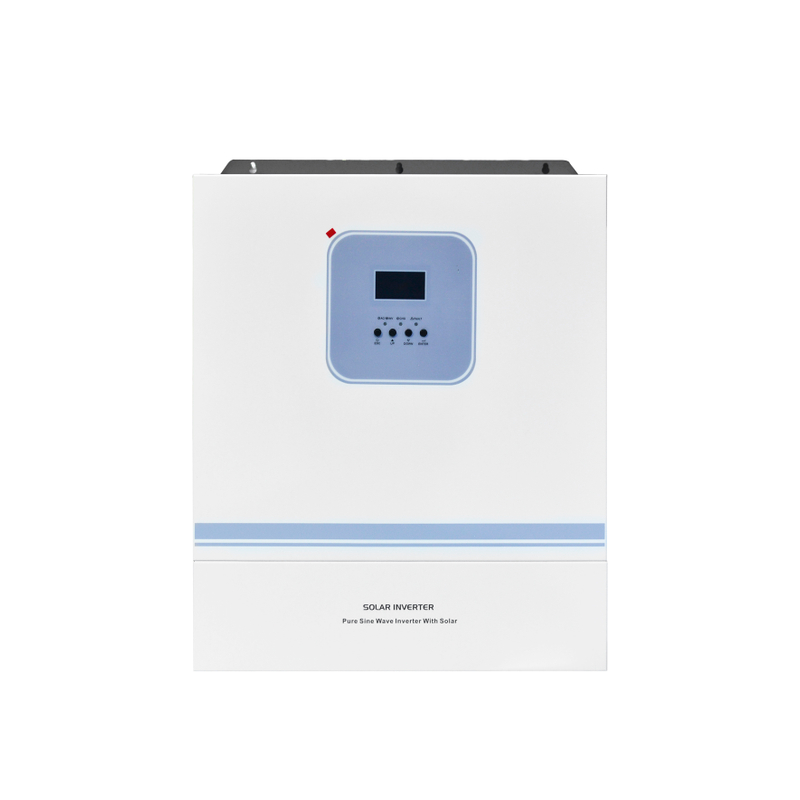

8.6kw 48v Solar Inverter Single Phase Support Parallel

Tips:
Minimum order quantity (MOQ) ≥100 Pieces;
Samples can be sent for testing;

Feature:
High frequency solar inverter PF1.0
Parallel Function Up to Maximum 9 Units

Availability:



Inquiry

Model:
GA8648JMH
Brand:
Techfine

Features：

PF1.0,High Efficiency

Lower Consumption

BMS function for lithium battery

Slim Body,Convenient Installation And Transportation

Battery Reverse Connection Protection with Fuse Switch, SaferInstallation

Energy Conservation/Environmental Protection/Electricity Saving/cost Saving

Lithium Battery Auto-restart Function, More Convenient forLithium Battery Charging

Intelligent Power Supply Mode,Intelligent Distribution of SolarPanel/Mains/BatteryPower Shares

Utility Charging Voltage/PV Charging Voltage Adjustable ,Match Different Battery Charging Requirements

GA11048JMH详情

8kw solar inverter 8kw solar inverter single phase all in one hybrid solar inverter inverter pure sine solar charge controller inverter rv solar inverter

Model	GA8648JMH
Nominal Voltage	220/230/240VAC
Voltage Range	90-280VAC3V(Inverter Mode) 170-280VAC3V(UPSMode)
Frequency	50-60Hz Auto sensing
Rated Output Power	8600W
Output Voltage(Ac)	220/230]240VAC±5%
Output Frequency	50/60Hz±0.1%
Waveform	Pure sine wave
Transfer time(AC to DC)	10ms for Computer Equipment, 20ms for Household Equipment
Peak Power	16000VA
Overload Capacity(Battery Mode)	21s@105%~150%Load； 11s@150%~200%Load； 400ms@>200%Load
Peak Efficiency(Battery Model)	98%
Norminal Voltage	48VDC
constant charging Voltage	56.4VDC
Float Charging Voltage	54VDC
Pv Charging Way	MPPT
Max PV Input Power	2*4000W
MPPT Controller Voltage	90-500VDC
MAX PV Input Voltage	500VDC
MAX Pv Charge Current	120A
MAX AC Charge Current	60A
MAX Charge Current	120A
LCD Display	AC input Voltage,AC input frequency,PV Voltage,PV Current,Output Voltage. Output Frequency, Battery Voltage,Load Current,etc.
RS232	5PIN/Pitch2.0mm
Expansion Slot Communication Interface	2x5PIN/Pitch2.54mm，Lithium battery BMS communication card、WIFl,etc
Parallel Interface	Yes
Operating Temperature	0-40°C
Humidity	20%~95%(Non-condensing)
Storage Temperature	-15~60°C
Altitude	<1000m
Noise(dB)	≤50db

Model	GA8648JMH
Nominal Voltage	220/230/240VAC
Voltage Range	90-280VAC3V(Inverter Mode) 170-280VAC3V(UPSMode)
Frequency	50-60Hz Auto sensing
Rated Output Power	8600W
Output Voltage(Ac)	220/230]240VAC±5%
Output Frequency	50/60Hz±0.1%
Waveform	Pure sine wave
Transfer time(AC to DC)	10ms for Computer Equipment, 20ms for Household Equipment
Peak Power	16000VA
Overload Capacity(Battery Mode)	21s@105%~150%Load； 11s@150%~200%Load； 400ms@>200%Load
Peak Efficiency(Battery Model)	98%
Norminal Voltage	48VDC
constant charging Voltage	56.4VDC
Float Charging Voltage	54VDC
Pv Charging Way	MPPT
Max PV Input Power	2*4000W
MPPT Controller Voltage	90-500VDC
MAX PV Input Voltage	500VDC
MAX Pv Charge Current	120A
MAX AC Charge Current	60A
MAX Charge Current	120A
LCD Display	AC input Voltage,AC input frequency,PV Voltage,PV Current,Output Voltage. Output Frequency, Battery Voltage,Load Current,etc.
RS232	5PIN/Pitch2.0mm
Expansion Slot Communication Interface	2x5PIN/Pitch2.54mm，Lithium battery BMS communication card、WIFl,etc
Parallel Interface	Yes
Operating Temperature	0-40°C
Humidity	20%~95%(Non-condensing)
Storage Temperature	-15~60°C
Altitude	<1000m
Noise(dB)	≤50db
