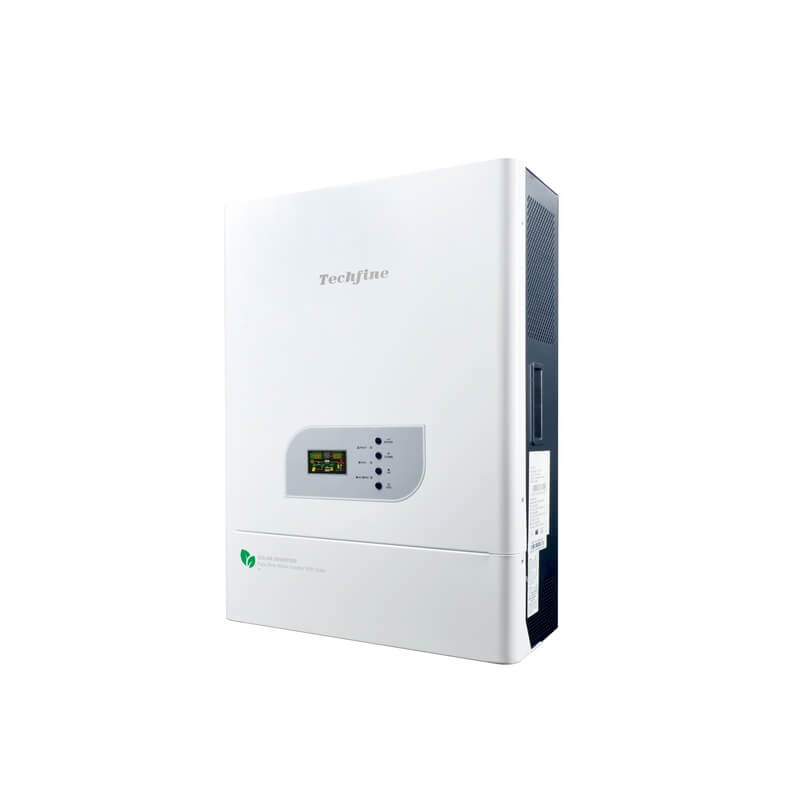

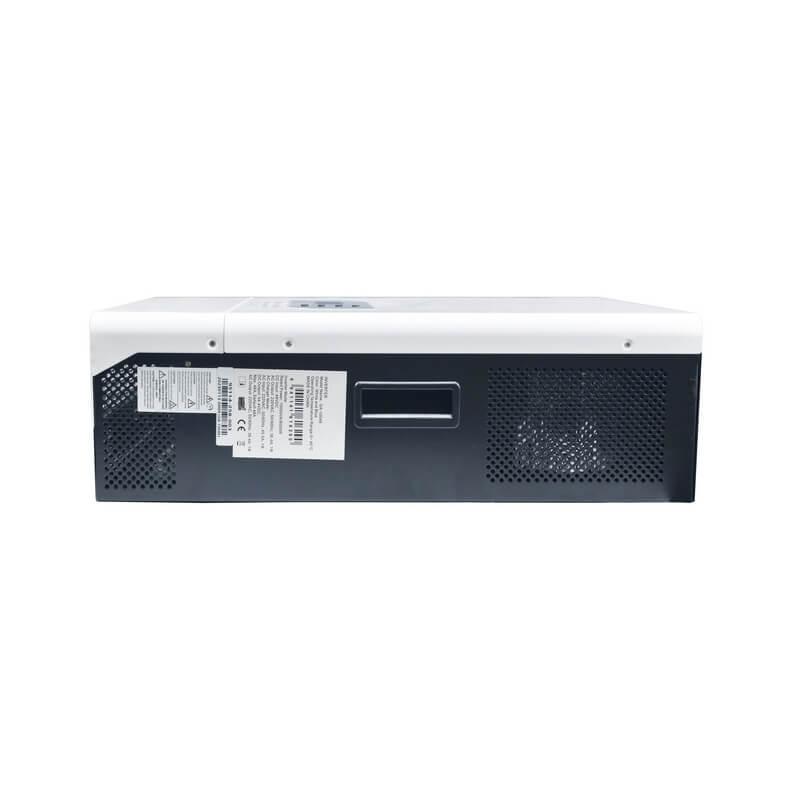

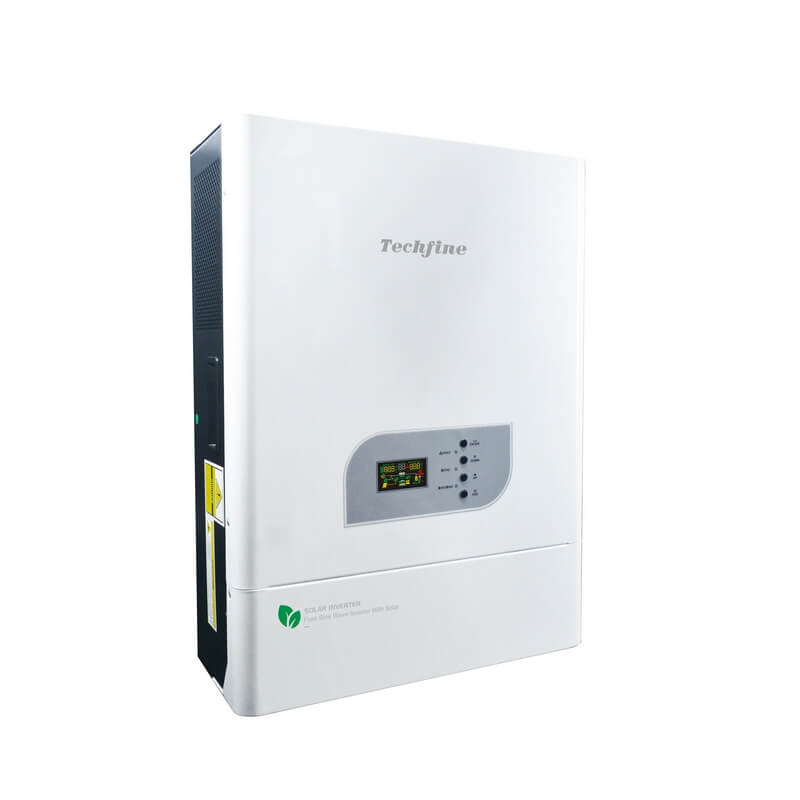

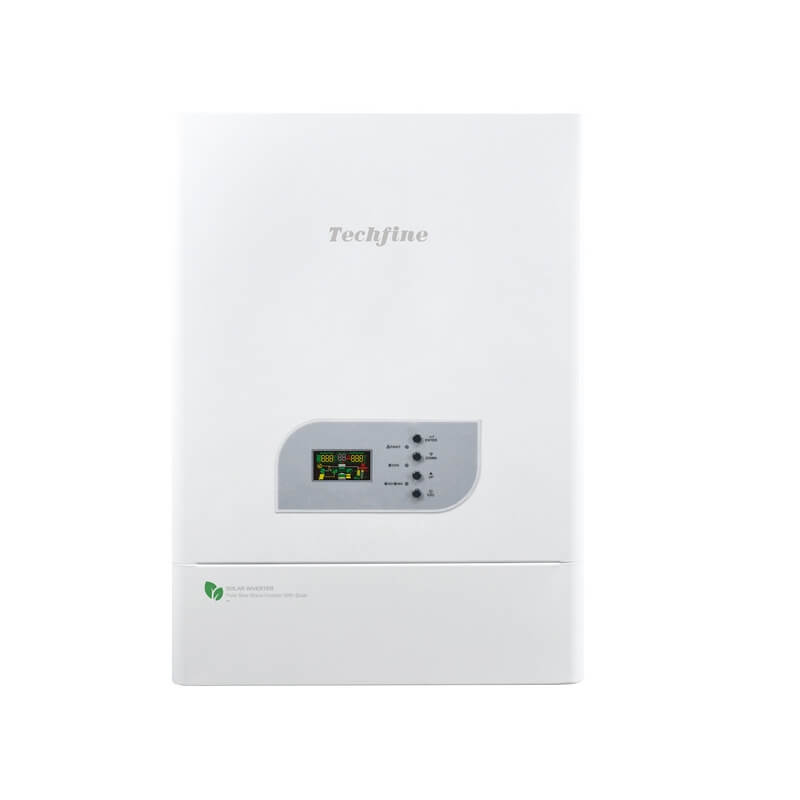

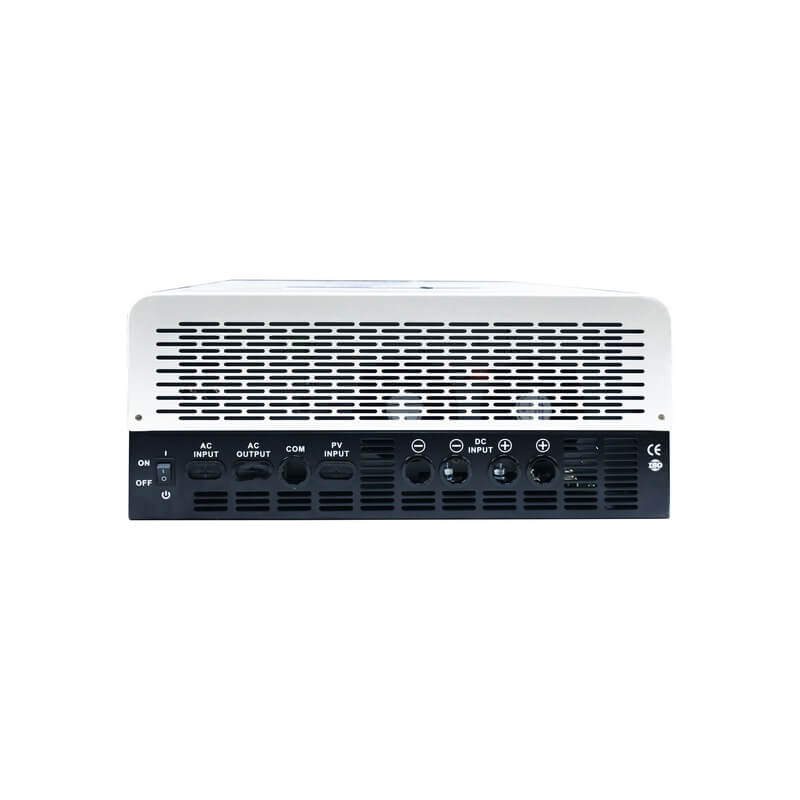

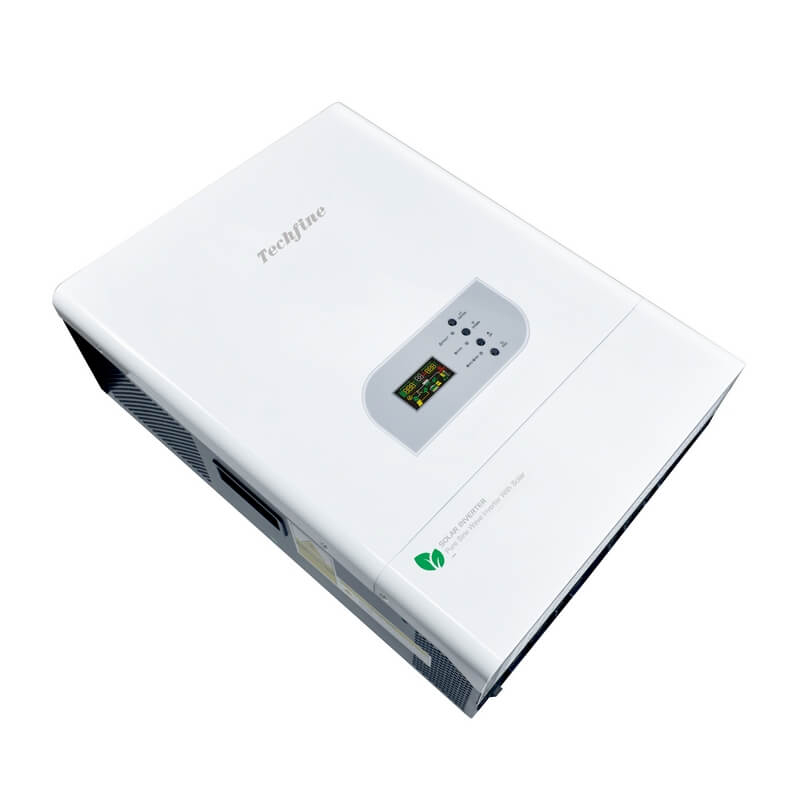

VS6048
Techfine
Feature
High Efficiency Design &"Power Saving Mode”to Conserve Energy
Auto Restart when Ac in recovering
Built in Transformer, overload and Ultra-high voltage protection
Selectable charging current based on applications
Smart battery charger design for optimized battery performance
BMS function for lithium battery110V/120V Output Available
Feature
High Efficiency Design &"Power Saving Mode”to Conserve Energy
Auto Restart when Ac in recovering
Built in Transformer, overload and Ultra-high voltage protection
Selectable charging current based on applications
Smart battery charger design for optimized battery performance
BMS function for lithium battery110V/120V Output Available
Model | VS6048 AM6B(support parallel) |
System Voltage | 6000VA |
Nominal Voltage | 220VAC |
Input voltage range | 154-265VAC ; 185-264VAC(selectable) |
Input frequency | 50/60Hz±5% Auto sensing |
Rated power | 5000W |
Battery Voltage(DC) | 48V |
Output frequency | 50Hz/60Hz土1% |
Waveform | Pure sine wave |
Ransfer time(AC to Dc) | ≤8ms(UPS)/≤20ms(INV) |
Load peak ratio | (MAX)3:1 |
Output Voltage Regulation | 10% |
Bypass Mode | (YES) |
Saver Mode | (YES) |
Battery Type | VRLA/GELIGEL DEEP CYCLE /LITHIUM |
Input Protection | Input over current protection with fuse |
Output Protection | Overload, short circuit, High low voltage, battery reverse protections |
AC Charging Current | 30A |
Maximum PV array power | 48V:MPPT150VDC(Customized 200VDC) |
Maximum solar charge current | 60A |
Maximum solar Pv Watt | 3200W |
LED Indicator status | AC Line In:Green ;Inverter: Green charging:Yellow : Alarm: Red |
LCD indicator | AC input voltage/input frequency, PV voltage,/PV current /output Voltage Frequency/Battery voltage/Load current etc. |
Low battery alarm | Audible alarm-5 seconds beeping |
Overload alarm | Audible alarm-continuous beeping |
Fault | Audible alarm-continuous beeping |
Storage temperature | -15°C~45°C |
Operating temperature | 0°C-60°C |
Relative temperature | 10°C-90°Cno condensation |
Noise(db) | <45dB |
