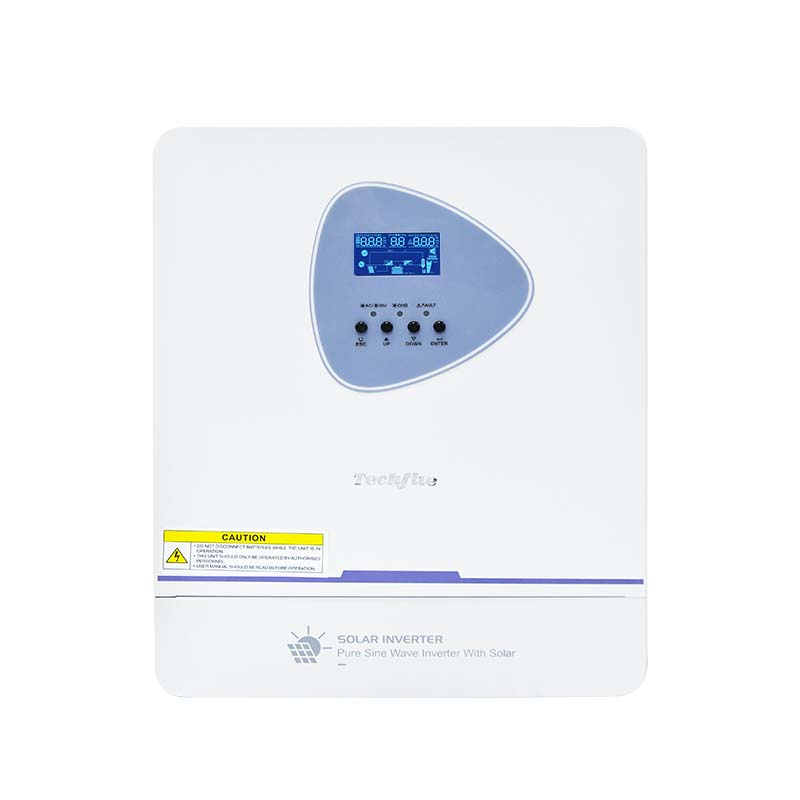

5500w 5.5 Kva Solar Inverter 48v Solar Charge Controller Inverter

Name: 5500w 5.5 Kva Solar Inverter 48v Solar Charge Controller Inverter
Brand: Techfine
Rating: 5.0 (58 reviews)

Tips:
Samples can be sent for testing;
Minimum order quantity (MOQ) ≥100 Pieces;
Feature:
•Cost-effective solution design
•Rounded corner design, exquisite appearance
•Multiple parameters can be adjusted according to user needs to adapt to different occasions
•Power below 3KW does not support battery-free mode
•Support lithium battery communication, external WIFI, generator self-start dry contact function
•Real-time display of actual load power greatly improves user perception
•Pure sine wave output, can adapt to different loads
•Output short-circuit protection function
•Parallel design is not supported.

Availability:



Inquiry

Model:
EA5548EMH
Brand:
Techfine

Techfine 5500W 5.5 KVA Solar Inverter 48V Solar Charge Controller Inverter

The Techfine 5500W 5.5 KVA Solar Inverter with a built-in 48V solar charge controller inverter offers a cost-effective and powerful solution for residential solar systems. Featuring pure sine wave output and a real-time load display, this 230V solar inverter ensures efficient energy management for diverse loads. With support for lithium battery communication and external Wi-Fi, it is ideal for modern solar setups. This solar PV inverter is designed for safety, featuring short-circuit protection, and is perfect for those seeking reliable residential solar inverters.

Techfine Cost-effective Solar Hybrid Inverter EA Series-Product Details (6)

5.5 kva solar inverter 48v solar charge controller inverter 230v solar inverter solar pv inverter residential solar inverters

Model			EA5548EMH
Input	Input format		L+N+PE
	Rated input voltage		220/230/240VAC
	Voltage range		90-280VAC±3V（正normal mode) 170-280VAC±3V（UPS mode）
	Frequency range		50Hz/60Hz(Adaptive)
Output	Rated Power	Battery Inverter	5500W
		Photovoltaic Inverter	6500W
	Peak Power		11000VA
	Output voltage		220/230/240VAC±5%
	Output frequency		50/60Hz±0.1%
	Waveform		Pure sine wave
	Switching time (adjustable)		Computer equipment 10ms, home appliances 20ms
	Overload capacity		Battery Mode：11s@105%~150% Load;2s@150%~200% Load;400ms@>200% Load
Grid-connected operation	Output voltage		220/230/240VAC
	Grid feeding voltage range		195-253VA
	Grid feeding frequency range		49-51±1Hz/59-61±1Hz
	Nominal output current		23.9A
	Power factor range		>0.99
	Maximum conversion efficiency (DC/AC)		98%
Battery	Rated voltage		48Vdc
	Constant voltage charging voltage (configurable)		56.4Vdc
	Float charging voltage (configurable)		54Vdc
Charger	PV charging method		MPPT
	Maximum input power of PV		7500W
	MPPT input voltage range		60-500Vdc
	Optimal Vmp operating range		300~400Vdc
	Maximum PV input voltage		500Vdc
	Maximum PV input current		27A
	Maximum PV charging current		100A
	Maximum mains charging current		100A
	Maximum charging current		100A
Display	LCD Interface		Can display operation mode/load/input/output, etc.
Interface	RS232		Baud rate 2400
	Expansion slot communication interface		Lithium battery BMS communication card, WIFI card, dry contact card, etc.
	Parallel interface		No parallel function
Environmental parameters	Operating ambient temperature		-10~50℃
	Operating environment humidity		20%~95%(No condensation)
	Storage temperature		-15~60℃
	Altitude		The altitude should not exceed 1000m, and the rating will be reduced above 1000m, and the maximum altitude is 4000m, refer to IEC62040
	Noise		≤50db
Physical parameters	Depth × width × height (mm)		GR:433330138
	Weight (for reference) KG		8.5
Standards and certifications			EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1

Model			EA5548EMH
Input	Input format		L+N+PE
	Rated input voltage		220/230/240VAC
	Voltage range		90-280VAC±3V（正normal mode) 170-280VAC±3V（UPS mode）
	Frequency range		50Hz/60Hz(Adaptive)
Output	Rated Power	Battery Inverter	5500W
		Photovoltaic Inverter	6500W
	Peak Power		11000VA
	Output voltage		220/230/240VAC±5%
	Output frequency		50/60Hz±0.1%
	Waveform		Pure sine wave
	Switching time (adjustable)		Computer equipment 10ms, home appliances 20ms
	Overload capacity		Battery Mode：11s@105%~150% Load;2s@150%~200% Load;400ms@>200% Load
Grid-connected operation	Output voltage		220/230/240VAC
	Grid feeding voltage range		195-253VA
	Grid feeding frequency range		49-51±1Hz/59-61±1Hz
	Nominal output current		23.9A
	Power factor range		>0.99
	Maximum conversion efficiency (DC/AC)		98%
Battery	Rated voltage		48Vdc
	Constant voltage charging voltage (configurable)		56.4Vdc
	Float charging voltage (configurable)		54Vdc
Charger	PV charging method		MPPT
	Maximum input power of PV		7500W
	MPPT input voltage range		60-500Vdc
	Optimal Vmp operating range		300~400Vdc
	Maximum PV input voltage		500Vdc
	Maximum PV input current		27A
	Maximum PV charging current		100A
	Maximum mains charging current		100A
	Maximum charging current		100A
Display	LCD Interface		Can display operation mode/load/input/output, etc.
Interface	RS232		Baud rate 2400
	Expansion slot communication interface		Lithium battery BMS communication card, WIFI card, dry contact card, etc.
	Parallel interface		No parallel function
Environmental parameters	Operating ambient temperature		-10~50℃
	Operating environment humidity		20%~95%(No condensation)
	Storage temperature		-15~60℃
	Altitude		The altitude should not exceed 1000m, and the rating will be reduced above 1000m, and the maximum altitude is 4000m, refer to IEC62040
	Noise		≤50db
Physical parameters	Depth × width × height (mm)		GR:433330138
	Weight (for reference) KG		8.5
Standards and certifications			EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
