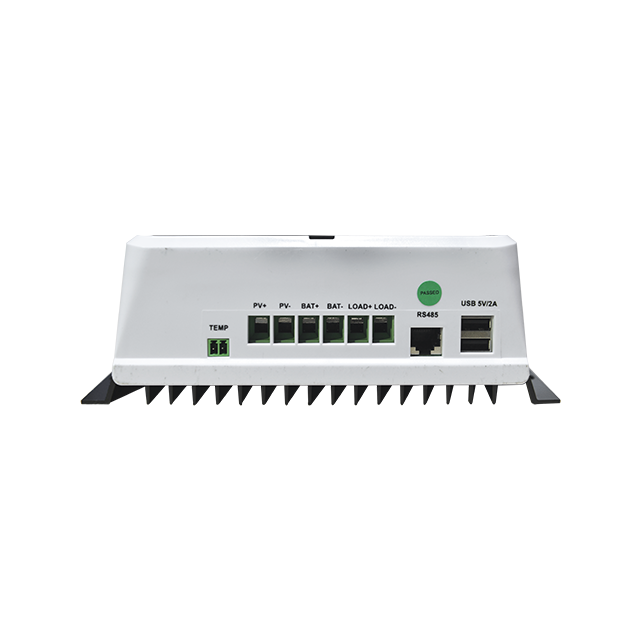

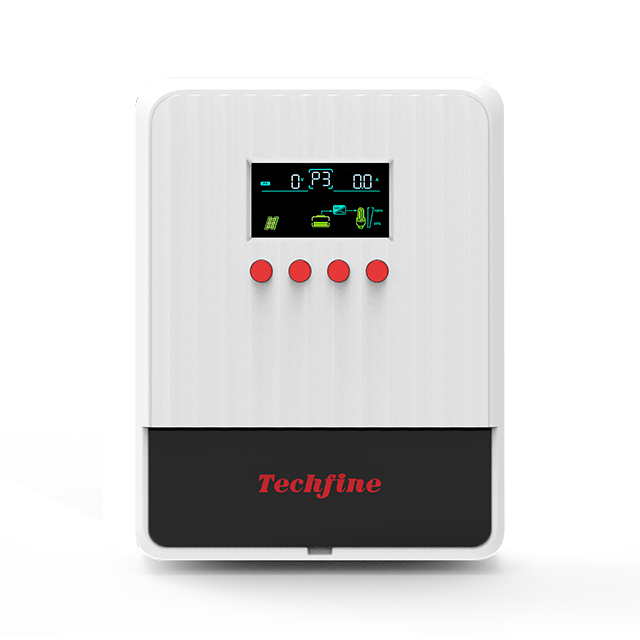

PA Series MPPT Solar Charge Controller 30/60 A

The PA Series is an MPPT solar charge controller rated 30 or 60 A for 12/24/36/48 V auto-sensed systems. Advanced dual-peak tracking keeps harvest high even with partial shading, with tracking efficiency up to 99.9% and conversion up to 98%.

An LCD display with history logging, USB output and complete protections round out a capable controller for telecom, street-light and off-grid applications.

Model:
PA Series

Availability:

Datasheet

Datasheet

Parameter	PA30210	PA60415
General
Rated system voltage	12/24 V auto-sensing or fixed setting	12/24/48 V auto-sensing or fixed setting
Controller operating voltage range	9-32 V	10-64 V
Applicable battery types	Custom / sealed / flooded / gel / lithium
Static loss	0.7-1.2 W
Input characteristics
Rated charging power	400 W @12 V	800 W @12 V
Rated charging power	800 W @24 V	1600 W @24 V
Rated charging power	—	2400 W @36 V
Rated charging power	—	3200 W @48 V
Max. PV module open-circuit voltage	100Vdc	150Vdc
PV input operating voltage range	18-100 VDC @12 V system	18-150 VDC @12 V system
PV input operating voltage range	36-100 VDC @24 V system	36-150 VDC @24 V system
PV input operating voltage range	—	50-150 VDC @36 V system
PV input operating voltage range	—	64-150 VDC @48 V system
MPPT operating voltage range	18-72 VDC @12 V system	18-110 VDC @12 V system
MPPT operating voltage range	36-72 VDC @24 V system	36-110 VDC @24 V system
MPPT operating voltage range	—	50-110 VDC @36 V system
MPPT operating voltage range	—	64-110 VDC @48 V system
Charging characteristics
Rated charging current	30A	60A
Tracking efficiency	≥99.9%
Max. conversion efficiency	85-98% (10-100% of rated power)
Temperature compensation coefficient	-3 mV/°C/2 V
DC load output characteristics
DC load output voltage	Same as battery voltage
DC load rated output current	20A
USB output port	5V/2A
DC load output control mode	Manual on/off / light sensing / time scheduling modes
Other properties
Protection functions	PV reverse-polarity, battery reverse-polarity, over-charge/over-discharge, over-temperature, input power limiting, input over-voltage and load over-current protection
Cooling method	Natural cooling
Communication	RS485/RS232
Protection rating	IP32
Display	High-definition segment LCD
BMS communication	None	Yes
Environment
Operating temperature range	-20 to +50 °C
Storage temperature range	-30 to +70 °C
Relative humidity range	0-90% RH
Mechanical
Dimensions	220×215×83mm	310×215×83mm
Recommended wiring	11AWG/4mm²	7AWG/10mm²
