M Series
|
| |
Data Sheet
| Parameter | M40415F/FL | M60415F/FL | M80415F/FL | M100415F/FL | M120415F/FL | M40420F/FL | M60420F/FL | M80420F/FL | M100420F/FL | M120420F/FL | M40425F | M60425F | M80425F | M100425F | M120425F | M40825F | M60825F | M80825F | M100825F |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| System voltage | 12/24/36/48 V auto-sensing, or 12/24/48 V fixed setting | 96V | |||||||||||||||||
| Rated current | 40A | 60A | 80A | 100A | 120A | 40A | 60A | 80A | 100A | 120A | 40A | 60A | 80A | 100A | 120A | 40A | 60A | 80A | 100A |
| Charging mode | MPPT maximum power point tracking | ||||||||||||||||||
| Applicable battery types | Custom / sealed / flooded / gel / lithium | ||||||||||||||||||
| Charging method | Three-stage: max. power, constant voltage, float | ||||||||||||||||||
| Max. PV open-circuit voltage (VOC) | 150VDC | 200VDC | 250VDC | ||||||||||||||||
| Start-up time | ≤10s | ||||||||||||||||||
| Dynamic response recovery time | ≤500us | ||||||||||||||||||
| Static power consumption | ≤4W | ≤8W | ≤4W | ≤8W | ≤4W | ≤8W | ≤4W | ≤8W | |||||||||||
| Tracking efficiency | ≥99.5% | ||||||||||||||||||
| Max. conversion efficiency | 85-97% (10-100% of rated power) | ||||||||||||||||||
| Controller system voltage recognition range | 10-64 V | 72-128 V | |||||||||||||||||
| PV input operating voltage range | 18-150 VDC @12 V system | 18-200 VDC @12 V system | 18-250 VDC @12 V system | 128-250 VDC @96 V system | |||||||||||||||
| PV input operating voltage range | 36-150 VDC @24 V system | 36-200 VDC @24 V system | 36-250 VDC @24 V system | 128-250 VDC @96 V system | |||||||||||||||
| PV input operating voltage range | 48-150 VDC @36 V system | 48-200 VDC @36 V system | 48-250 VDC @36 V system | 128-250 VDC @96 V system | |||||||||||||||
| PV input operating voltage range | 64-150 VDC @48 V system | 64-200 VDC @48 V system | 64-250 VDC @48 V system | 128-250 VDC @96 V system | |||||||||||||||
| MPPT operating voltage range | 18-110 VDC @12 V system | 18-144 VDC @12 V system | 18-180 VDC @12 V system | 128-180 VDC @96 V system | |||||||||||||||
| MPPT operating voltage range | 36-110 VDC @24 V system | 36-144 VDC @24 V system | 36-180 VDC @24 V system | 128-180 VDC @96 V system | |||||||||||||||
| MPPT operating voltage range | 48-110 VDC @36 V system | 48-144 VDC @36 V system | 48-180 VDC @36 V system | 128-180 VDC @96 V system | |||||||||||||||
| MPPT operating voltage range | 64-110 VDC @48 V system | 64-144 VDC @48 V system | 64-180 VDC @48 V system | 128-180 VDC @96 V system | |||||||||||||||
| Rated charging power (12V) | 540W | 800W | 1040W | 1300W | 1560W | 540W | 800W | 1040W | 1300W | 1560W | 540W | 800W | 1040W | 1300W | 1560W | — | |||
| Rated charging power (24V) | 1080W | 1600W | 2080W | 2600W | 3120W | 1080W | 1600W | 2080W | 2600W | 3120W | 1080W | 1600W | 2080W | 2600W | 3120W | — | |||
| Rated charging power (36V) | 1620W | 2400W | 3120W | 3900W | 4680W | 1620W | 2400W | 3120W | 3900W | 4680W | 1620W | 2400W | 3120W | 3900W | 4680W | — | |||
| Rated charging power (48V) | 2160W | 3200W | 4160W | 5200W | 6240W | 2160W | 3200W | 4160W | 5200W | 6240W | 2160W | 3200W | 4160W | 5200W | 6240W | — | |||
| Rated charging power (96V) | — | 4160W | 6240W | 8320W | 10400W | ||||||||||||||
| Load voltage | Same as battery voltage | 96 V, no load output function | |||||||||||||||||
| Rated load current | 40A | — | |||||||||||||||||
| Load control mode | Always-on/off mode / timer mode / light-control mode | — | |||||||||||||||||
| Load under-voltage protection | Default 10.5 V x N (N = number of cells), adjustable | — | |||||||||||||||||

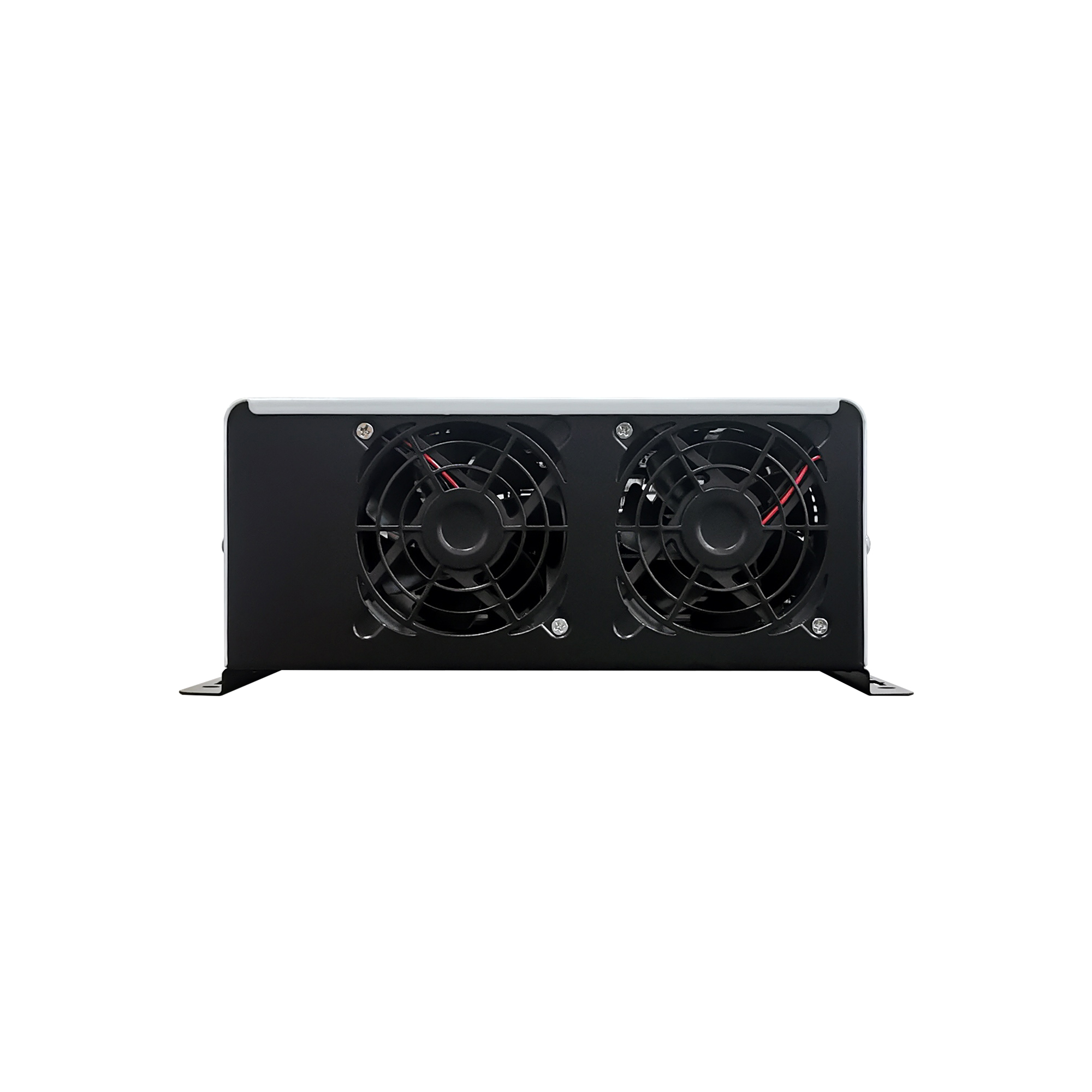

| Cooling method | Fan cooling | ||||||||||||||||||

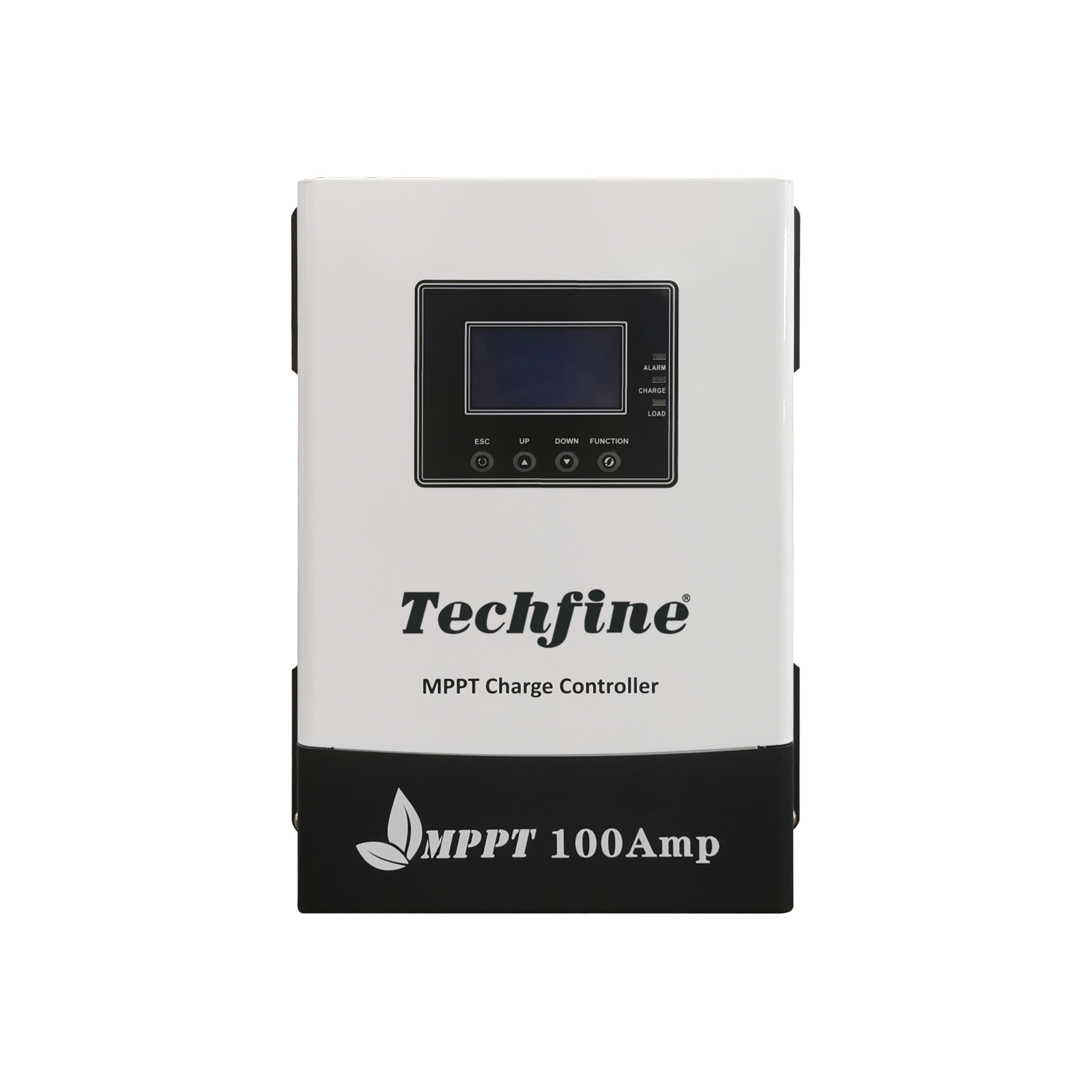

| Display | High-definition backlit LCD | ||||||||||||||||||
| Protection rating | IP20 | ||||||||||||||||||
| Protection functions | PV reverse-polarity, battery reverse-polarity, over-charge/over-discharge, over-temperature, input power limiting, input over-voltage and load over-current protection | ||||||||||||||||||
| Temperature compensation coefficient | -3 mV/°C/2 V | ||||||||||||||||||

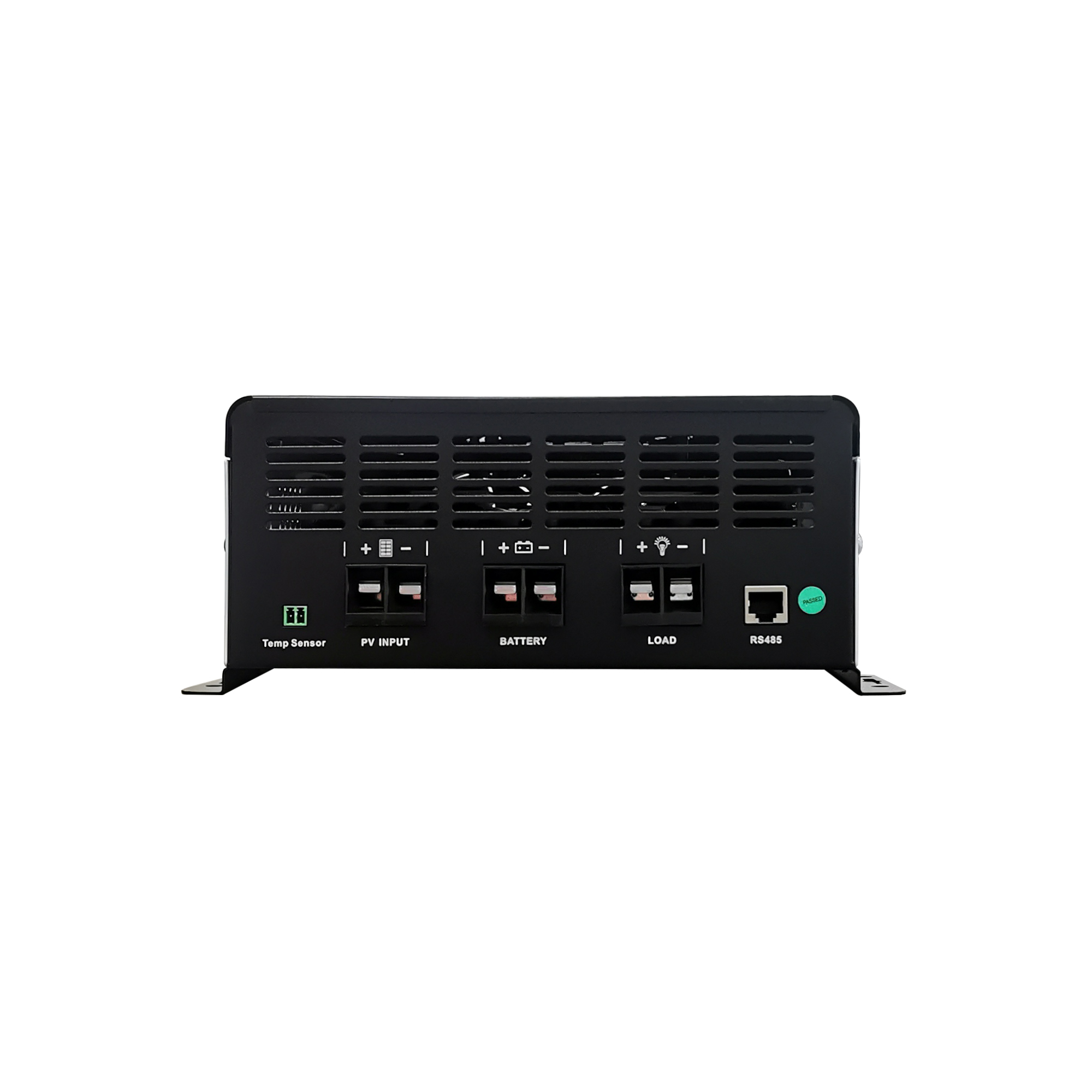

| Communication | RS485 | ||||||||||||||||||
| Operating temperature | -20 to +50 °C | ||||||||||||||||||
| Storage temperature | -30 to +70 °C | ||||||||||||||||||
| Noise level | ≤50 dB | ||||||||||||||||||
| Humidity | 0-90% RH | ||||||||||||||||||
| Altitude | 0-3000 m | ||||||||||||||||||
| Dimensions (mm) | 219×260×110 | 274×350×110 | 219×260×110 | 274×350×110 | 219×260×110 | 274×350×110 | 219×260×110 | 274×350×110 | |||||||||||
| Net weight (ref., kg) | 2.8 | 4.6 | 5.2 | 2.8 | 4.6 | 5.2 | 2.8 | 4.6 | 5.2 | 2.8 | 4.6 | 5.2 | |||||||
| Recommended wiring | 10AWG/6mm² | 7AWG/10mm² | 5AWG/16mm² | 3AWG/25mm² | 10AWG/6mm² | 7AWG/10mm² | 5AWG/16mm² | 3AWG/25mm² | 10AWG/6mm² | 7AWG/10mm² | 5AWG/16mm² | 3AWG/25mm² | 10AWG/6mm² | 7AWG/10mm² | 5AWG/16mm² | 3AWG/25mm² | |||
