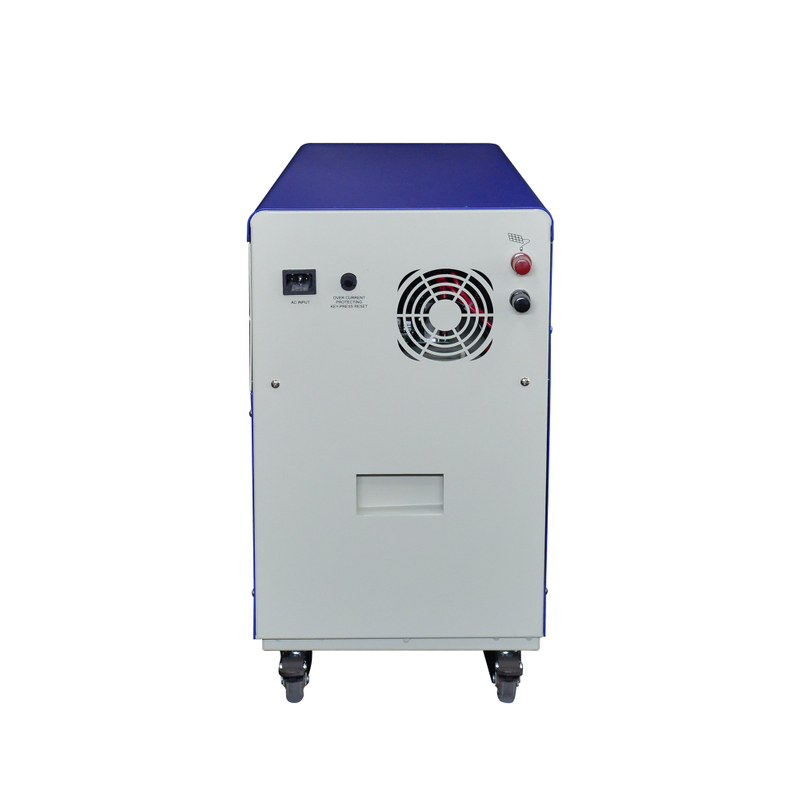

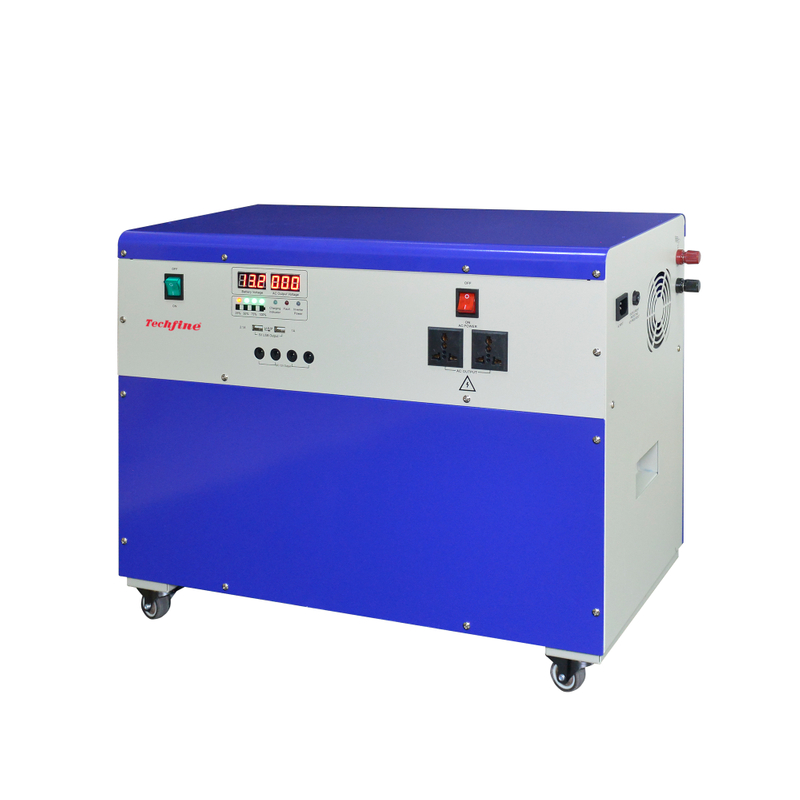

12v/24v 3000w 3kw 220vac/110vac hot sale china wholesale solar inverter generato

Tips:
Minimum order quantity (MOQ) ≥5 Pieces;
Samples can be sent for testing;
Feature:
Pure sine wave output
Superior AC loading capacity
Rated Capacity:
Availability:
  • SY3000

  • Techfine


Feature

  • Output pure sine wave

  • Strong load capacity

  • Built-in solar charging controller

  • High charging efficiency

  • Adjustable polyphase parameters

  • Built-in carp battery or lead-acid battery

Application

38 39



ModelSY1500SY3000
InputVoltage156-265VAC(78-132VAC)
Frequency50/60HZ±5%
AC outputVoltageAC220V±5%(Battery mode)/AC110V±5%(Battery mode)
Frequency50/60HZ±1%(battery mode)
Output rated power1500W3000W
Output waveformSine wave
Conversion time AC/DCOf < 8ms
Conversion time DC/ACOf < 8ms
Output voltage regulation10%rms
Efficiency>85%
DC output5VUSB interface5V/1A or 5V/2A
12V round hole interface12V/10A
BatteryBattery typeLead-acid battery/lithium battery
Battery capacity specifications12V150AH/12V200AH48V100AH lithium iron phosphate
Built-in battery size space484x170x242x247mm or522x240x221x226mm
Size length*width*height*total height522x240x221x226mm
Rated battery voltageLead-acid battery: 12V; lithium iron phosphate: 12.8 V; three yuan lithium: 11.1 V
Constant voltage charge voltage LCD screen14.2 V56.8 V
Adjustable)
Float charge voltage LCD screen13.75 V55V
Adjustable)
ChargingSolar charging modePWM/MPPTMPPT
Maximum PV charge current30A or 60A60A
Maximum mains charging current35A30A
Protection functionAlarm indicationOverload protection, over current protection, output short circuit protection, battery over-voltage/under-voltage protection, machine over temperature protection
Display modeLCD/LEDLCD/LEDLCD/LED
Environmental parametersOperating temperature0℃to 40℃
Storage temperatureA 15℃to 40℃
Relative temperatureA 10℃to 90℃no condensation
Noise≤45dB
Physical parametersMachine size(length*width*height)600*280*490MM(for reference only)600*280*490MM(for reference only)
Package dimensions(length*width*height)675*355*640MM(for reference only)675*355*640MM(for reference only)
