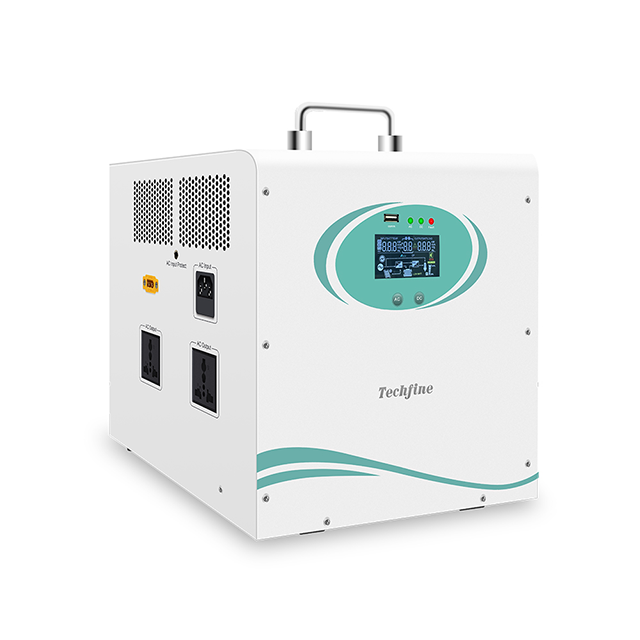

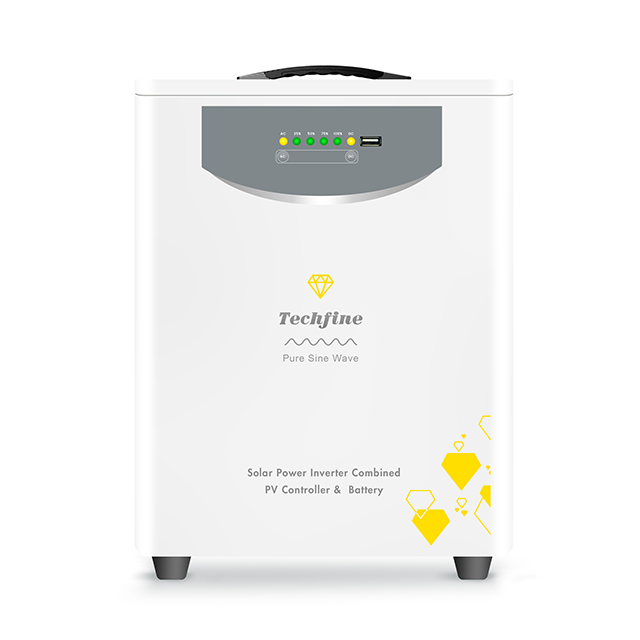

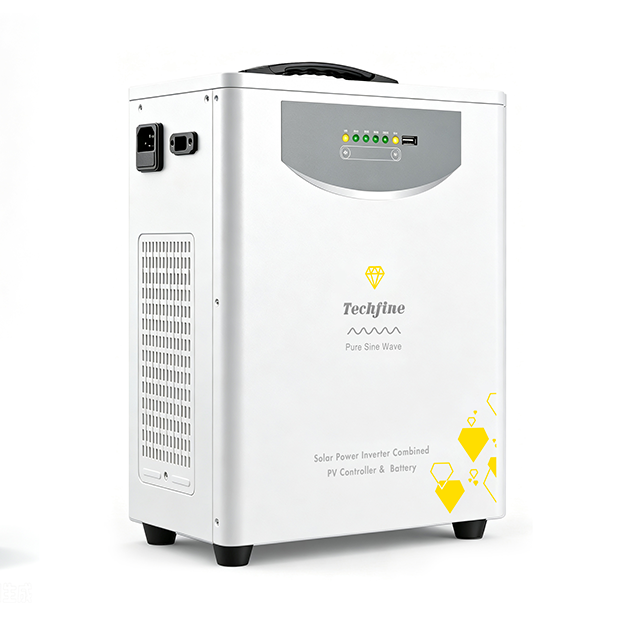

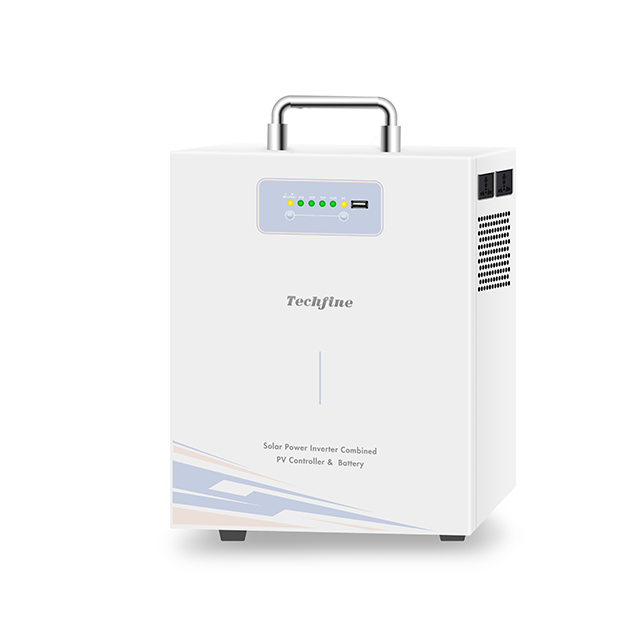

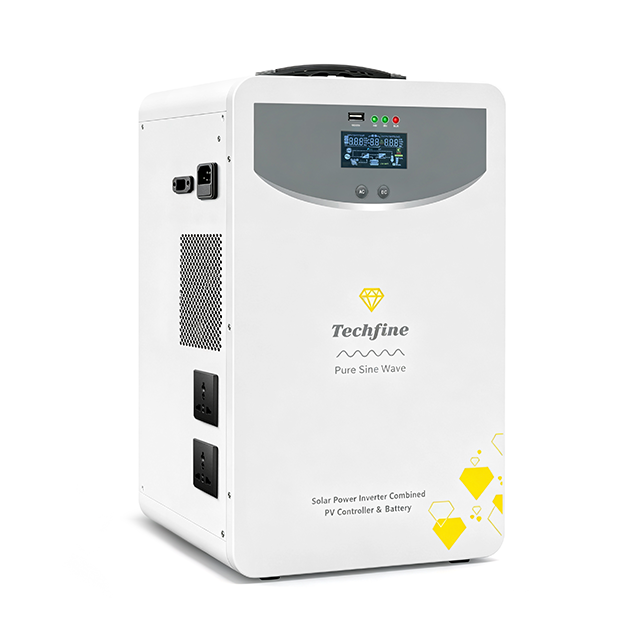

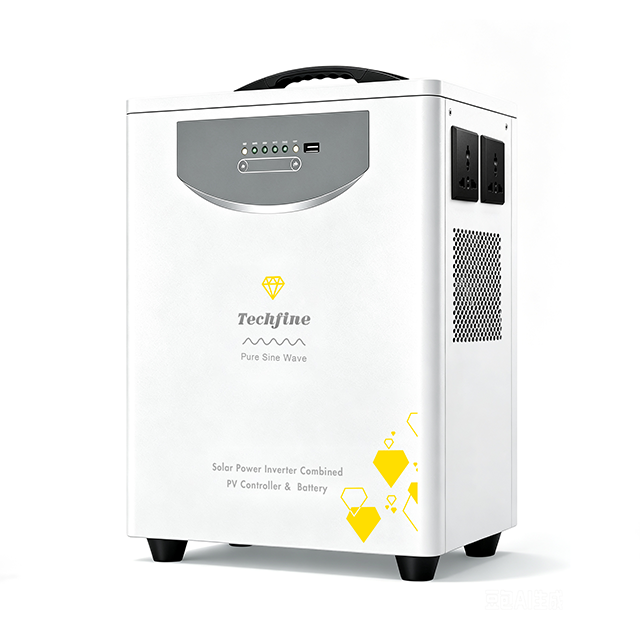

SP Series Portable Power Station 300-1800 W

The SP Series is a family of portable power stations from 300 to 1800 W with 230 V or 120 V pure sine AC output.

MPPT solar charging, active PFC wide-range AC input and a 314 Ah LiFePO4 battery with 6000-cycle life provide reliable energy at home or outdoors, with AC/USB/DC outputs managed independently and 20 ms UPS transfer.

Model:
SP Series

Availability:

Data Sheet

Parameter	SP0332	SP0532	SP1064	SP18128	SP0532Y	SP1064Y
Efficiency
MPPT tracking efficiency	0.99
Max. battery-mode conversion efficiency	0.87		0.95	0.92	0.87	0.95
PV input
Max. PV input power	300W		550W	1200W	300W	550W
Max. PV input voltage	55V		60V	110V	55V	60V
MPPT voltage range	11~55V		12-60V	18-110V	11~55V	15-60V
Start-up voltage	11V		12V	18V	11V	15V
Number of MPPT trackers	1
Max. PV array power	300W		550W	1200W	300W	550W
Max. PV input current	10A		15A		10A	15A
Max. input short-circuit current	20A
AC input
Input voltage range	90~280Vac				60~145Vac
Over-voltage protection (OVP)	280±10Vac				145±5Vac
Max. AC input power (bypass + battery charge)	1000W		1300W	1500W	1000W	1300W
Max. AC input current (bypass + battery charge)	6A		10A	12A	6A	10A
Nominal operating frequency	50Hz				60Hz
AC output
Rated AC output power (inverter mode)	300W	500W	1000W	1800W	500W	1000W
Rated AC output voltage (inverter mode)	230VAC				120VAC
Total voltage harmonic distortion (THD, inverter mode)	<3%
Rated AC output current (inverter mode)	1.3A	2.2A	4.3A	7.8A	2.2A	4.3A
Rated AC output frequency	50Hz				60Hz

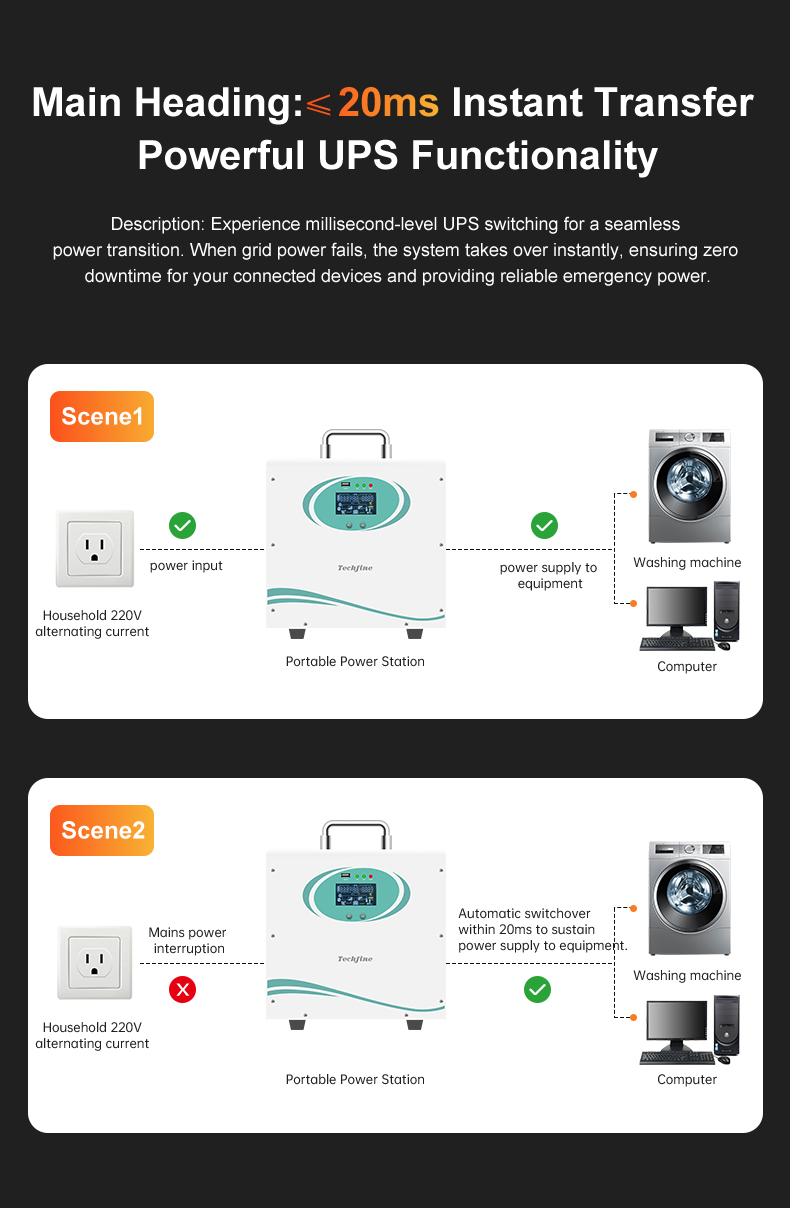

Transfer time	≤20ms
Surge power	600VA	1000VA	2000VA	3600VA	1000VA	2000VA
Overload capacity	CC 3.0 A output @ >300 W; latch output @ <170 VAC	CC 3.0 A output @ >500 W; latch output @ <170 VAC	CC 3.0 A output @ >1000 W; latch output @ <170 VAC	5min @110%-120% Load; 30s @120%-150% Load; 2s @150%-180% Load; 20ms @>180% Load	CC 3.0 A output @ >500 W; latch output @ <85 VAC	CC 3.0 A output @ >1000 W; latch output @ <85 VAC
Battery

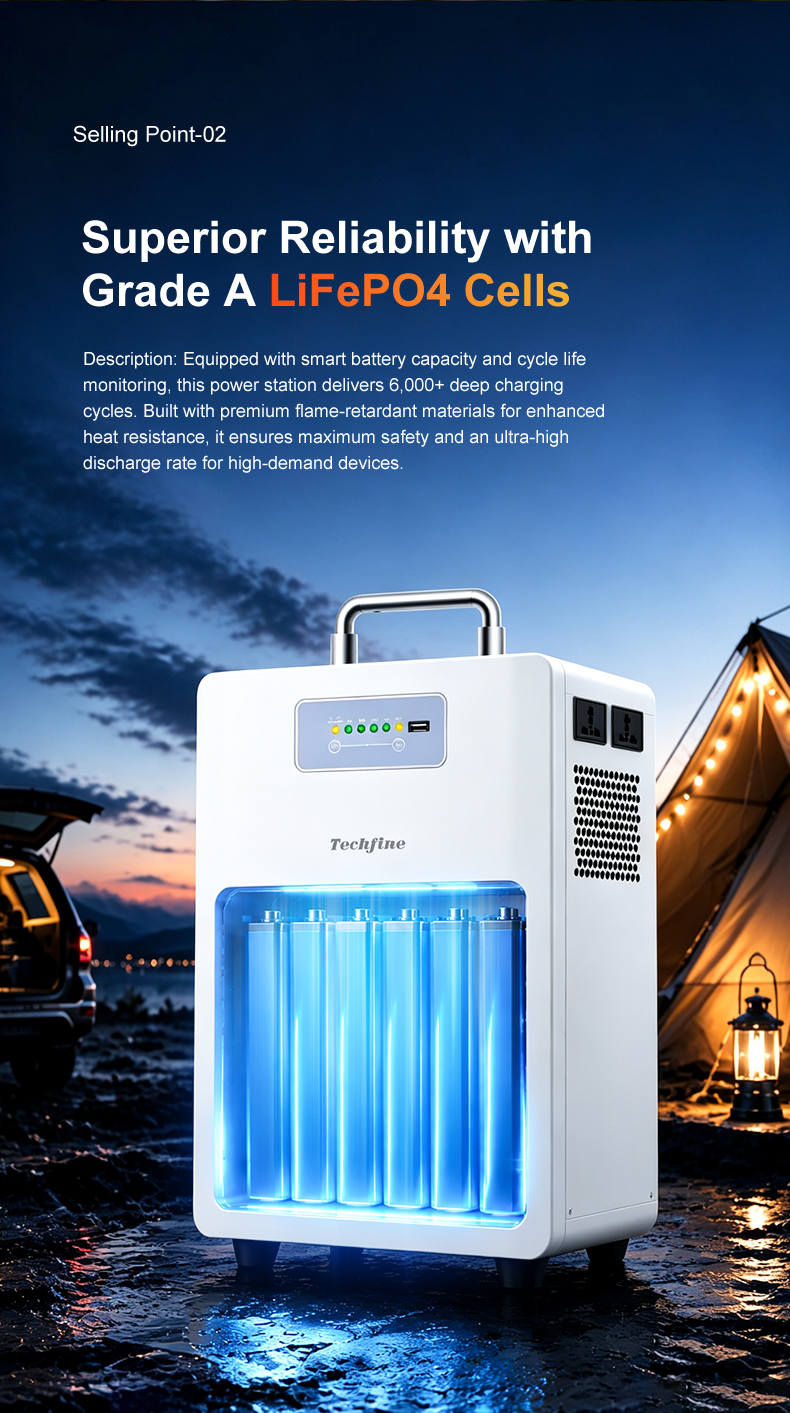

Battery type	LiFePO4
Rated battery voltage	3.2VDC		6.4VDC	12.8VDC	3.2VDC	6.4VDC
Battery capacity	314Ah
Battery energy	1004.8Wh		2009.6Wh	4019.2Wh	1004.8Wh	2009.6Wh
Cycle life	6000
General data
Operating temperature range	-10 to +60 °C
Max. operating altitude	4000m
SOC display	LED		LCD		LED	LCD
Cooling method	Intelligent fan cooling
Noise level	<45 dB(1m)
Certification	IEC62619/IEC62368/UN38.3
Mounting	Wall-mount + upright		Upright		Wall-mount + upright	Upright
Protection
Battery fuse	Yes
Overload protection	Yes
Short-circuit protection	Yes
Over-temperature protection	Yes
