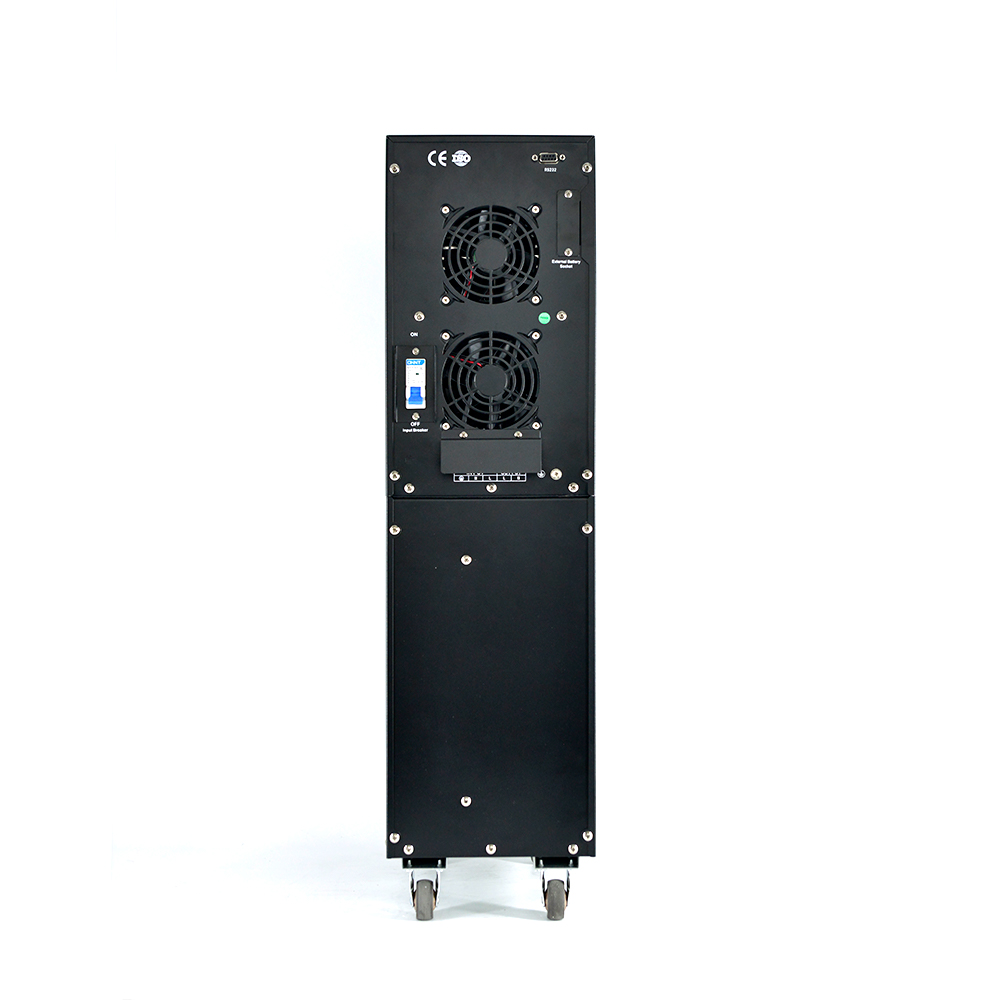

CYF Series
|
| |
Data Sheet
| Parameter | CYF1K (S) | CYF2K (S) | CYF3K (S) | CYF6K (S) | CYF10K (S) |
|---|---|---|---|---|---|
| General | |||||
| Phase | Single phase with earth | ||||
| Capacity | 1000 VA / 800 W | 2000 VA / 1600 W | 3000 VA / 2400 W | 6000 VA / 4800 W | 10000 VA / 8000 W |
| Input | |||||
| Voltage range | 145-280 VAC | ||||
| Frequency range | 46-54 or 56-64 Hz | ||||
| Power factor | >=0.98 @100% load | ||||
| Output | |||||
| Output voltage | 220 VAC ±10% | ||||
| Voltage range (battery mode) | ±2% (±10% utility mode) | ±1% (±10% utility mode) | |||
| Frequency range (sync window) | 47-53 or 57-63 Hz | 46-54 or 56-64 Hz | |||
| Frequency range (battery mode) | 50 Hz ±0.25 Hz | 50 Hz ±0.1 Hz or 60 Hz ±0.1 Hz | |||
| Surge ratio | 3:1 | ||||
| Harmonic distortion | <=3% THD (linear load); <=6% THD (non-linear load) | <=3% THD (linear load); <=5% THD (non-linear load) | |||
| Transfer time | <=8 ms | ||||
| Waveform | Pure sine wave | ||||
| Battery | |||||
| Standard - Battery model | 12 V / 7 Ah | ||||
| Standard - Quantity | 2 | 4 or 6 | 6 | 14 | 16 |
| Standard - Max. charge current | 1.5 A (max.) | 2.0 A max. | |||
| Standard - Charge voltage | 27.5 VDC ±1% | 55 / 82.1 VDC ±1% | 82.1 VDC ±1% | 178.5 VDC ± 1% | 218.4 VDC ± 1% |
| Long-run - Battery model | Depends on application | ||||
| Long-run - Quantity | 3 | 6 | 8 | 16 (optional 18, 20) | |
| Long-run - Max. charge current | 6 A (adjustable) | 8 A (adjustable) | 6 A (adjustable) | ||
| Long-run - Charge voltage | 41.0 VDC ±1% | 82.1 VDC ±1% | 109.4 VDC ±1% | 218.4 VDC ± 1% | |
| Display & alarms | |||||
| LCD/LED display | Load level, battery capacity, utility/battery/bypass mode, fault indication | ||||
| Alarm | |||||
| Battery mode | One beep every 4 s | ||||
| Battery low | One beep per second | ||||
| Overload | One beep per second | ||||
| Fault | Continuous beep | ||||
| Dimensions | |||||
| Standard - Dimensions D×W×H (mm) | 352×145×213 | 450×192×335 | 390×192×720 (new version) | ||
| Standard - Net weight (kg) | 12.96 | 25.3 / 29.7 | 33 | 52.5 kg net / 58.7 kg gross | 59 |
| Long-run - Dimensions D×W×H (mm) | 352×145×213 | 350×192×335 (405×144×213) | 390×192×345 | 535×192×345 | |
| Long-run - Net weight (kg) | 9.54 | 15.97 (10.25 in small box) | 21.55 (12.65 in small box) | 28 kg net / 30.8 kg gross | 30 |
| Environment | |||||
| Temperature & humidity | RH 20-90%, 0-40 °C (non-condensing) | RH 0-95%, 0-40 °C (non-condensing) | |||
| Noise level | <40 dBA @1 m | <45 dBA @1 m | |||
| Control & management | |||||
| Smart RS-232/ USB | Supports Windows 2000/2003/XP/Vista/2008, Windows 7/8, Linux, Unix | ||||
| Optional SNMP | Power management supports SNMP and network management | ||||
