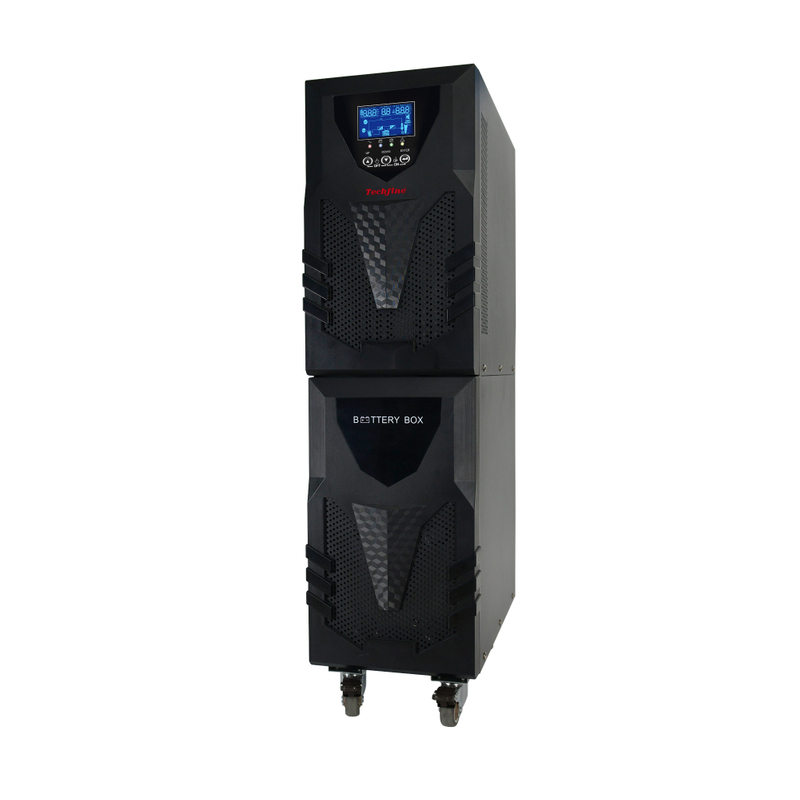

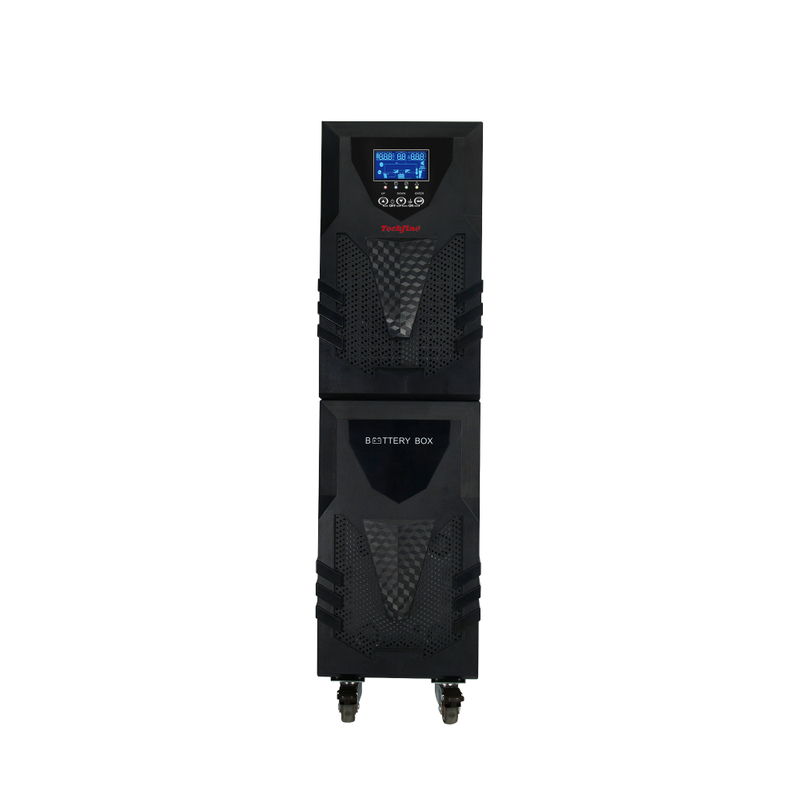

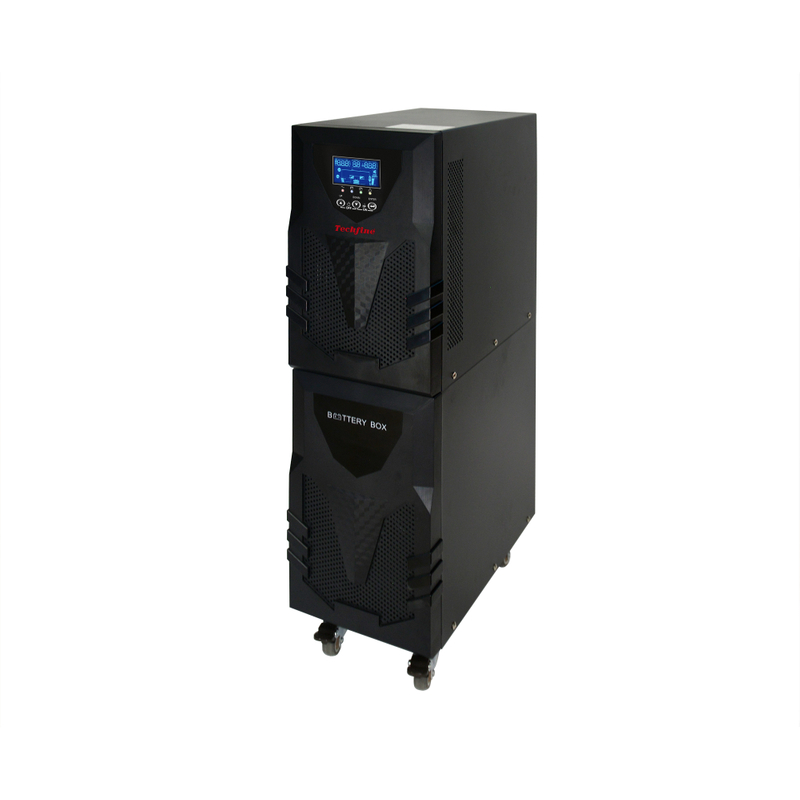

Single Phase High Frequency Online 5000 Watt Ups 10000W 10KVA Long Backup External Power Backup UPS

Tips:
Samples can be sent for testing;
Minimum order quantity (MOQ) ≥5 Pieces;
Feature:
Max 12 A big charge current
1.0 output power factor
Up to 95.5% high efficiency
Availability:
  • CQ10K

  • Techfine

Feature:

  1. Pure sine wave output, online zero conversion time

  2. Wide input frequency range adjustable from 40-70HZ

  3. Output short circuit protection and overload protection

  4. Full-time lightning protection, noise and surge protection

  5. The LCD screen is to display the status parameters at a glance

  6. The RS232 communication interface is applied

  7. Double-sided circuit board design with higher safety and reliability

  8. Various common technical parameters can be set on the panel

Online UPS CQ Series Detail

ModelsCQ10K (S)
PhaseSingle-phase
Capacity10KVA / 10KW
Input
Voltage   range110 - 300VAC
Frequency   range50HZ/60HZ
Power   factor1
Output
Output   voltage220VAC±1% (208, 220, 230, 240   adjustable on LCD screen), 110VAC±1% Optional
Frequency   range (battery mode)50 Hz (60HZ selectable)± 0.25 Hz
Transfer0ms
time
Wave   formPure sine wave
Battery
StandardBattery model12V / 7AH(Standar) 12V   /9AH(Optional)
Quantity/DC   Voltage16PCS/192VDC
Max.   charging current1A, 2A, 3A, 4A, 5A, 6A, 7A, 8A,   9A, 10A adjustable
Long-runBattery modelDepends on the users
DC   Voltage192VDC
Max.   charging current1A, 2A ,3A, 4A, 5A, 6A, 7A, 8A,   9A, 10A, 11A, 12A adjustable
LCD or LED displayLoad size, battery capacity,   mains mode, battery mode, bypass mode, fault indication
Control   managementSmart RS-232、SNMP optional
