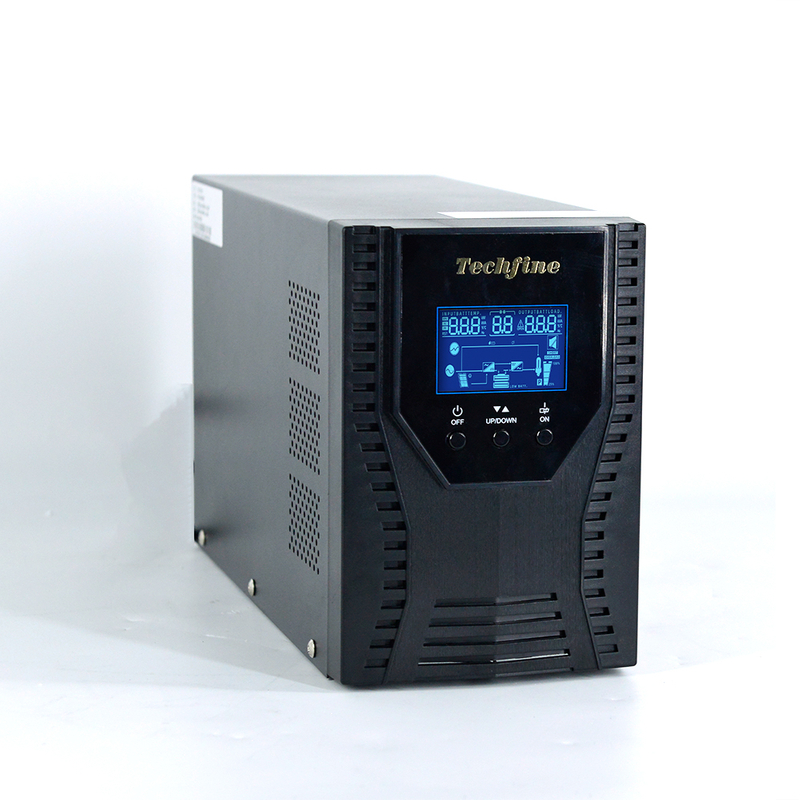

Line Interactive UPS 800w 1KVA with Battery Backup Power Supply System

Share to:

Line Interactive UPS 800w 1KVA with Battery Backup Power Supply System

Tips:
Samples can be sent for testing;
Minimum order quantity (MOQ) ≥100 Pieces;
Feature:

With Toroidal Transformer
Higher Efficiency

Lower Consumption

Availability:



Inquiry

Model:
CYE1K
Brand:
Techfine

Feature

* With Battery Over Discharge And OverCharge Protection,Expand The Battery Life.

* Output short-circuit protection,Battery low & high voltage protection,The UPS From Wrong Operations.

* Long back up design, able to last 24 hours.* Adopt CPU design, computer interface, have self detection function.

* With three-level lightning protection, multi protection of your equipment.

* High Standard Level 3 Lightning Protection Ensure Your Equipments Under Fully Protect.

line interactive ups CYE1K series detail

ups Small Ups For Computer Line-interactive Ups For Computer ups power supply for home 220v ups ups for desktop computer

Factory model	CYE1K (S)
phase	Single phase
capacity	1000 VA / 800 W
Input
Voltage range	145 -280VAC
Frequency range	46Hz ~ 54 Hz or 56Hz ~ 64 Hz
Power factor	At 100% load ≧0.98
Output
Output voltage	220VAC±10%
Voltage range (battery mode)	± 2% (±10% mains mode)
Frequency range (synchronous correction range)	47~ 53 Hz or 57 ~ 63 Hz
Frequency range (battery mode)	50 Hz ± 0.25 Hz
Surge ratio	3:1
Harmonic distortion	≦ 3% THD (Linear load) ≦6% THD (nonlinear load）
Conversion time	≤8ms
Wave form	Pure sine wave
Battery
Standard battery model	12V / 7AH
quantity	2
Maximum charging current	1.5A（Max）
Charging voltage	27.5VDC ± 1%
Long-lasting machine battery model	Depends on applicant
quantity	3
Maximum charging current	6A(adjustable)
Charging voltage	41.0VDC ± 1%
Appearance
LCD or LED display	Load size, battery capacity, mains mode, Battery mode, bypass mode, fault indication
Alarm
Battery mode	It goes off every four seconds
Low battery	It goes off every second
Over duty	It goes off every second
mistake	Continuous ringing
Overall dimension
Marking machine dimensions, D x W x H (mm)	352x145x213
Net weight (kg)	12.96
Long life machine size, D x W x H (mm)	352x145x213
Net weight (kg)	9.54
Use environment
Temperature and humidity	Relative humidity 20-90% and temperature 0-40 °C (no condensation)
noise	Less than 45DB@1 m
Control management
Smart RS-232/ USB	Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix,
Optional SNMP	Power management Supports SNMP management and network management
Added performance features with B-ultrasound (model suffix plus B for B-ultrasound)
Low leakage current	The leakage current of the whole machine is < 500uA
Electromagnetic compatibility	No interference to medical B-ultrasound equipment
noise	Less than 40dBA@ 1 m

Factory model	CYE1K (S)
phase	Single phase
capacity	1000 VA / 800 W
Input
Voltage range	145 -280VAC
Frequency range	46Hz ~ 54 Hz or 56Hz ~ 64 Hz
Power factor	At 100% load ≧0.98
Output
Output voltage	220VAC±10%
Voltage range (battery mode)	± 2% (±10% mains mode)
Frequency range (synchronous correction range)	47~ 53 Hz or 57 ~ 63 Hz
Frequency range (battery mode)	50 Hz ± 0.25 Hz
Surge ratio	3:1
Harmonic distortion	≦ 3% THD (Linear load) ≦6% THD (nonlinear load）
Conversion time	≤8ms
Wave form	Pure sine wave
Battery
Standard battery model	12V / 7AH
quantity	2
Maximum charging current	1.5A（Max）
Charging voltage	27.5VDC ± 1%
Long-lasting machine battery model	Depends on applicant
quantity	3
Maximum charging current	6A(adjustable)
Charging voltage	41.0VDC ± 1%
Appearance
LCD or LED display	Load size, battery capacity, mains mode, Battery mode, bypass mode, fault indication
Alarm
Battery mode	It goes off every four seconds
Low battery	It goes off every second
Over duty	It goes off every second
mistake	Continuous ringing
Overall dimension
Marking machine dimensions, D x W x H (mm)	352x145x213
Net weight (kg)	12.96
Long life machine size, D x W x H (mm)	352x145x213
Net weight (kg)	9.54
Use environment
Temperature and humidity	Relative humidity 20-90% and temperature 0-40 °C (no condensation)
noise	Less than 45DB@1 m
Control management
Smart RS-232/ USB	Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix,
Optional SNMP	Power management Supports SNMP management and network management
Added performance features with B-ultrasound (model suffix plus B for B-ultrasound)
Low leakage current	The leakage current of the whole machine is < 500uA
Electromagnetic compatibility	No interference to medical B-ultrasound equipment
noise	Less than 40dBA@ 1 m
