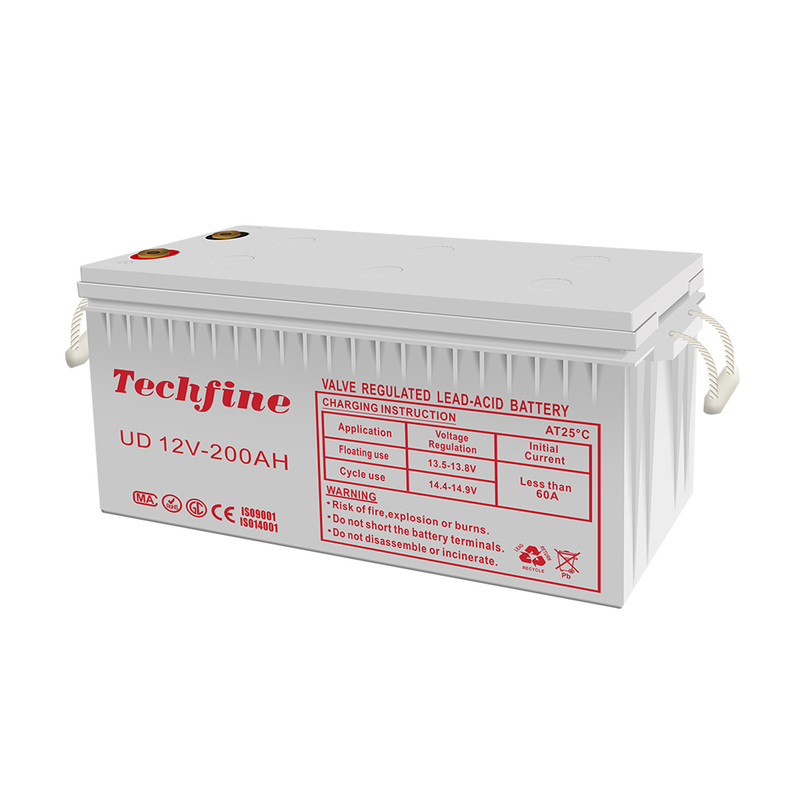

Techfine solar battery 12V 200AH Lead Acid Battery off grid

Tips:
Samples can be sent for testing;
Minimum order quantity (MOQ) ≥5 Pieces;

Availability:
Techfine solar battery 12V 200AH Lead Acid Battery off grid
Techfine solar battery 12V 200AH Lead Acid Battery off grid
Techfine solar battery 12V 200AH Lead Acid Battery off grid
Techfine solar battery 12V 200AH Lead Acid Battery off grid
Techfine solar battery 12V 200AH Lead Acid Battery off grid
Techfine solar battery 12V 200AH Lead Acid Battery off grid
  • UD200AH/12V

  • Techfine

  • UD200AH/12V


Applications

All purpose

Emergency light

Uninterruptable Power Supply (UPS)

Electric Power System (EPS)

Emergency backup power  supply

Railway signal Aircraft signal

Alarm and security system

Electronic apparatus and equipment

Communication power supply

DC power supply Auto controlsystem


Nominal   Voltage12V
Nominal   Capacity(20HR)200AH

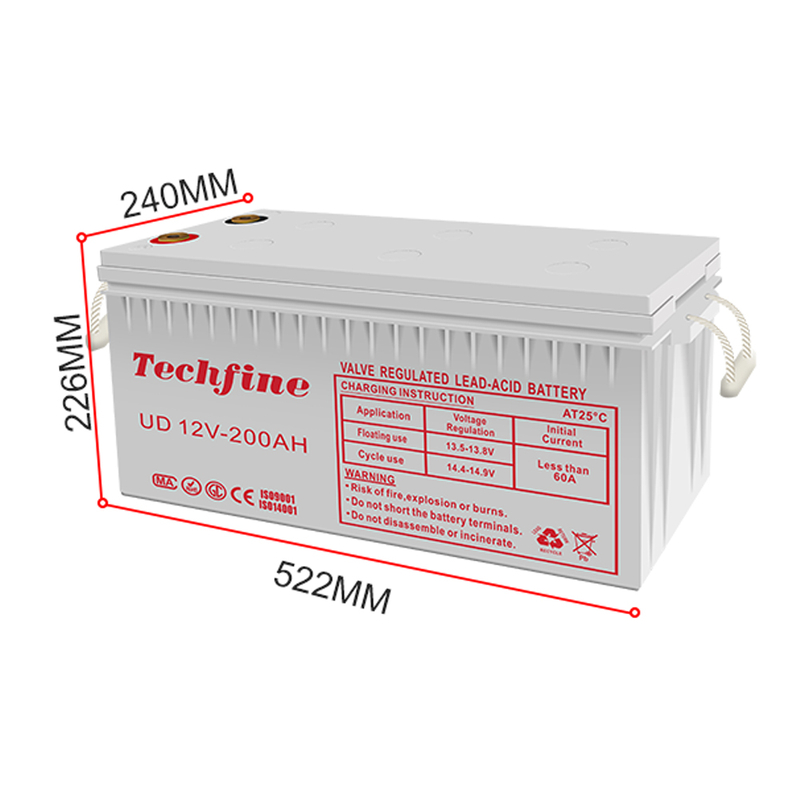

DimensionLength522±3mm   (20.55 inches)
Width240±2mm   (9.45 inches)
Container Height221±2mm   (8.70inches)
Total Height (with Terminal)226±2mm   (8.90inches)
Approx WeightApprox 54.8 kg(120.81 lbs)

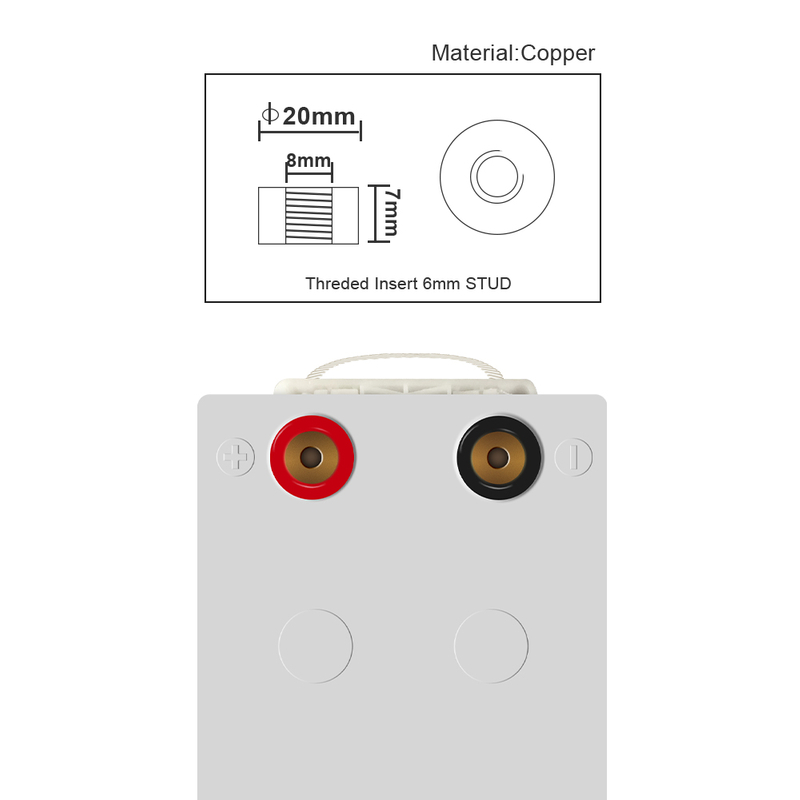

TerminalT11
Container   MaterialABS
Rated   Capacity208 AH/10.4A(20hr,1.80V/cell,25°C/77°F)
200.0 AH/20.0A(10hr,1.80V/cell,25°C/77°F)
172.0 AH/34.4A(5hr,1.75V/cell,25°C/77°F)
156.0 AH/52.0A(3hr,1.75V/cell,25°C/77°F)
122.0 AH/122.0A(1hr,1.60V/cell,25°C/77°F)
Max.   Discharge Current2000A (5s)
Internal   ResistanceApprox 2.7mΩ
Operating   Temp.RangeDischarge:-15~50℃ (5~122°F)
Charge: 0~40°C(32~104°F)
Storage:-15~40°C(5~104°F)
Nominal   Operating Temp. Range25 ±3°C(77±5°F)
Cycle   Uselnitial Charging Current   less than 60.0 A.Voltage
14.4V~15.0V   at 25℃(77°F)Temp.Coefficient -30mV/℃
StandbyUseNo limit on Initial   Charging Current Voltage
13.5V~13.8V   at 25℃(77F)Temp.Coefficient -20mV/℃
Capacity   affectedby Temperature40°C (104°F)103%
25℃(77°F)100%
0℃(32°F)86%
Self   DischargeTechfine   batteries may be stored for up to 6monthsat 25°C(77°F)and then a freshening   charge is required. Forhigher temperatures the time interval will be shorter.
