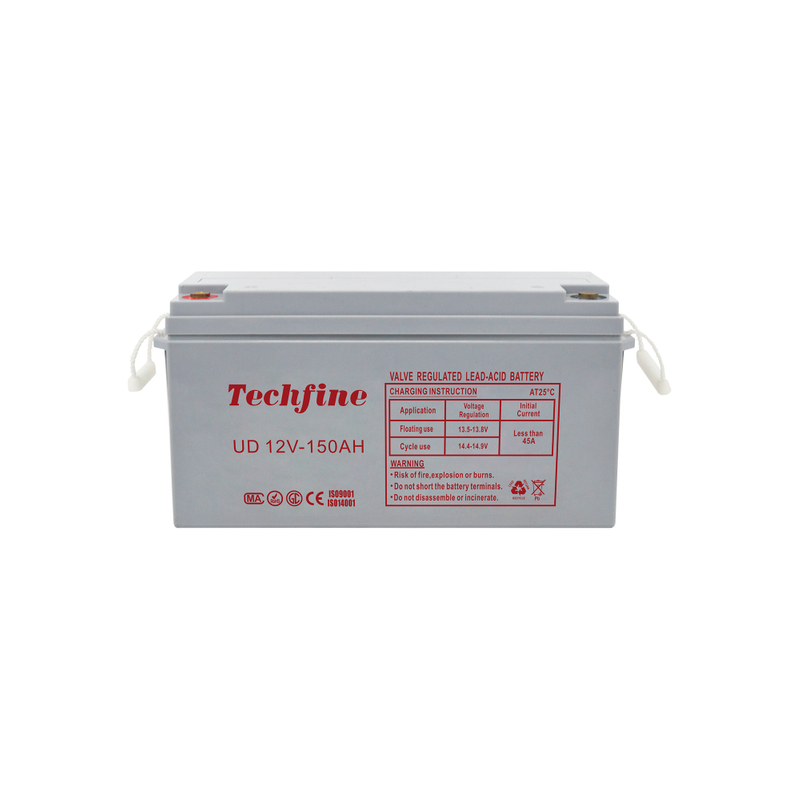

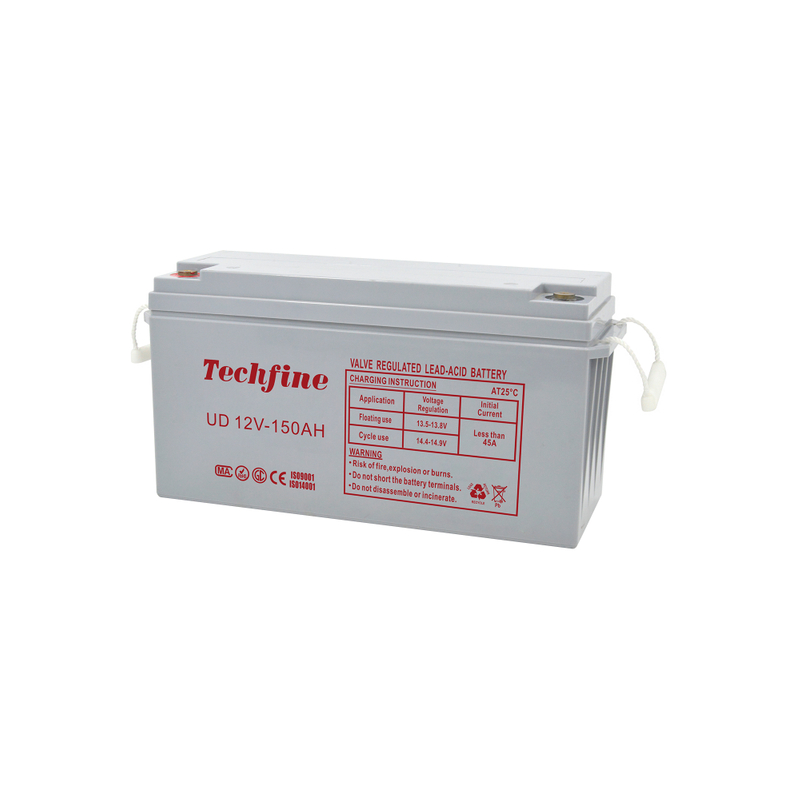

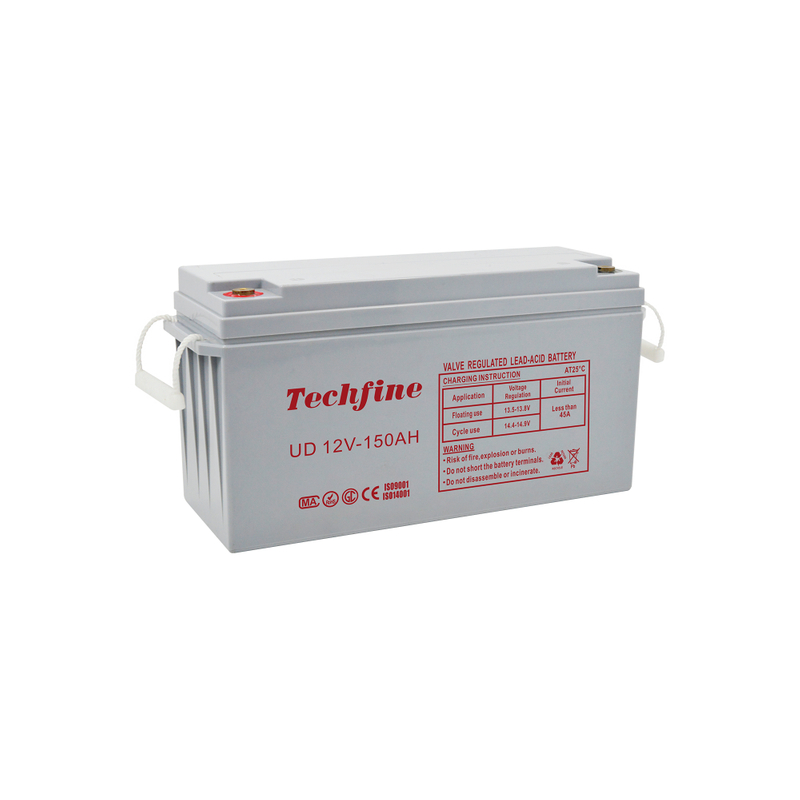

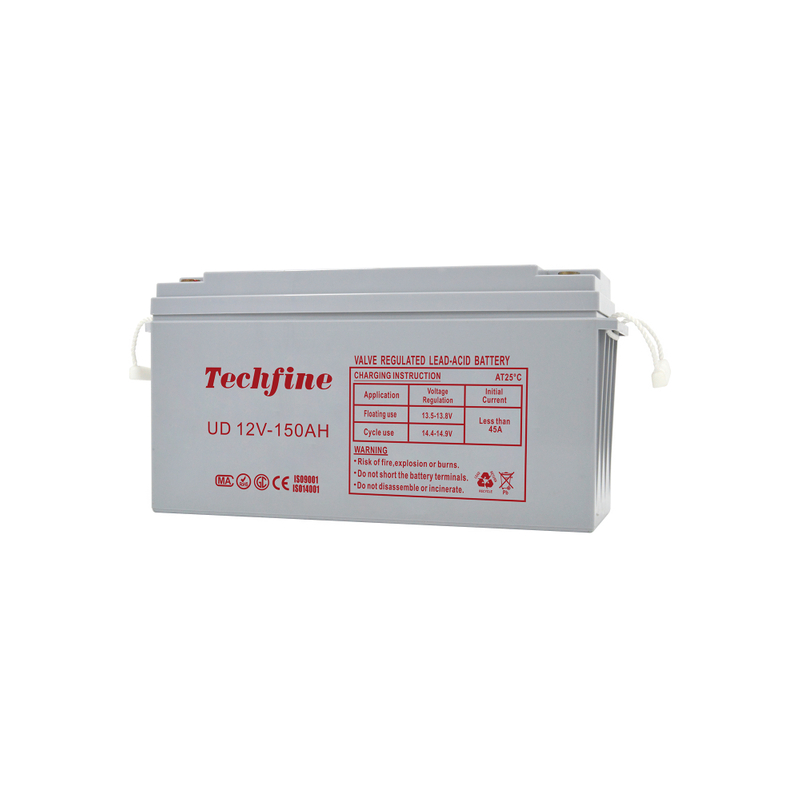

UD150AH/12V
Techfine
UD150AH/12V
|
| |
Product Description
UD series is the general purpose battery with 8 years design life for float service.With up-dated AGM valve regulated technology and high purity raw materials,the UD series battery has reliable standby service life. It is suitable for UPS/EPS/inverter,emergecy light and security systems applications.
1.UPS/EPS
2.Emergency light
3.Sec urity Systems
4 .Electric Equipment
5.DC Power Supply
6.Tele-communication
Product Parameter
| Nominal Voltage | 12V | |
| Nominal Capacity(20HR) | 150AH | |
| Dimension | Length | 484±3mm (19.06 inches) |
| Width | 170±2mm (6.69 inches) | |
| Container Height | 242±2mm (9.53inches) | |
| Total Height (with Terminal) | 247±2mm (9.72inches) | |
| Approx Weight | Approx 41 kg(90.39lbs) | |
| Terminal | T11 | |
| Container Material | ABS | |
| Rated Capacity | 156.0 AH/7.80A | (20hr,1.80V/cell,25°C/77°F) |
| 150.0 AH/15.0A | (10hr,1.80V/cell,25°C/77°F) | |
| 129.0 AH/25.8A | (5hr,1.75V/cell,25°C/77°F) | |
| 117.0 AH/39.0A | (3hr,1.75V/cell,25°C/77°F) | |
| 91.5 AH/91.5A | (1hr,1.60V/cell,25°C/77°F) | |
| Max. Discharge Current | 1500A (5s) | |
| Internal Resistance | Approx 3.5mΩ | |
| Operating Temp.Range | Discharge:-15~50℃ (5~122°F) | |
| Charge: 0~40°C(32~104°F) | ||
| Storage:-15~40°C(5~104°F) | ||
| Nominal Operating Temp. Range | 25 ±3°C(77±5°F) | |
| Cycle Use | lnitial Charging Current less than 45.0 A.Voltage | |
| 14.4V~15.0V at 25℃(77°F)Temp.Coefficient -30mV/℃ | ||
| StandbyUse | No limit on Initial Charging Current Voltage | |
| 13.5V~13.8V at 25℃(77F)Temp.Coefficient -20mV/℃ | ||
| Capacity affectedby Temperature | 40°C （104°F） | 103% |
| 25℃（77°F） | 100% | |
| 0℃（32°F） | 86% | |
| Self Discharge | Techfine batteries may be stored for up to 6monthsat 25°C(77°F)and then a freshening charge is required. Forhigher temperatures the time interval will be shorter. | |
