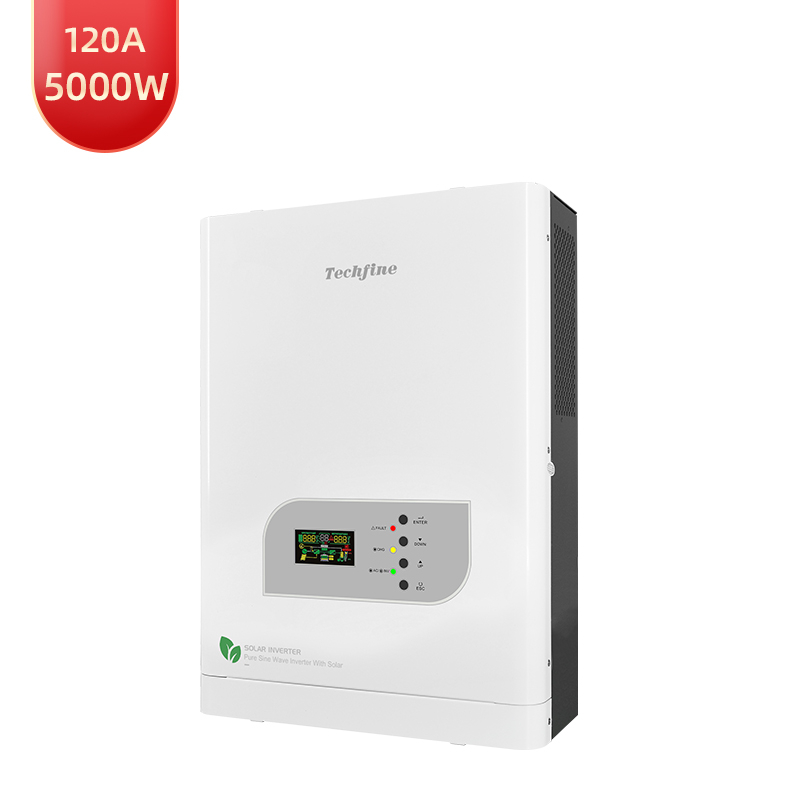

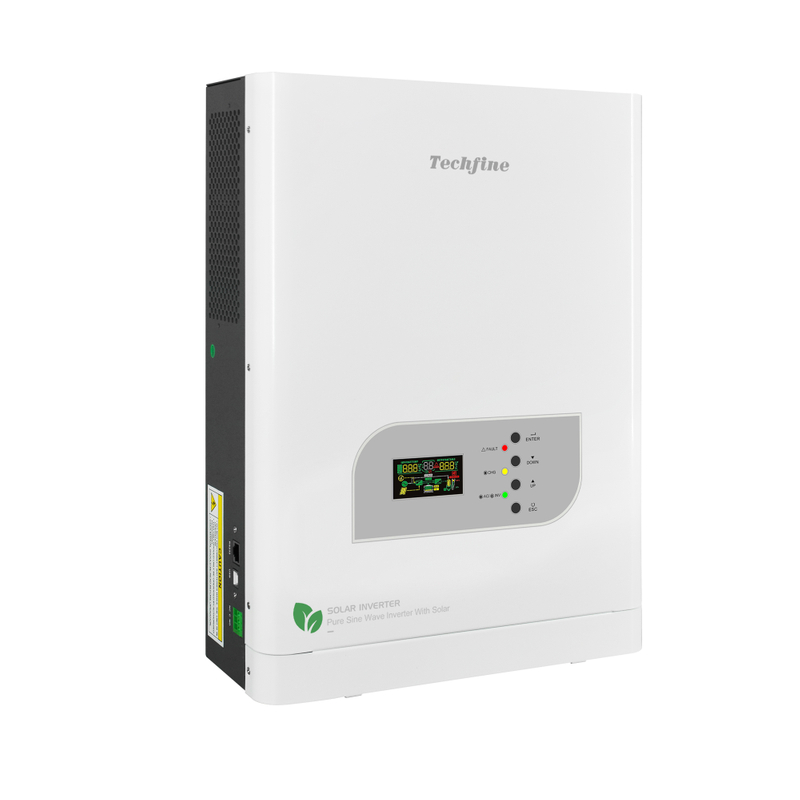

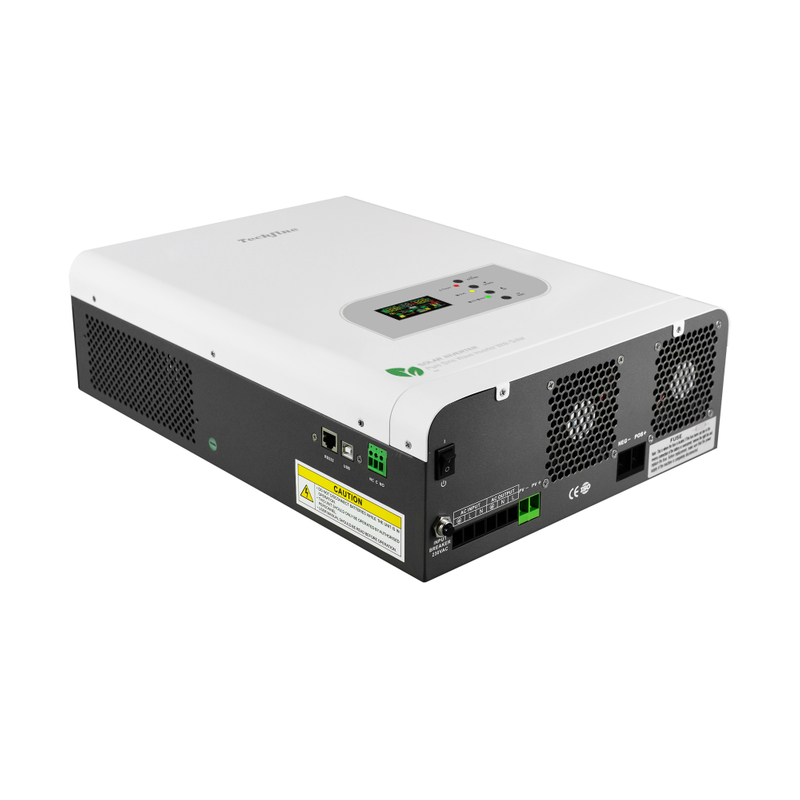

Low Frequency off grid 6.3KVA 5KW 5000W 48VDC 220VAC 4000W 5KVA built in 120A MPPT Solar inverter

Tips:
Samples can be sent for testing;
Minimum order quantity (MOQ) ≥5 Pieces;
Feature:
Pure sine wave output
Can support WIFI/ GPRS
MPPT efficiency max 98%
Optional built-in MPPT/PWM30-60A controller
DC start & automatic self-diagnostic fuction
Automatically send signal to start generator
High efficiency design for optimized batteryperformance
Selectable charging current based on applications
AC start-up voltage auto restart voltage
lead acid battery/Lithium battery
Availability:
  • VS

  • Techfine

  • VS6348AM


Features:
Pure sine ware output
DC Start & Automatic Self-Diagnostic Function
Strong Load ability with inbuilt transformer
120A MPPT solar charge controller  Efficiency max 98%
PV Max. Power 6400W
High Efficiency Design & ”Power Saving Mode”  to Conserve Energy Auto restart when Ac is recovering
Smart battery charger design for optimized battery performance Selectable charging current based on applications
AC input/DC input/Solar input optional priority
Auto Restart Voltage

Capacity(VA) V6348VA V8048VA V10000VA V12500VA
Rated Power 5000W 6400W 8000W 10000W
Voltage(DC) 48V
Nominal Voltage 220VAC
Voltage Range 154-265VAC ;185-264VAC ( selectable)
Frequency 50-60HZ Auto sensing
Voltage 220VAC
Frequency 50/60HZ
Waveform Pure Sine Wave
Transfer Time (AC
to DC)
<8ms
Transfer Time (DC to AC) <8ms
Output Voltage
Regulation
土10%
Bypass Mode Yes
Saver Mode Yes
Efficiency >98%
Input Protection Circuit Breaker
Output Protection Circuit Breaker
Battery Type LITHIUM/VRLA / GEL /GEL DEEP CYCLE
Charging Current 36A 40A 50A 60A
Low Level
disconnect
40V -42V
Maximum PV array power 48V: MPPT 150VDC
Maximum solar
charge current
120A
Maximum solar
PV Watt
120A : 6400W
LCD indicator AC input voltage/input frequency, PV voltage, PV current , Output Voltage/Frequency, Battery voltage, Load current etc.
LED indicator status AC Line In:Green/Inverter:Red/Charging  :Yellow/Alarm :Red
LOW battery alarm Audible alarm-5 seconds beeping
Overload alarm Audible alarm- continuous beeping
Fault Audible alarm- continuous beeping
Temperature 0-60℃
Humidity —10℃~90℃ Non condensing
Accoustic Noise(db) <55dB
Dimension 565*400*185mm


43    41


38    39


40    42
