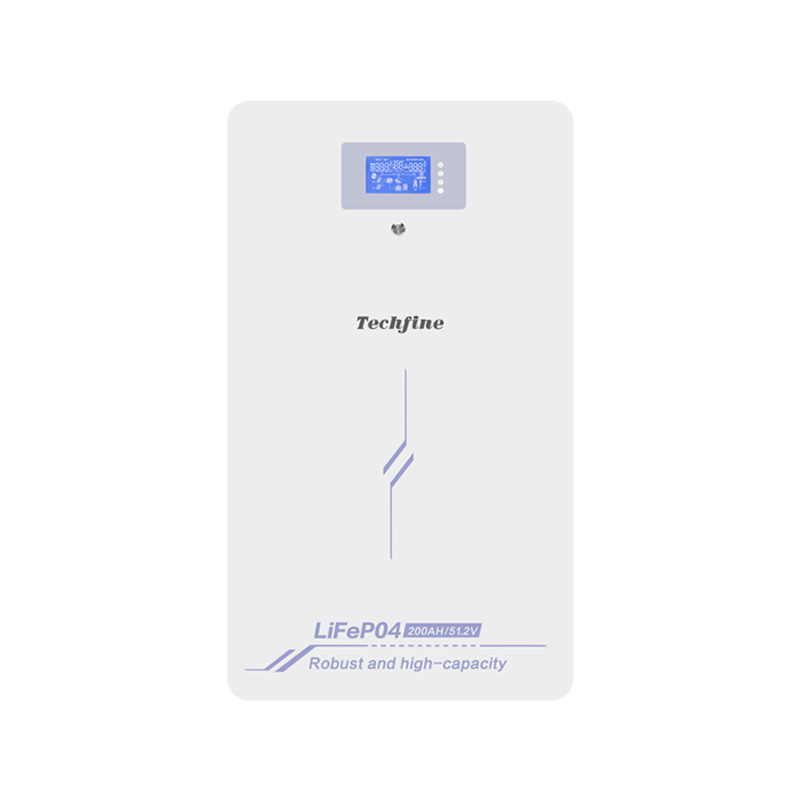

Lithium Battery 51.2v 200ah 48 Volt Lithium Battery Factory

Lithium Battery 51.2v 200ah 48 Volt Lithium Battery Factory

Name: Lithium Battery 51.2v 200ah 48 Volt Lithium Battery Factory
Brand: Techfine
Rating: 5.0 (61 reviews)

Tips:
Minimum order quantity (MOQ) ≥100 Pieces;
Samples can be sent for testing;

Feature:
1. Lithium iron phosphate power battery
2. Higher energy density, smaller size, suitable for household use
3. Support connection in parallel mode for expansion
4. Photovoltaic system: This battery pack is specially designed for household photovoltaic systems.
5. Battery management system (BMS): The built-in BMS of the battery pack monitors its operation to prevent the battery from operating beyond the design limit.
6. Expandability: This battery pack can easily expand the battery pack.

Model:
LC200512
Brand:
Techfine


Availability:

Wall-Mounted Lithium Iron Phosphate Battery

51.2 Volt Lithium Battery 100AH-300AH | LC Series

Long Cycle Life | Flexible Expansion | Compatible with Mainstream Inverters

Techfinesolar-Wall-Mount-Lithium-Iron-Phosphate-Battery-LifePo4-Battery-LC-Series-51 (1)

51.2 Volt Lithium Battery 100AH-300AH | LC Series Product Core Features

Techfine Mobile Lithium Battery Lifepo4 Battery LC Series 51.2V 100Ah 200Ah 300Ah-Product Core Features

Flexible Expansion

Supports Parallel Use of Up to 15 Units

Supports multiple products (new and old batteries) for parallel use

Customizable lead-acid battery mixed parallel use

Battery Parallel Usage Diagram

Techfinesolar-Wall-Mount-Lithium-Iron-Phosphate-Battery-LifePo4-Battery-LC-Series-51 (3)

Lithium Iron Phosphate Battery

Innate High Energy

Battery pack capacity and cycle calculation can achieve ≥5000 charge-discharge cycles.

Flame-retardant materials provide higher thermal resistance, ensuring safety and high discharge rate, extending battery life.

95% depth of discharge, low power consumption, and multiple sleep and wake-up modes.

Comparison: Lithium Iron Phosphate Battery vs. Ordinary Factory Battery

Lithium Iron Phosphate Battery: ≥5000 cycles

Ordinary Factory Battery: 3000 cycles

Techfine Mobile Lithium Battery Lifepo4 Battery LC Series 51.2V 100Ah 200Ah 300Ah-Lithium lron Phosphate BatteryInnate High Energy

Multi-Level Safety Protection

BMS Intelligent Management System

Intelligent battery management system, the core of the battery, capable of real-time intelligent monitoring of voltage, current, temperature, etc., ensuring electrical safety.

BMS Intelligent Lithium Battery Management System

More accurate data | Comprehensive protection

Techfinesolar-Wall-Mount-Lithium-Iron-Phosphate-Battery-LifePo4-Battery-LC-Series-51 (5)

Home Backup Power Supply

Ensure Every Critical Moment

Even in power outages or areas without electricity, solar power generation can be used off-grid, independent of external power grids, achieving self-sufficiency without fear of power outages.

Wide Application Areas

More Uses Than You Imagine

Techfinesolar-Wall-Mount-Lithium-Iron-Phosphate-Battery-LifePo4-Battery-LC-Series-51 (6)

Techfinesolar-Wall-Mount-Lithium-Iron-Phosphate-Battery-LifePo4-Battery-LC-Series-51 (7)

Extreme Temperature Resistance

Unaffected by Extreme Weather

Operates normally in temperatures ranging from -10°C to +50°CIntegrated automatic heating function ensures optimal performance at low temperatures below 0℃

Techfinesolar-Wall-Mount-Lithium-Iron-Phosphate-Battery-LifePo4-Battery-LC-Series-51 (8)

Techfinesolar-Wall-Mount-Lithium-Iron-Phosphate-Battery-LifePo4-Battery-LC-Series-51 (9)

Model	LC200 512
Battery	51.2V 100ah lithium battery
Available Capacity	10496WH
Chemical formula of battery	LiFePO4
Maximum continuous discharge current	200A
Rated voltage	51.2V\|DC
Voltage range	43.2V-58.4VDC
Maximum output power	10240W
Maximum charging voltage	58.4V±0.2VDC
Recommended charging voltage	57.6V±0.2VDC
Recommended charging current	115A
Low power consumption	Working self-consumption ≤50mA, low power mode ≤200uA
Charging current limiting function	20A
Charge and discharge overcurrent long delay protection	BMS100:＞105A alarm, ＞110A/1S protection BMS200:＞205A alarm,＞210A/1S protection
Discharge overcurrent instantaneous protection	BMS100:≥150A/100ms BMS200:≥250A/100ms
Overvoltage protection released	Release when discharge current＞1A (51.2V machine: 59.2V/25.6V machine: 29.6V overvoltage protection)
Over discharge protection released	Connect to charger to activate (51.2V machine: 43.2V/25.6V machine: 21.6V over-discharge protection)
Charging overcurrent protection released	Discharge current＞1A release
Over discharge current protection released	Charging current＞1A release
Short circuit protection function	Yes, automatically released when charging
MOS high temperature protection	MOS tube over temperature protection
Battery temperature protection	The battery cell is protected against both low temperature (-20°C) and high temperature (70°C)
Ambient temperature alarm	Low temperature protection -20℃, high temperature protection 75℃
Battery failure protection	Single cell voltage difference＞1V
Display	LCD Display
Battery Depth of Discharge (DOD)	≥95%
Modules connection	1-15
communication	RS232, RS485, CAN as standard
Protection level	IP21
Cycle times (standard charge and discharge at room temperature)	≥4000 times
Operating temperature range	Discharge: -10℃ - +50℃; Charge: +0℃ - +60℃
Storage temperature	>1 month, 0～35℃; ≤1 month, -20～45℃
Terminal Type	M8
Physical protection switch	Air switch protection
Installation	Wall-mounted (mobile optional)
Depth × width × height (mm)	230395650
Weight (net weight, for reference) KG	96
