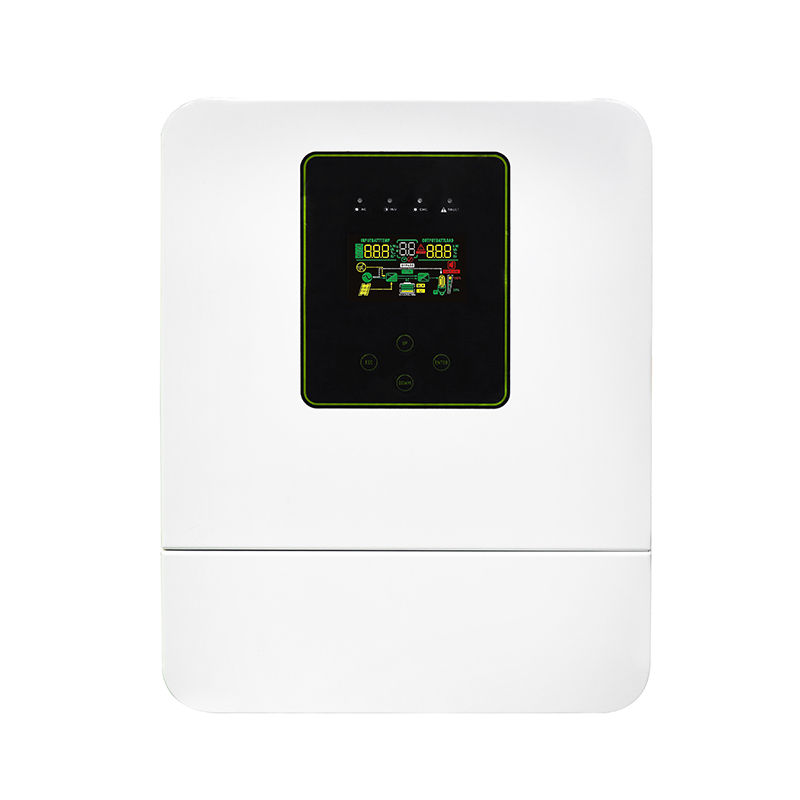

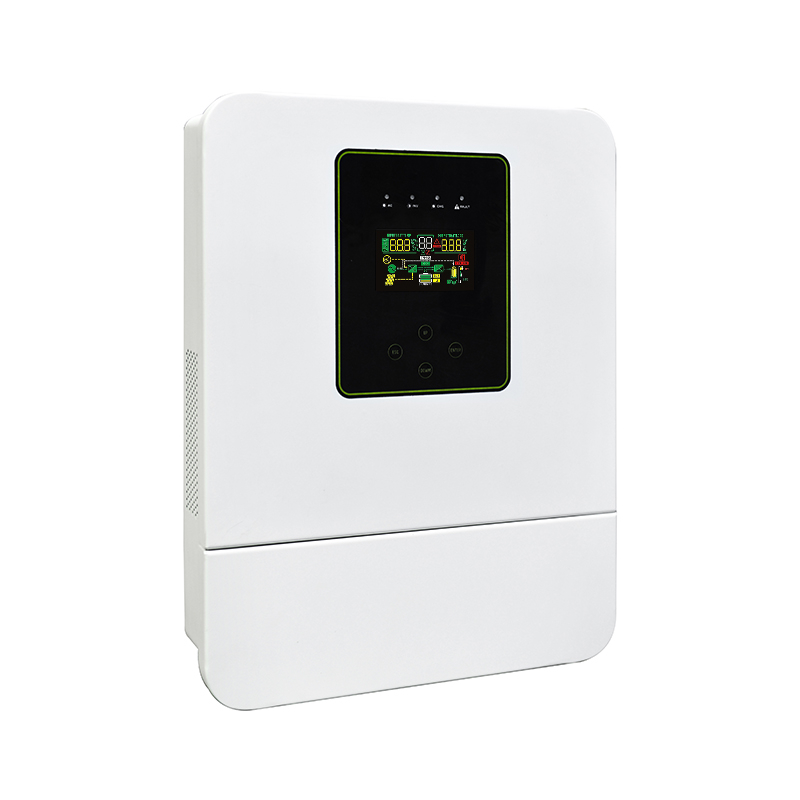

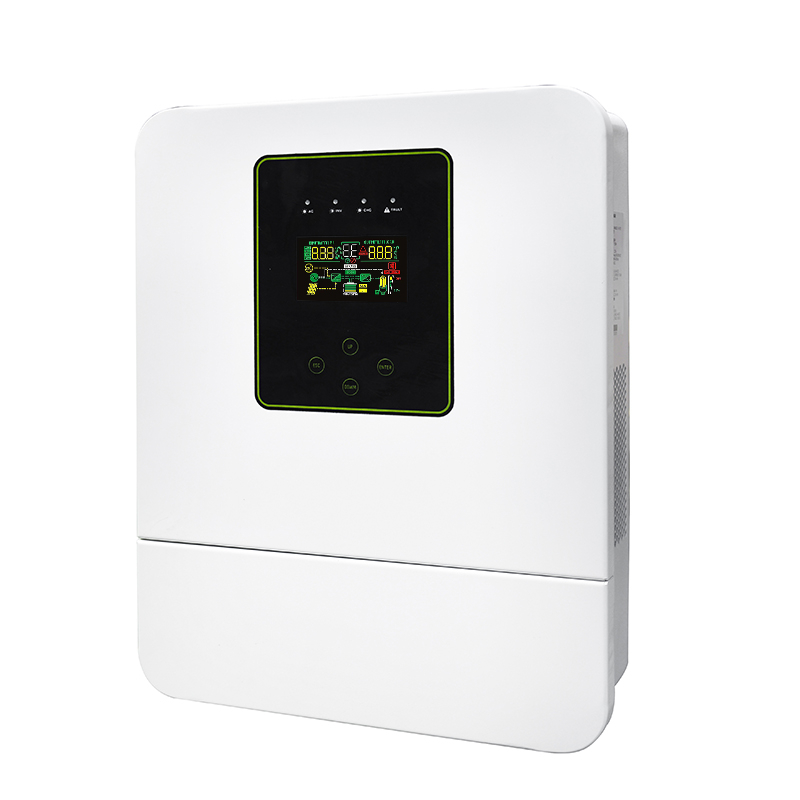

Ip54 Rated 4kw Hybrid Solar Inverter Mppt Solar Hybrid Inverter

Tips:
Samples can be sent for testing;
Minimum order quantity (MOQ) ≥100 Pieces;
Feature:
Wall-mounted structure design
Sine wave can be loaded with high power 11000W, output power factor PF = 1

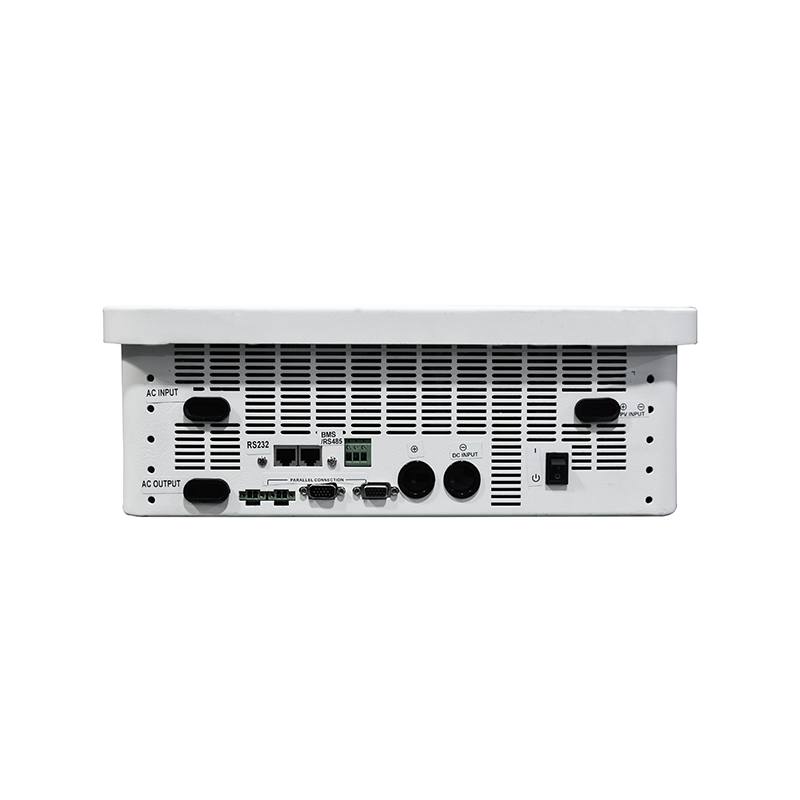

With RS485 and RS232 communication interface
Compatible with external WIFI
Dual PV inputs, black and white screen with keys to display dual PV channel parameters
Charge conversion efficiency greater than 0.9
Standard with 11000W high voltage MPPT controller
Battery charging up to 160A
Compatible with lithium-ion batteries
Support inverter work without battery

Availability:



Inquiry

Model:
GZ4024SMH
Brand:
Techfine

4kW Hybrid Solar Inverter – IP54 Rated 24V MPPT Solar Hybrid Power Solution

Enhance your solar energy system with our 4kW Hybrid Solar Inverter , a high-performance and intelligent MPPT Solar Hybrid Inverter designed for flexible operation in both on-grid and off-grid environments , with off-grid as the default setting. This 24 Volt MPPT Solar Inverter delivers efficient power conversion and smart energy management, ideal for residential and small-scale commercial applications.

Equipped with an advanced MPPT charge controller , this 4 Kilowatt Solar Inverter ensures maximum solar utilization and allows users to select between two priority modes: solar energy directed to battery charging first or directly to load powering .

Key features:

IP54 rated enclosure for superior dust and water resistance
Real-time date and time display , fully adjustable
Programmable output schedules based on user energy needs
Energy generation statistics available by day, month, and year
Touchscreen interface with easy-to-use settings
Dual AC output support for improved power flexibility
PCB potting technology enhances waterproofing, moisture resistance, and dust protection

This 4kW Hybrid Solar Inverter offers high durability, efficiency, and smart control — making it an excellent solution for reliable off-grid and hybrid solar systems.

IP54 GZ Series

Factory Model			4024SMH
Input	Input format		L+N+PE
	Rated input voltage		220/230/240VAC
	Voltage range		90-280VAC±3V (normal mode) 170-280VAC±3V (UPS mode)
	Frequency range		50Hz/60Hz (adaptive)
Output	Output rated power	Battery Inverter	4000W
		Photovoltaic Inverter	4500W
	Output voltage		220/230/240VAC±5%
	Output frequency		50/60Hz±0.1%
	Waveform		Pure sine wave
	Switching time (adjustable)		Computer equipment 10ms, home appliances 20ms
	Peak Power		8000VA
	Overload capacity		Battery mode: 21s@105%~150% Load;11s@150%~200% Load;400ms@>200% Load
Grid-connected operation	Output voltage		220/230/240VAC
	Feed-in grid voltage range		170-265VAC
	Feed-in grid frequency range		49-51±1Hz/59-61±1Hz
	Nominal output current		15.7A
	Power factor range		>0.99
	Maximum conversion efficiency (DC/AC)		98%
Battery	Rated voltage		24Vdc
	Constant voltage charging voltage (adjustable)		28.2Vdc
	Float charge voltage (adjustable)		27Vdc
Charger	PV charging method		MPPT
	PV maximum input power		6500W
	MPPT input voltage range		60-500Vdc
	Optimal Vmp working range		300~400Vdc
	Maximum PV input voltage		500Vdc
	Maximum PV input current		27A
	Maximum PV charging current		120A
	Maximum AC charging current		100A
	Maximum charging current		120A
Show	LCD Interface		Can display operation mode/load/input/output, etc.
Interface	RS232		Baud rate 2400
	Expansion slot communication interface		Lithium battery BMS communication card, WIFI card, dry contact card, etc.
	Parallel interface		No parallel function
Environmental parameters	Operating temperature		-10~50℃
	Operating environment humidity		20%~95% (no condensation)
	Storage temperature		-15~60℃
	Altitude		The altitude should not exceed 1000m, and the rating will be derated above 1000m, the maximum is 4000m, refer to IEC62040
	noise		≤50db
Physical parameters	Depth × width × height (mm)
	Weight (for reference) KG		TBD
Standards and certifications			EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
Note: (1) The real-time updated data of weight and size can be found in the [TQF Production Machine Packaging Dimension and Weight Record Table] file by material code. The installation dimensions shall be subject to the instruction manual.
