Full-Featured & High-Power

Crafted with Ingenious R&D, Precision Manufacturing, and Professional Services.

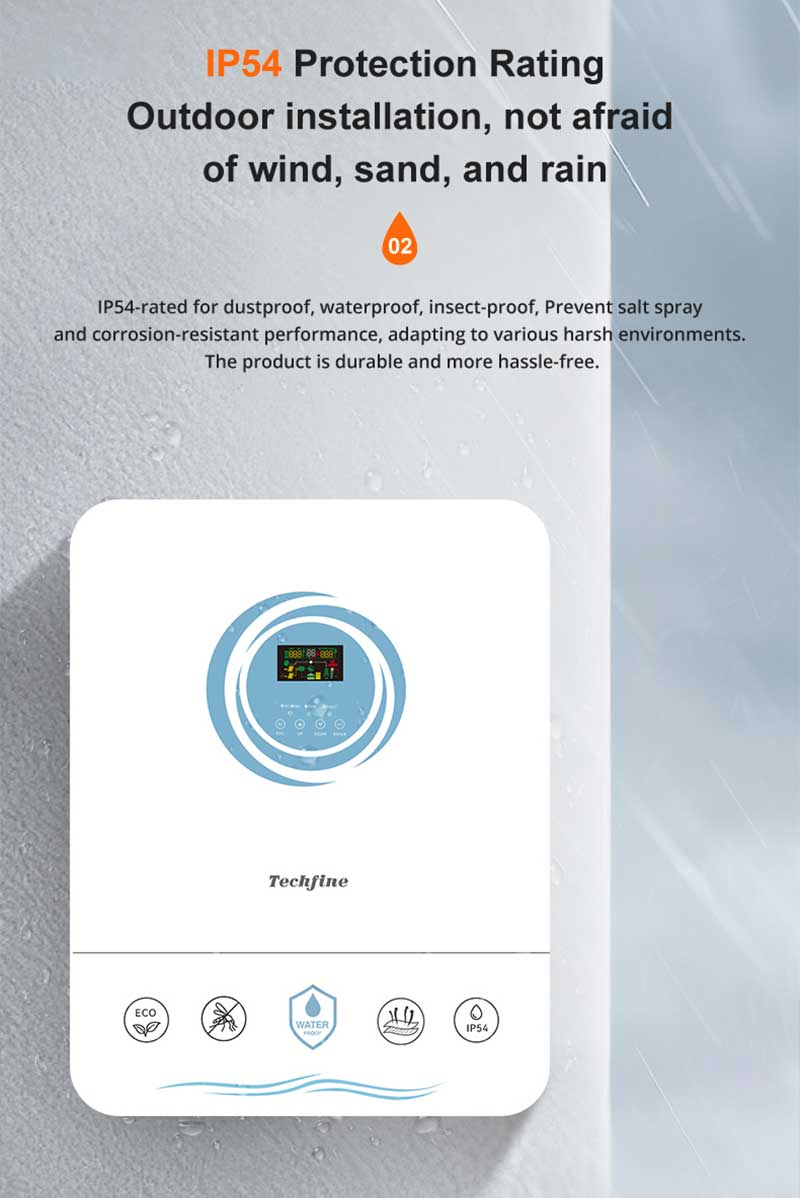

IP54 Protection Rating

IP54-rated for dustproof, waterproof, insect-proof, Prevent salt sprayand corrosion-resistant performance, adapting to various harsh environments.

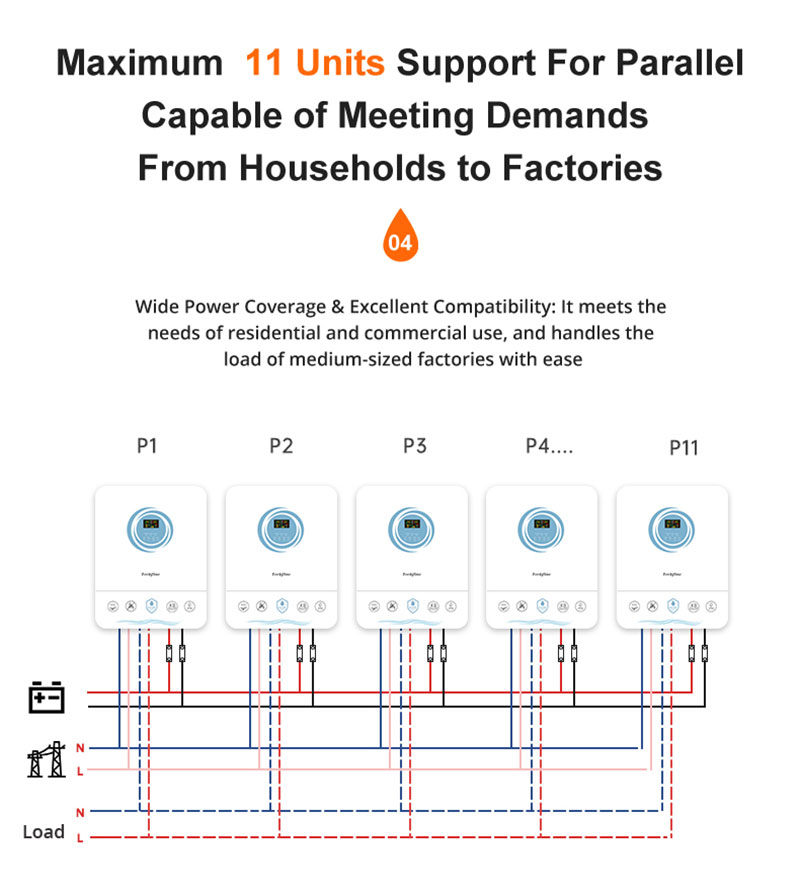

Up to 11 Units Parallel

Maximum 11 Units Support For Parallel Capable of Meeting Demands From Households to Factories

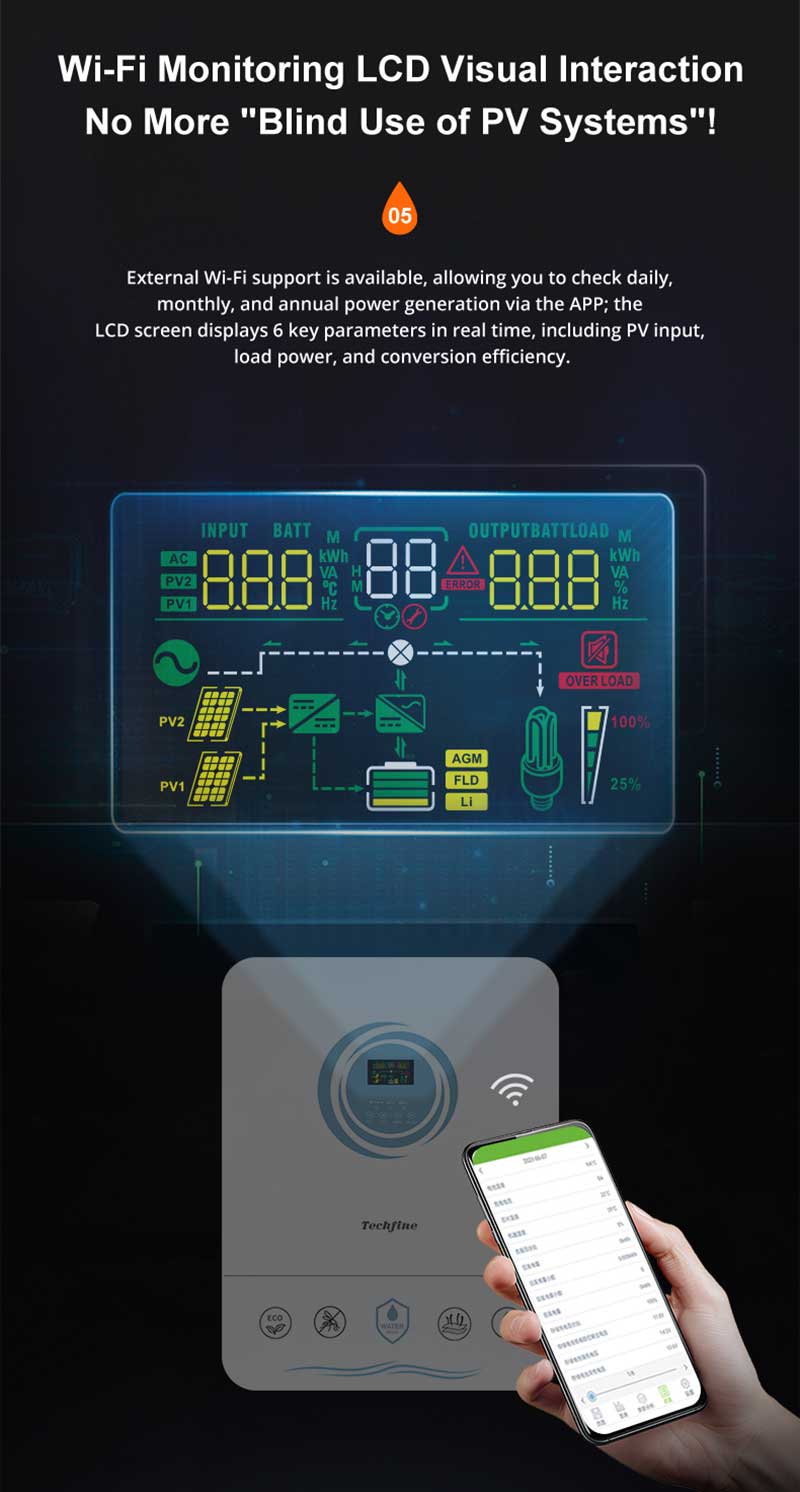

Wifi Monitoring

External Wi-Fi support is available, allowing you to check daily, monthly, and annual power generation via the APP; the LCD screen displays 6 key parameters in real time, including PV input, load power, and conversion efficiency.

Certificates are Complete

CE Certification + 3-Year Warranty "Worry-Free Selection" for Cross-Border Export

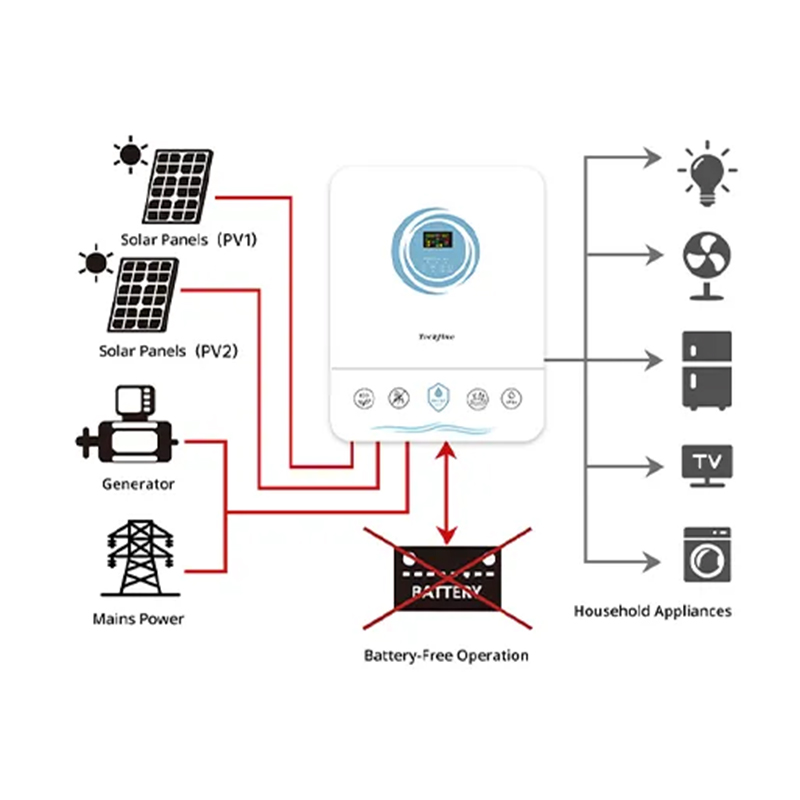

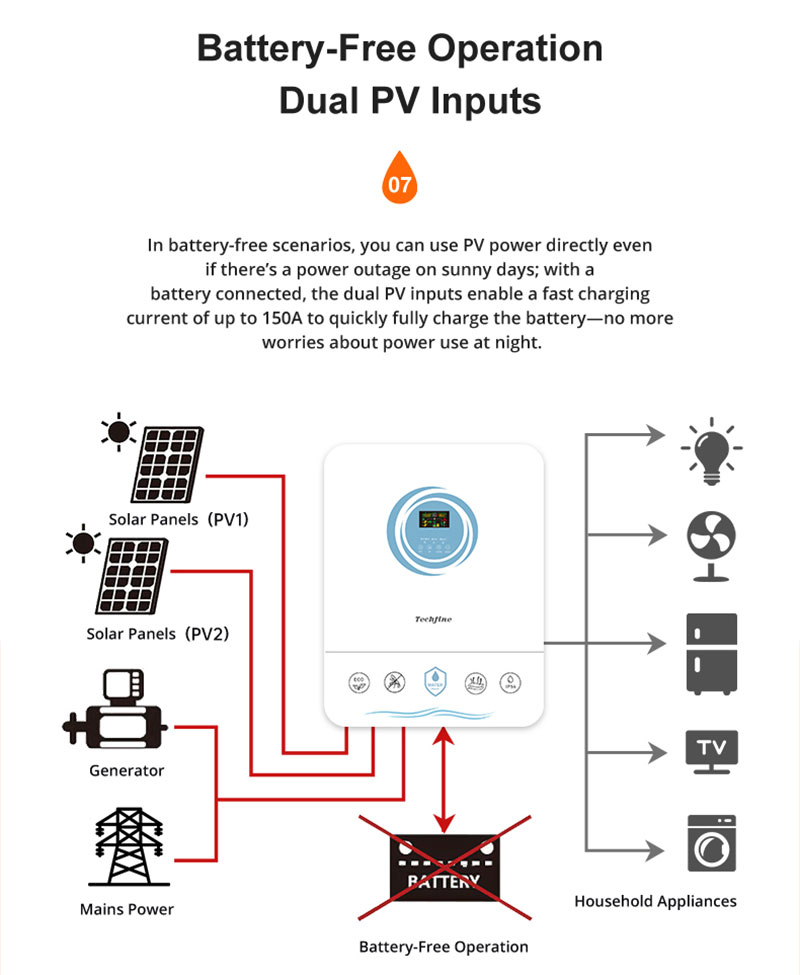

Battery-Free Operation Dual PV Inputs

In battery-free scenarios, you can use PV power directly even if there's a power outage on sunny days; with a battery connected, the dual PV inputs enable a fast charging current of up to 150A to quickly fully charge the battery- -no more worries about power use at night.

Model	TD4024SMH	TD6248SMH	TD11048SMH
Input Formation	L+N+PE
AC Input	220/230/240VAC
Input Voltage Range	90-280VAC±3V(Normal Mode) 170-280VAC±3V (UPS Mode)
Frequency	50/60Hz(Adaptive)
Rated Power	4000W	6200W	11000W
Dual Output Power	4500W	6500W	15000W
Transfer Time(Adjustable)	10ms for Computer Equipment, 20ms for Household Equipment
AC Output
Output Voltage(AC)	220/230/240VAC±5%
Output Frequency	50/60Hz±0.1%
Output Wave	Pure Sine Wave
Peak Power	8000VA	12400VA	22000VA
Overload Ability	Battery Mode: 11s@105%~150% Load; 2s@150%~200% Load; 400ms@>200% Load
Output Voltage	220/230/240VAC
Output Current	17.4A	26.9A	47.8A
Power Factor Range	>0.99
Grid / AC Charger
Grid Voltage Range	170-265VAC
Grid Frequency Range	49-51±1Hz/59-61±1Hz
Max efficiency (DC/AC)	>98%
PV Input
Max PV Input Power	6500W	8500W	2*7500W
PV Input Voltage Range	60~500VDC	60~500VDC	90~500VDC
MAX PV Input Voltage	500VDC	500VDC	500VDC
MAX PV Input Current	27A	27A	27A/27A
Charging (AC + PV)
MAX PV Charge Current	120A	120A	150A
MAX AC Charge Current	100A	100A	150A
MAX Charge Current	120A	120A	150A
Rated Voltage	24VDC	48VDC	48VDC
Constant Charging Voltage	28.2VDC	56.4Vdc	56.4Vdc
Float Charging Voltage	27VDC	54VDC	54VDC
PV Charging Method	MPPT	MPPT	2*MPPT
Communication
LCD	Can display operating mode/load/input/output
RS232	5PIN/Pitch2.54mm,Baud Rate 2400
Expansion Slot Communication Interface	Lithium Battery BMS Communication Card,WIFI 2×5PIN/Pitch2.54mm
Parallel Interface	Not Support Parallel	Support Parallel
Environmental
Operating Temperature	0°C~40°C
Storage Temperature	-15°C~60°C
Ork Altitude	No more than 1000m, If 1000m<,Rate power will lower, MAX 4000m, Refer
Operating Environment Humidity	20%~95% Non Condensing
Noise	<50dB
Protection level	IP54

TD-series brochure 25.pdf

Rated Power:	4000W 24V 6000W 48V 11000W 48V
