LR100512
Techfine
High-Capacity & Durable Metal-Enclosed LiFePO₂ Battery

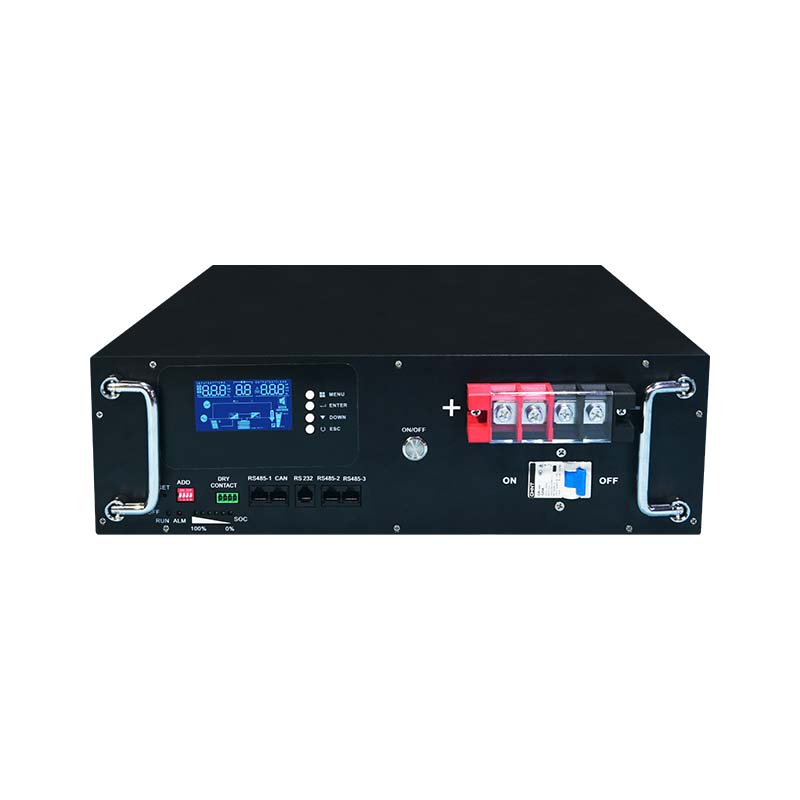

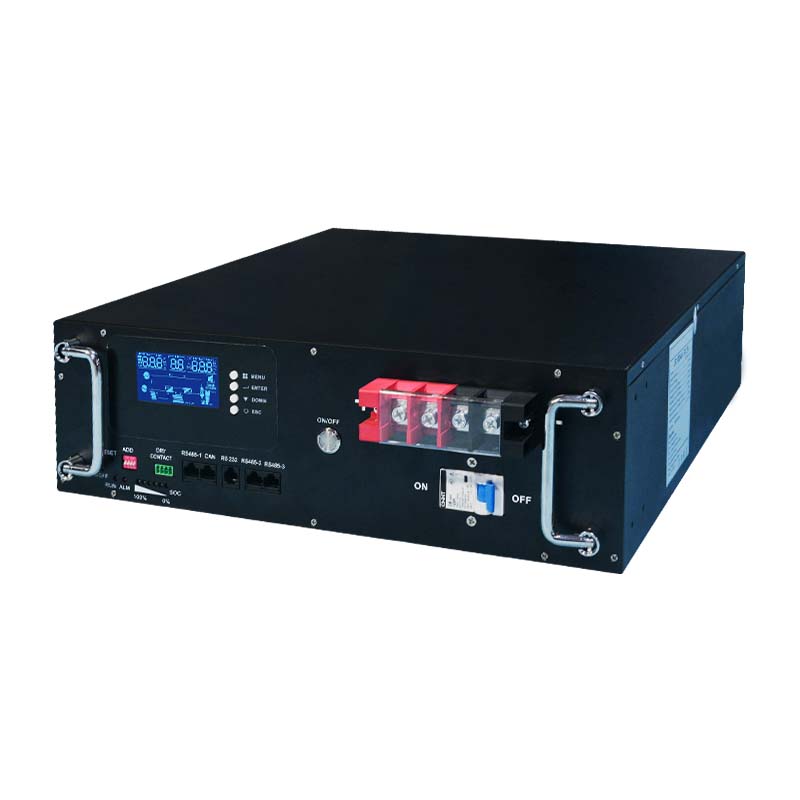

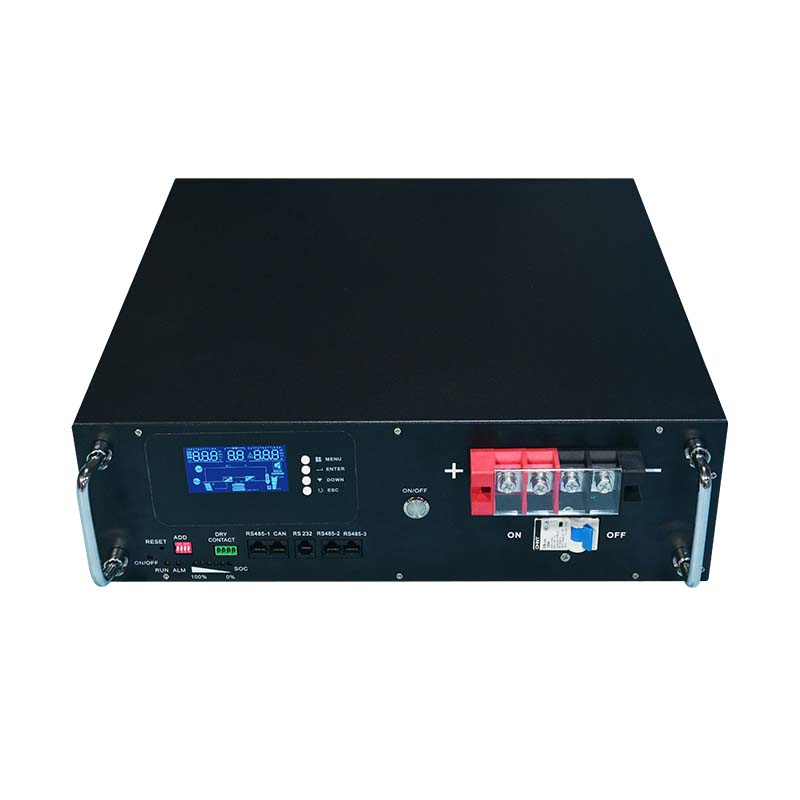

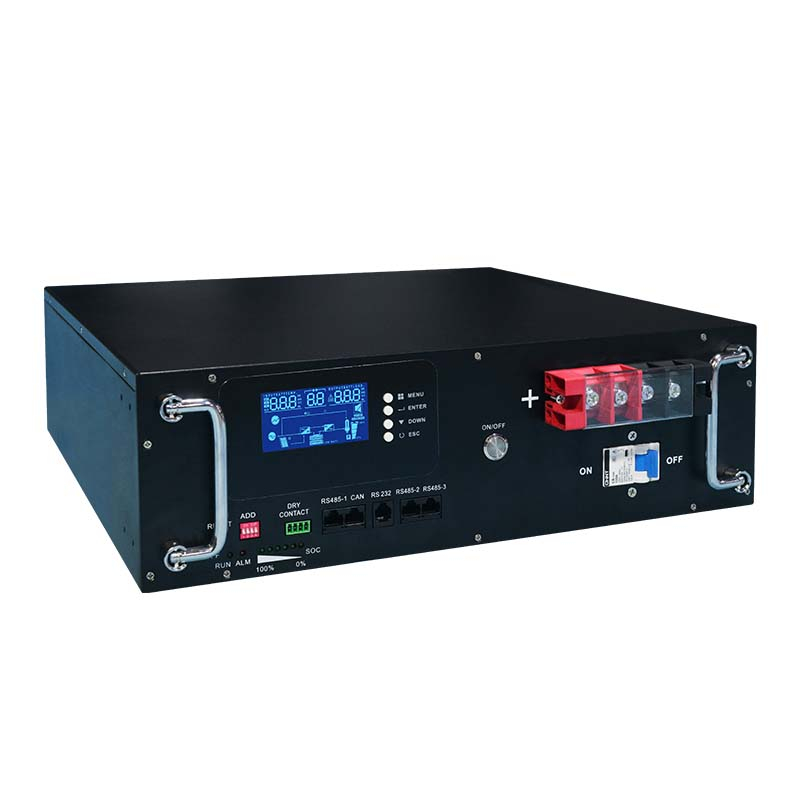

Designed with a robust metal shell and built using high-strength lithium iron phosphate (LiFePO₂) cells, this 48V rack mount lithium battery 100Ah offers large capacity and long-lasting performance.
Advanced SOC & SOH Estimation Functionality
Equipped with intelligent algorithms to accurately estimate State of Charge (SOC) and State of Health (SOH), ensuring optimal battery management and predictive maintenance.
LED Status Indication & Real-Time SOC Display
Integrated LED indicators provide visual feedback on battery status, including real-time display of remaining charge (SOC).
Low Power Consumption with Multi-Mode Sleep/Wake Functions
Energy-efficient design with multiple sleep and wake-up modes to minimize idle power consumption and extend operational life.
Adjustable Over-Current Protection & Short-Circuit Protection with Buzzer Alarm
Offers customizable over-current protection and automatic short-circuit detection, along with an audible buzzer alarm for fault conditions.
High Measurement Accuracy: Voltage ≤20mV, Current ≤2% of FS, Temperature ≤2°C
Ensures precise monitoring of voltage, current, and temperature for safe and stable system operation.
Multi-Protocol Communication Support: Parallel, RS485, CAN & Host Computer Monitoring
Enables seamless integration into energy systems via parallel communication, RS485 interface, CAN bus, and PC-based monitoring software.
Built-In Charge Equalization Function
Maintains balanced cell voltages during charging to improve efficiency and prolong overall battery lifespan.
Battery Capacity & Cycle Count Calculation Function
Automatically tracks and calculates battery capacity degradation and cycle count for better lifecycle management.
Customizable Inverter Communication Protocols Supported
Compatible with major inverter brands including Pylon, Growatt, SunYue, Pengcheng, Schneider, and ShuoRi, allowing flexible integration into various energy systems.
Off-grid solar energy storage
Backup power systems
Telecommunications infrastructure
Data centers and server rooms
Industrial automation and UPS systems
High-Capacity & Durable Metal-Enclosed LiFePO₂ Battery
Designed with a robust metal shell and built using high-strength lithium iron phosphate (LiFePO₂) cells, this 48V rack mount lithium battery 100Ah offers large capacity and long-lasting performance.
Advanced SOC & SOH Estimation Functionality
Equipped with intelligent algorithms to accurately estimate State of Charge (SOC) and State of Health (SOH), ensuring optimal battery management and predictive maintenance.
LED Status Indication & Real-Time SOC Display
Integrated LED indicators provide visual feedback on battery status, including real-time display of remaining charge (SOC).
Low Power Consumption with Multi-Mode Sleep/Wake Functions
Energy-efficient design with multiple sleep and wake-up modes to minimize idle power consumption and extend operational life.
Adjustable Over-Current Protection & Short-Circuit Protection with Buzzer Alarm
Offers customizable over-current protection and automatic short-circuit detection, along with an audible buzzer alarm for fault conditions.
High Measurement Accuracy: Voltage ≤20mV, Current ≤2% of FS, Temperature ≤2°C
Ensures precise monitoring of voltage, current, and temperature for safe and stable system operation.
Multi-Protocol Communication Support: Parallel, RS485, CAN & Host Computer Monitoring
Enables seamless integration into energy systems via parallel communication, RS485 interface, CAN bus, and PC-based monitoring software.
Built-In Charge Equalization Function
Maintains balanced cell voltages during charging to improve efficiency and prolong overall battery lifespan.
Battery Capacity & Cycle Count Calculation Function
Automatically tracks and calculates battery capacity degradation and cycle count for better lifecycle management.
Customizable Inverter Communication Protocols Supported
Compatible with major inverter brands including Pylon, Growatt, SunYue, Pengcheng, Schneider, and ShuoRi, allowing flexible integration into various energy systems.
Off-grid solar energy storage
Backup power systems
Telecommunications infrastructure
Data centers and server rooms
Industrial automation and UPS systems
Model | LR100 512 | |
Available Capacity | 5120WH | |
Chemical formula of battery | LiFePO4 | |
Maximum continuous discharge current | 100A | |
Rated voltage | 51.2V|DC | |
Voltage range | 43.2V-58.4V|DC | |
Maximum output power | 5120W | |
Maximum charging voltage | 58.4V±0.2V|DC | |
Recommended charging voltage | 57.6V±0.2V|DC | |
Recommended charging current | 50A | |
Low power consumption | Working self-consumption ≤50mA, low power mode ≤200uA | |
Charging current limiting function | 10A | |
Charge and discharge overcurrent long delay protection | BMS100:>105A alarm, >110A/1S protection BMS200:>205A alarm,>210A/1S protection | |
Discharge overcurrent instantaneous protection | BMS100:≥150A/100ms BMS200:≥250A/100ms | |
Overvoltage protection released | Release when discharge current>1A (51.2V machine: 59.2V overvoltage protection) | |
Over discharge protection released | Connect to charger to activate (51.2V machine: 43.2V over-discharge protection) | |
Charging overcurrent protection released | Discharge current>1A release | |
Over discharge current protection released | Charging current>1A release | |
Short circuit protection function | Yes, automatically released when charging | |
MOS high temperature protection | MOS tube over temperature protection | |
Battery temperature protection | The battery cell is protected against both low temperature (-20°C) and high temperature (70°C) | |
Ambient temperature alarm | Low temperature protection -20℃, high temperature protection 75℃ | |
Battery failure protection | Single cell voltage difference>1V | |
Display | LCD Display(optional without LCD display) | |
Battery Depth of Discharge (DOD) | ≥95% | |
Modules connection | 1-15 | |
communication | RS232, RS485, CAN as standard | |
Protection level | IP21 | |
Cycle times (standard charge and discharge at room temperature) | ≥5000 times | ≥6000 times |
Operating temperature range | Discharge: -10℃ - +50℃; Charge: +0℃ - +60℃ | |
Storage temperature | >1 month, 0~35℃; ≤1 month, -20~45℃ | |
Terminal Type | M6 | |
Installation | Rack mount (compatible with wall mount) | |
Depth × width × height (mm) | 450*440*132 | |
Weight (net weight, for reference) KG | 45KG | |
Packaging | Carton+foam |
