Availability: | |
---|---|
GA
Techfine

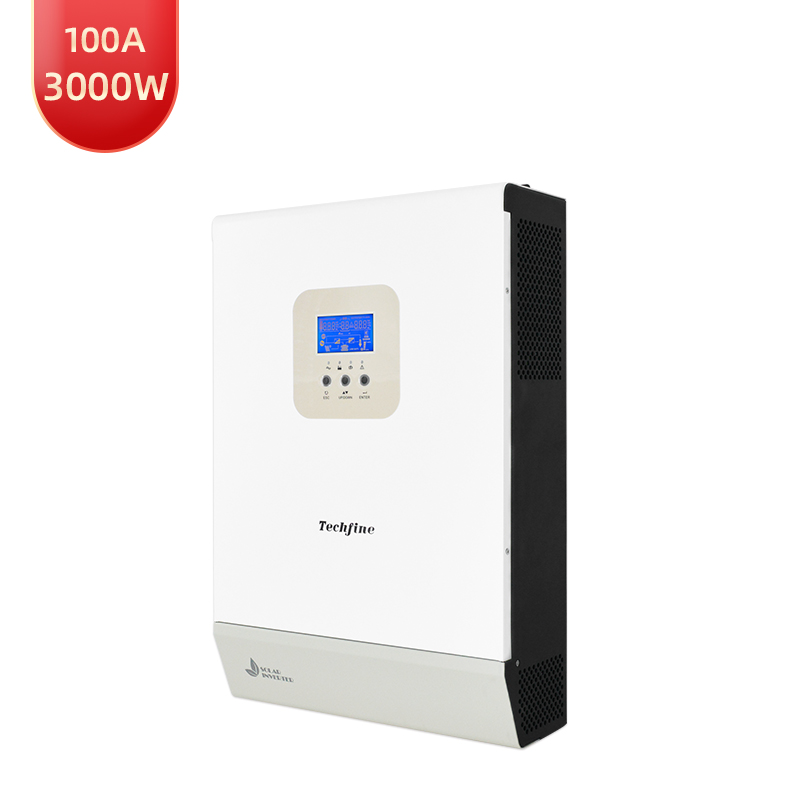

GA3024MH
Feature
Communication Option: External WIFl, Supervise at Any Time
Support Working without Battery: Reduce Solar System Cost
Parallel Function Up to Maximum 9 Units: Enlarge More Loads
High Precision of Output Voltage,+5%, Take Care of YourAppliances
Battery Reverse Connection Protection with Fuse SwitchSafer Installation
Lithium Battery Auto-restart Function,More Convenientfor Lithium Battery Charging
Intelligent Power Supply Mode,Intelligent Distribution of Solal Panel/Mains/BatteryPower Shares
Feature
Communication Option: External WIFl, Supervise at Any Time
Support Working without Battery: Reduce Solar System Cost
Parallel Function Up to Maximum 9 Units: Enlarge More Loads
High Precision of Output Voltage,+5%, Take Care of YourAppliances
Battery Reverse Connection Protection with Fuse SwitchSafer Installation
Lithium Battery Auto-restart Function,More Convenientfor Lithium Battery Charging
Intelligent Power Supply Mode,Intelligent Distribution of Solal Panel/Mains/BatteryPower Shares
GA series High frequency inverter data sheet | |||
Model | GA3024MH | GA5048MH | |
Input | Phase | L+N+PE | |
Nominal Voltage | 208/220/230/240VAC | ||
Voltage Range | 154-264VAC±3V(Normal Mode) 185-264VAC±3V(UPS Mode) | ||
Frequency Range | 50Hz/60Hz(Adaptive) | ||
Output | Rated Power | 3000W | 5000W |
Output Voltage(AC) | 208/220/230/240VAC±5% | ||
Output Frequency | 50/60Hz±0.1% | ||
Waveform | Pure sine wave | ||
Transfer Time( Optional) | 10ms for computer , 20ms for home appliances | ||
Peak power | 6000VA | 10000VA | |
Overload | Battery Mode: | ||
1min@102%~110% Load | |||
10s@110%~130% Load | |||
3s@130%~150% Load | |||
200ms@>150% Load | |||
Peak efficiency (battery mode) | >94% | >94% | |
Battery | Rated voltage | 24Vdc | 48Vdc |
Constant voltage charging voltage (Optional) | 28.2Vdc | 56.4Vdc | |
Floating charge voltage (Optional) | 27Vdc | 54Vdc | |
charger | PV charging method | MPPT | MPPT |
PV max input power | 3500W | 5500W | |
MPPT tracking range | 120~430Vdc | 120~430Vdc | |
Max PV input voltage | 450Vdc | 450Vdc | |
Max PV charging current | 60A | 80A | |
Max AC charging current | 60A | 80A | |
Max charging current | 60A | 80A | |
Display | LCD display | Operating mode/load/input/output, etc. | |
Communication port | RS232 | 5PIN/Pitch2.0mm, baud rate 2400 | |
Expansion & configuration port | 2×5PIN/Pitch2.54mm, lithium battery BMS communication card, | ||
WIFI card, dry contact card, etc. | |||
Parallel interface | No | Yes | |
Environmental parameters | Operating environment temperature | 0~40℃ | |
Operating environment humidity | 20%~95%(Non condensing) | ||
Storage temperature | -15~60℃ | ||
Altitude | The altitude should not exceed 1000m, derating above 1000m, up to 4000m, refer to IEC62040 | ||
noise | ≤50db | ||
Certifications | EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1 |
