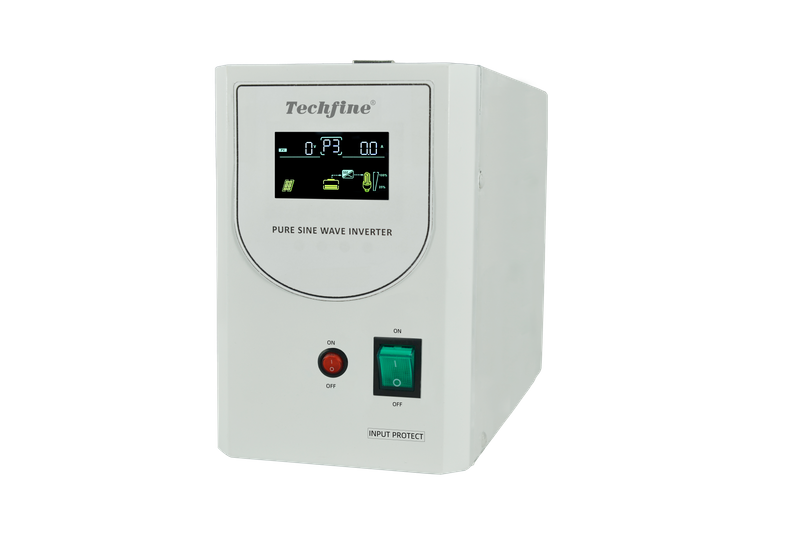

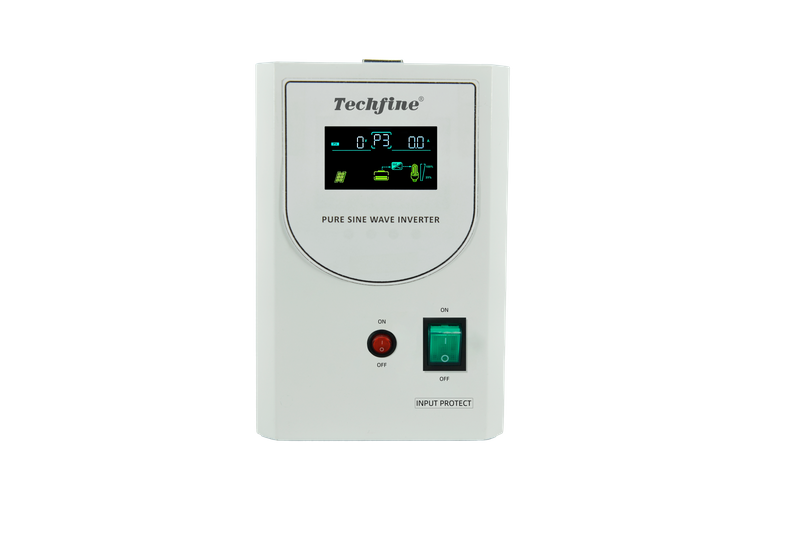

HB-800
Techfine
HB-800
Model | HB-500 | HB-800 | HB-1000 | HB-1500 | HB-2000 | HB-2500 | HB-3000 | HB-5000 | |
Rated Capacity | 500VA | 800VA | 1000VA | 1500VA | 2000VA | 2500VA | 3000VA | 5000VA | |
Rated Power | 300W | 500W | 700W | 1050W | 1400W | 1800W | 2100W | 3500W | |
Transformer | Toroidal transformer | ||||||||
Interface | LED graphic | ||||||||
Display status | working&loading&battery | ||||||||
Working mode | PV(Photovoltaic priority)/AC(AC priority) optional | ||||||||
Input | Voltage | 140-275Vac | |||||||
Frequency | 45-65Hz | ||||||||
Output | Voltage | 220Vac±3% for inveter; 195v-240V for avr | |||||||
Frequency | 50/60Hz ± 0.3Hz, subject to the main | ||||||||
Wave Form | Pure sine wave | ||||||||
Wave Distortion | ≤3% | ||||||||
Protection | overload/high temperature/output high voltage /output low voltage/ battery low voltage shortcircuit/over-charge/over-discharge/reversed polarity(optional) | ||||||||
Transfer Time | ≤4ms | ||||||||
Battery Voltage | 12VDC | 12VDC | 12VDC | 24VDC | 24VDC | 24VDC | 48VDC | 48VDC | |
Charge Voltage | 13.6V±0.3V | 13.6V±0.3V | 13.6V±0.3V | 27.2V±0.6V | 27.2V±0.6V | 27.2V±0.6V | 54.5V±1V | 54.5V±1V | |
Low Battery Voltage Limit | 10.9V±0.3V | 10.9V±0.3V | 10.9V±0.3V | 21.8V±0.5V | 21.8V±0.5V | 21.8V±0.5V | 42V±1V | 42V±1V | |
Protections Battery Low Voltage Protection Point | 10.2V±0.3V | 10.2V±0.3V | 10.2V±0.3V | 20.5V+0.5V | 20.5V+0.5V | 20.5V+0.5V | 41V±1V | 41V±1V | |
Charge Current | Max.10A/15A/20A optional | ||||||||
Environmental | Operating Temperature | 0~40℃ | |||||||
Relative Humidity | 10%~90%RH,non-condensing | ||||||||
Storage Temperature | -15-45℃ | ||||||||
Packing | Machine Size(mm) | 230x145x180 | 337x146x170 | 355x220x250 | |||||
Qty/Ctn | 4 | 4 | 2 | 2 | 1 | 1 | 1 | 1 | |
Carton Size(mm) | 785x305x240 | 415x410x245 | 410x290x320 | ||||||
CartonG.W.(kg) | 22 | 26 | 17.2 | 19.1 | 410x290x321 |
