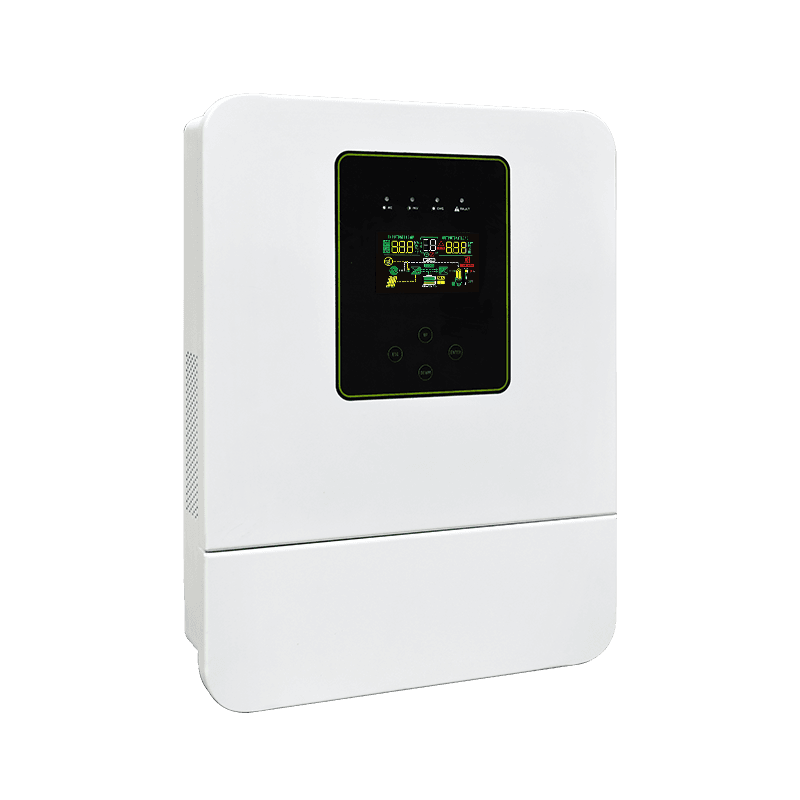

Ip54 Rating 3.6 KW Solar Inverter MPPT Hybrid Solar Inverter

Tips:
Minimum order quantity (MOQ) ≥100 Pieces;
Samples can be sent for testing;

Feature:
Wall-mounted structure design
The sine wave can drive a load with a high power of 6200W, and the output power factor PF is 1
Equipped with RS485 and RS232 communication interfaces
Compatible with external WIFI
The charging conversion efficiency is greater than 0.9
It is standard-equipped with a 6200W high-voltage MPPT controller
The battery can be charged up to 100A
Compatible with lithium batteries (with solar self-start and mains power self-start functions)
Support battery-free inverter operation
It features touchscreen Settings and key functions

Availability:



Inquiry

Model:
GZ3624SMH
Brand:
Techfine

3.6 kW Solar Inverter with IP54 Rating – High-Performance MPPT Hybrid Solution

Maximize your solar power efficiency with our 3.6 kW Solar Inverter , designed for modern energy systems requiring high reliability and smart control. As an advanced MPPT Hybrid Solar Inverter , it supports both on-grid and off-grid operation , with off-grid as the default setting — making it ideal for residential and backup power applications.

This 24V MPPT Solar Inverter features intelligent solar energy management, allowing users to select between battery-first or load-first charging modes . With a built-in MPPT charge controller , it ensures optimal solar conversion efficiency throughout the day.

Key features include:

IP54-rated enclosure for enhanced dust and water resistance
Real-time date and time display , fully adjustable
Customizable output schedules based on user demand
Daily, monthly, and yearly energy generation statistics
Touchscreen interface with intuitive settings and controls
Dual AC output support for flexible power distribution
PCB potting technology for improved waterproofing, moisture resistance), and dust protection

Perfect for off-grid living or hybrid solar setups, this MPPT Solar Inverter 24V delivers durable, efficient, and intelligent energy management tailored to your needs.

IP54 GZ Series

3.6 kw solar inverter ip54 rating mppt hybrid solar inverter mppt solar inverter 24v hybrid inverters for solar

Model		GZ3624SMH
Input Formation		L+N+PE
ACInput		220/230/240VAC
Input VoltageRange		90-280VAC±3V(Normal Mode)185-264VAC±3V(UPS Mode）
Frequency		50/60Hz(Adaptive)
Rated Power		3600W
DualOutput Power		3600W
Second Load Cut Off Voltage		22V
Second Load Return Voltage		26V
Output Voltage(AC）		208/220/230/240VAC±5%
Output Frequency		50/60Hz±0.1%
Output Wave		Pure Sine Wave
Transfer Time(Adjustable）		10ms for Computer Equipment, 20ms for Household Equipment
Peak Power		7200VA
Overload Ability		Battery Mode : 21@102%~110% load 10s@110%-130% load 3s@130%-150% oad 400ms@>150% load
Grid connected peration	Output Voltage	208/220/230/240VAC±5% （Feed-in Grid Voltage Range:195-253VAC）
	Grid Voltage Range	195-253VAC
	Grid Frequency Range	50/60Hz±0.1% (Feed-in Grid Frequency Range:49-51+1Hz/59-61+1Hz）
	Output Current	16.3A
	Power Factor Range	＞0.99
Peak Efficiency(Battery Model		＞94%
Rated Voltage		24VDC
Constant Charging Voltage		28.2VDC
Float Charging Voltage		27VDC
PV Charging Method		MPPT
Max PVInput Power		5000W
PVInput Voltage Range		60~500VDC
MAX PV Input Voltage		500VDC
MAX PV Input Current		18A
MAX PV Charge Current		100A
MAX AC Charge Current		80A
MAX Charge Current		100A
LCD		Can display operating mode/load/input/output
RS232		5PIN/Pitch2.54mmBaud Rate 2400
Expansion Slot communication Interface		Lithium Battery BMS Communication Card,WIFI2x5PIN/Pitch2.54mm
ParallelInterface		Not Support Parallel
Operating Temperature		0℃~40℃
StorageTemperature		-15℃~60℃
Ork Altitude		No more than 1000m,lf1000m<,Rate power will lower,MAX 4000m, Refer
Operating Environment Humidity		Non condensing
Noise		＜50dB
LWH(mm）		495312125mm

Model		GZ3624SMH
Input Formation		L+N+PE
ACInput		220/230/240VAC
Input VoltageRange		90-280VAC±3V(Normal Mode)185-264VAC±3V(UPS Mode）
Frequency		50/60Hz(Adaptive)
Rated Power		3600W
DualOutput Power		3600W
Second Load Cut Off Voltage		22V
Second Load Return Voltage		26V
Output Voltage(AC）		208/220/230/240VAC±5%
Output Frequency		50/60Hz±0.1%
Output Wave		Pure Sine Wave
Transfer Time(Adjustable）		10ms for Computer Equipment, 20ms for Household Equipment
Peak Power		7200VA
Overload Ability		Battery Mode : 21@102%~110% load 10s@110%-130% load 3s@130%-150% oad 400ms@>150% load
Grid connected peration	Output Voltage	208/220/230/240VAC±5% （Feed-in Grid Voltage Range:195-253VAC）
	Grid Voltage Range	195-253VAC
	Grid Frequency Range	50/60Hz±0.1% (Feed-in Grid Frequency Range:49-51+1Hz/59-61+1Hz）
	Output Current	16.3A
	Power Factor Range	＞0.99
Peak Efficiency(Battery Model		＞94%
Rated Voltage		24VDC
Constant Charging Voltage		28.2VDC
Float Charging Voltage		27VDC
PV Charging Method		MPPT
Max PVInput Power		5000W
PVInput Voltage Range		60~500VDC
MAX PV Input Voltage		500VDC
MAX PV Input Current		18A
MAX PV Charge Current		100A
MAX AC Charge Current		80A
MAX Charge Current		100A
LCD		Can display operating mode/load/input/output
RS232		5PIN/Pitch2.54mmBaud Rate 2400
Expansion Slot communication Interface		Lithium Battery BMS Communication Card,WIFI2x5PIN/Pitch2.54mm
ParallelInterface		Not Support Parallel
Operating Temperature		0℃~40℃
StorageTemperature		-15℃~60℃
Ork Altitude		No more than 1000m,lf1000m<,Rate power will lower,MAX 4000m, Refer
Operating Environment Humidity		Non condensing
Noise		＜50dB
LWH(mm）		495312125mm
