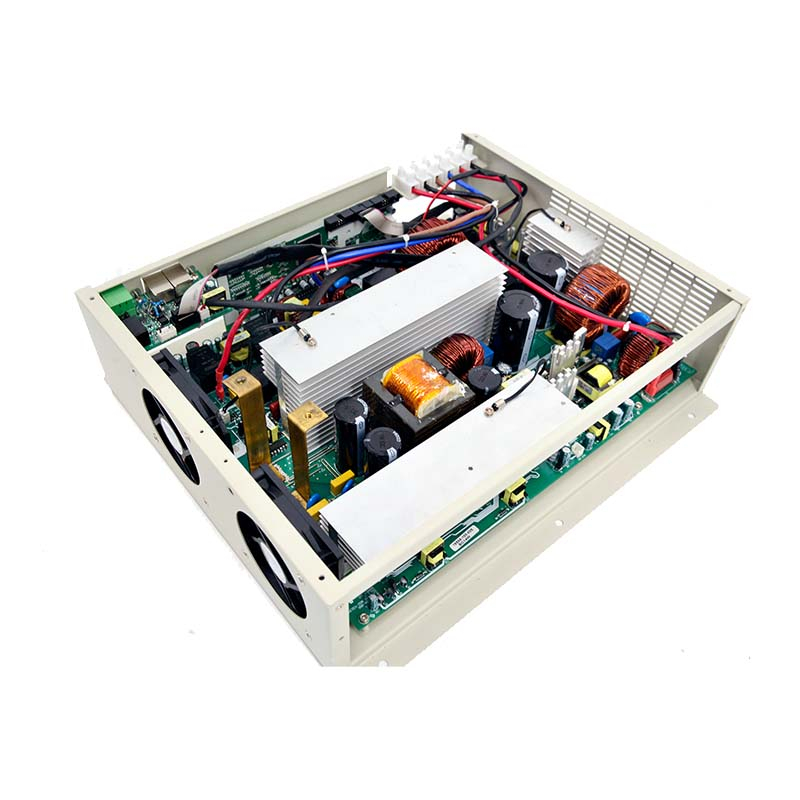

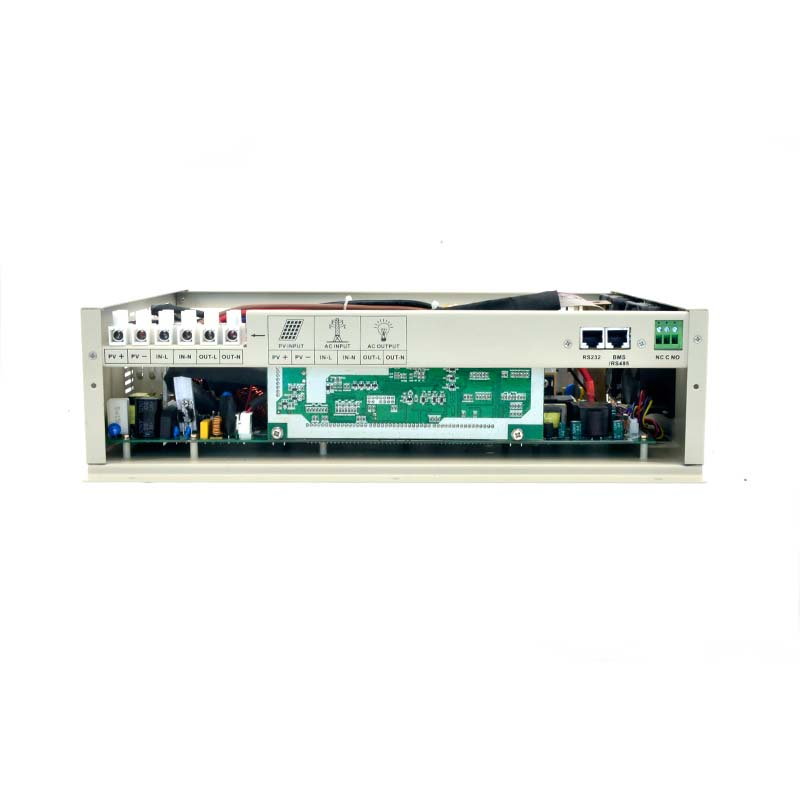

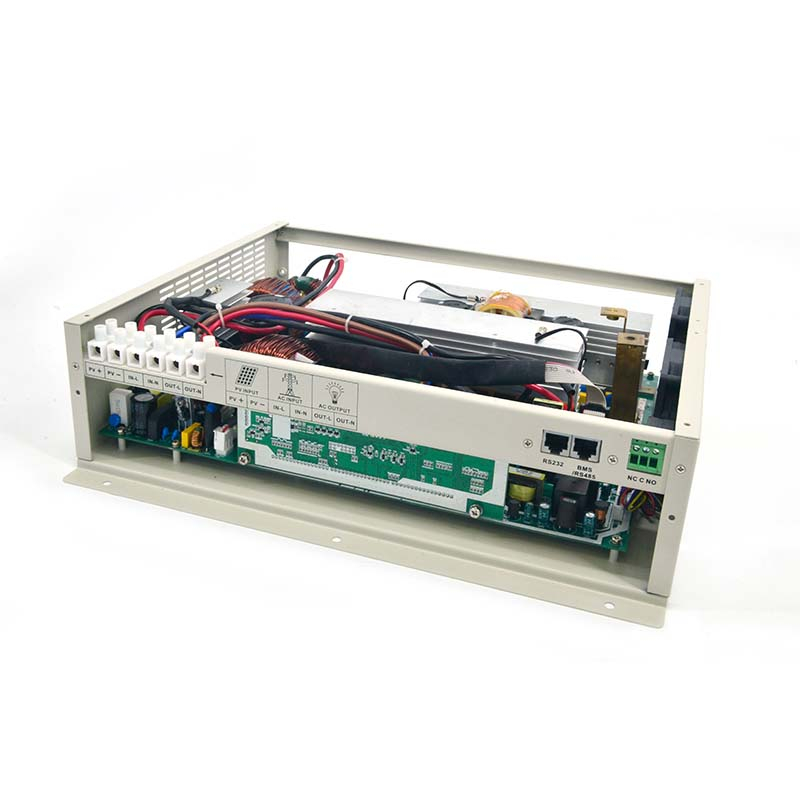

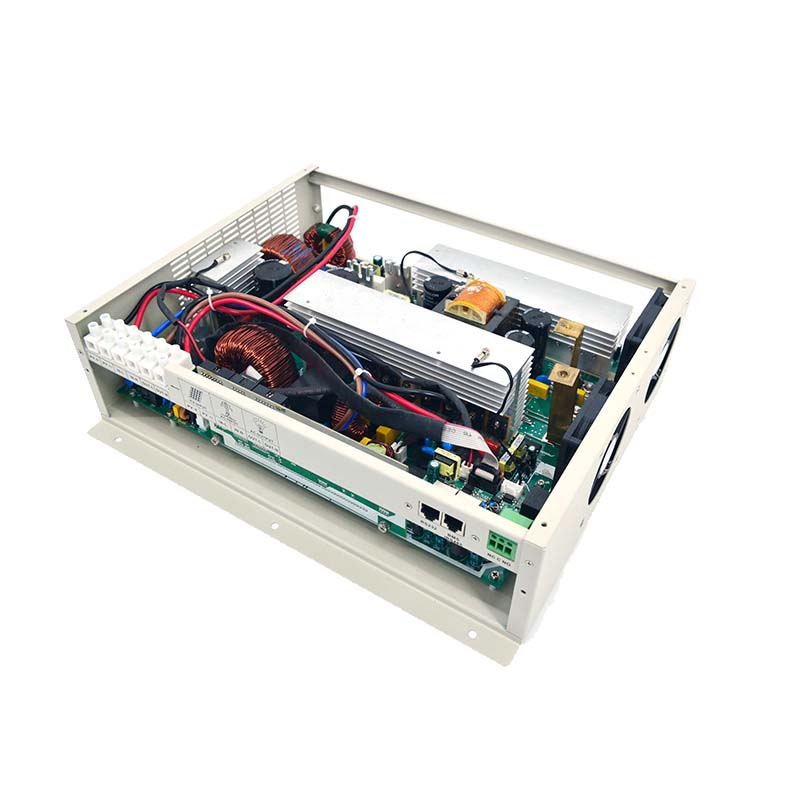

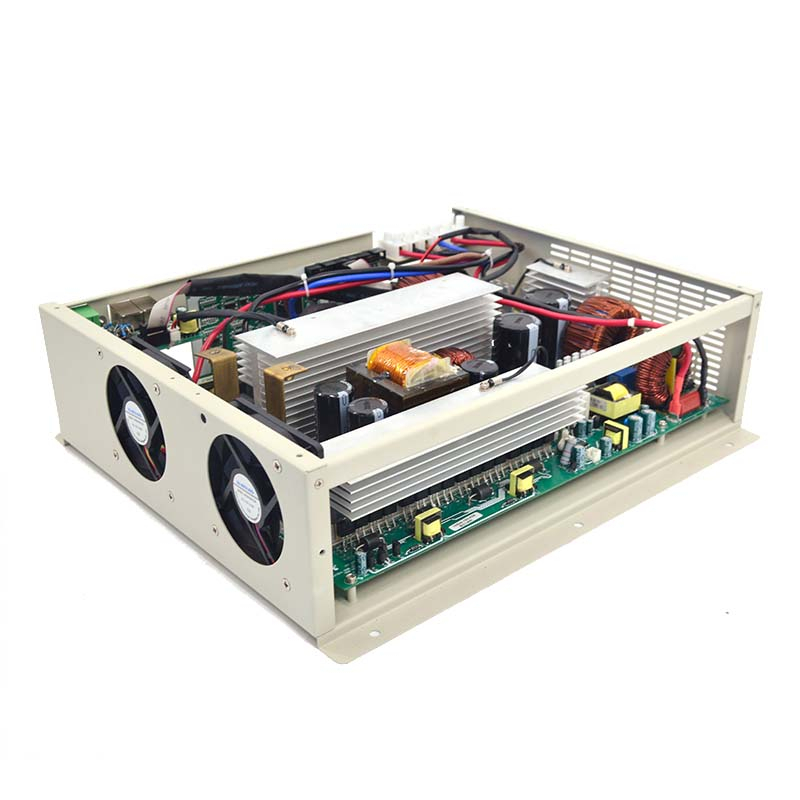

High Frequency 3KW-11KW Sine Wave Inverter Circuit Board

Tips:
Samples can be sent for testing;
Minimum order quantity (MOQ) ≥100 Pieces;
Feature:

• High frequency inverter, high efficiency, light weight
• Output power factor PF = 1
•Support lithium battery activation wake-up function
•Can realize parallel expansion, 9 units can work at the same time
• Real-time display of load power greatly improves user perception
•Pure sine wave output, adaptable to different loads
• Output short circuit protection function
• Multiple parameters can be adjusted according to user needs
•Applicable to customers of energy storage integrated machine, movement solution

Availability:



Inquiry

Model:
GP
Brand:
Techfine

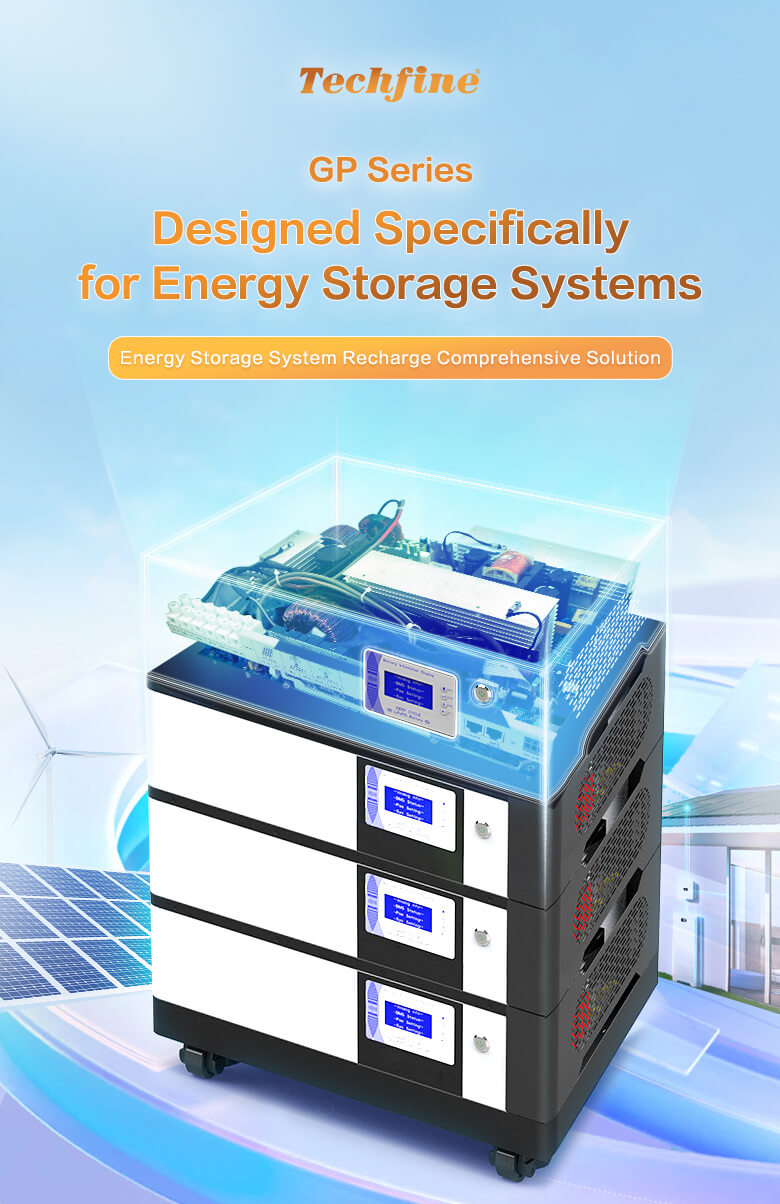

3KW-11KW Solar Inverter PCB GP Series

Designed Specifically for Energy Storage Systems

Energy Storage System Recharge Comprehensive Solution

Solar-Inverter-Circuit-Broad_GP-Series Details (1)

Core Features and Advantages

High Power : 3000W - 5000W

Multi-Protection : Suitable for various harsh environments

Plug-and-Play : Compact size, compatible with various enclosures

Easy Installation : No adjustment required

2-Year Warranty : 24-hour after-sales service support

Strong Load Capacity : Can handle inductive loads

Complies with EU Safety Mandatory Certification

Solar-Inverter-Circuit-Broad_GP-Series Details (2)

Suitable for Various Lithium Battery Packs

Small body size, can be embedded into tower-mounted, floor-standing, wall-mounted, rack-mounted, and other types of cabinets.

Solar-Inverter-Circuit-Broad_GP-Series Details (4)

Color Digital Display Screen

Simple and Intuitive

Data parameters, status prompts, alarms, etc., are clearly visible at a glance.

Solar-Inverter-Circuit-Broad_GP-Series Details (5)

High Intelligence

APP Remote Monitoring

High intelligence level, supports WiFi or remote data transmission.

Mobile APP enables remote monitoring of inverters and battery pack parameters.

Solar-Inverter-Circuit-Broad_GP-Series Details (6)

Can Match 100 Types of Cells from Different Manufacturers

Conveniently Compatible with Various Lithium Battery Packs

Solar-Inverter-Circuit-Broad_GP-Series Details (8)

Built-in Lithium Battery Activation Function

Saves Time and Effort

Automatically restarts lithium batteries under low voltage conditions.

Solar-Inverter-Circuit-Broad_GP-Series Details (7)

Multiple Harsh Environments Applicable

Well-designed, fully considered, suitable for Africa, the Middle East, Southeast Asia's high temperature, dusty, humid, and high-salt environments.

Solar-Inverter-Circuit-Broad_GP-Series Details (10)

CE Certification Obtained

Complies with EU safety mandatory standard IEC62109-1:2011 and grid anti-interference standard EN62109-2

Quality assurance / 2-year warranty

Compact Design

Solar-Inverter-Circuit-Broad_GP-Series Details (3)

High Frequency Inverter Selection Guide (Technical Parameters)
Factory Model			3024SMH	4024SMH	5548SMH	6248SMH	8648SMH	11048SMH
Input	Input format		L+N+PE
	Rated input voltage		220/230/240VAC
	Voltage range		90-280VAC±3V (normal mode) 170-280VAC±3V (UPS mode)
	Frequency range		50Hz/60Hz (adaptive)
Output	Output rated power	Battery Inverter	3000W	4000W	5500W	6200W	8600W	11000W
		Photovoltaic Inverter	3600W	4500W	6500W	6500W	11000W	12000W
	Output voltage		220/230/240VAC±5%
	Output frequency		50/60Hz±0.1%
	Waveform		Pure sine wave
	Switching time (adjustable)		Computer equipment 10ms, home appliances 20ms
	Peak Power		6000VA	8000VA	11000VA	12400VA	17200VA	22000VA
	Overload capacity		Battery mode: 21s@105%~150% Load;11s@150%~200% Load;400ms@>200% Load
Grid-connected operation	Output voltage		220/230/240VAC
	Feed-in grid voltage range		170-265VAC
	Feed-in grid frequency range		49-51±1Hz/59-61±1Hz
	Nominal output current		13A	15.7A	21.7A	23.9A	26.9A	47.8A
	Power factor range		>0.99
	Maximum conversion efficiency (DC/AC)		98%
Battery	Rated voltage		24Vdc	24Vdc	48Vdc	48Vdc	48Vdc	48Vdc
	Constant voltage charging voltage (adjustable)		28.2Vdc	28.2Vdc	56.4Vdc	56.4Vdc	56.4Vdc	56.4Vdc
	Float charge voltage (adjustable)		27Vdc	27Vdc	54Vdc	54Vdc	54Vdc	54Vdc
Charger	PV charging method		MPPT	MPPT	MPPT	MPPT	Dual MPPT	Dual MPPT
	PV maximum input power		5000W	6500W	8500W	8500W	2×6500W	2×7500W
	MPPT input voltage range		60-500Vdc				90~500Vdc	90~500Vdc
	Optimal Vmp working range		300~400Vdc	300~400Vdc	360~430Vdc	360~430Vdc	360~430Vdc	360~430Vdc
	Maximum PV input voltage		500Vdc	500Vdc	500Vdc	500Vdc	500Vdc	500Vdc
	Maximum PV input current		18A	27A	27A	27A	27A/27A	27A/27A
	Maximum PV charging current		100A	120A	100A	120A	150A	150A
	Maximum AC charging current		60A	100A	100A	100A	150A	150A
	Maximum charging current		100A	120A	100A	120A	150A	150A
Show	LCD Interface		Can display operation mode/load/input/output, etc.
Interface	RS232		Baud rate 2400
	Expansion slot communication interface		Lithium battery BMS communication card, WIFI card, dry contact card, etc.
	Parallel interface		No parallel function	No parallel function	Parallel (network) function	Parallel (network) function	Parallel (network) function	Parallel (network) function
Environmental parameters	Operating temperature		-10~50℃
	Operating environment humidity		20%~95% (no condensation)
	Storage temperature		-15~60℃
	Altitude		The altitude should not exceed 1000m, and the rating will be derated above 1000m, the maximum is 4000m, refer to IEC62040
	noise		≤50db
Physical parameters	Depth × width × height (mm)
	Weight (for reference) KG		6.58	TBD	7.78	7.78	7.78	15.3
Standards and certifications			EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
Note: (1) The real-time updated data of weight and size can be found in the [TQF Production Machine Packaging Dimension and Weight Record Table] file by material code. The installation dimensions shall be subject to the instruction manual.
