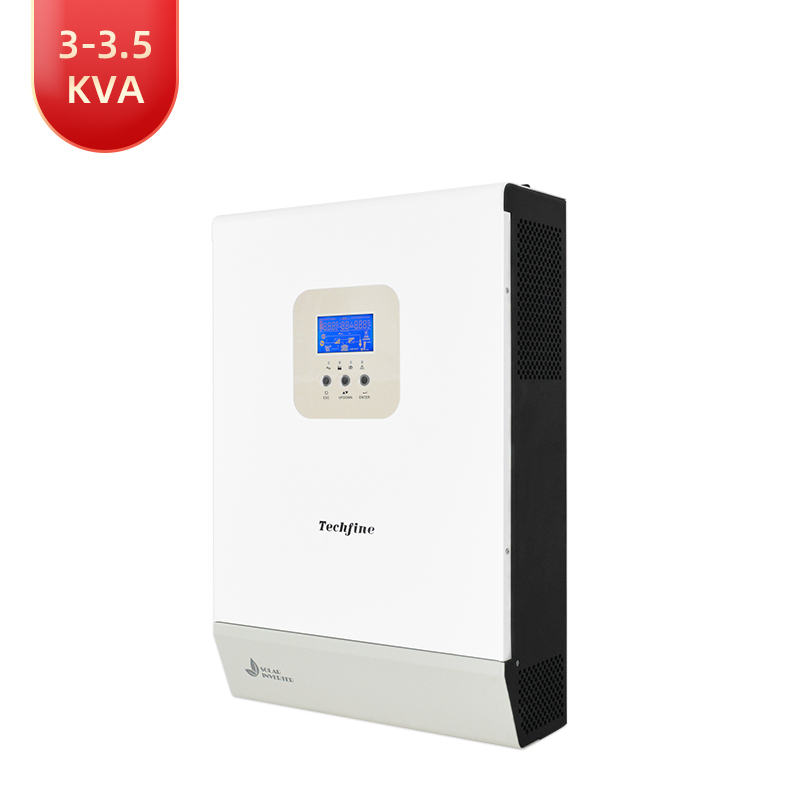

High Frequency 3-5.5KVA

Samples can be sent for testing;
Minimum order quantity (MOQ) ≥5 Pieces;
Intelligent Power Supply Mode
PF1.0, High Efficiency
Support Working without Battery
  • GA

  • Techfine


  • Lithium Battery Auto-restart Function, More Convenient for Lithium Battery Charging

  • Utility Charging Voltage/PV Charging Voltage Adjustable, Match Different Battery Charging Requirements

  • Battery Reverse Connection Protection with Fuse Switch, Safer Installation

  • Support Working without Battery: Reduce Solar System Cost

  • High Precision of Output Voltage,±5%, Take Care of Your Appliances

  • Intelligent Power Supply Mode, Intelligent Distribution of Solar Panel/Mains/Battery Power Shares

  • Slim Body, Convenient Installation And Transportation

  • PF1.0, High Efficiency, Lower Consumption,Energy Conservation/Environmental Protection/Electricity Saving/Cost Saving

  • Parallel Function Up to Maximum 9 Units: Enlarge More Loads

  • Communication Option: External WIFI, Supervise at Any Time

  • Model GA1012P GA2024P GA3024MH GA3524MH GA5048M GA5548MHB GA10048MH

    Input Formation L+N+PE
    Input AC Input 208/220/230/240VAC

    Input Voltage Range 154-264VAC±3V (Normal Mode) 185-264VAC13V (UPS Mode)

    Frequency 50/60Hz±5%(Adaptive)§iSES

    Rated Power 1000W 2000W 3000W 3500W 5000W 5500W 10000W
    Output Output Voltage 208/220/230/240VAC ± 5%

    Output Frequency 50/60Hz±0.1%

    Output Wave Pure Sine Wave

    Transfer Time(Adjustable) 10ms for Computer Equipment, 20ms for Household Equipment

    Peak Power 2000VA 4000VA 6000VA 7000VA 10000VA 11000VA 20000VA
    Overload Ability Battery Mode:
    1 min@102%-110% load
    10s@110%-130% load
    3s@130%-150% load
    200ms@>150% load
    Peak Efficiency >93% >93% >94% >94% >94% >94% >94%

    Rated Voltage 12VDC 24VDC 24VDC 24VDC 48VDC 48VDC 48VDC
    Battery Constant Charging Voltage (Adjustable) 14.1VDC 282VDC 28.2VDC 28.2VDC 56.4VDC 56.4VDC 56.4VDC
    Float Charging Voltage (Adjustable) 13.5VDC 27VDC 27VDC 27VDC 54VDC 54VDC 54VDC
    Charger PV Charging Method PWM PWM MPPT MPPT MPPT MPPT Double MPPT
    Max PV Input 600W 1200W 4000W 4000W 5500W 5500W 5500W+5500W
    MPPT Tracking Range N/A N/A 120-450VDC 120-450VDC 120-450VDC 120~450Vdc 120~450Vdc
    MAX PV Input Voltage 55VDC 80VDC 500VDC 500VDC 500VDC 500VDC 500VDC
    MAX PV Charge Current 50A 50A 100A 100A 100A 100A 80A+80A
    MAX AC Charge Cunent 50A 50A 100A 100A 100A 100A 80A+80A
    MAX Charge Current 100 A 100A 100A 100A 100A 100A 160A
    Display LCD Can display operating mode/load/input/output
    Communication Port RS232 5PIN/Pitch2.54mm, Baud Rate 2400

    Expansion Slot Communication Interface 2x5PIN/Pitch2.54mm, Lithium Battery BMS Communication Card, WIFI

    Parallel Interface Not Support Parallel Support Parallel Support Parallel Not Support Parallel
    Operating Temperature 0°C~40°C
    Ambient Temperature Storage Temperature —15°C~60°C

    Ork Altitude No more than 1000m, If 1000m <, Rate power will lower, MAX 4000m, Refer to IEC62040

    Operating Environment Humidity 20%~95%, Non Condensing

    Noise <50dB

    Dimension L*W*H(mm) 490*312*125mm

    Standards and Certifications EN-IEC 60335-1, EN-IEC 60335-2-29
