Availability: | |
---|---|

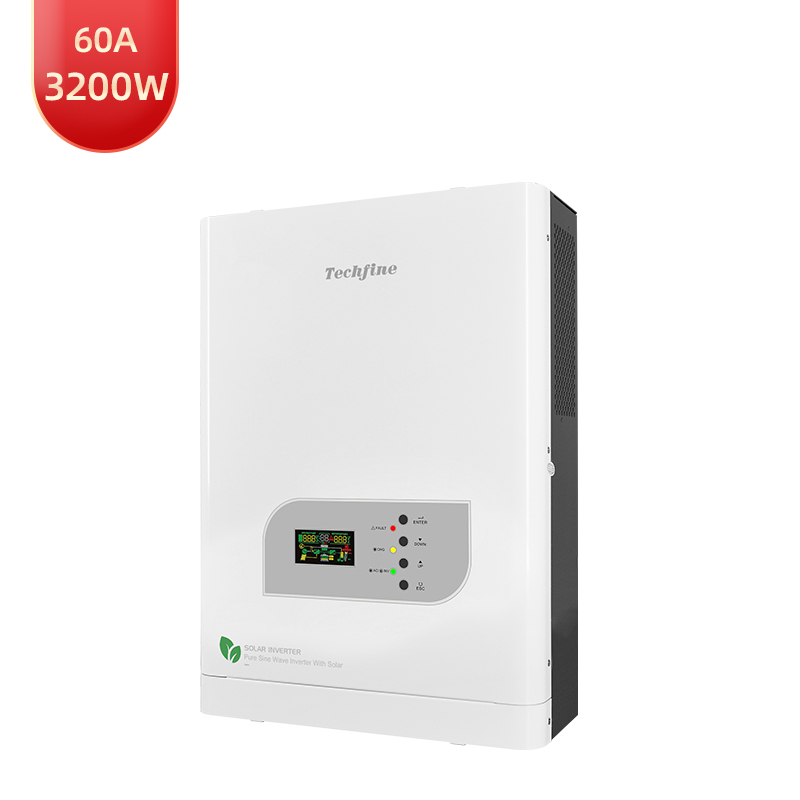

VS5048
Techfine
Experience reliable and clean AC power output with our Pure Sine Wave Inverter. Designed to meet your power quality and reliability needs, this inverter is perfect for residential and commercial applications.
Optional MPPT/PWM Solar Charge Controller (30A-120A
DC Start and Automatic Self-Diagnostic Function
Automatic Signal to Start Generator
High Efficiency Design for Optimized Battery Performance
Selectable Charging Current for Versatile Applications
AC Start-up Voltage Auto Restart Function
Experience reliable and clean AC power output with our Pure Sine Wave Inverter. Designed to meet your power quality and reliability needs, this inverter is perfect for residential and commercial applications.
Optional MPPT/PWM Solar Charge Controller (30A-120A
DC Start and Automatic Self-Diagnostic Function
Automatic Signal to Start Generator
High Efficiency Design for Optimized Battery Performance
Selectable Charging Current for Versatile Applications
AC Start-up Voltage Auto Restart Function
Model | VS5024/48 |
Input voltage | 220VAC(standard) |
Input voltage range | 154-264VAC +3V (Nor Model); 185-264VAC +3V (UPS model); 175 - 285VAC+ 3V(AVR Type) |
Input frequency | 50/60Hz±5% |
Out put power | 5000VA |
4000W | |
AC model output Voltage | The output voltage under the mains is the same as the input voltage (with AVR function 220V+ 10%) |
AC model outout frequency | The output frequency under the mains is the same as the input frequency |
Bttery model output volage | 220VAC±10% |
Battery model output frequency | 50HZ/60HZ±1% |
Battery model output wave | Pure sine wave |
Battery type | External lead-acid battery,Gel battery. water battery or Lithium battery |
Battery voltage | 24/48VDC |
Battery charging voltage | 27.4/54.8VDC |
Maximum PV array power | 24V:1600W 48V:3200W |
Solar input voltage range | 24V: MPPT 30V-150VDC / PWM 30V-60VDC 48V; MPPT 60V-150VDC / PWM 60V-105VDC |
Maximum PV Display Open Circuit Voltage | 24V: MPPT150VDC / PWM360VDC 48V: MPPT 150VDC / PWM 105VDC |
Maximum solar charging current | 60A |
Maximum AC Charge Current | 48A/24A |
Battery charging voltage range | 154-280VAC |
Transfer time | ≤10ms (UPS Mode) /s20ms (INVMode) |
Load peak ratio | (MAX)3:1 |
Protective function | Under the mains: input overcurrent fuse. Under inverter. overload protection, short circuit protection, low voltage protection, (with battery anti-reverse connection board). |
Status Display | You can view parameters such as AC voltage, AC frequency, PV voltage, PV current, output voltage, output frequency, battery voltage, load current and other parameters by turming the page keys. |
Voice prompt | 1. Low battery protection buzzer long beep 2. Low battery buzzer beeps every second 3. Overload buzzer beeps 4. When the overload is less than 130%,the buzzer will sound every second, and the output will be turned off after 30S. When the overload is greater than 150%, the output will be turmned off after 300mS. 5. Machine fault buzzer beeps |
Operating temperature | 0℃-40℃ |
Storage temperature | -15℃~-45°C |
Relative temperature | -10°C~ 90°C no condensation |
Noise | < 45dB |
Machine size (L*W*H)mm | 465x 310x 135MM |
