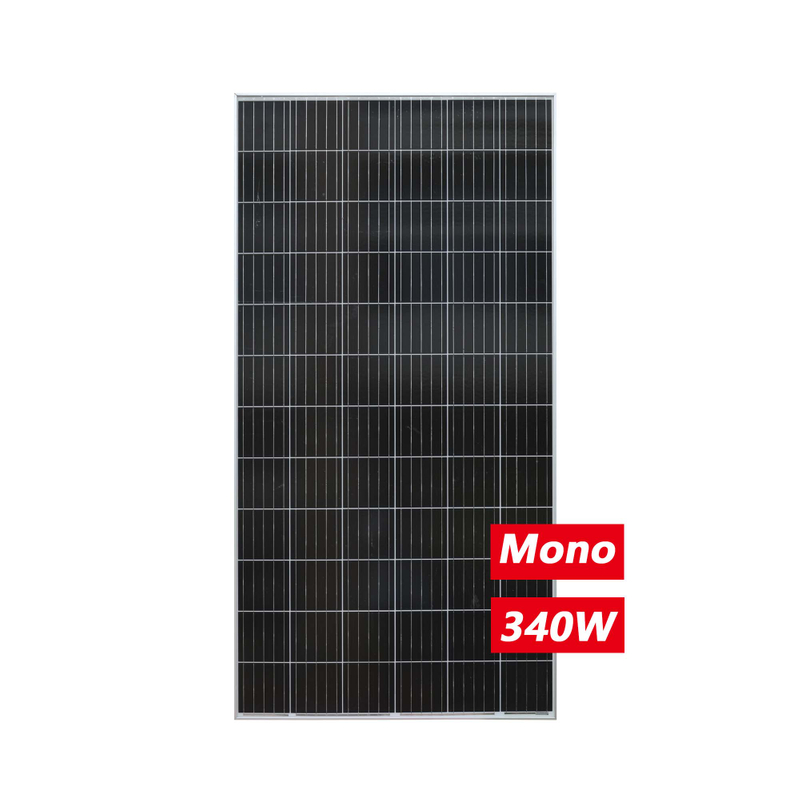

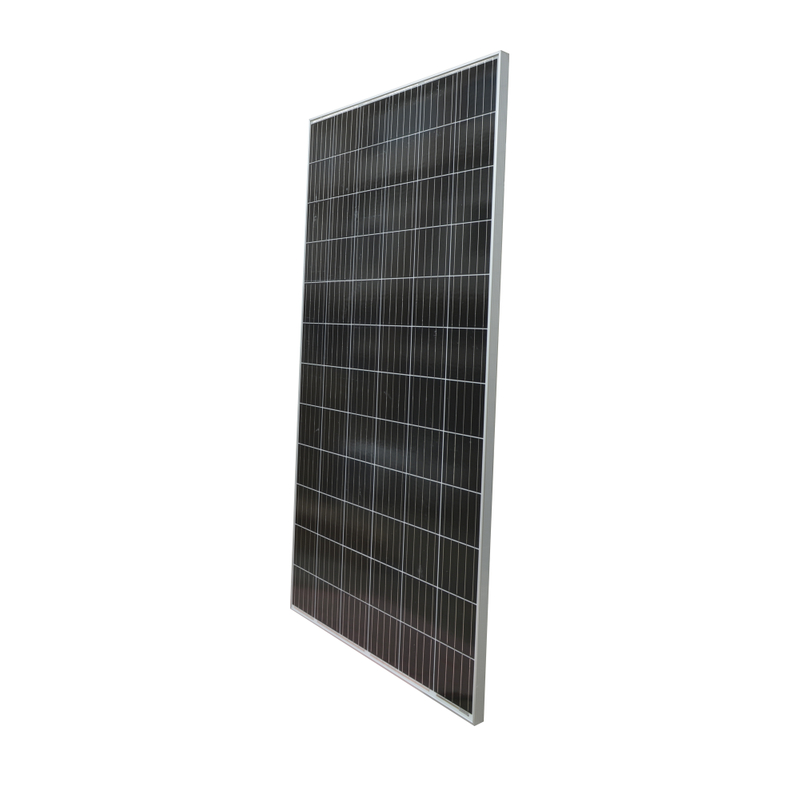

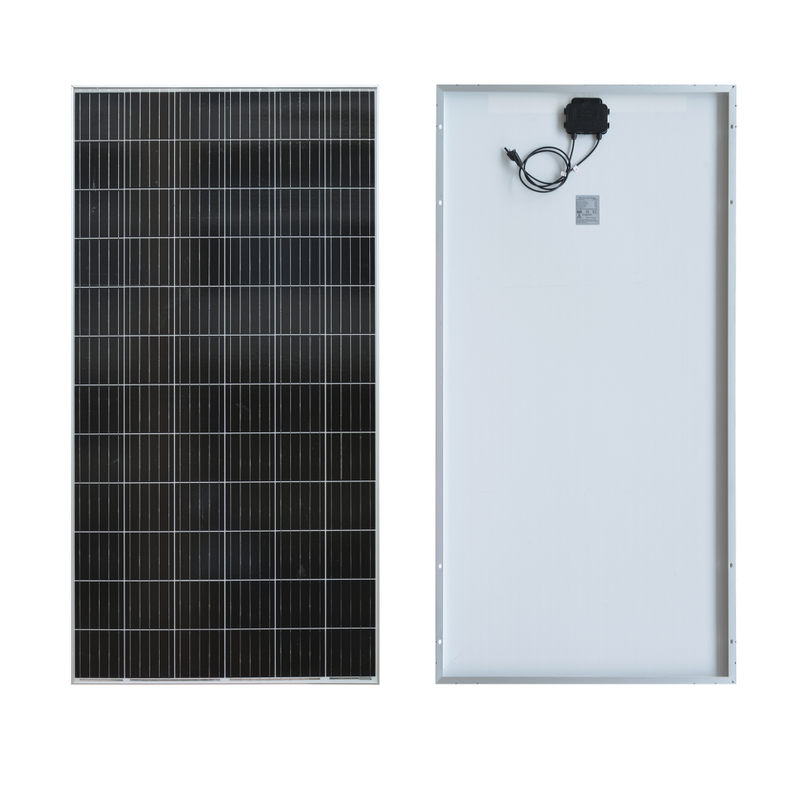

wholesale waterproof 340w 36v solar panel for charging battery

Tips:
Samples can be sent for testing;
Minimum order quantity (MOQ) ≥5 Pieces;
Feature：
Resilient against severe weather conditions
Excellent performance in low-light environments
Availability:
Inquiry

  • M340-36

  • Techfine

Feature

  • 0~5W Positive Power Tolerance

  • Enhanced durability in extreme conditions

  • TUV certified for high salt mist and ammonia resistance

  • High efficiency through advanced manufacturing

Application


340w monocrystalline solar panel Application in RV  340w monocrystalline solar panel application in boat

340w monocrystalline solar panel roofing  340w monocrystalline solar panel application in farm

ELECTRIC CHARACTERISTICS (STC)
MaxPower(Pmax)340
Peak   power（Wp）0-+5
Voltage   at Pmax (Vmp)38.1
Current   at Pmax (lmp)8.93
Open   Circuit Voltage (Voc)46.2
Short   Circuit Current (lsc)9.39
Module   Efficiency (%)17.7
TEMPERATURE   CHARACTERISTICS
Nominal   Operating Cell Temperature   (NOCT)46±2℃
Temperature   Coefficient of Pmax-0.42%/℃
Temperature   Coefficient of Voc-0.32%/℃
Temperature   Coefficient of lsc+0.05%/℃
OPERATING PARAMETER
Maximum System Voltage (V)1000
Operating Temperature (℃)-40~+85C
Maximum Series Fuse Rating   (A)15
Maximum Reverse Current (A)15
Maximum Front Load5400
Maximum Back Load2400
Hail Test Pass20mm hail stone at 23m/s
MECHANICAL   SPECIFICATIONS
Demension(mm)1650*992*35
Weight   (kg)17
Packaging24pcs/pallet

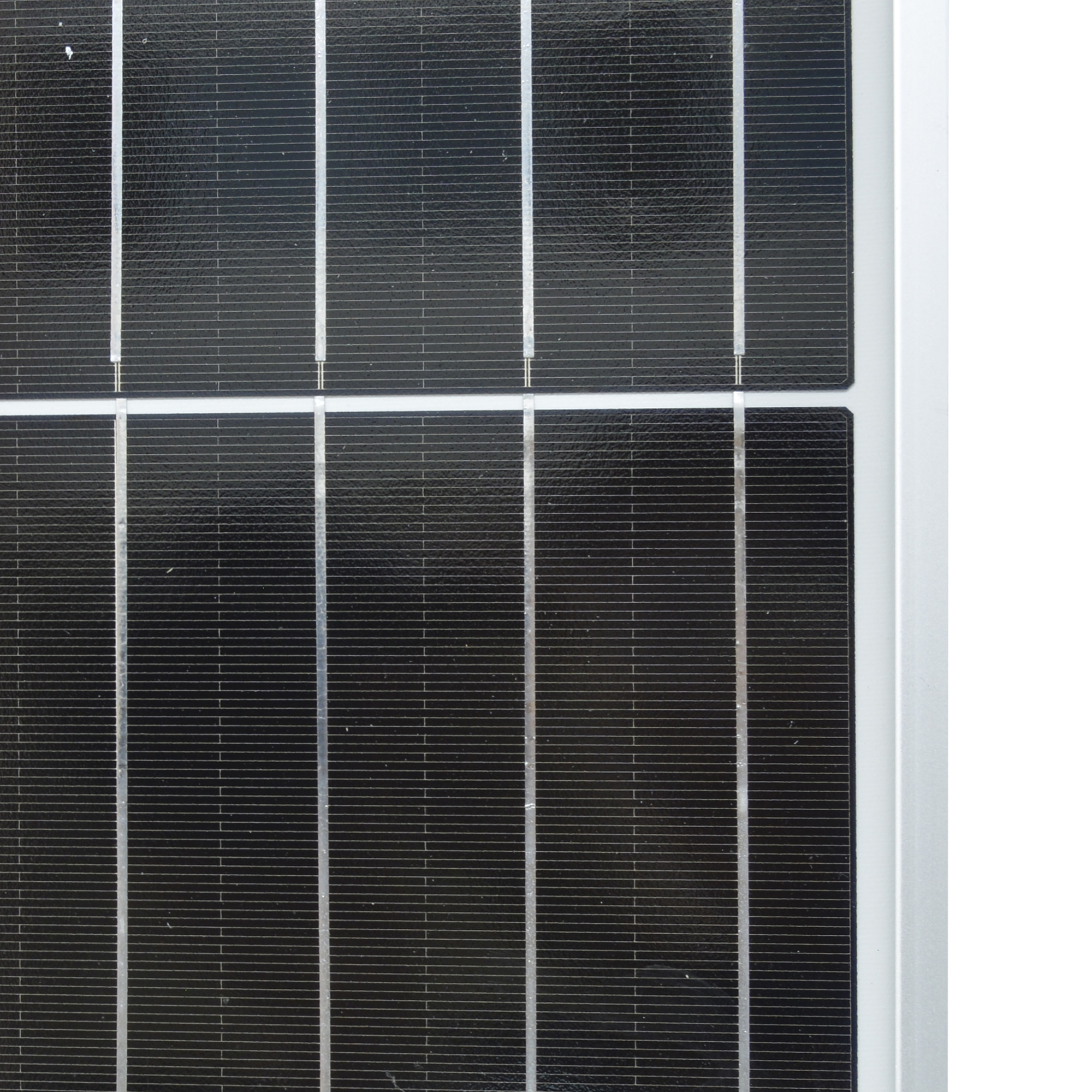

Cell   Type/ArrangementMON0158.75/6*10
FrameAnodized aluminum alloy

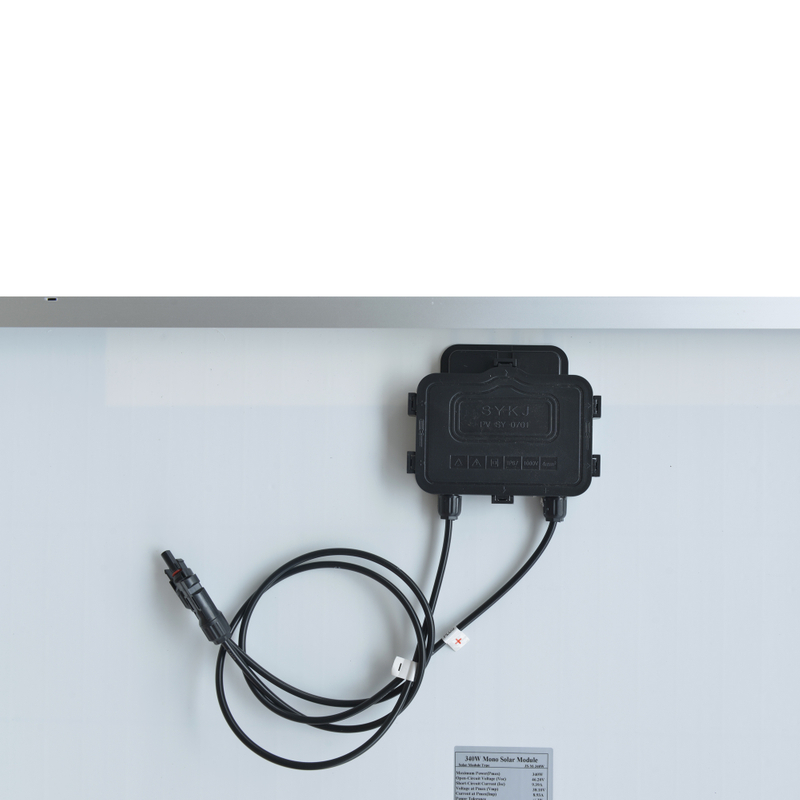

Junction   BoxIP rating ≥ IP67
Cable900mm/4mm²
ConnectorMC4 or compatible
