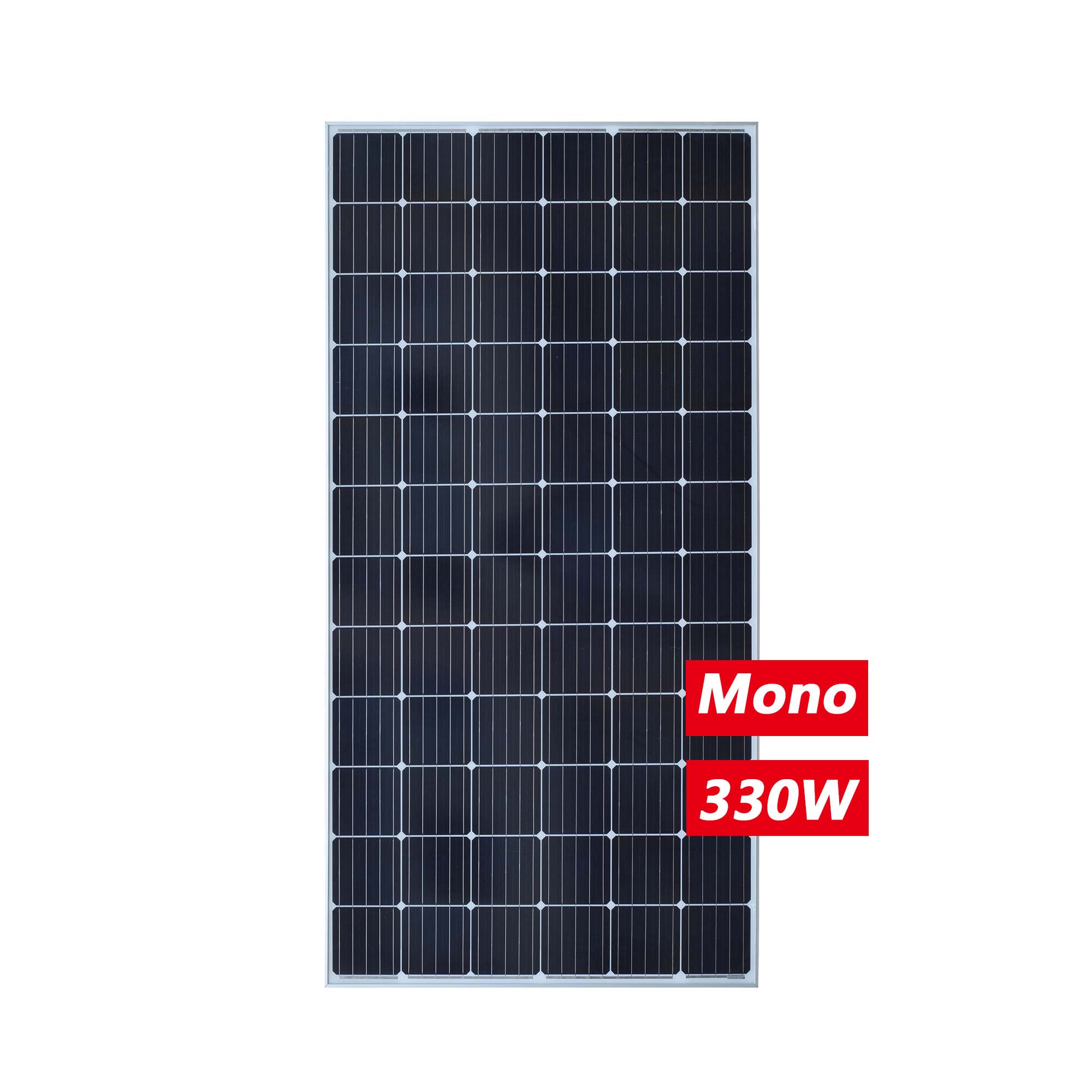

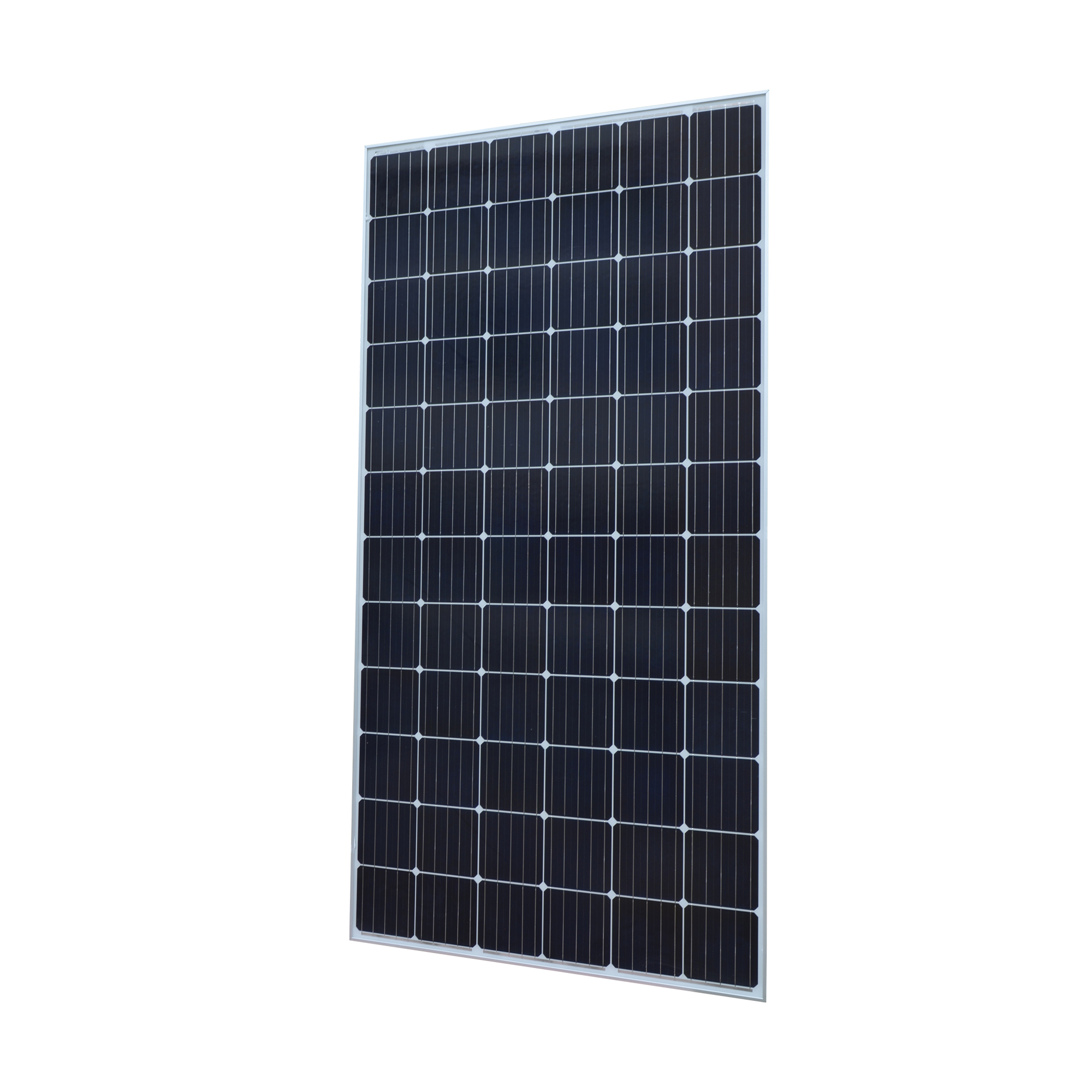

off-grid 330w monocrystalline perc solar panel kit for home

Tips:
Samples can be sent for testing;
Minimum order quantity (MOQ) ≥5 Pieces;
Feature：
Service life: ≥25 years

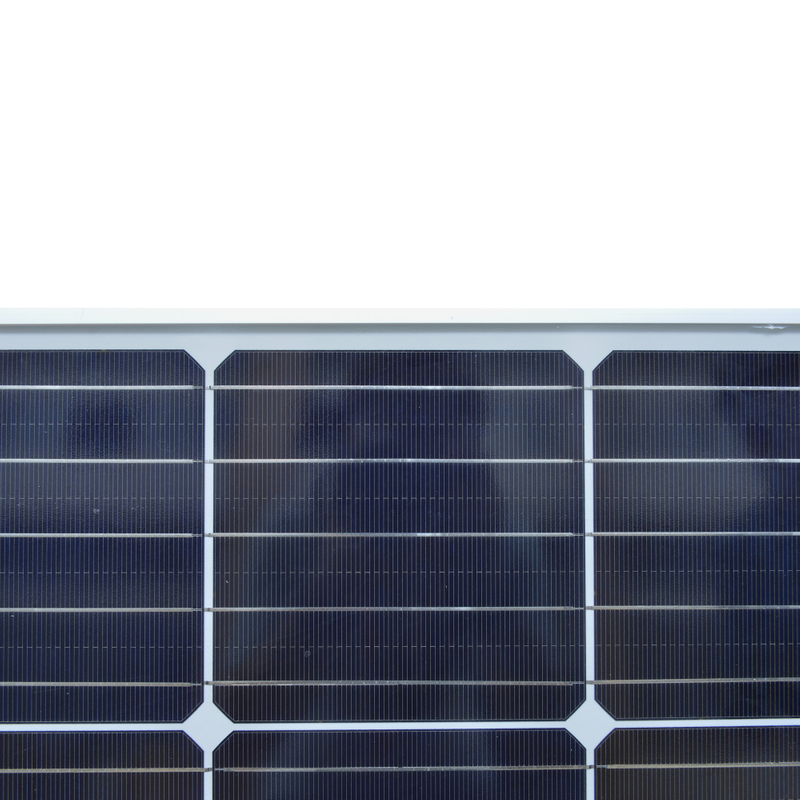

High efficiency monocrystalline silicon

Suitable for a variety of application environments

0~5W Positive Power Tolerance

Bring additional electricity to our customers

Durability against extreme environmental conditions

High salt mist and ammonia resistance certified by TUV

High Efficiency

Higher module conversion efficiency achieved throughadvanced manufacturing technology

Severe Weather Resilience

Certified to withstand: wind load(2400Pa) and snowload(5400Pa)

Low-light Performance

Advanced glass and solar cell surface texturing allowfor excellent performance in low-light environments

330w monocrystalline solar panel roofing

ELECTRIC CHARACTERISTICS (STC)
MaxPower(Pmax)	330
Peak power（Wp）	0-+5
Voltage at Pmax (Vmp)	33.6
Current at Pmax (lmp)	9.82
Open Circuit Voltage (Voc)	40.7
Short Circuit Current (lsc)	10.28
Module Efficiency (%)	20.3
TEMPERATURE CHARACTERISTICS
Nominal Operating Cell Temperature (NOCT)	46±2℃
Temperature Coefficient of Pmax	-0.42%/℃
Temperature Coefficient of Voc	-0.32%/℃
Temperature Coefficient of lsc	+0.05%/℃
MECHANICAL SPECIFICATIONS
Demension(mm)	165099235
Weight (kg)	17
Packaging	24pcs/pallet
Cell Type/Arrangement	MON0158.75/6*10

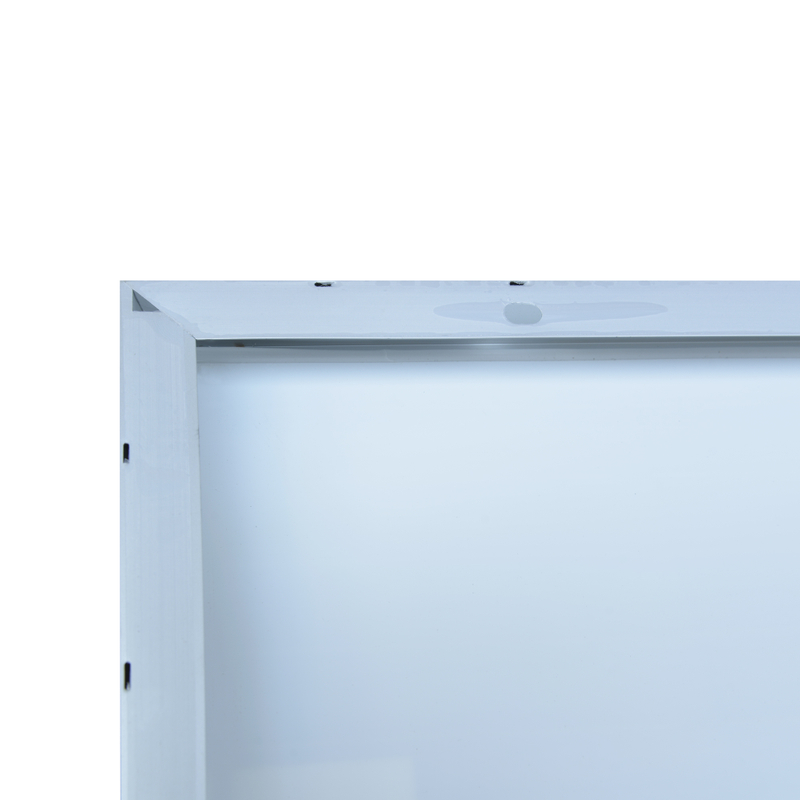

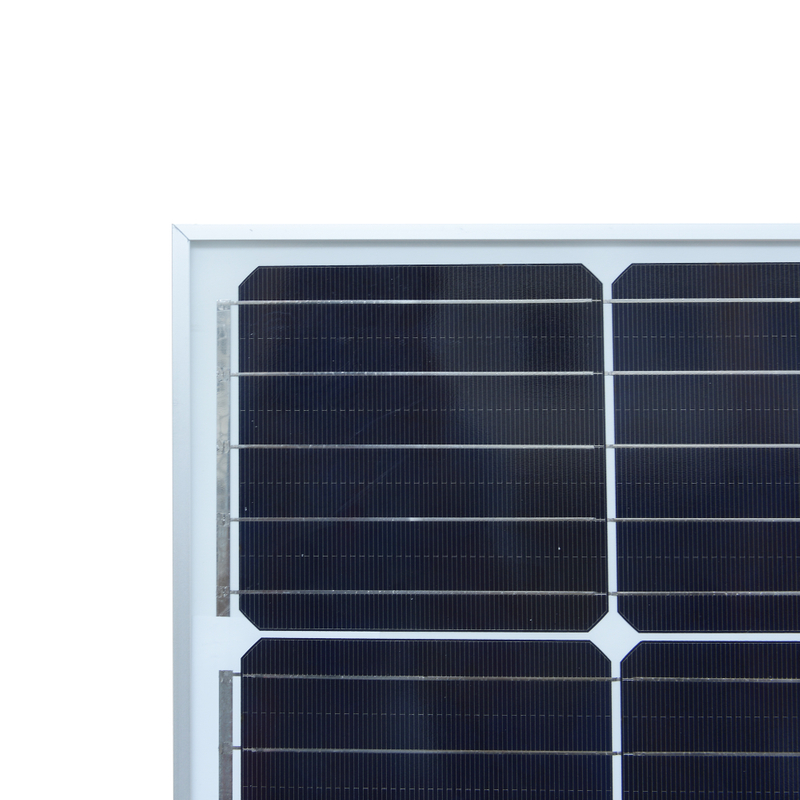

Frame	Anodized aluminum alloy

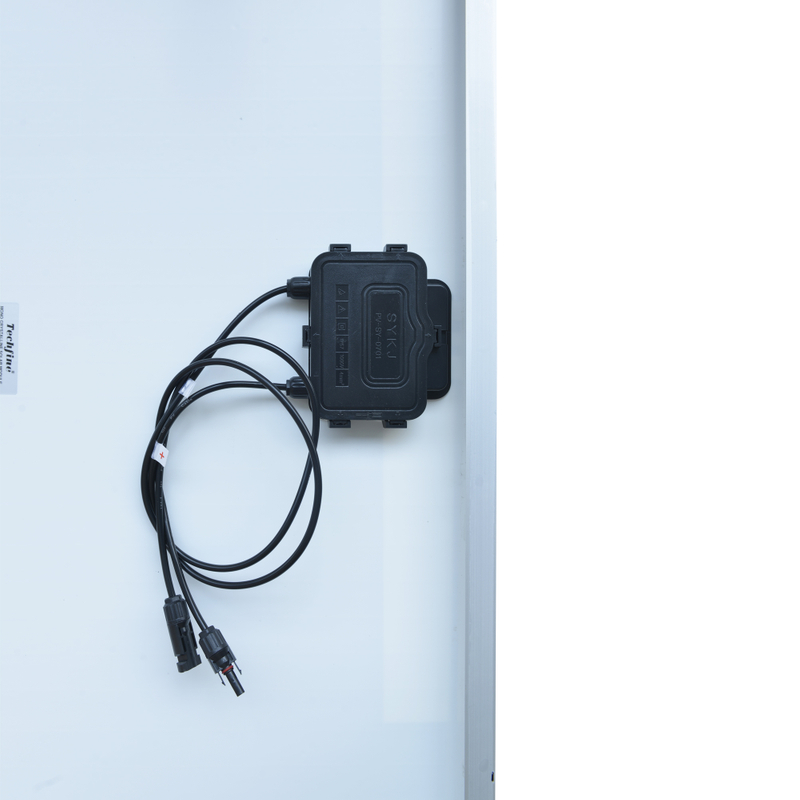

Junction Box	IP rating ≥ IP67
Cable	900mm/4mm²
Connector	MC4 or compatible
