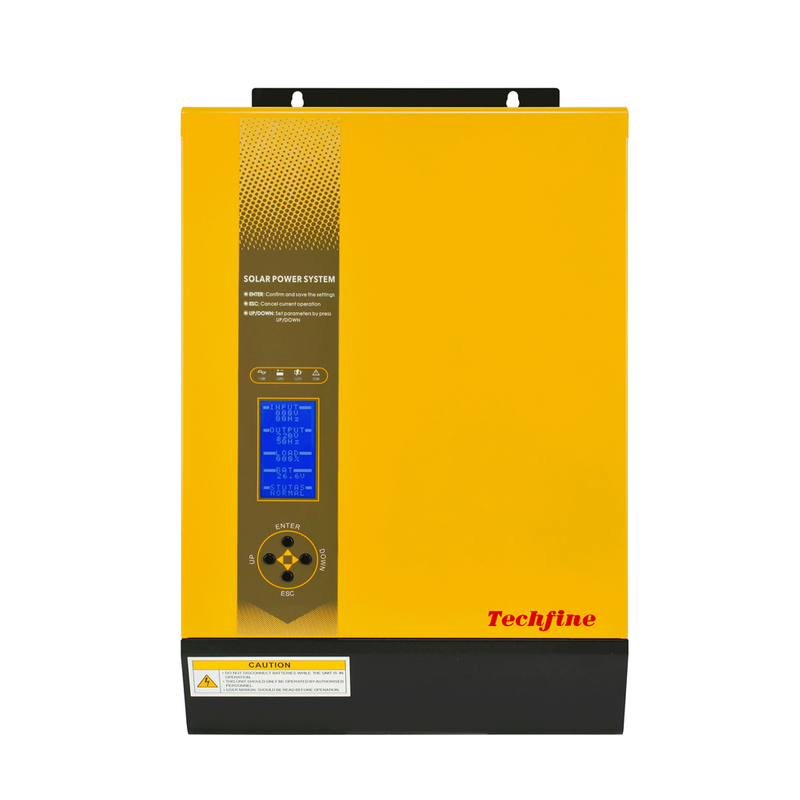

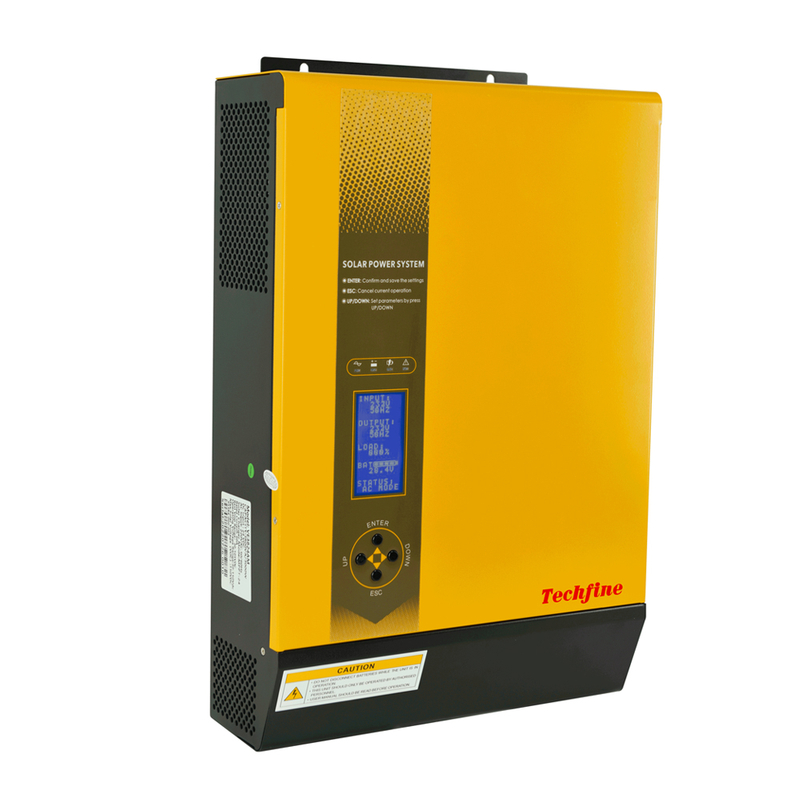

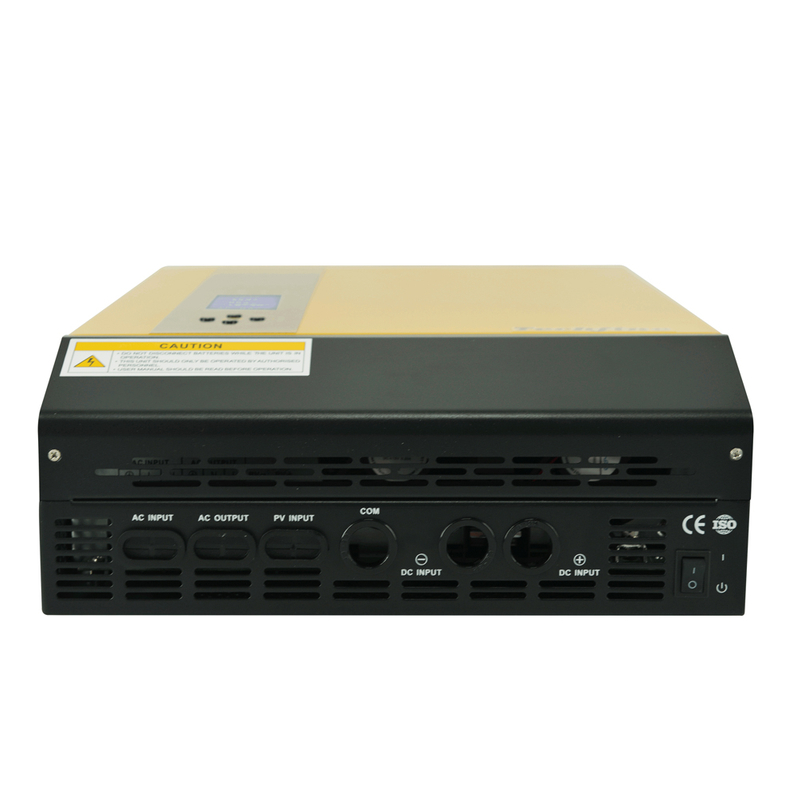

Techfine Hybrid Single Phase 2000kva 1800w Solar Inverter with Mppt Charge Controller

Name: Techfine Hybrid Single Phase 2000kva 1800w Solar Inverter with Mppt Charge Controller
Brand: Techfine
Rating: 5.0 (87 reviews)

Minimum order quantity (MOQ) ≥5 Pieces;
Samples can be sent for testing;

Pure sine wave output

Can support WIFI / GPRS

MPPT efficiency max 98%

Optional built-in MPPT/PWM30- 60A controller

DC start & automatic self-diagnostic fuction

Automatically send signal to start generator

High efficiency design for optimized battery performance

Selectable charging current based on applications

AC start-up voltage auto restart voltage

lead acid battery/lithium battery

Model	VE1012	VE1512	VE2024	VE3024	VE5024
Capacity(VA)	1000VA	1500VA	2000VA	3000VA	5000VA
Input Voltage(DC)	12V	12V	24V	24V	24V
Nominal Voltage	220VAC
Voltage Range	154-265VAC (AC Model);185-264VAC±3V(UPS Model)
Frequency	50-60HZ Auto sensing
Power Factor	0.8
Rated Power	800W	1200W	1600W	2400W	4000W
Voltage	220VAC
Frequency	50/60HZ
Waveform	Pure Sine Wave
Transfer Time (DC to AC)	<8ms
Transfer Time (AC to DC)	<8ms
Output Voltage Regulation	土10%
Bypass Mode	Yes
Saver Mode	Yes
Efficiency	>98%
Input Protection	Circuit Breaker
Output Protection	Circuit Breaker
Battery Type	AGM-Deep Cycle ,Gel/Up to 500Ah
Charging Current	25A	30A	28A	40A	65A
Low Level disconnect (Selectable)	10V or 10.5V		20V or 21V
PWM(Optional) controller Voltage	15VDC-30VDC		30VDC-60VDC
MPPT(Optional) controller Voltage	15VDC-150VDC				30VDC-150VDC
Maximum PV array open circuit voltage	800W		1600W		3200W
Maximum solar charge current	PWM:30VDC, MPPT:150VDC				PWM:60VDC, MPPT:150VDC
Protections	60A
LCD indicator status	Over load, over temp, over charging, battery low, battery reverse connect, high AC voltage etc.
LED indicator status	AC input voltage, AC input frequency, PV voltage, PV current , Output Voltage, Output Frequency, Battery
LOW battery alarm	Audible alarm-5 seconds beeping
Overload alarm	Audible alarm- continuous beeping
Fault	Audible alarm- continuous beeping
Temperature	0-40℃
Humidity	-10℃~90℃ Non condensing
Accoustic Noise(db)	>55dB
Size LWH(mm)	470335210MM
Weight (kg)	13	14.5	17	19.5	25.3
