Techfine High Frequency 5.5KW/5.5KVA Solar Inverter Off-Grid 100A MPPT High Pv Support 9 unit Parallel

Share to:

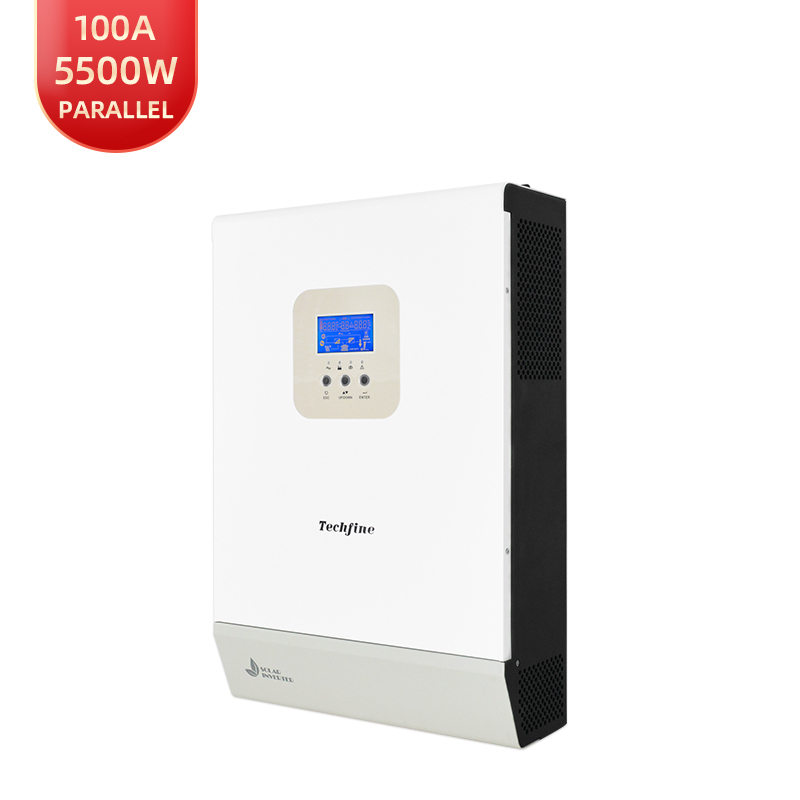

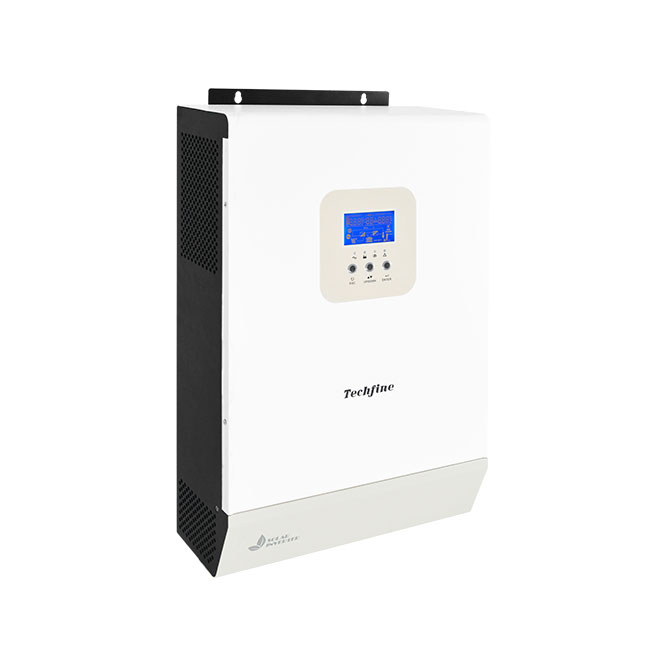

Techfine High Frequency 5.5KW/5.5KVA Solar Inverter Off-Grid 100A MPPT High Pv Support 9 unit Parallel

Name: Techfine High Frequency 5.5KW/5.5KVA Solar Inverter Off-Grid 100A MPPT High Pv Support 9 unit Parallel
Brand: Techfine
Rating: 5.0 (98 reviews)

Tips:
Samples can be sent for testing;
Minimum order quantity (MOQ) ≥5 Pieces;
Feature:
PF1.0, High Efficiency

Lower Consumption

Energy Conservation

Environmental Protection

Electricity Saving

Cost Saving

Availability:



Inquiry

Model:
GA
Brand:
Techfine
Code:
GA5548MHB

Features：

Lithium Battery Auto-restart Function, More Convenient for Lithium Battery Charging
Utility Charging Voltage/PV Charging Voltage Adjustable, Match Different Battery Charging Requirements
Battery Reverse Connection Protection with Fuse Switch, Safer Installation
Support Working without Battery: Reduce Solar System Cost
High Precision of Output Voltage,±5%, Take Care of Your Appliances
Intelligent Power Supply Mode, Intelligent Distribution of Solar Panel/Mains/Battery Power Shares
Slim Body, Convenient Installation And Transportation
Parallel Function Up to Maximum 9 Units: Enlarge More Loads
Communication Option: External WIFI, Supervise at Any Time

Applications:

100A MPPT High Frequency Solar Inverter Home Used High Frequency Solar Inverter Residential High Frequency Solar Inverter Techfine High Frequency Solar Inverter Off Grid High Frequency Solar Inverter High PV High Frequency Solar Inverter 5.5KVA High Frequency Solar Inverter 5.5KW High Frequency Solar Inverter Solar Inverter Support 9 Unit Parallel Electricity Saving Solar Inverter

GA series High frequency inverter data sheet
Model		GA3024MH	GA5048MH
Input	Phase	L+N+PE
	Nominal Voltage	208/220/230/240VAC
	Voltage Range	154-264VAC±3V（Normal Mode) 185-264VAC±3V（UPS Mode）
	Frequency Range	50Hz/60Hz(Adaptive)
Output	Rated Power	3000W	5000W
	Output Voltage(AC)	208/220/230/240VAC±5%
	Output Frequency	50/60Hz±0.1%
	Waveform	Pure sine wave
	Transfer Time( Optional)	10ms for computer , 20ms for home appliances
	Peak power	6000VA	10000VA
	Overload	Battery Mode：
		1min@102%~110% Load
		10s@110%~130% Load
		3s@130%~150% Load
		200ms@>150% Load
	Peak efficiency (battery mode)	>94%	>94%
Battery	Rated voltage	24Vdc	48Vdc
	Constant voltage charging voltage (Optional)	28.2Vdc	56.4Vdc
	Floating charge voltage (Optional)	27Vdc	54Vdc
charger	PV charging method	MPPT	MPPT
	PV max input power	3500W	5500W
	MPPT tracking range	120~430Vdc	120~430Vdc
	Max PV input voltage	450Vdc	450Vdc
	Max PV charging current	60A	80A
	Max AC charging current	60A	80A
	Max charging current	60A	80A

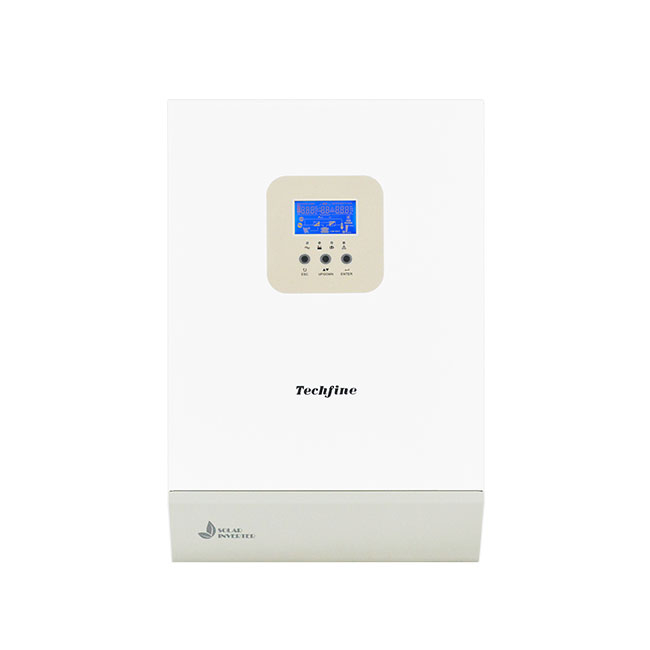

Display	LCD display	Operating mode/load/input/output, etc.

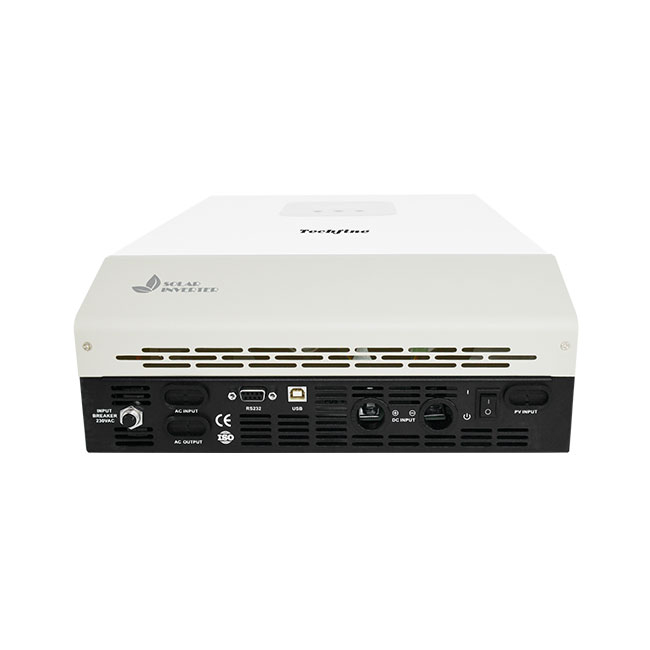

Communication port	RS232	5PIN/Pitch2.0mm, baud rate 2400
	Expansion & configuration port	2×5PIN/Pitch2.54mm, lithium battery BMS communication card,
		WIFI card, dry contact card, etc.
	Parallel interface	No	Yes
Environmental parameters	Operating environment temperature	0~40℃
	Operating environment humidity	20%~95%（Non condensing）
	Storage temperature	-15~60℃
	Altitude	The altitude should not exceed 1000m, derating above 1000m, up to 4000m, refer to IEC62040
	noise	≤50db
Certifications		EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1

GA series High frequency inverter data sheet
Model		GA3024MH	GA5048MH
Input	Phase	L+N+PE
	Nominal Voltage	208/220/230/240VAC
	Voltage Range	154-264VAC±3V（Normal Mode) 185-264VAC±3V（UPS Mode）
	Frequency Range	50Hz/60Hz(Adaptive)
Output	Rated Power	3000W	5000W
	Output Voltage(AC)	208/220/230/240VAC±5%
	Output Frequency	50/60Hz±0.1%
	Waveform	Pure sine wave
	Transfer Time( Optional)	10ms for computer , 20ms for home appliances
	Peak power	6000VA	10000VA
	Overload	Battery Mode：
		1min@102%~110% Load
		10s@110%~130% Load
		3s@130%~150% Load
		200ms@>150% Load
	Peak efficiency (battery mode)	>94%	>94%
Battery	Rated voltage	24Vdc	48Vdc
	Constant voltage charging voltage (Optional)	28.2Vdc	56.4Vdc
	Floating charge voltage (Optional)	27Vdc	54Vdc
charger	PV charging method	MPPT	MPPT
	PV max input power	3500W	5500W
	MPPT tracking range	120~430Vdc	120~430Vdc
	Max PV input voltage	450Vdc	450Vdc
	Max PV charging current	60A	80A
	Max AC charging current	60A	80A
	Max charging current	60A	80A
Display	LCD display	Operating mode/load/input/output, etc.
Communication port	RS232	5PIN/Pitch2.0mm, baud rate 2400
	Expansion & configuration port	2×5PIN/Pitch2.54mm, lithium battery BMS communication card,
		WIFI card, dry contact card, etc.
	Parallel interface	No	Yes
Environmental parameters	Operating environment temperature	0~40℃
	Operating environment humidity	20%~95%（Non condensing）
	Storage temperature	-15~60℃
	Altitude	The altitude should not exceed 1000m, derating above 1000m, up to 4000m, refer to IEC62040
	noise	≤50db
Certifications		EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
