GA
Techfine

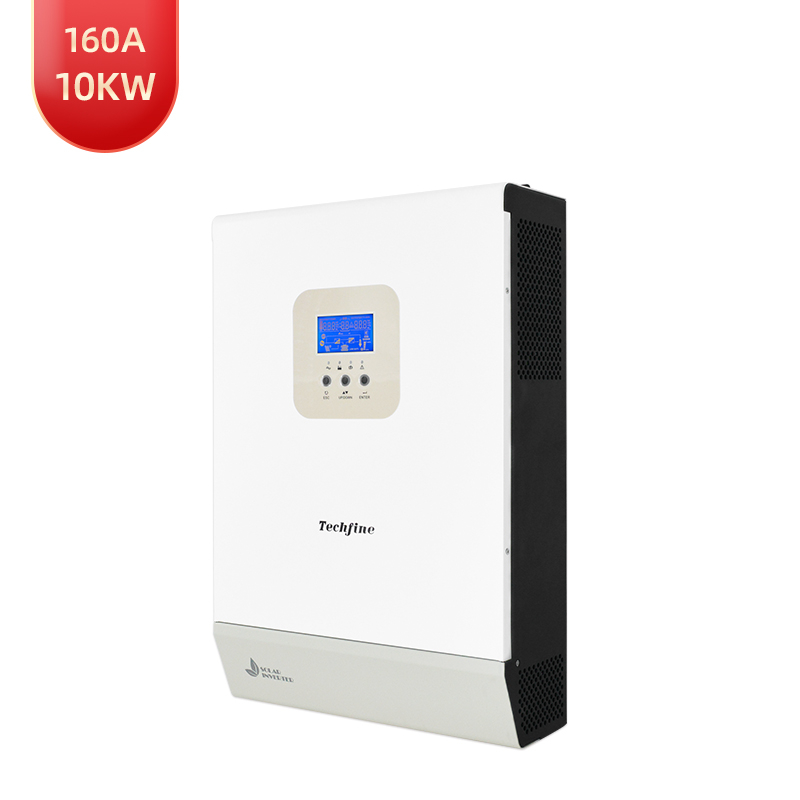

GA10048MH
Features：
Lithium Battery Auto-restart Function, More Convenient for Lithium Battery Charging
Utility Charging Voltage/PV Charging Voltage Adjustable, Match Different Battery Charging Requirements
Battery Reverse Connection Protection with Fuse Switch, Safer Installation
Support Working without Battery: Reduce Solar System Cost
High Precision of Output Voltage,±5%, Take Care of Your Appliances
Intelligent Power Supply Mode, Intelligent Distribution of Solar Panel/Mains/Battery Power Shares
Slim Body, Convenient Installation And Transportation
PF1.0, High Efficiency, Lower Consumption,Energy Conservation/Environmental Protection/Electricity Saving/Cost Saving
Parallel Function Up to Maximum 9 Units: Enlarge More Loads
Communication Option: External WIFI, Supervise at Any Time
| Model | GA1012P | GA2024P | GA3024MH | GA3524MH | GA5048M | GA5548MHB | GA10048MH | |
| Input Formation | L+N+PE | |||||||
| Input | AC Input | 208/220/230/240VAC | ||||||
| Input Voltage Range | 154-264VAC±3V (Normal Mode) 185-264VAC13V (UPS Mode) | |||||||
| Frequency | 50/60Hz±5%(Adaptive)§iSES | |||||||
| Rated Power | 1000W | 2000W | 3000W | 3500W | 5000W | 5500W | 10000W | |
| Output | Output Voltage | 208/220/230/240VAC ± 5% | ||||||
| Output Frequency | 50/60Hz±0.1% | |||||||
| Output Wave | Pure Sine Wave | |||||||
| Transfer Time(Adjustable) | 10ms for Computer Equipment, 20ms for Household Equipment | |||||||
| Peak Power | 2000VA | 4000VA | 6000VA | 7000VA | 10000VA | 11000VA | 20000VA | |
| Overload Ability | Battery Mode: | |||||||
| 1 min@102%-110% load | ||||||||
| 10s@110%-130% load | ||||||||
| 3s@130%-150% load | ||||||||
| 200ms@>150% load | ||||||||
| Peak Efficiency | >93% | >93% | >94% | >94% | >94% | >94% | >94% | |
| Rated Voltage | 12VDC | 24VDC | 24VDC | 24VDC | 48VDC | 48VDC | 48VDC | |
| Battery | Constant Charging Voltage (Adjustable) | 14.1VDC | 282VDC | 28.2VDC | 28.2VDC | 56.4VDC | 56.4VDC | 56.4VDC |
| Float Charging Voltage (Adjustable) | 13.5VDC | 27VDC | 27VDC | 27VDC | 54VDC | 54VDC | 54VDC | |
| Charger | PV Charging Method | PWM | PWM | MPPT | MPPT | MPPT | MPPT | Double MPPT |
| Max PV Input | 600W | 1200W | 4000W | 4000W | 5500W | 5500W | 5500W+5500W | |
| MPPT Tracking Range | N/A | N/A | 120-450VDC | 120-450VDC | 120-450VDC | 120~450Vdc | 120~450Vdc | |
| MAX PV Input Voltage | 55VDC | 80VDC | 500VDC | 500VDC | 500VDC | 500VDC | 500VDC | |
| MAX PV Charge Current | 50A | 50A | 100A | 100A | 100A | 100A | 80A+80A | |
| MAX AC Charge Cunent | 50A | 50A | 100A | 100A | 100A | 100A | 80A+80A | |
| MAX Charge Current | 100 A | 100A | 100A | 100A | 100A | 100A | 160A | |
| Display | LCD | Can display operating mode/load/input/output | ||||||
| Communication Port | RS232 | 5PIN/Pitch2.54mm, Baud Rate 2400 | ||||||
| Expansion Slot Communication Interface | 2x5PIN/Pitch2.54mm, Lithium Battery BMS Communication Card, WIFI | |||||||
| Parallel Interface | Not Support Parallel | Support Parallel | Support Parallel | Not Support Parallel | ||||
| Operating Temperature | 0°C~40°C | |||||||
| Ambient Temperature | Storage Temperature | —15°C~60°C | ||||||
| Ork Altitude | No more than 1000m, If 1000m <, Rate power will lower, MAX 4000m, Refer to IEC62040 | |||||||
| Operating Environment Humidity | 20%~95%, Non Condensing | |||||||
| Noise | <50dB | |||||||
| Dimension | L*W*H(mm) | 490*312*125mm | ||||||
| Standards and Certifications | EN-IEC 60335-1, EN-IEC 60335-2-29 | |||||||
