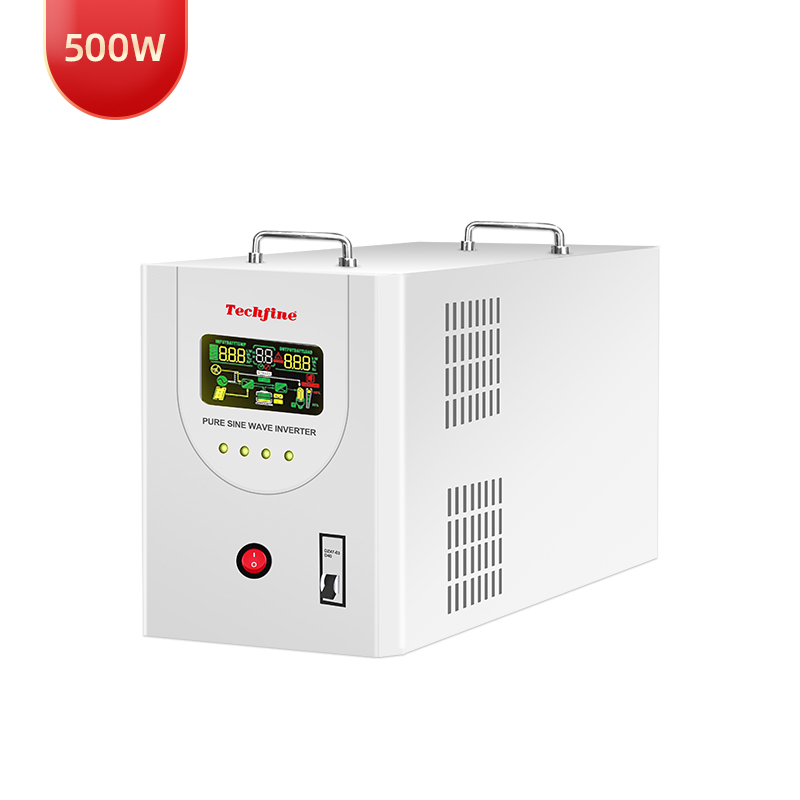

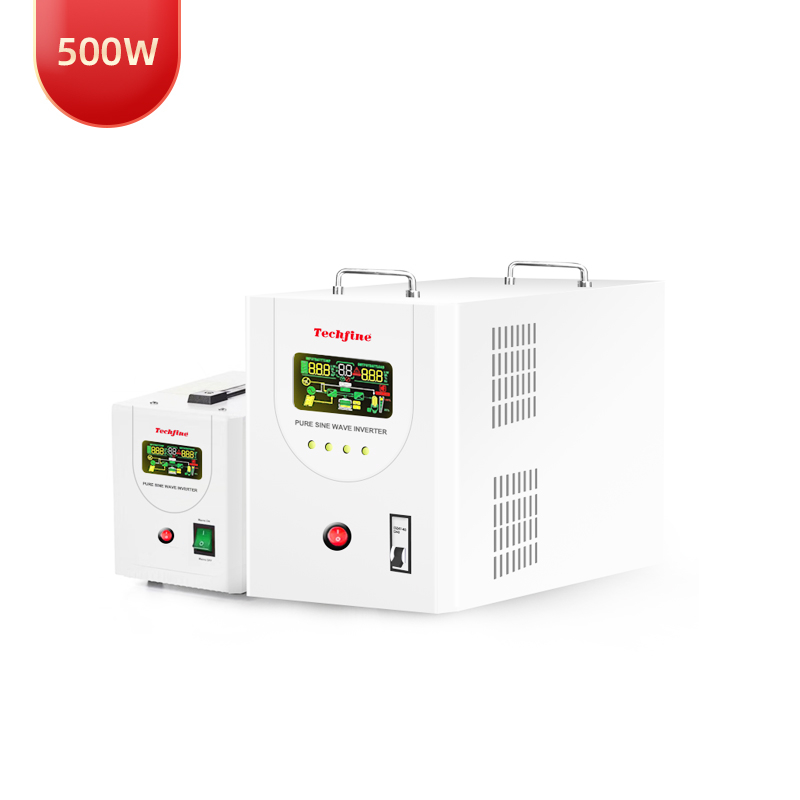

Techfine Europe Hot Selling 300W 500W 700W 500VA 800VA 1000VA 12V DC To AC Inverter 220V 230V Pure Sine Wave Invertert for Pumps UPS Factory 20Days Lead Time

Features：
Pure sine ware output
DC Start & Automatic Self-Diagnostic Function
High Efficiency Design & ”Power Saving Mode”  to Conserve Energy
Auto restart when Ac in recovering
Smart battery charger design for optimized battery performance
Selectable charging current based on applications
Auto Restart Voltage
Availability:
Inquiry

  • HB-800

  • Techfine

  • HB-800

ModelHB-500HB-800HB-1000HB-1500HB-2000HB-2500HB-3000HB-5000
Rated Capacity500VA800VA1000VA1500VA2000VA2500VA3000VA5000VA
Rated Power300W500W700W1050W1400W1800W2100W3500W
TransformerToroidal transformer
InterfaceLED graphic
Display statusworking&loading&battery
Working modePV(Photovoltaic priority)/AC(AC priority) optional
InputVoltage140-275Vac
Frequency45-65Hz
OutputVoltage220Vac±3% for inveter; 195v-240V for avr
Frequency50/60Hz ± 0.3Hz, subject to the main
Wave FormPure sine wave
Wave Distortion≤3%
Protectionoverload/high temperature/output high voltage /output low voltage/
battery low voltage shortcircuit/over-charge/over-discharge/reversed polarity(optional)
Transfer Time≤4ms
Battery Voltage12VDC12VDC12VDC24VDC24VDC24VDC48VDC48VDC
Charge Voltage13.6V±0.3V13.6V±0.3V13.6V±0.3V27.2V±0.6V27.2V±0.6V27.2V±0.6V54.5V±1V54.5V±1V
Low Battery Voltage Limit10.9V±0.3V10.9V±0.3V10.9V±0.3V21.8V±0.5V21.8V±0.5V21.8V±0.5V42V±1V42V±1V
Protections Battery Low Voltage Protection Point10.2V±0.3V10.2V±0.3V10.2V±0.3V20.5V+0.5V20.5V+0.5V20.5V+0.5V41V±1V41V±1V
Charge CurrentMax.10A/15A/20A optional
EnvironmentalOperating Temperature0~40℃
Relative Humidity10%~90%RH,non-condensing
Storage Temperature-15-45℃
PackingMachine Size(mm)230x145x180337x146x170355x220x250
Qty/Ctn44221111
Carton Size(mm)785x305x240415x410x245410x290x320
CartonG.W.(kg)222617.219.1410x290x321
