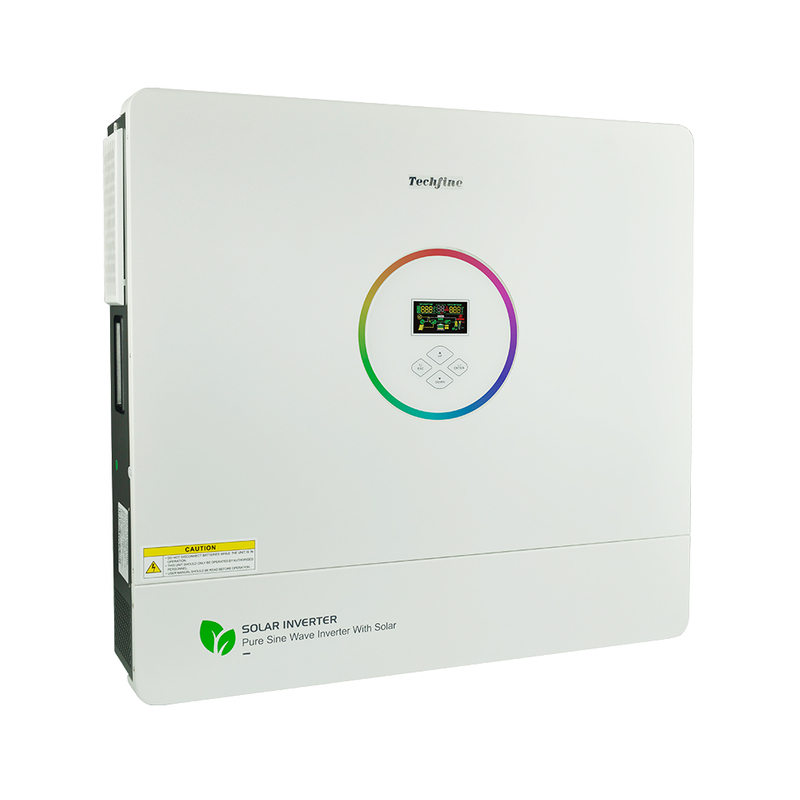

| Model | BA10048MH |
| Rated Power | 10000W |
| Peak Power | 20000VA |
| Input |
|
| Input Formation | L+N+PE |
| Input Voltage | 220VAC |
| Input Voltage Range | 185-264VAC±3V ( UPS mode) |
| Frequency | 50/60Hz±0.1% |
| Output |
|
| Output Voltage | 208VAC / 220VAC / 230VAC / 240VAC ±5% |
| Transfer Time | 10ms For Computer Equipment,
20ms For Household Equipment |
| Overload Ability (Battery Mode) | 1min@102%~110% Load
10s@110%~130% Load
3s@130%~150% Load 20 |
| Peak Efficiency (Battery Mode) | > 94% |
| Output Wave | Pure Sine Wave |
| Battery |
|
| Rated Voltage | 48Vdc |
| Constant Charging Voltage(Adjustable) | 56.4Vdc |
| Float Charging Voltage (Adjustable) | 54Vdc |
| Charge |
|
| Charging Method | Dual MPPT |
| MAX PV Input Power | 5500W+5500W |
| MAX PV Input Voltage | 500Vdc |
| MAX PV Charge Current | 100A+100A |
| MAX AC Charge Current | 100A+100A |
| MAX Charge Current | 100A+100A |
| MPPT Tracking Range | 120~450Vdc |
| Best Vmp Working Range | 370~340VdC |

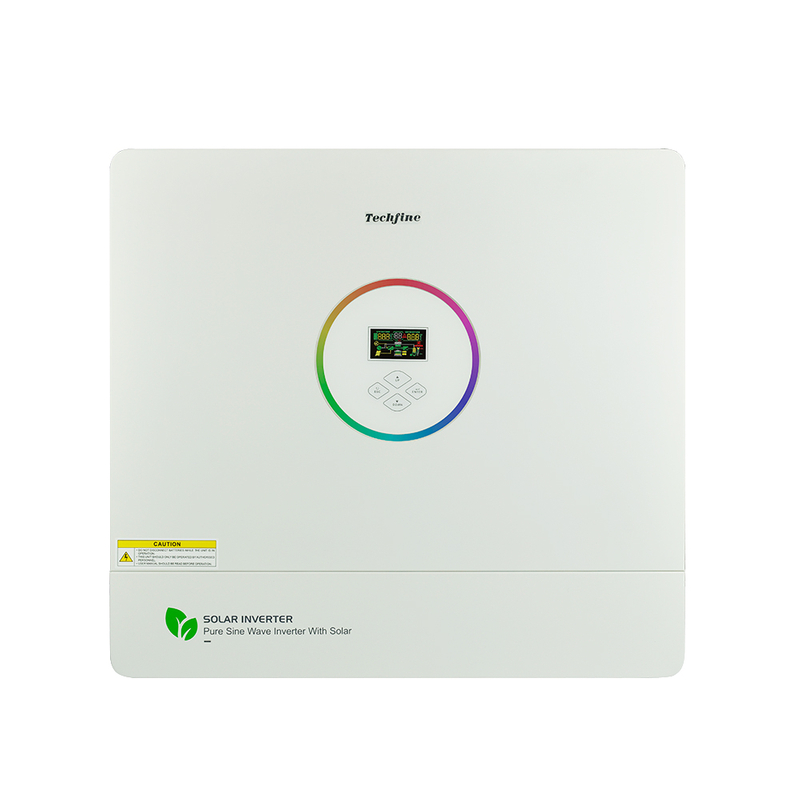

| Display |
|
| LCD | Can display operating mode/load/in put/output |

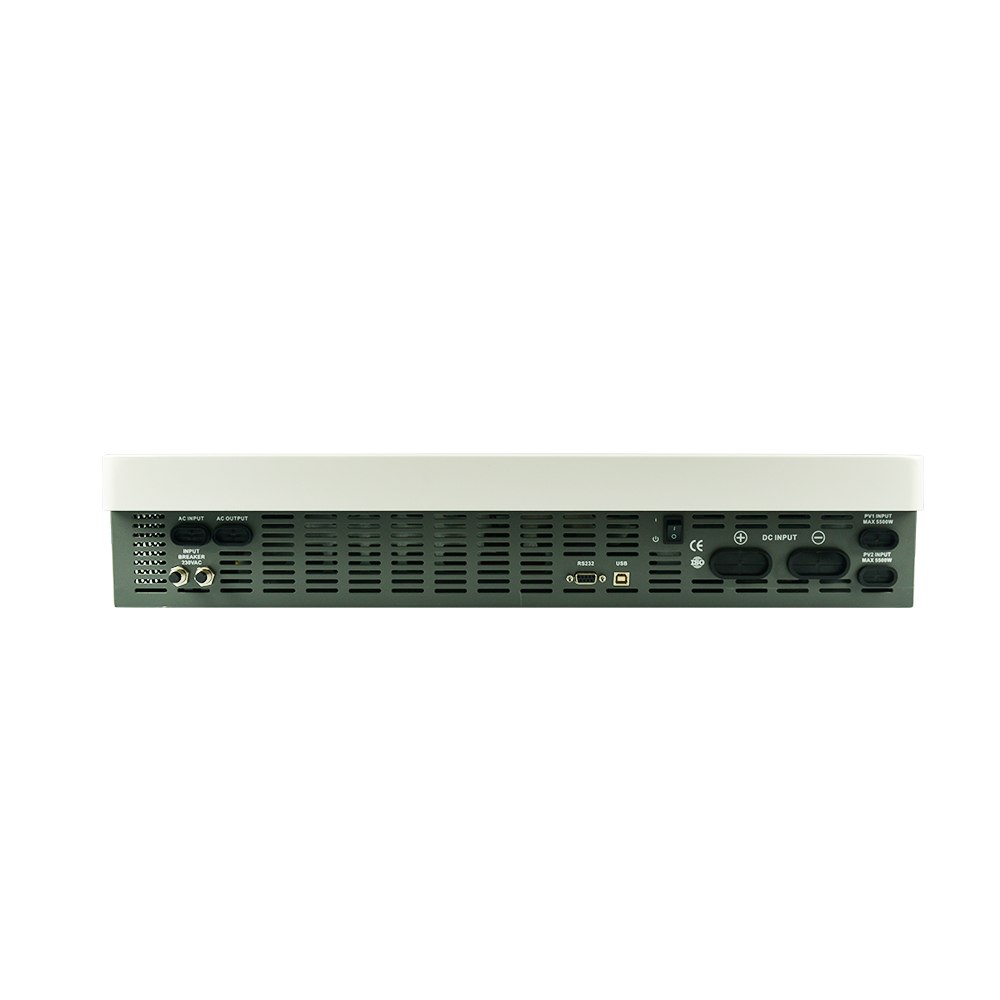

| Communication Port |
|
| R232 | 5PIN / Pitch2.0mm, Baud Rate2400 |
| Expansion Slot | 2X5 PIN / Pitch2.54mm;Lithium Battery BMS Communication Card, WIFI Card, 2x5PIN/Pitch2.54mm |
| Parallel interface | Not Support Parallel |
| Ambient Factor |
|
| Operating Environment Humidity | 20%~95% (Non Condensing) |
| Noise | ≤ 50db |
| Storage Temperature | -15~60°C |
| Ork Altitude | No more than 1000m, If 1000m<, Rate power will lower, MAX 4000m, Refer to IEC62040 |
| Appearance |
|
| Dimension:L*W*H | Packing Dimension:565*383*188mm |
| Weight (For reference) | Net Weight: 11.56g |
| Gross Weight: 13.45kg |
| Standards |
|
| Standards and Certifications | EN-IEC 60335-1 , EN-IEC 60335-2-29 |
