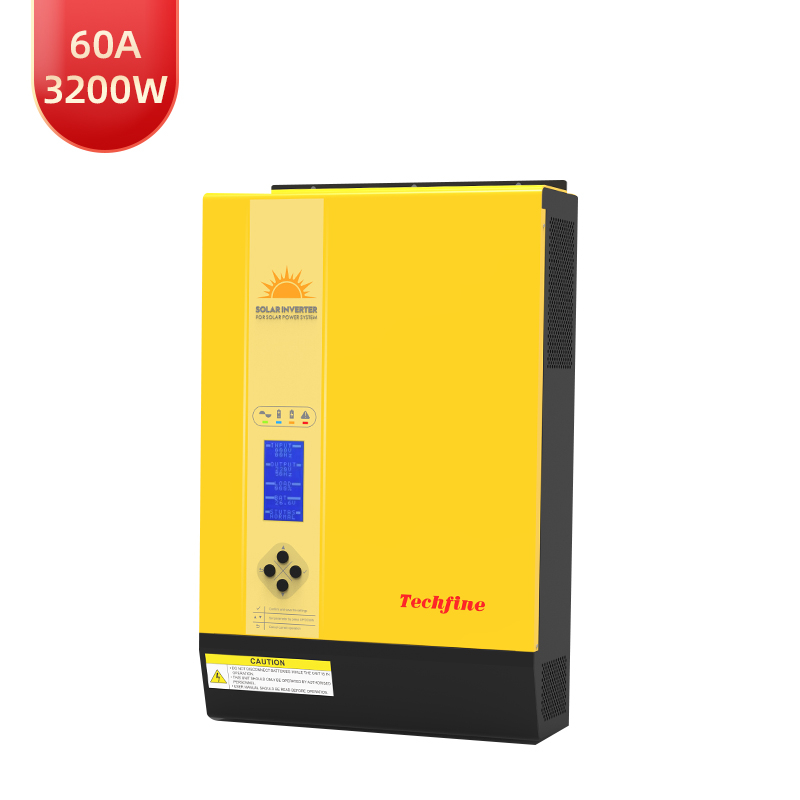

Low Frequency Single Phase 48VDC 220VAC 3200W 4KVA Solar Inverter

Tips：
Minimum order quantity（MOQ）≥5 Pieces；
Samples can be sent for testing；
Feature：
Function of adjusting parameters
Anti-high voltage and lightning protection
Availability:
Inquiry

  • VE4048

  • Techfine

Product Overview

Our Pure Sine Wave Inverter is a cutting-edge power conversion solution that guarantees stable and clean AC power output. Whether you are a residential or commercial user, our inverter is designed to meet your power quality and reliability requirements.

Key Features

  1. Pure Sine Wave Output:

  2. WIFI/GPRS Connectivity

  3. Maximum Power Point Tracking (MPPT) Efficiency up to 98%

  4. Optional MPPT/PWM Solar Charge Controller (30A-120A)

  5. DC Start and Automatic Self-Diagnostic Function

  6. Automatic Signal to Start Generator

  7. High Efficiency Design for Optimized Battery Performance

  8. Selectable Charging Current for Versatile Applications

  9. AC Start-up Voltage Auto Restart Function

Application scenario


43    41


38    39


40    42


ModelVE1012VE1512VE2024VE3024VE5024
Capacity(VA)1000VA1500VA2000VA3000VA5000VA
Input   Voltage(DC)12V12V24V24V24V
Nominal   Voltage220VAC
Voltage Range154-265VAC (AC   Model);185-264VAC±3V(UPS Model)
Frequency50-60HZ Auto sensing
Power Factor0.8
Rated Power800W1200W1600W2400W4000W
Voltage220VAC
Frequency50/60HZ
WaveformPure Sine Wave
Transfer Time   (DC to AC)<8ms
Transfer Time   (AC to DC)<8ms
Output Voltage   Regulation土10%
Bypass ModeYes
Saver ModeYes
Efficiency>98%
Input   ProtectionCircuit Breaker
Output   ProtectionCircuit Breaker
Battery TypeAGM-Deep Cycle ,Gel/Up to   500Ah
Charging   Current25A30A28A40A65A
Low Level   disconnect (Selectable)10V or 10.5V20V or 21V
PWM(Optional)   controller  Voltage15VDC-30VDC30VDC-60VDC
MPPT(Optional)   controller  Voltage15VDC-150VDC30VDC-150VDC
Maximum PV   array open circuit voltage800W1600W3200W
Maximum solar   charge currentPWM:30VDC, MPPT:150VDCPWM:60VDC,   MPPT:150VDC
Protections60A
LCD indicator   statusOver load, over temp, over   charging, battery low, battery reverse connect, high AC voltage etc.
LED indicator   statusAC input voltage, AC input   frequency, PV voltage, PV current , Output Voltage, Output Frequency, Battery
LOW battery   alarmAudible alarm-5 seconds   beeping
Overload alarmAudible alarm- continuous   beeping
FaultAudible alarm- continuous   beeping
Temperature0-40℃
Humidity-10℃~90℃ Non condensing
Accoustic   Noise(db)>55dB
Size L*W*H(mm)470*335*210MM
Weight (kg)1314.51719.525.3
