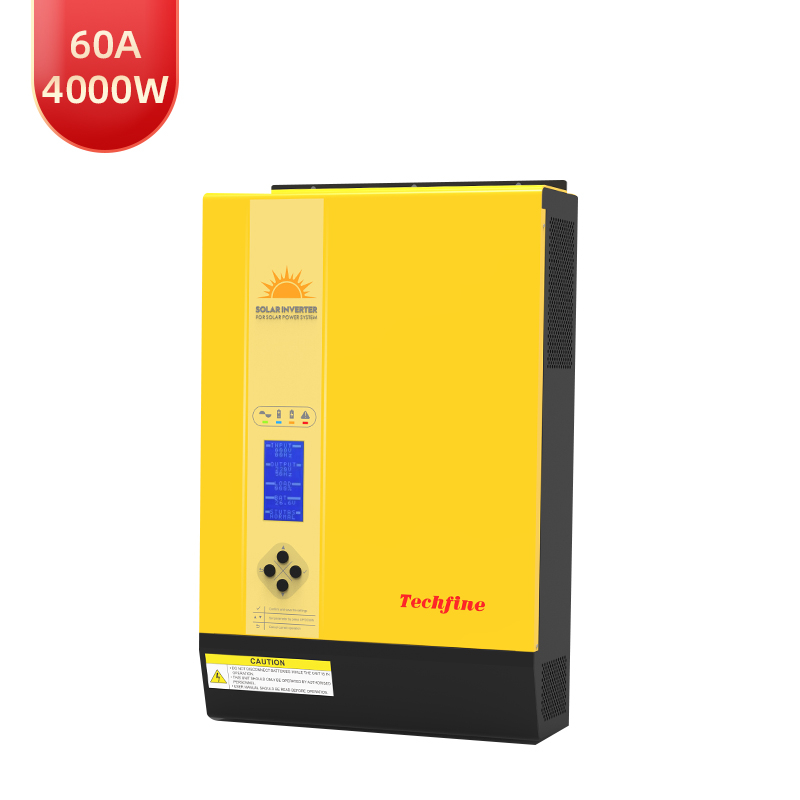

Low Frequency 5KVA/4KW 4000W 24VDC 220VAC 4000W 5KVA built in 60A MPPT Solar inverter

Samples can be sent for testing;
Minimum order quantity (MOQ) ≥5 Pieces;
  • VE

  • Techfine

  • VE5024M


  • Pure sine wave output


  • MPPT Efficiency max 98%

  • Optional MPPT/PWM solar charge controller 30A-120A

  • DC start & automatic self-diagnostic fuction

  • Automatically send signal to start generator

  • High efficiency design for optimized battery performance

  • Selectable charging current based on applications

  • AC Start-up Voltage Auto Restart Voltage

  • Lead acid battery /Lithium battery


43    41

38    39

40    42

AC input voltage220VAC(standard)
Input voltage range154-264VAC13V (Nor Model) 18S-264VACt3V (UPS model) 175-28SVACt3V(AVR Type)
Input frequency50/60Hz±5%
Out put power800W1200W1600W2400W4000W
AC model output voltageThe output voltage under the mains is the same as the input voltage (with AVR function 220V±10%)
AC model outout frequencyThe output frequency under the mains is the same as the input frequency
Battery model output voltage220VAC±10%
Battery model output frequency50HZ or 60HZ±1%
Battery model output wavePure sine wave
Battery typeExternal lead-acid battery, Gel battery, water battery or Uthium battery
Battery voltage12/24VDC24/4SVDC24/4SVDC24/48VDC24/48VDC
Battery charging voltage13.75/27VDC27/54VDC27/54VDC27/54VDC27/54VDC
Maximum PV array power12V: 800W 24V: 1600V 48V: 3200W
Solar input voltage range12V: MPPT 15V-150VDC / PWM 15V-30VDC
24V: MPPT 30V-150VDC / PWM 30V-60VDC
48V: MPPT 60V-150VDC / PWM 60V-105VDC
Maximum PV Display Open Circuit Voltage12V: MPPT 150VDC / PWM 30VDC
24V: MPPT 150VDC / PWM 60VDC
Maximum solar charging current60A
Maximum AC Charge Current15A/8A30A/15A40A/20A30A/15A42A/21A
Battery charging voltage range154-280VAC
Transfer time≤10ms(UPS model)/ ≤20ms (INV model)
Load peak ratio(MAX)3:1
Protective functionUnder the mains: input overcurrent fuse
Under inverter overload protection, short circuit protection, low voltage protection, (with battery anti-reverse connection board)
Status DisplayYou can view parameters such as AC voltage, AC frequency, PV voltage PV current, output voftage, output frequency, battery voltage, load current and other parameters by turning the page keys.
Voice promptlow battery protection buzzer long beep
Low battery buzzer beeps every second
Overload buzzer beeps
When the overload is less than 130%, the buzzer will sound every second, and the output win be turned off after 30S. When the overload is greater than 150%, the output will be turned off after 300ms.
Machine fault buzzer beeps
Operating temperature0°C~40°C
Storage temperature—15°C~45°C
Relative temperature Htfinoce—10°C~90°C no condensation
Machine size (L*W*H)mm512*320*136MM
